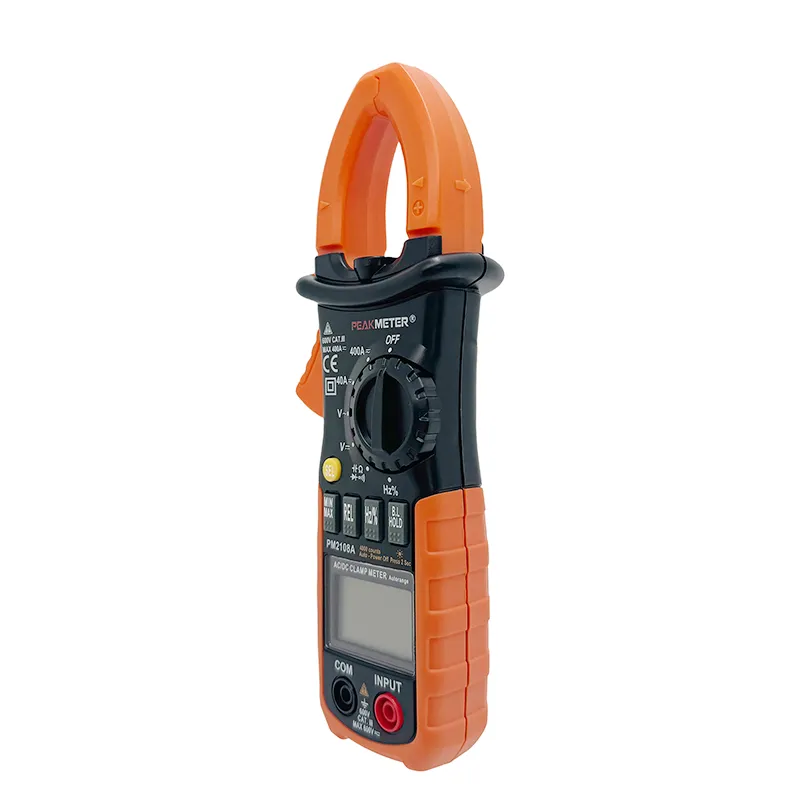

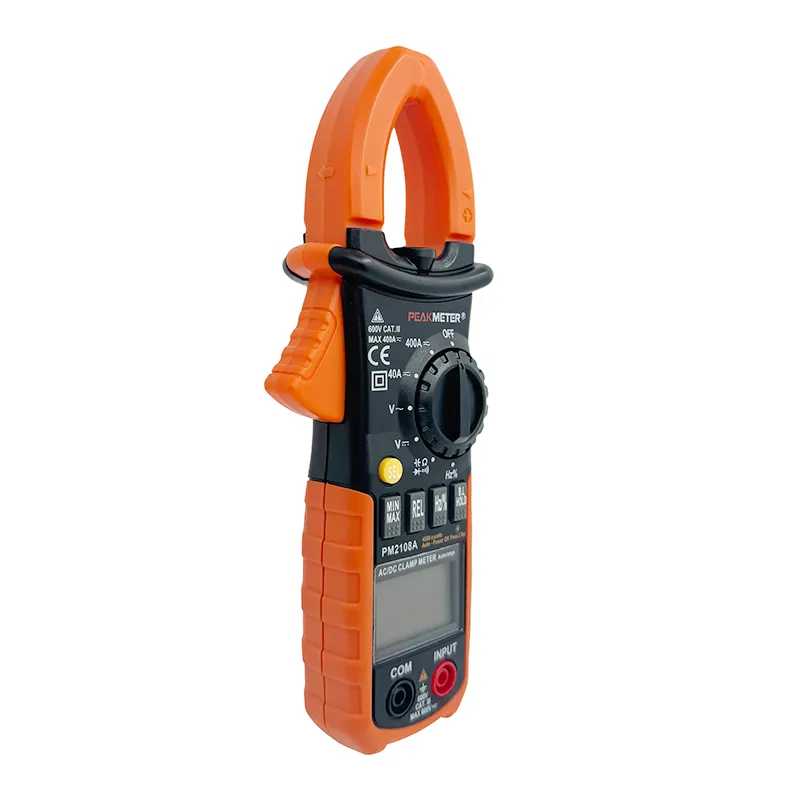

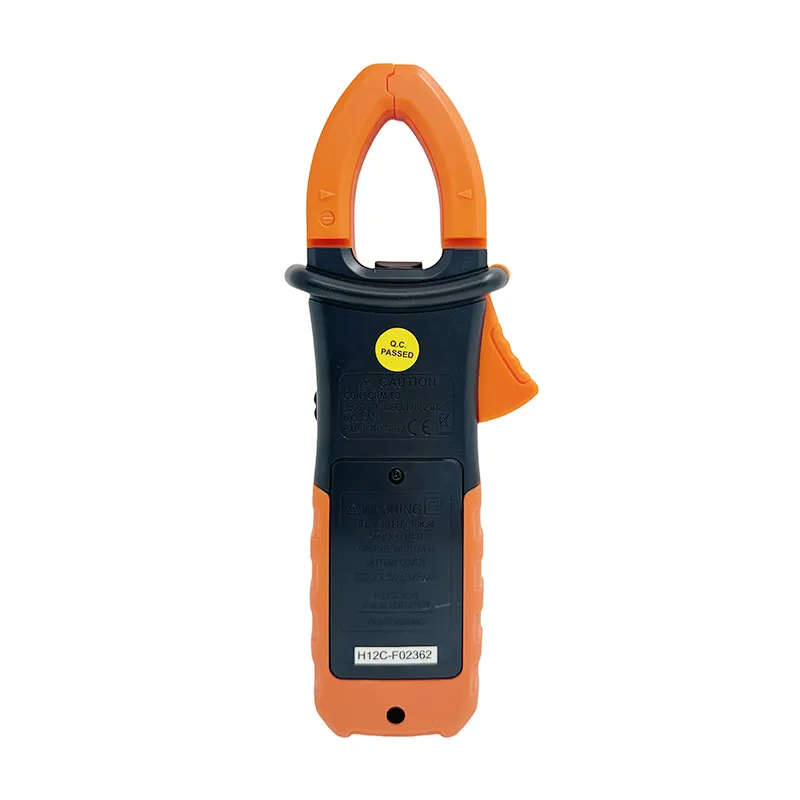

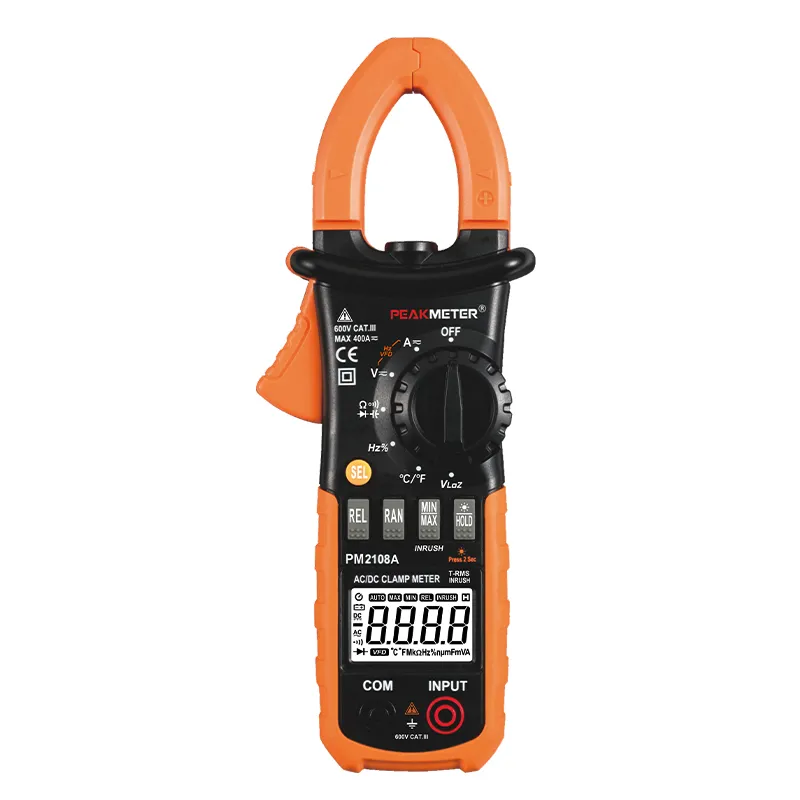

This Smart AC/DC Clamp multimeter is an innovative, which is breaking through the traditional clamp Multimeter type. It is a revolutionary product of measurement tools, which is a unique type prior to the world's major instrument manufacturers.This meter is portable professional measuring instrument with LCD and back light easily reading. The single-hand-operation design for the range switch makes measurement simple and easy.
Display: 4000 Counts
Auto And Manual Range
Inrush Current
True RMS
Data Hold
Work Light
Max/Min
Continuity
Back Light
Temperature
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 400mV | ±（1.0%+2） |
| 4V/40V/400V | ±（0.8%+3） | |
| 600V | ±（1.0%+5） | |
| AC Voltage | 4V/40V/400V | ±（0.8%+3） |
| 600V | ±（1.0%+5） | |
| AC Current | 40A/400A | ±（3.0%+6） |
| DC Current | 40A/400A | ±（3.0%+6） |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ | ±（0.8%+3） |
| 4MΩ/40MΩ | ±（1.2%+3） | |
| Capacitance | 40nF/400nF/4μF/400μF/4000μF | ±（4.0%+5） |
| Frequency | 99.99Hz/999.9Hz(Pass A） | ±（1.5%+5） |
| ＞1KHz | for reference only | |
| 99.99Hz/999.9Hz/9.999KHz（Pass V） | ±（1.5%+5） | |
| ＞10KHz | for reference only | |
| 9.999Hz/99.99Hz/999.9KHz/9.999KHz/99.99KHz/999.9KHz/9.999MHz（Pass HZ/Duty) | ±（0.5%+2） | |
| Duty | 0.1-99.9% | ±3.0% |
| FEATURE | ||
| Display | 4000 Counts | |
| Auto Range | √ | |
| Data Hold | √ | |
| Work Light | √ | |
| Max/Min | √ | |
| Continuity | √ | |
| Back Light | √ | |
| GENERAL | ||
| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 208mm×78mm×35mm | |
| Jaw Size | φ26mm | |
| Net weight | 260g(included batteries) | |
| Gross weight | 476g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 230mm×110mm×56mm | |
| Carton Size | 480mm×300mm×350mm | |
| G.W | 15.3kg | |
| Test Leads | Users Manual | 2*1.5V AAA batteries |
