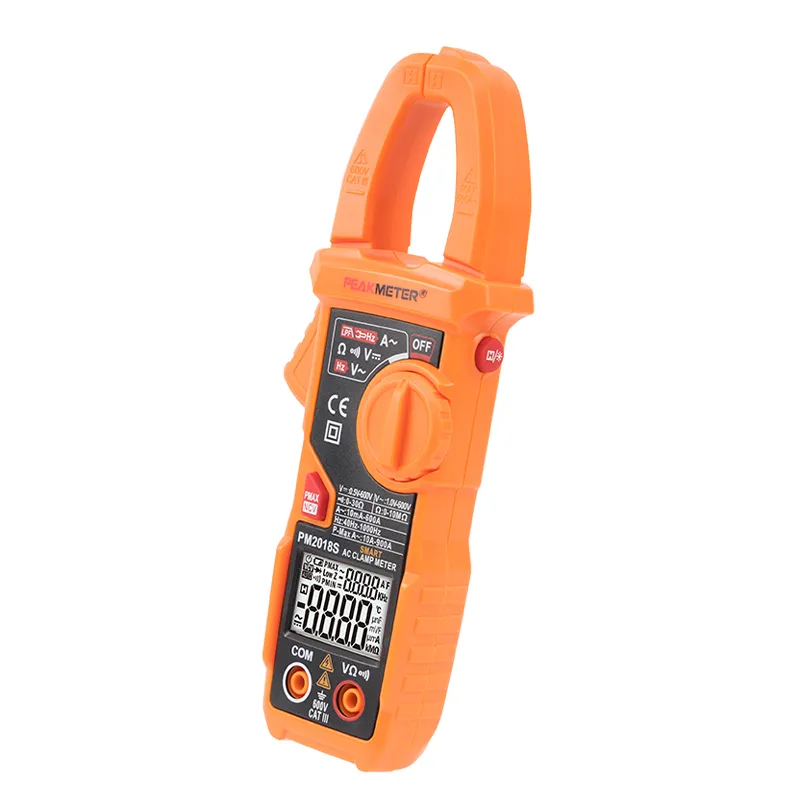

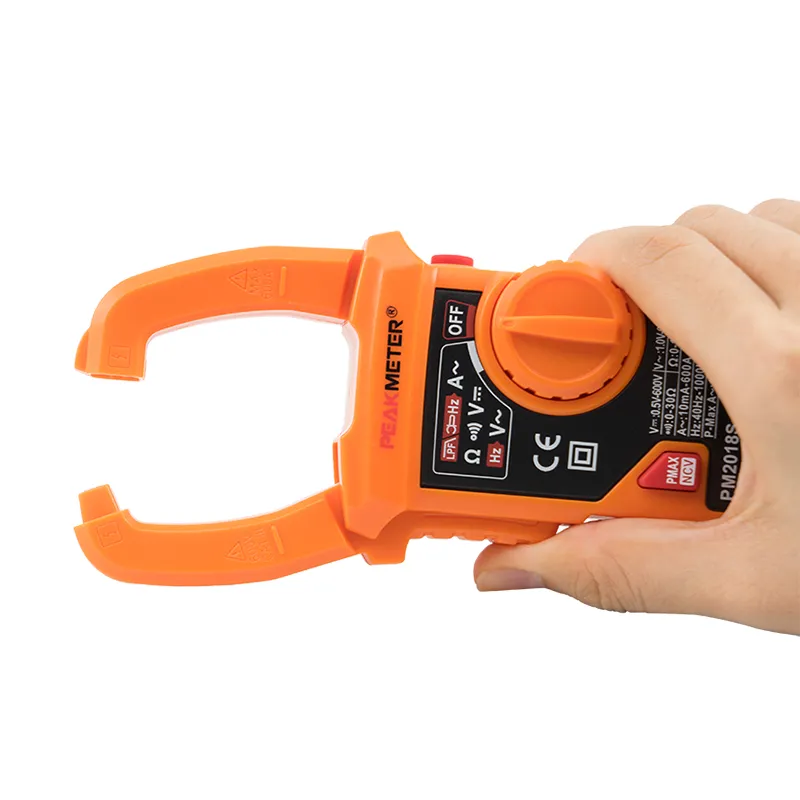

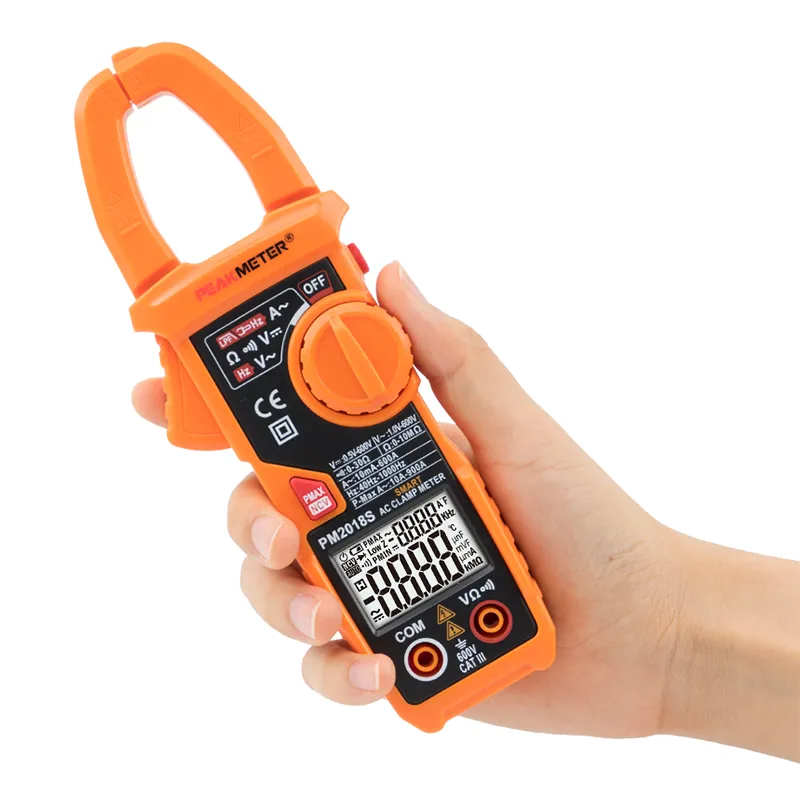

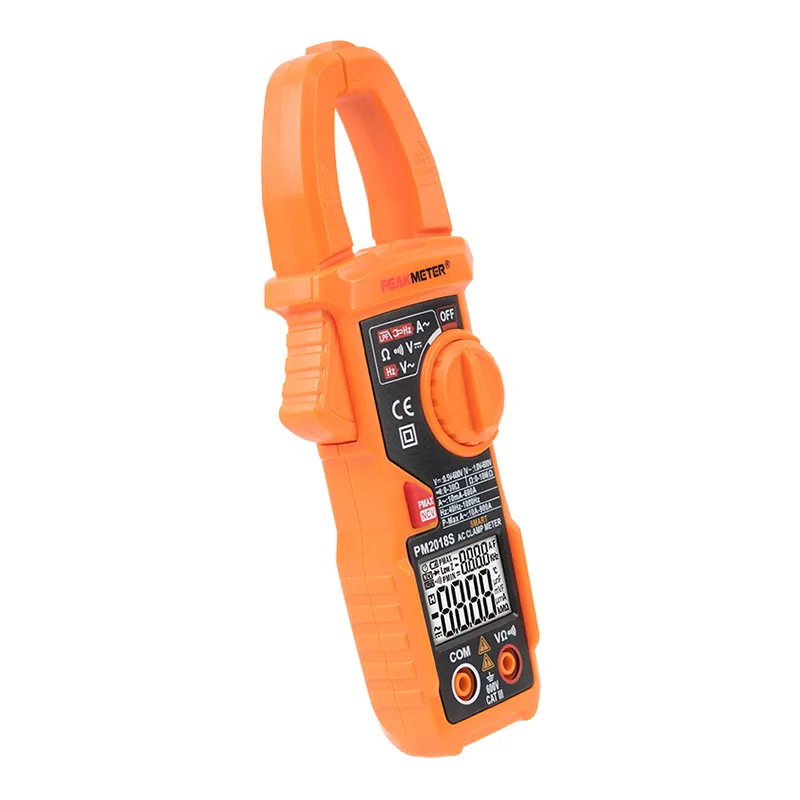

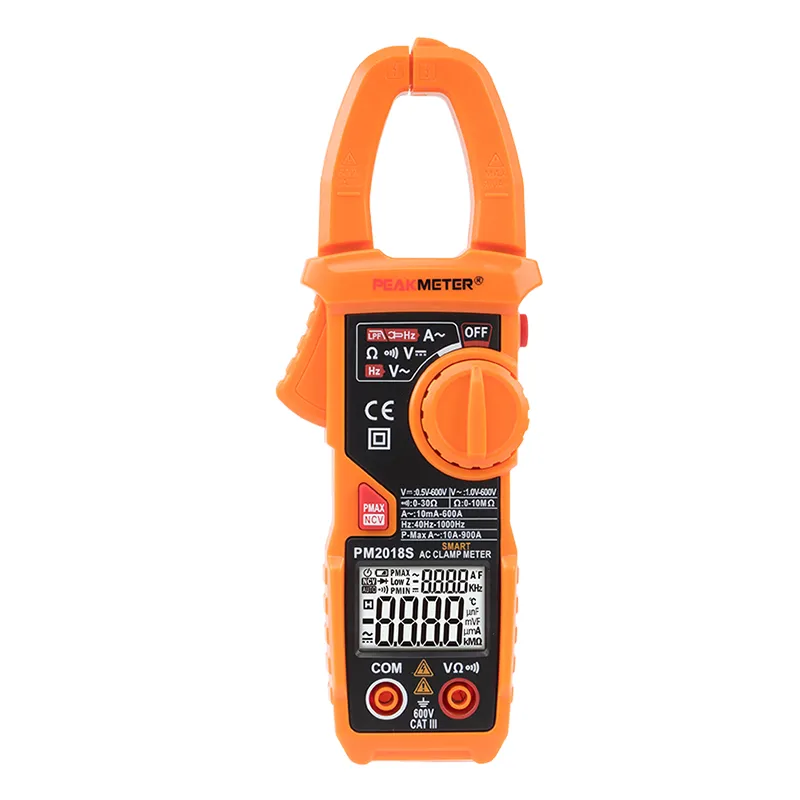

PM2018S Continuity Electrical Auto Range AC Digital Clamp Meter
PM2018S Continuity Electrical Auto Range AC Digital Clamp Meter

PM2018S Continuity Electrical Auto Range AC Digital Clamp Meter

PM2018S is a smart digital clamp meter which can work without selecting functions, it can measure Ac Current, Voltage, Resistance, Continuity automatically. Dual Display is enable to display Frequency while measuring AC Voltage ,AC current or measuring AC Current simultaneously with AC/DC Voltage and Resistance Measurement. Non Contact Voltage detector are more safe, reliable and efficient during the measuring whether the object has AC Voltage. Peak MAX can precisely capture 1MS AC Current signal, thus can be more precisely capture the Max Current of electricital equipment while it's working. Max count 6000 to provide a clear resolution for users while measuring; 600A AC current measurement meets different users for different occasions.

Contact Us
Features
Specification
Documents
Accessories & Options

Features of PM2018S Continuity Electrical Auto Range AC Digital Clamp Meter

  • Display: 6000 Counts

  • RANGE: Auto

  • Continuity

  • Resistance: 6kΩ/60kΩ/600kΩ/6MΩ/10MΩ

  • LPF(1kHz -3dB)

  • V/Ω/A Auto Scan

  • Frequency (Clamp): 1kHz

  • Frequency (Voltage): 1kHz

  • Data Hold

  • Back Light

  • NCV

  • Peak Max

  • Low Battery Indication

  • Auto Power Off

  • Dual Display


Specification of PM2018S Continuity Electrical Auto Range AC Digital Clamp Meter


SPECIFICATIONRANGEACCURACY
DC Voltage6V/60V/600V±(0.5%+3)
AC Voltage6V/60V/600V±(0.8%+5)
AC Current((40-65Hz) )6A/60A/400A±(2.5%+8)
400A~600A±(3.0%+10)
Resistance6KΩ/60KΩ/600KΩ/6MΩ/10MΩ±(0.8%+3)
Frequency40Hz~1000Hz±(1.0%+5)
PEAK ACA10~900A±(10%+10)
FEATURE
Display6000 Counts
Auto range
Continuity√<50Ω
V/Ω/A Auto Scan
Frequency(Clamp)
Frequency(Voltage)
LPF(1KHz-3dB)
Data Hold
BackLight
NCV
peak MAX
Auto Power off
Dual Display(ACV+ Freq,ACA+ Freq )
GENERAL

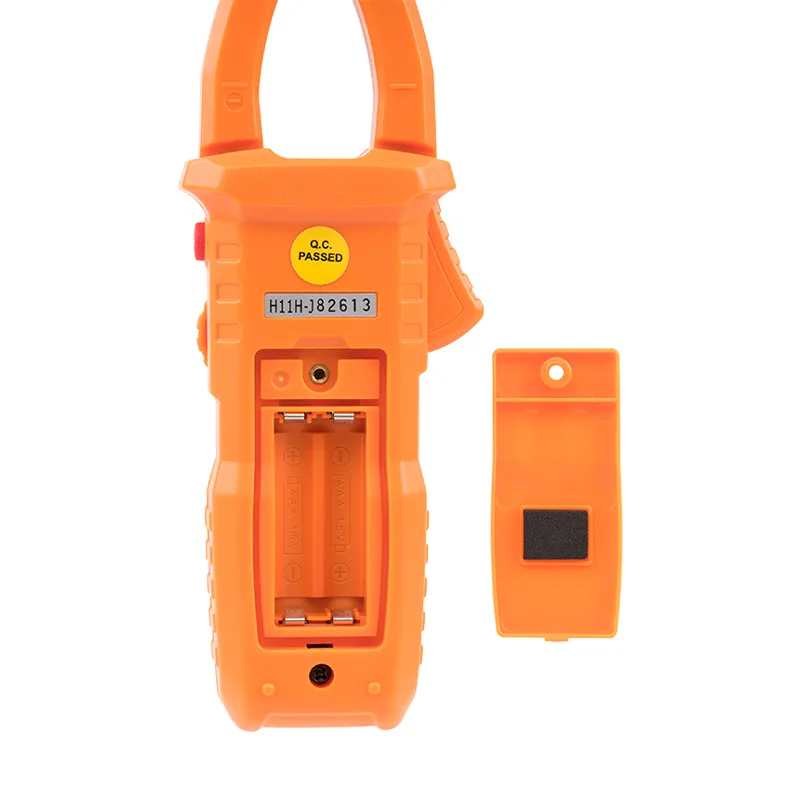

Power Supply2×1.5V AAA Batteries
Product Size189mm×64mm×34mm
Jaw Sizeφ24mm
Net weight184g(batteries are not included)
Gross weight369g
Safty RatingEN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v
Package(PCS/carton)30 pcs
Color Box Size202mm×113mm×45mm
Carton  Size425mm×250mm×360mm
G.W12kg


PM2018S User Manual English

Accessories & Options of PM2018S Continuity Electrical Auto Range AC Digital Clamp Meter


Test LeadsUsers Manual2*1.5V AAA batteries
