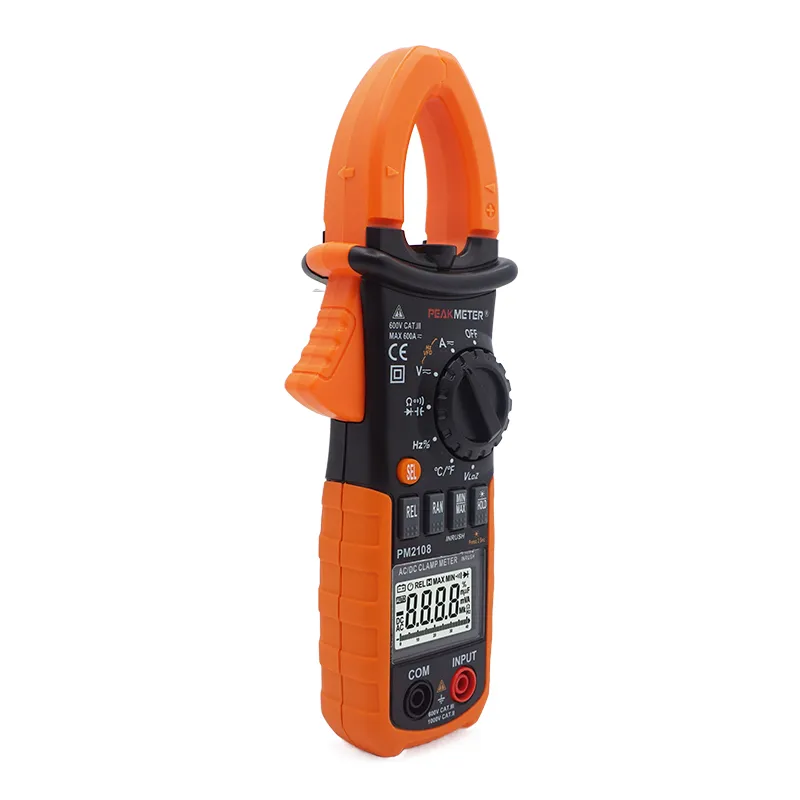

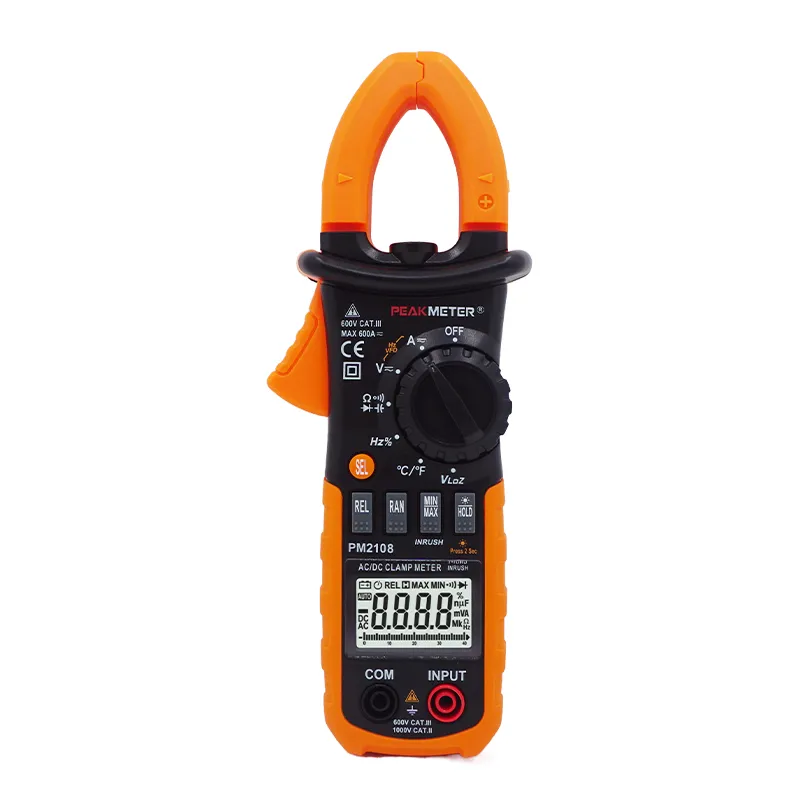

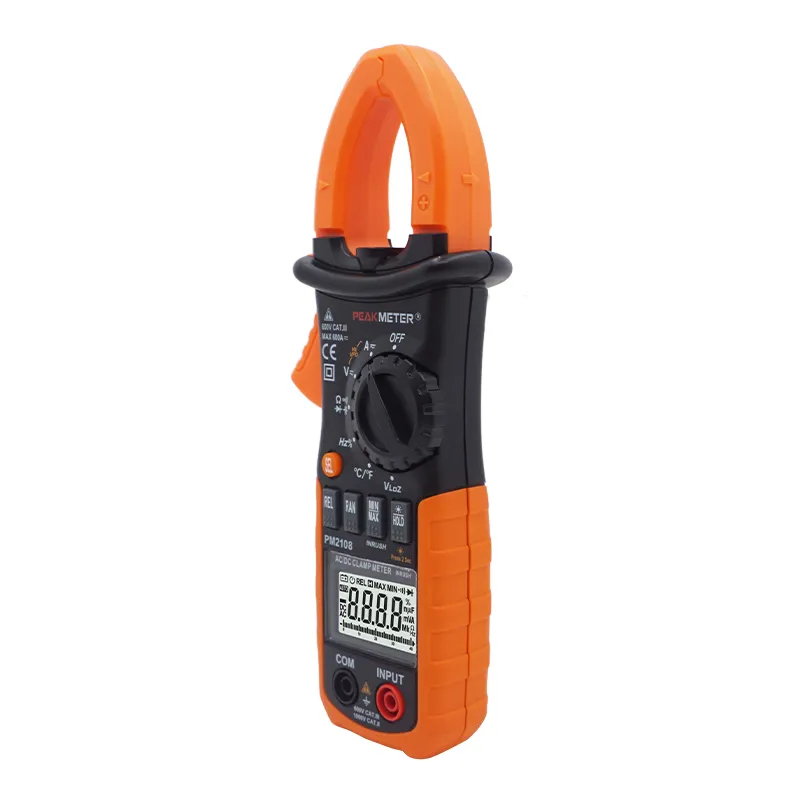

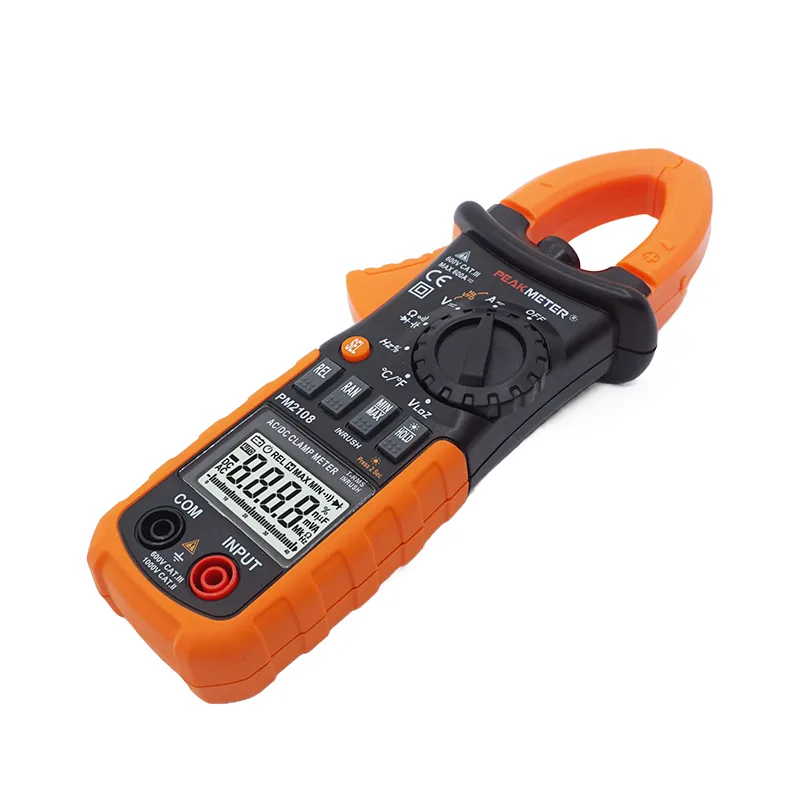

PEAKMETER PM2108 True‑RMS Clamp‑on Multimeter, 6000‑count display. It supports up to 1000V AC/DC voltage, 600A AC‑DC current, 100ms inrush‑current capture, wide‑range capacitance, 10Hz‑10MHz frequency and high‑temperature test. Equipped with auto‑manual range switch, work light and MAX/MIN function. CAT III 600V safety‑certified heavy‑duty tester for industrial electricians.
Display: 6000 Counts
Auto And Manual Range
Inrush Current
True RMS
Data Hold
Work Light
Max/Min
Continuity
Back Light
Temperature
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 660mV/6.6V/66V | ±（0.8%+3） |
| 600V | ±（1.0%+5） | |
| AC Voltage | 660mV | ±（1.5%+10） |
| 6.6V/66V | ±（1.2%+5） | |
| 600V | ±（1.5%+10） | |
| AC Current | 66A/600A | ±（3.0%+10） |
| INRUSH CURRENT（100ms) | 66A/600A | ±（10%+60）＜60A take it only as referance |
| DC Current | 66A/600A | ±（3.0%+10） |
| Resistance | 660Ω/6.6KΩ/66KΩ/660KΩ/6.6MΩ | ±（1.2%+2） |
| 66MΩ | ±（2.0%+5） | |
| Capacitance | 6.6μF/66μF/660μF/6.6mF/66mF | ±（4.0%+3） |
| ＜2μF | ±（4.0%+5） | |
| Frequency | 660Hz/1KHz(Pass A） | ±（1.5%+5） |
| ＞1KHz | for reference only | |
| 660Hz/6.6KHz/10KHz(Pass V） | ±（1.5%+5） | |
| ＞10KHz | for reference only | |
| Duty | 10-95% | ±3.0% |
| FEATURE | ||
| Display | 6600 Counts | |
| Auto And Manual Range | √ | |
| INRUSH CURRENT | √ | |
| True RMS | √ | |
| Data Hold | √ | |
| Work Light | √ | |
| Max/Min | √ | |
| Continuity | √ | |
| Back Light | √ | |
| GENERAL | ||
| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 208mm×78mm×35mm | |
| Jaw Size | φ26mm | |
| Net weight | 340g(included batteries) | |
| Gross weight | 471g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 230mm×110mm×56mm | |
| Carton Size | 480mm×300mm×350mm | |
| G.W | 15.2kg | |
| Test Leads | Users Manual | 2*1.5V AAA batteries |
