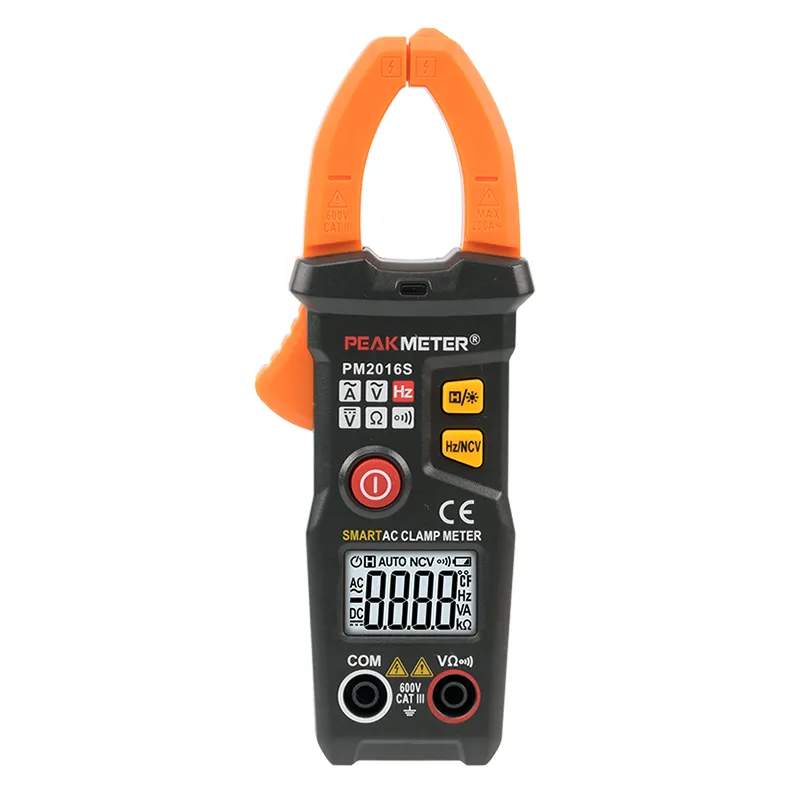

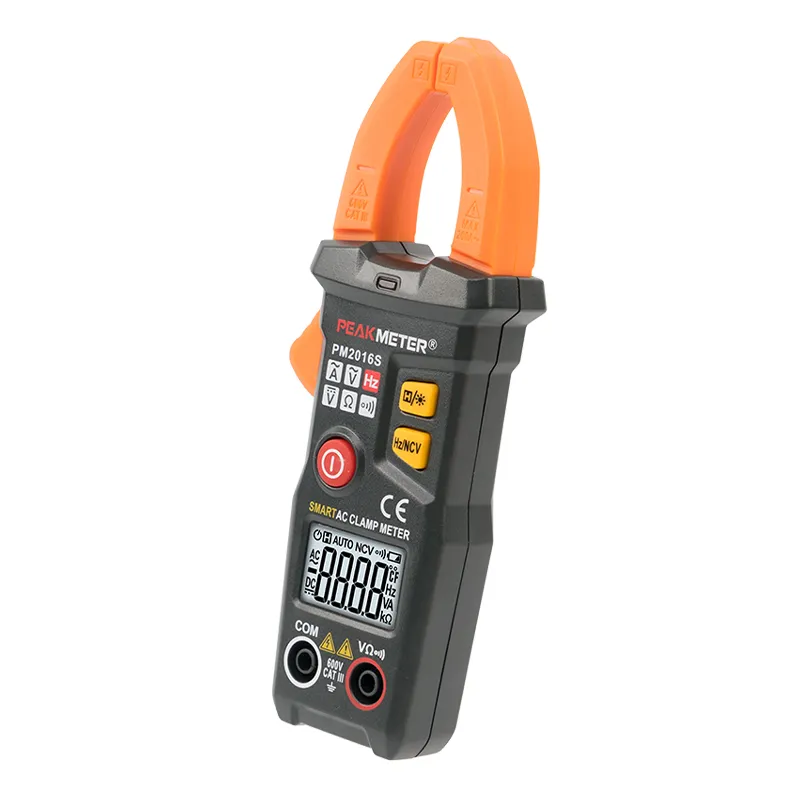

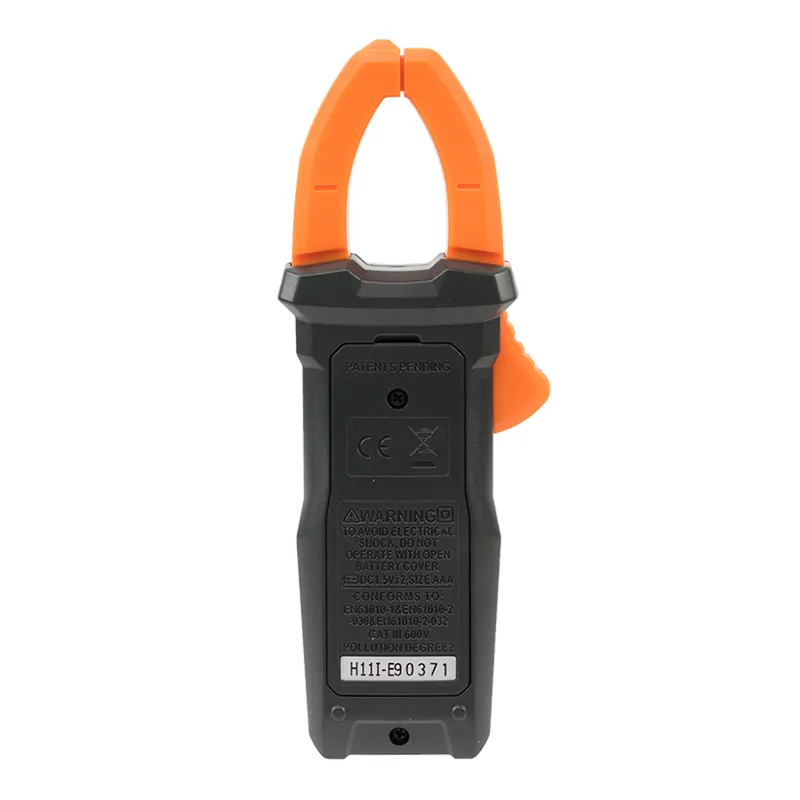

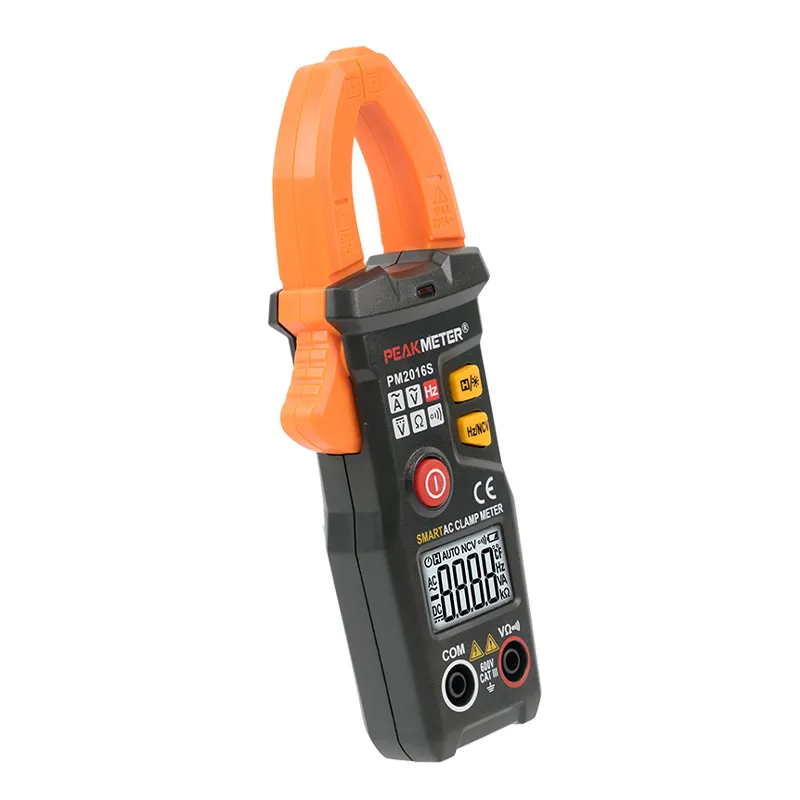

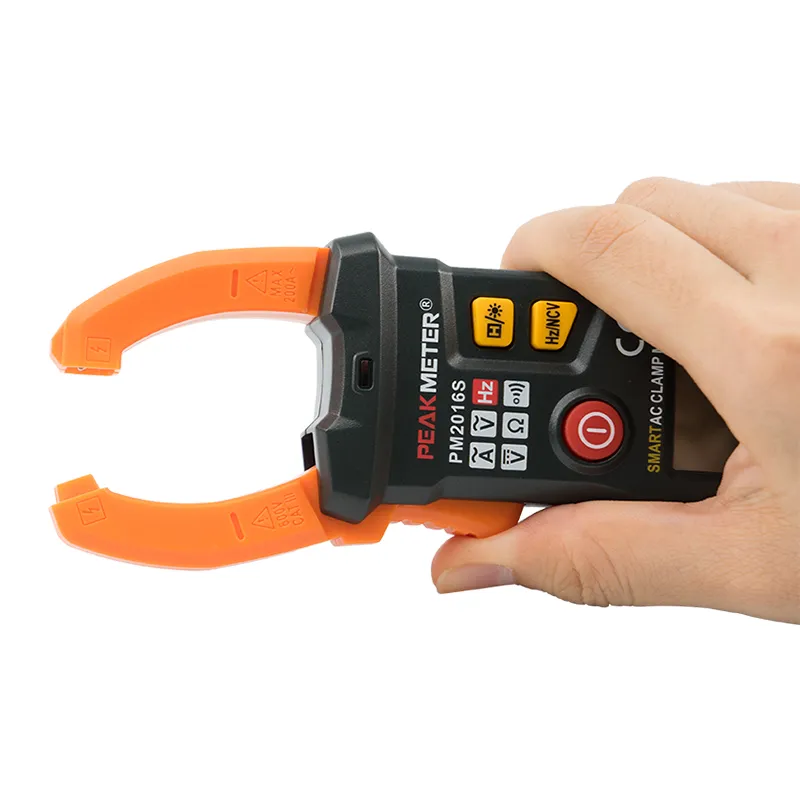

PM2016S 6000 Counts Mini AC Digital Clamp Meter
PM2016S 6000 Counts Mini AC Digital Clamp Meter

PM2016S 6000 Counts Mini AC Digital Clamp Meter with AC/DC Voltage, AC Current, Resistance, Frequency Detection

PM2016S is a mini digital clamp meter. It’s small but powerful. The instrument has a liquid crystal display, the maximum count value is 5999, and has a backlight function. It has a variety of measurement functions and automatically selects the range, which can meet the different needs of users. It can not only measure AC&DC voltage, AC current, resistance, frequency, but also continuity test, NCV, V/Ω/A scan. This AC Clamp multimeter is an innovative, which has breaking through the traditional clamp Multimeter type, it is a revolutionary product of measurement tools, which is a unique type prior to the world's major instrument manufacturers. The product features possess current measurement and simultaneously display the current frequency. voltage measurement with frequency display, voltage and current can be measured at the same time, the display screen shows the voltage and current at same time. Low pass filter, peak - measuring, NCV non-contact voltage detection, backlight display, data locking.

Contact Us
Features
Specification
Documents
Accessories & Options

Features of PM2016S 6000 Counts Mini AC Digital Clamp Meter

  • Display: 6000 Counts

  • Auto Range

  • Continuity

  • Resistance

  • V/Ω/A Auto Scan

  • Frequency (Clamp): 1kHz

  • Frequency (Voltage): 1kHz

  • Data Hold

  • Back Light

  • NCV


Specification of PM2016S 6000 Counts Mini AC Digital Clamp Meter


SPECIFICATIONRANGEACCURACY
DC Voltage0.5~600V±(0.5%+3)
AC Voltage1.0~600V±(0.8%+5)
AC Current6A/60A/200A±(2.5%+8)
Resistance0~6kΩ±(0.8%+3)
Frequency40Hz~1000Hz±(1.0%+5)
FEATURES
Display6000 counts
Auto range
Continuity√<50Ω
V/Ω/A Auto Scan
Frequency(Clamp)
Frequency(Voltage)
Data Hold
BackLight
NCV
GENERAL
Power Supply2×1.5V AAA Batteries
Net weightApprox.122.4g(batteries are not included)
Gross weight226g
Product Size158mm×55mm×29mm
Jaw Sizeφ20mm
Safety RatingEN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v
Package(PCS/carton)60 pcs
Color Box Size174mm×100mm×32mm
Carton  Size370mm×350mm×325mm
G.W14.5kg


PM2016S User Manual English

Accessories & Options of PM2016S 6000 Counts Mini AC Digital Clamp Meter


Test LeadsUsers Manual2*1.5V AAA batteries
