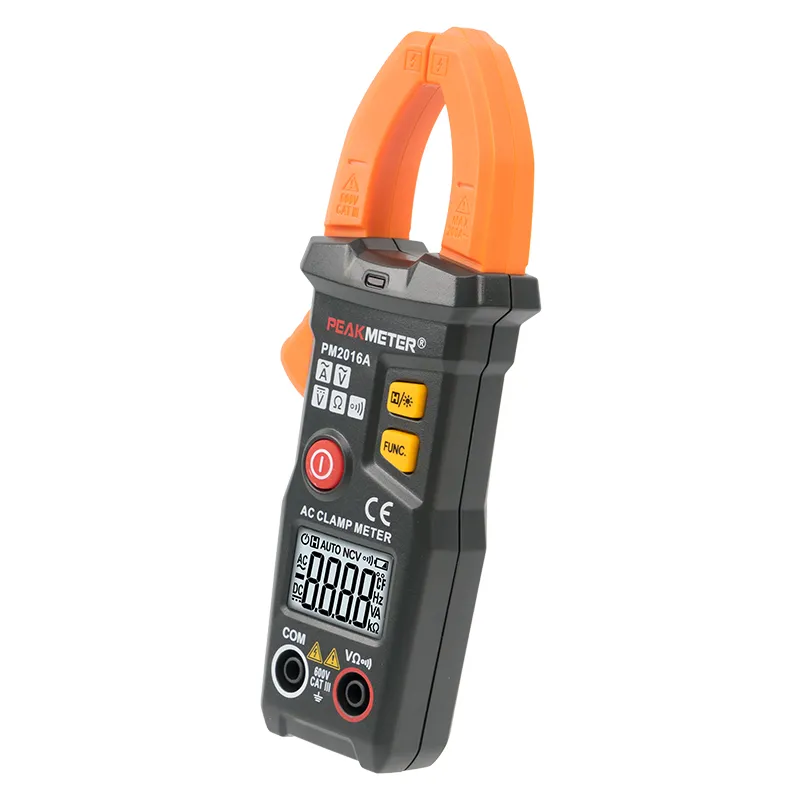

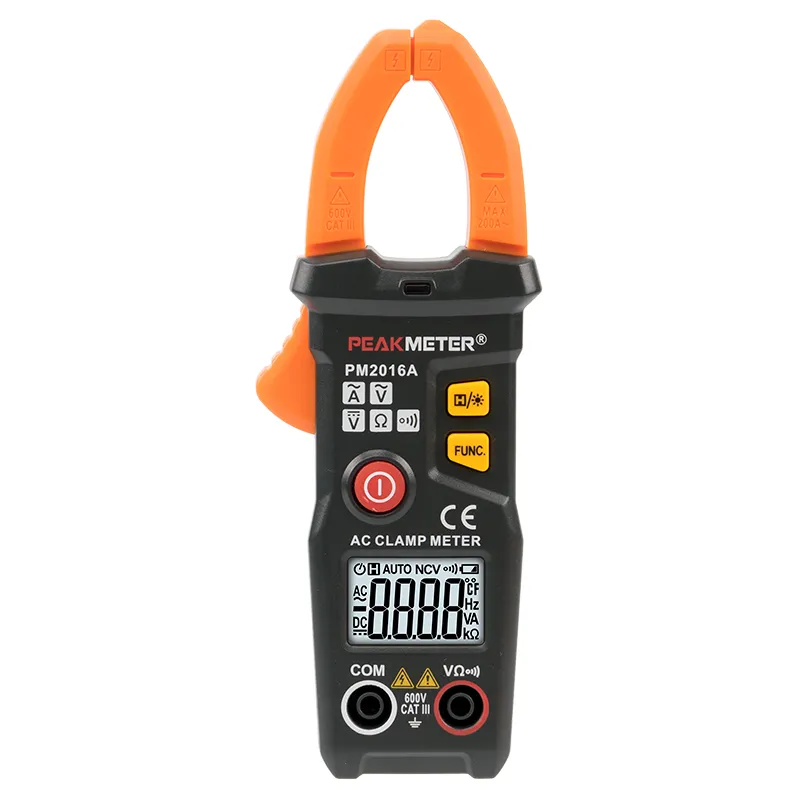

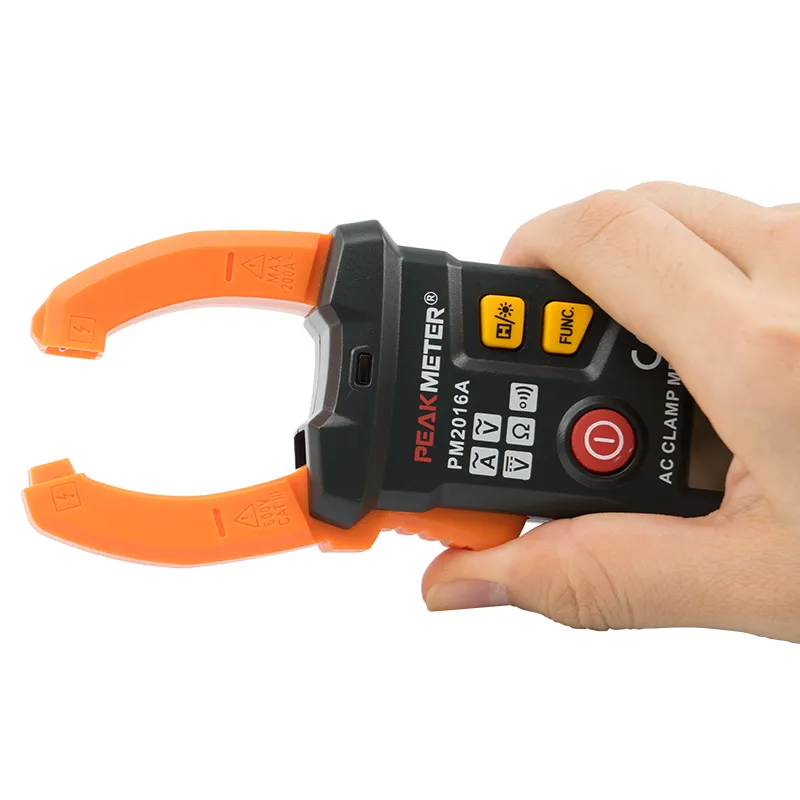

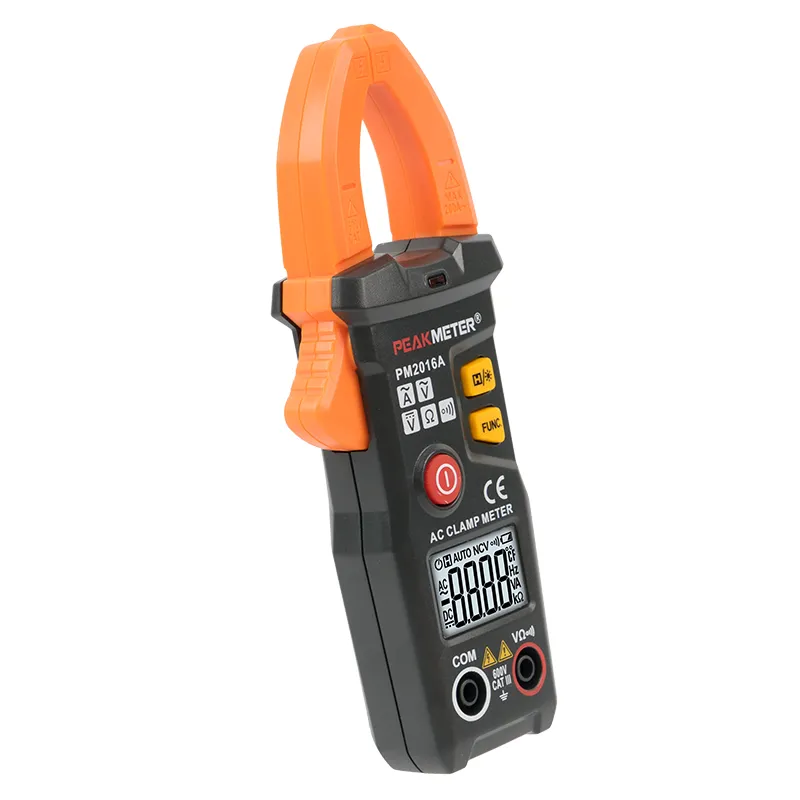

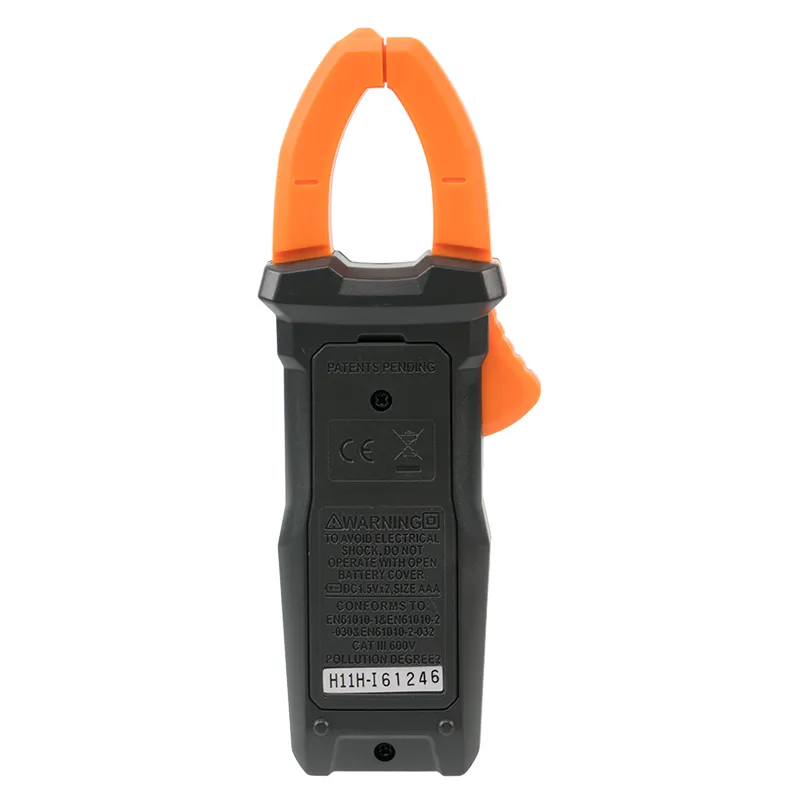

PM2016A is a smart mini digital clamp meter, it designed to automatically select measurement functions and measuring ranges. This meter can be used to measure AC&DC voltage, AC current, resistance, etc. The instrument has functions of continuity test, data hold, back light, etc.
Display: 6000 Counts
Auto Range
Continuity
Resistance
Data Hold
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 0.5～600V | ±（0.5%+3） |
| AC Voltage | 1.0～600V | ±（0.8%+5） |
| AC Current | 6A/60A/200A | ±（2.5%+8） |
| Resistance | 0～6kΩ | ±（0.8%+3） |
| FEATURES | ||
| Display | 6000 counts | |
| Continuity | √＜50Ω | |
| Data Hold | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA Batteries | |
| Net weight | Approx.122g(batteries are not included） | |
| Gross weight | 226g | |
| Product Size | 158mm×55mm×29mm | |
| Jaw Size | φ20mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 60 pcs | |
| Color Box Size | 174mm×100mm×32mm | |
| Carton Size | 370mm×350mm×325mm | |
| G.W | 14.5kg | |
| Test Leads | Users Manual | 2*1.5V AAA batteries |
