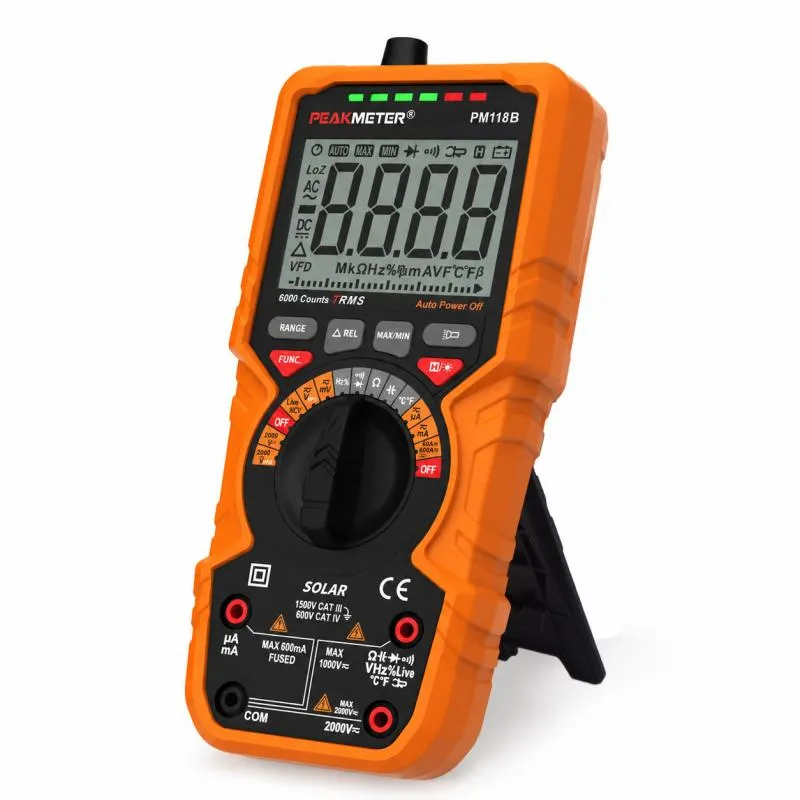

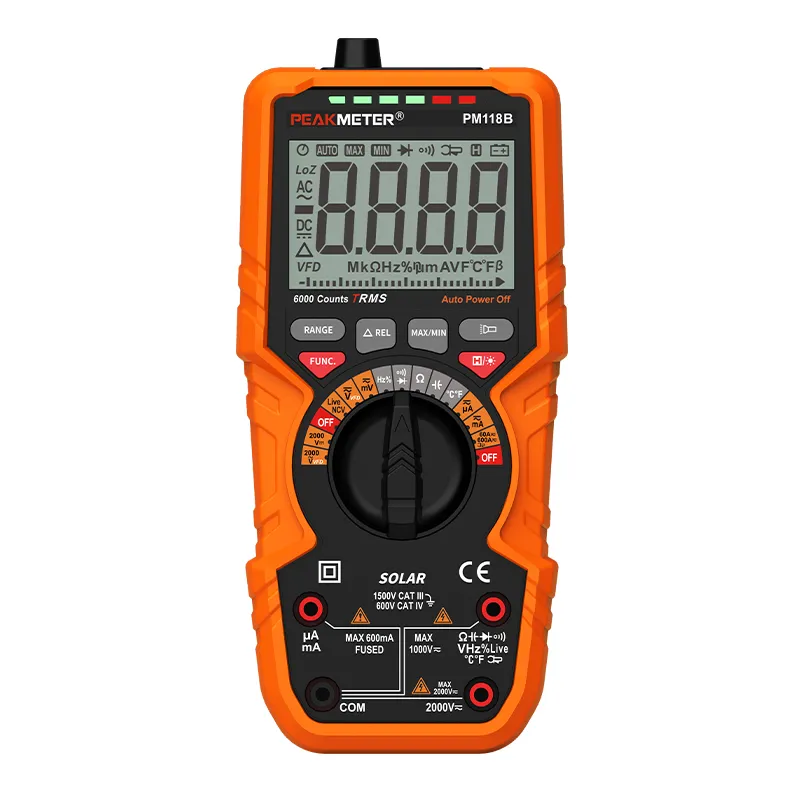

Professional 6000 Counts True RMS Digital Multimeter with 2000V max voltage and external clamp head function for 600A large current measurement. Equipped with VFD mode, NCV detection, flashlight and full basic test functions. EN61010 CAT III 1500V safety approved, perfect for professional electrical maintenance.
Display: 6000Counts
Backlight
Relative Measurement
Flashlight
MAX/MIN Measurement
Diode Test
Clamp Current Measurement
60A (10mV/A), 600A (1mV/A)
Continuity
NCV
Live Line Test
VFD Measurement
Auto And Manual Range
Data Hold
Function: Can be Externally Connected with Clamp Head
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| 2000V | ±（0.8%+5） | |
| AC Voltage | 600mV/6V/60V/600V | ±（0.8%+5） |
| 1000V | ±（1.0%+5） | |
| 2000V | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（1.0%+3） |
| 60MΩ | ±（2.0%+3） | |
| Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF | ± (4.0%+5) |
| 100mF | ± (5.0%+3) | |
| DC Current | 600μA/6mA/60mA/600mA | ±（0.8%+3） |
| AC Current | 600μA/6mA/60mA/600mA | ±（1.0%+3） |
| Clamp Current | 10mV/A或1mV/A | ±(0.5%+3) |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ/9.999MHZ | ±（0.5%+5） |
| Duty | 1%~99% | ±（3.0%+2） |
| K-typeThermocouple Temperature | -40℃～1000℃（-40℉～1832℉） | ±（1.0%+2）(℃/℉) |
| FEATURES | ||
| Display | 6000 Counts | |
| Backlight | √ | |
| Relative Measurement | √ | |
| Flashlight | √ | |
| Max/Min Measurement | √ | |
| Diode Test | √ | |
| Clamp Current Measurement | 60A(10mV/A),600A(1mV/A) | |
| Continuity | √ | |
| NCV | √ | |
| Live Line Test | √ | |
| VFD Measurement | √ | |
| Auto And Manual Range | √ | |
| Data Hold | √ | |
| Function | Can be externally connected with clamp head | |
| GENERAL | ||
| Power Supply | 3x1.5V AAA batteries | |
| Net weight | Approx.380g(included batteries) | |
| Product Size | 194mmx90mmx56mm | |
| Security Level | EN61010-1,CAT Ⅲ1500V DC,CAT.Ⅳ600V | |
K Type Thermocouple | Test Leads | Users Manual | 3*1.5V AAA batteries |
