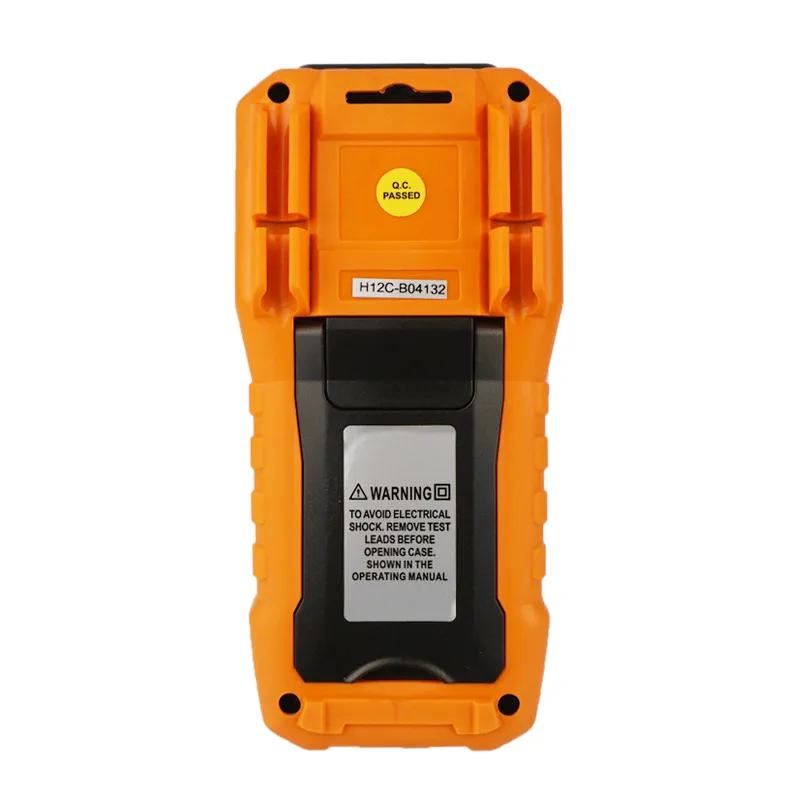

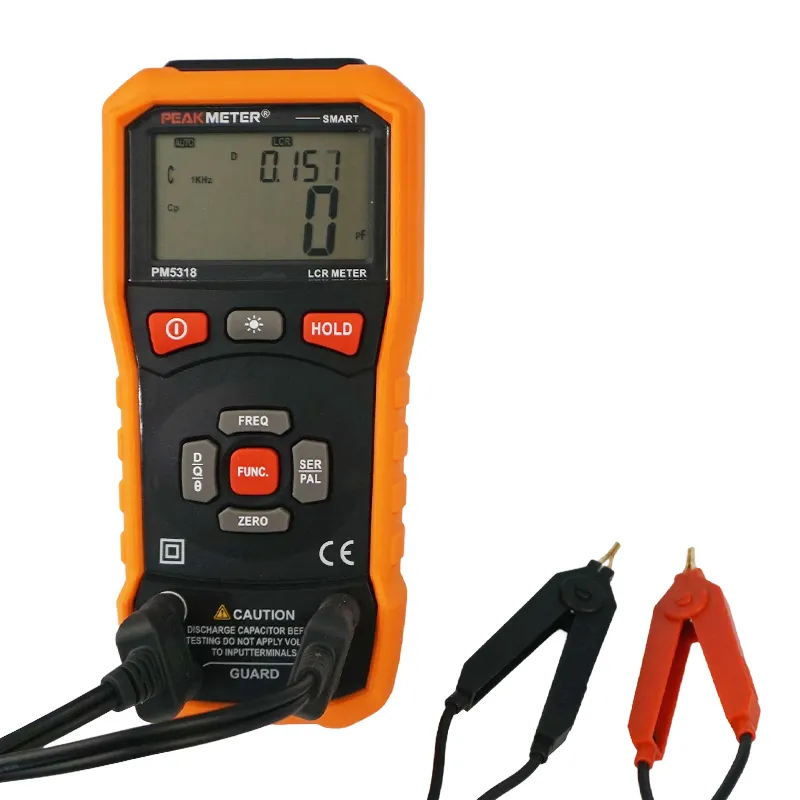

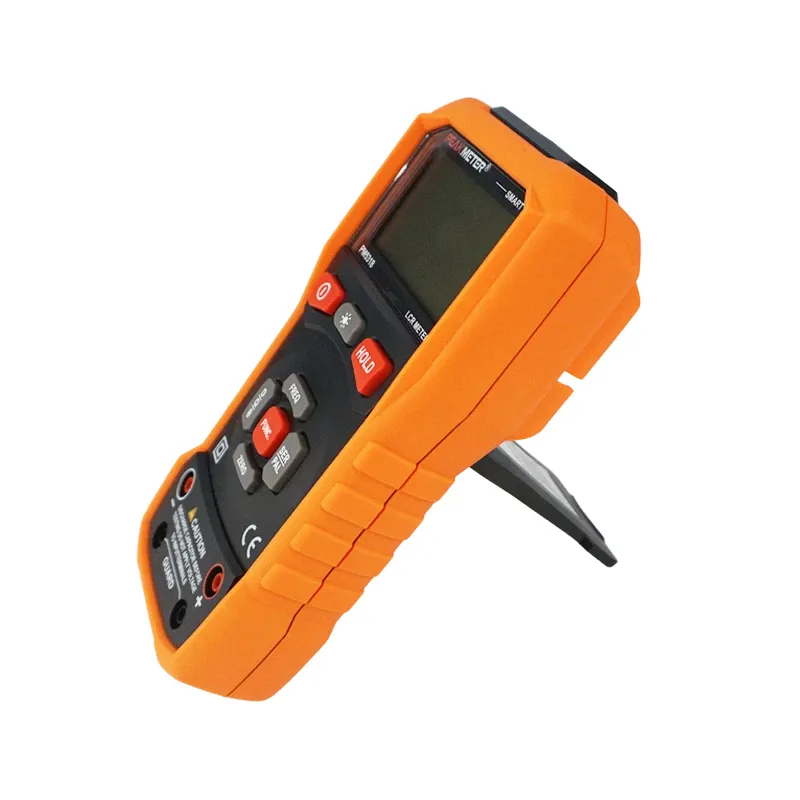

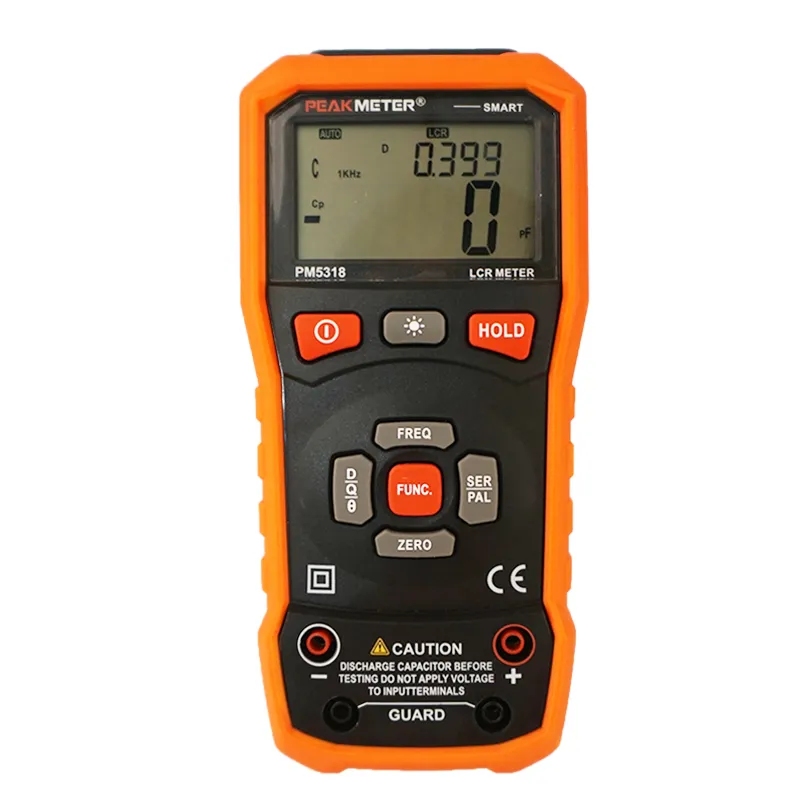

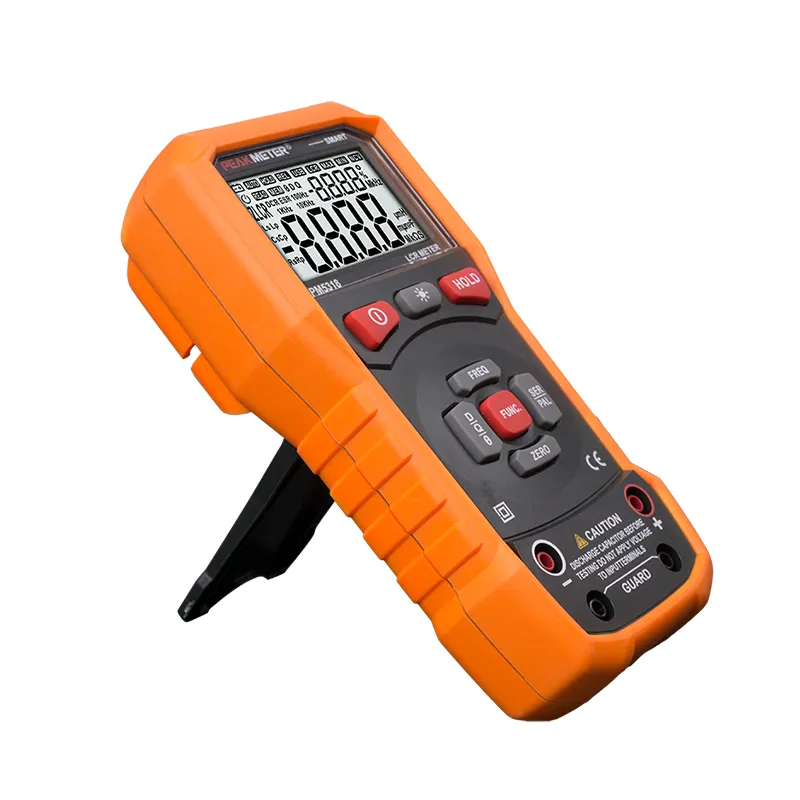

PM5318 is a handheld measuring instrument. It has a digital double-display intelligent measurement high-precision digital bridge, and there are series and parallel modes to choose from. Selecting the appropriate mode can measure data more accurately. This meter has three frequency test points, which are 100Hz/1kHz/10kHz.It can be used to measure inductance, capacitance, impedance, is an ideal multi-function instrument. High-definition 6000 count display, automatic display of unit symbols according to the measurement function, with backlight, clear reading even in dark environments. The shielded ground jack simplifies multiple jacks for easy identification and portability. The design of the watch clip makes it easier for users to connect the object under test and is more stable.
Display: 6000 Counts
Dual Display
Measuring Mode: SER/PAL
Auto Range
Display Test Frequency
Auto Power Off
Data Hold
Relative Mode
Back Light
Auto LCR Smart Check And Measuring
| SPECIFICATION | RANGE | ACCURACY |
| Resistance | 60Ω/600Ω/6kΩ/600kΩ/6MΩ/20MΩ | ±（1.0%+5） |
| Capacitance | 600pF/6nF /60nF/600nF/6μF/60μF/600μF/6mF | ±（1.0%+5） |
| Inductance | 600μH/6000μH/60mH/600mH/6H/200H | ±（1.0%+5） |
| Duty | 5%～95% | ±3.0% |
| Measuring Frequency | 100HZ/120HZ/1KHZ/10HZ | |
| Parameters | L/C/R/DCR/Q/θ/ESR | |
| Measuring Voltage | 0.5Vrms | |
| FEATURES | ||
| Display | 6000Counts | |
| Dual Display | ||
| Measuring Mode | SER/PAL | |
| Auto Range | ||
| Display Test Frequency | ||
| Auto Power Off | ||
| Data Hold | ||
| Relative Measurement | ||
| Back Light | ||
| Auto LCR smart check and measuring | ||
| GENERAL | ||
| Power Supply | 4×1.5V AA batteries | |
| Net weight | Approx.410g(included batteries) | |
| Gross weight | 694g | |
| Product Size | 204mm×94mm×57mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V,CAT.Ⅳ600V | |
| Package（PCS/carton） | 30PCS | |
| Color Box Size | 150mm×70mm×236mm | |
| Carton Size | 490mm×370mm×47.5mm | |
| G.W | 21.8kg | |
Test Cables with Alligator | Clips | Users Manual | 4*1.5V AAbatteries |
