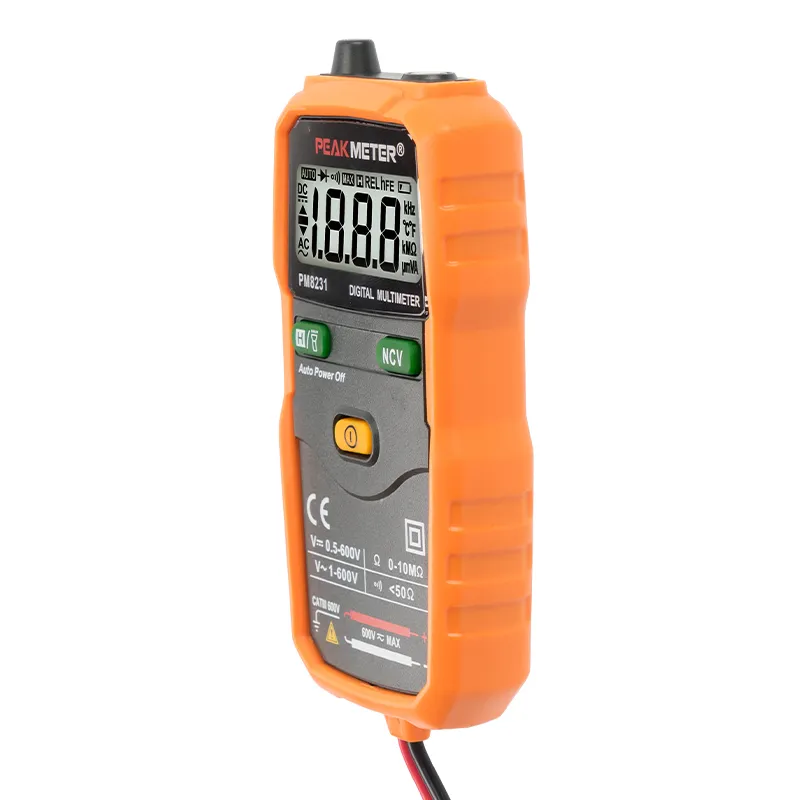

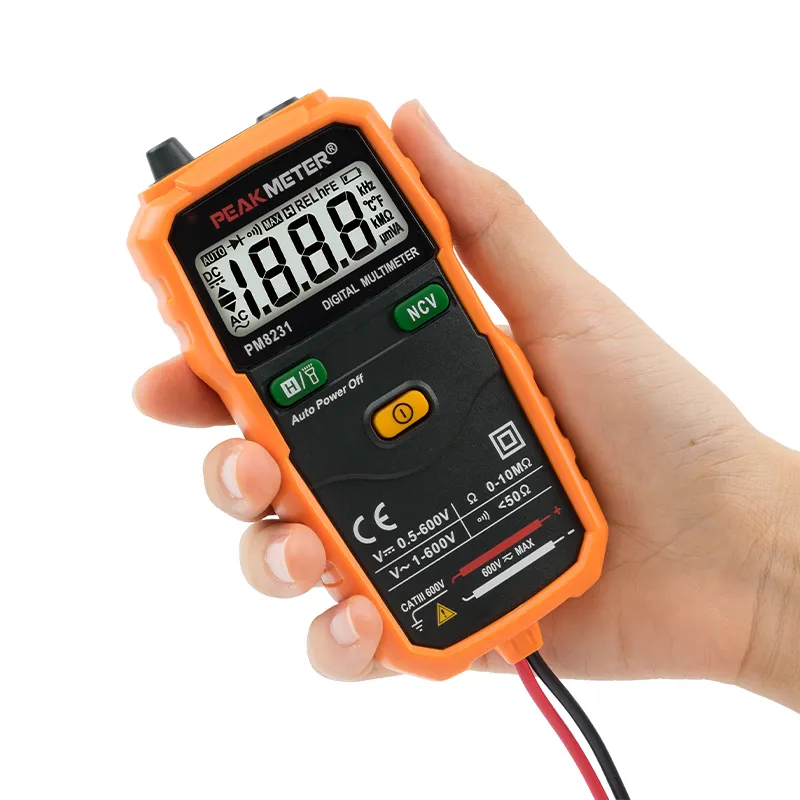

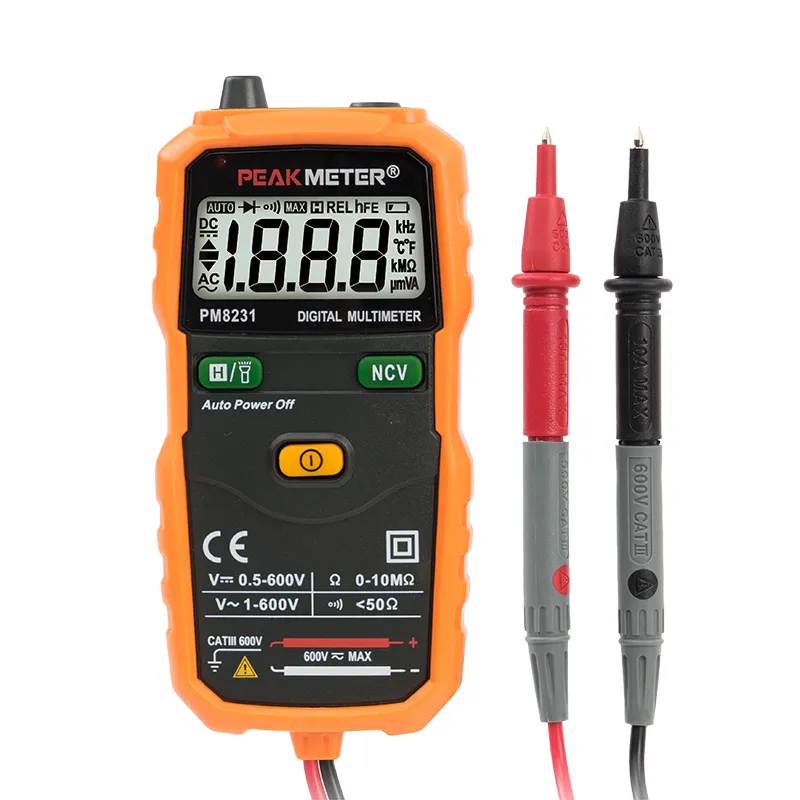

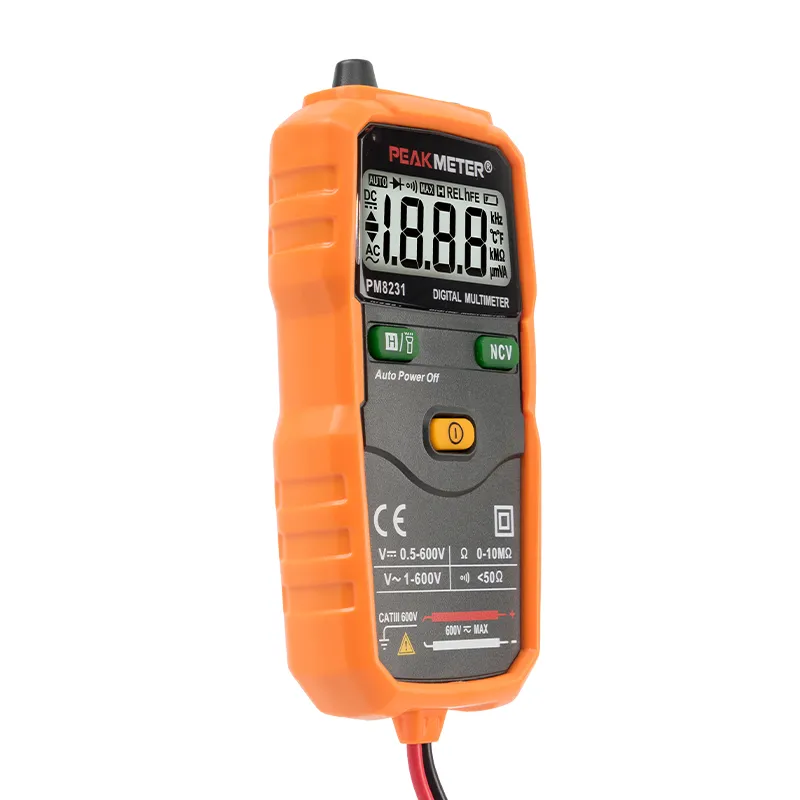

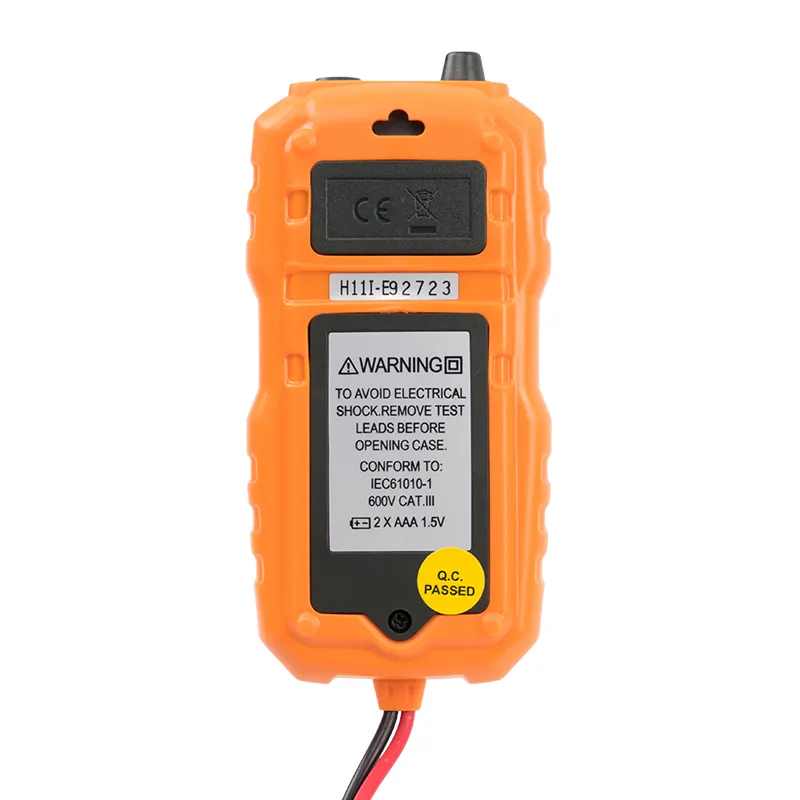

PM8231 is a compact 2000-count smart auto-ranging digital multimeter. It measures 600V AC/DC voltage, DC current and resistance, equipped with NCV non-contact voltage alarm, data hold, diode/continuity test and built-in work light. Ultra-light 150g pocket size with CAT III 600V safety rating, ideal for beginner electricians, student experiments and daily household electrical fault checking.
Display: 2000 Counts
Data Hold
Continuity
NCV
Work Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 2V/20V/200V | ±（0.5%+3） |
| 600V | ±（0.8%+5） | |
| AC Voltage | 2V/20V/200V | ±（0.8%+3） |
| 600V | ±（1.0%+5） | |
| Resistance | 2kΩ/20kΩ/200kΩ/2MΩ | ±（1.0%+3） |
| 10MΩ | ±（1.2%+15） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Continuity | √ | |
| NCV | √ | |
| Work Light | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.158g(batteries are not included） | |
| Gross weight | 189g | |
| Product Size | 128mm×61mm×25mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 90 pcs | |
| Color Box Size | 142mm×88mm×35mm | |
| Carton Size | 445mm×370mm×290mm | |
| G.W | 18kg | |
| Test Leads | Users Manual | 2*1.5V AAA batteries |
