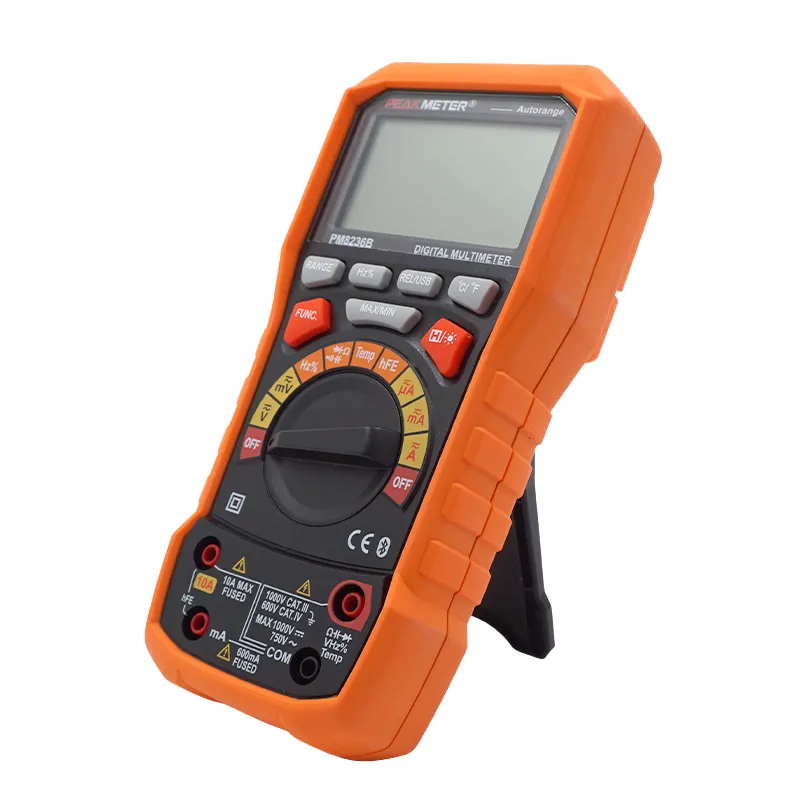

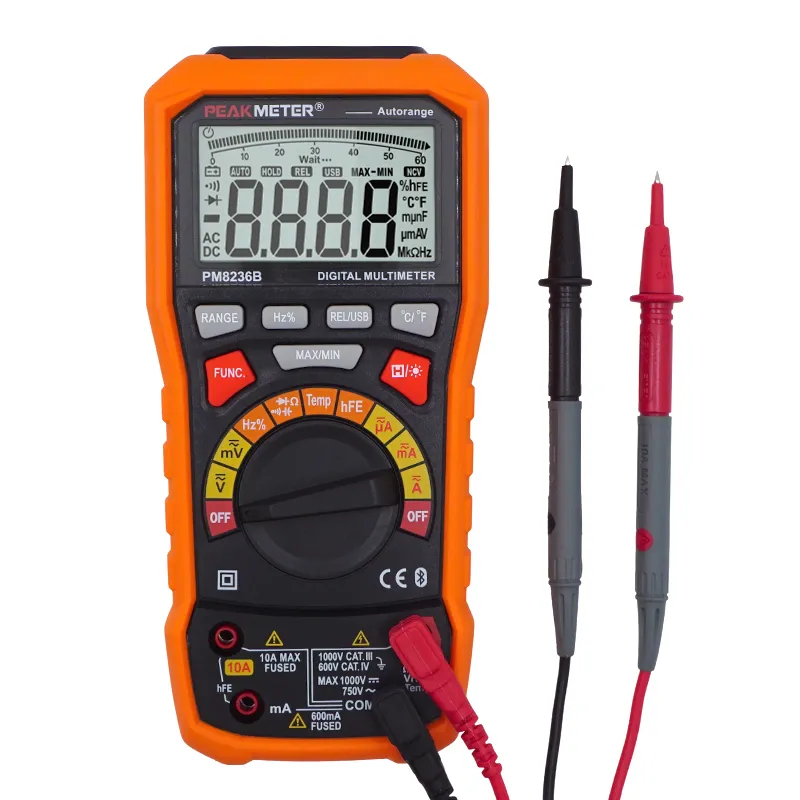

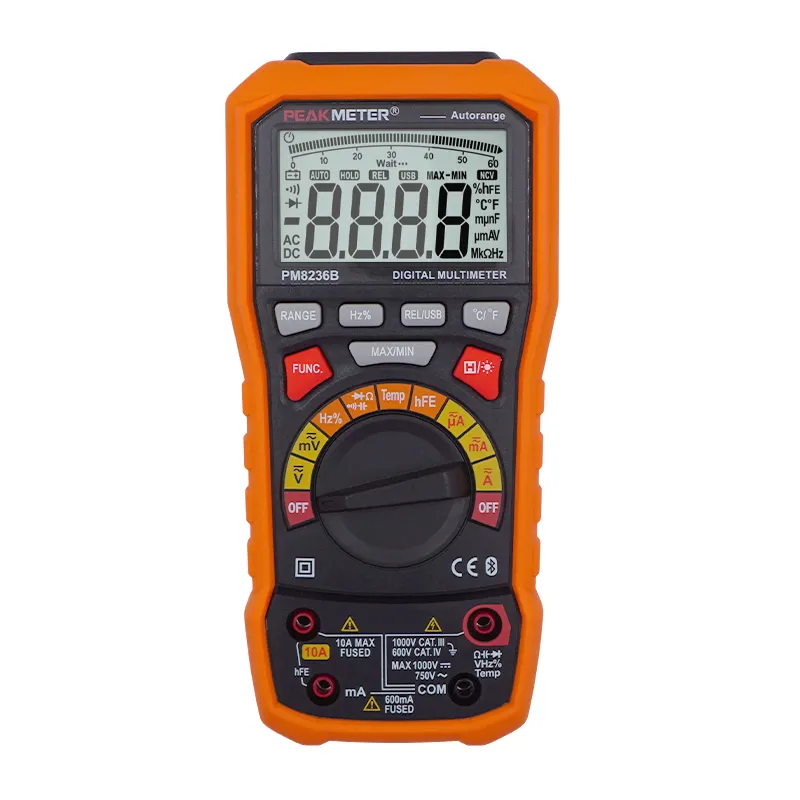

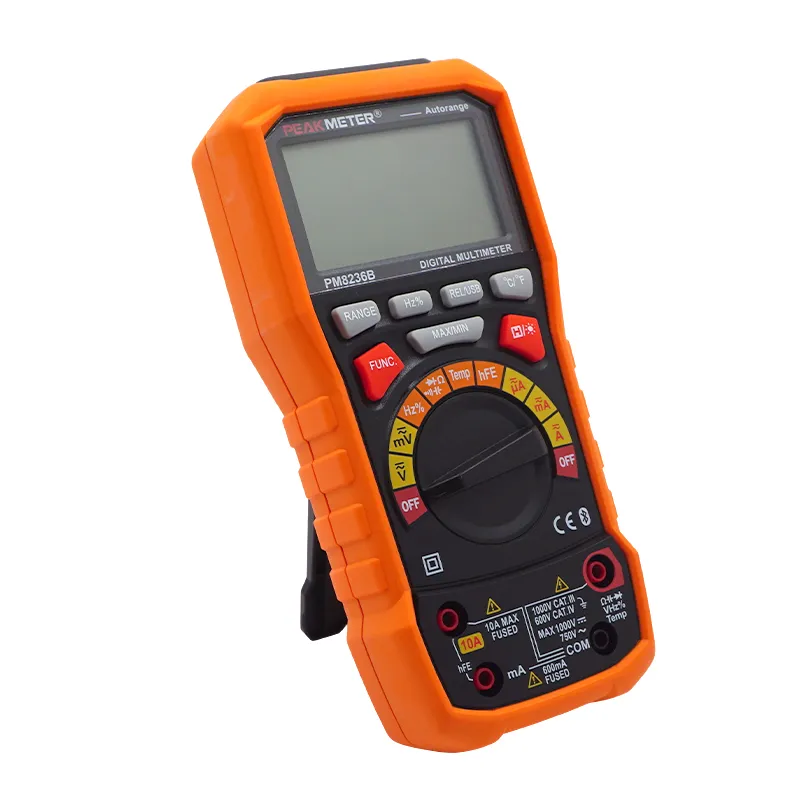

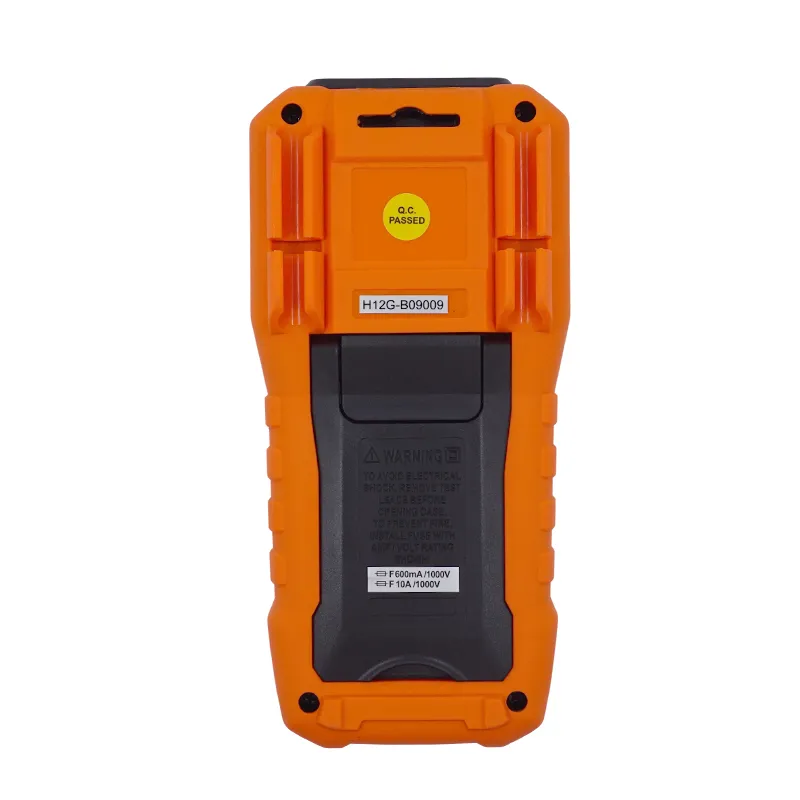

PM8236B is a 6000-count True RMS multimeter with Bluetooth. It tests voltage, current, resistance, capacitance, frequency and temperature accurately, with full practical functions and CAT III 1000V safety rating for professional maintenance.
Display: 6000 Counts
Auto/Manual Range
Bargraph Display
Relative Measurement
True RMS
MAX/MIN
Interface: Bluetooth Interface
Data Hold
Diode Test
Transistor
Continuity
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 60mV/600mV/6V/60V/600V/1000V | ±（0.7%+2） |
| AC Voltage | 60mV/600mV/6V/60V/600V | ±（0.8%+3） |
| 750V | ±（1.0%+3） | |
| DC Current | 600μA/6000μA/60mA/600mA | ±（1.2%+3） |
| 6A/10A | ±（2.0%+10） | |
| AC Current | 600μA/6000μA/60mA/600mA | ±（1.5%+3） |
| 6A/10A | ±（3.0%+10） | |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ | ±（1.2%+5） |
| 60MΩ | ±（2.0%+5） | |
| Capacitance | 10nF/100nF/1000nF/10μF/100μF/1000μF/10mF | ±（3.0%+3） |
| Frequency | 10HZ/100HZ/1KHZ/10KHZ/100KHZ/10MHZ | ±（1.0%+5） |
| Duty | 1%～99% | ± 3.0% |
| Temperature | ﹣20℃～0℃（﹣4℉～32℉） | ±5.0%reading or ±3℃/±6℉ |
| 0℃～400℃（32℉～752℉） | ±1.0%reading or±2℃/±4℉ | |
| 400℃～1000℃（752℉～1832℉） | ±2.0%reading | |
| FEATURES | ||
| Display | 6000 Counts | |
| Auto and Manual Range | √ | |
| Bargraph Display | √ | |
| Relative Measurement | √ | |
| True RMS | √ | |
| MAX/MIN | √ | |
| USB interface | PM8236 | |
| Bluetooth | PM8236B | |
| Data Hold | √ | |
| Diode Test | √ | |
| Transistor | √ | |
| Continuity | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 4×1.5VAA batteries | |
| Net weight | Approx.359.5g(batteries are not included） | |
| Gross weight | 830g | |
| Product Size | 195mm×93mm×54mm | |
| Safety Rating | N61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V | |
| Package（PCS/carton） | 20pcs | |
| Color Box Size | 230mm×150mm×70mm | |
| Carton Size | 480mm×370mm×320mm | |
| G.W | 17.6kg | |
K-Type Thermocouple Adapter | Test Leads | USB Data Cable | Software CD | Users Manual | 3*1.5V AAA batteries |
