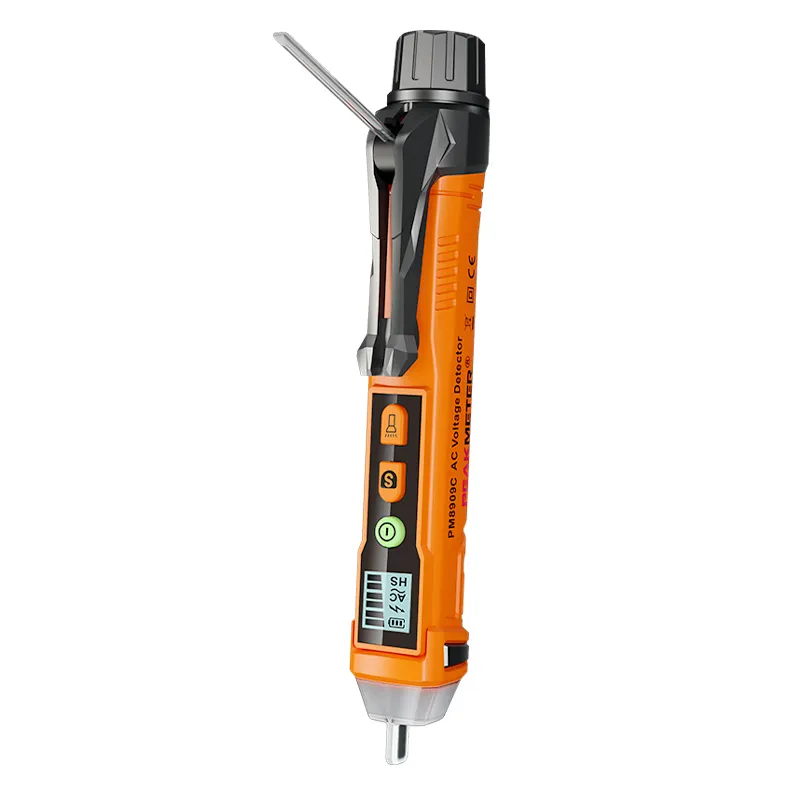

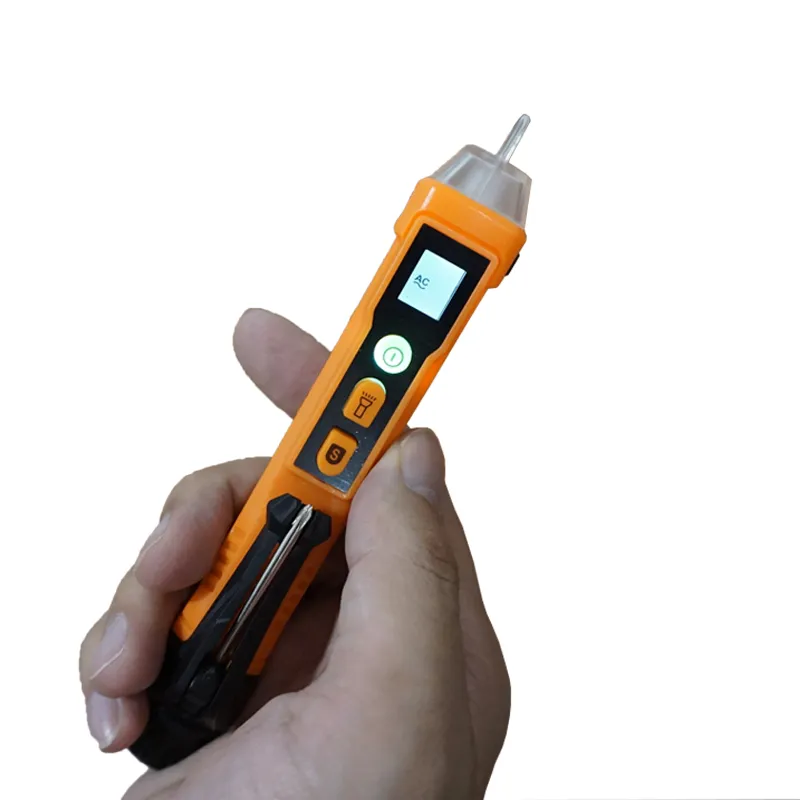

PM8909C is a portable tester with screwdriver. The tester will automatically select 3 kinds of sensitivities during NCV measurement and will be displayed on the LCD screen. The sound and light alarms of different frequencies indicate AC voltages of different intensities. The flashlight function makes it easy for the user to find the location to be measured in dark environments. The tester is equipped with a replaceable screwdriver, which is all-in-one, portable and compact.
AC Voltage: Approximately 12-1000V/48-1000V
Frequency: 50-60Hz
Torch: White LED Illumination Lamp
Flash Light: White LED
Auto Power Off
Low Battery Indication
Alarm Mode: Sound and light
Zero/live Wire Judgment: According to the signal strength, strong signal is live wire
NCV Intensity: Selecting 3 Types of Sensitivity Automatically (Low, Mid, High)
NCV Intensity Indication Mode: The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low, moderate or high sensitivity
Operating Temperature: 0~40℃
Storage Temperature: -10~50℃
Altitude: ＜2000m
| SPECIFICATION | ||
| AC voltage detection range | About12～1000V | |
| Frenquency | 50Hz/60Hz | |
| Alarm Mode | Sound and Light | |
| Flash Light | White LED Liiumination Lamp | |
| Auto Power Off | √ | |
| Probe Shape | Prolate | |
| Low-Battery Indication | √ | |
| Zero/Live Wire Judgment | Sound and LED Alarmed | |
| NCV Sensitive | Automatic selection of 3 kinds of sensitivity(high,medium and Low) | |
| NCV Sensitive Indication | 3 kinds of Frequency sound and LED Alarmed. | |
| Service Temperature | 0~40℃ | |
| Storage Temperature | -10~50℃ | |
| Altitude | ＜2000m | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.45g(batteries are not included） | |
| Gross weight | 60g | |
| Product Size | 156mm×20mm×20mm | |
| Safety Rating | EN61010-1,EN61557-3,EN61326-1 CAT.III 1000V/CAT.IV 600V | |
| Package（PCS/carton） | 120 pcs | |
| Color Box Size | Outer battery：163mm×37mm×28mm Internal battery：163mm×32mm×28mm | |
| Carton Size | Outer battery ：393mm×345mm×210mm Internal battery：393mm×320mm×210mm | |
| G.W | 8.5kg | |
| Users Manual | 2*1.5V AAA batteries |
