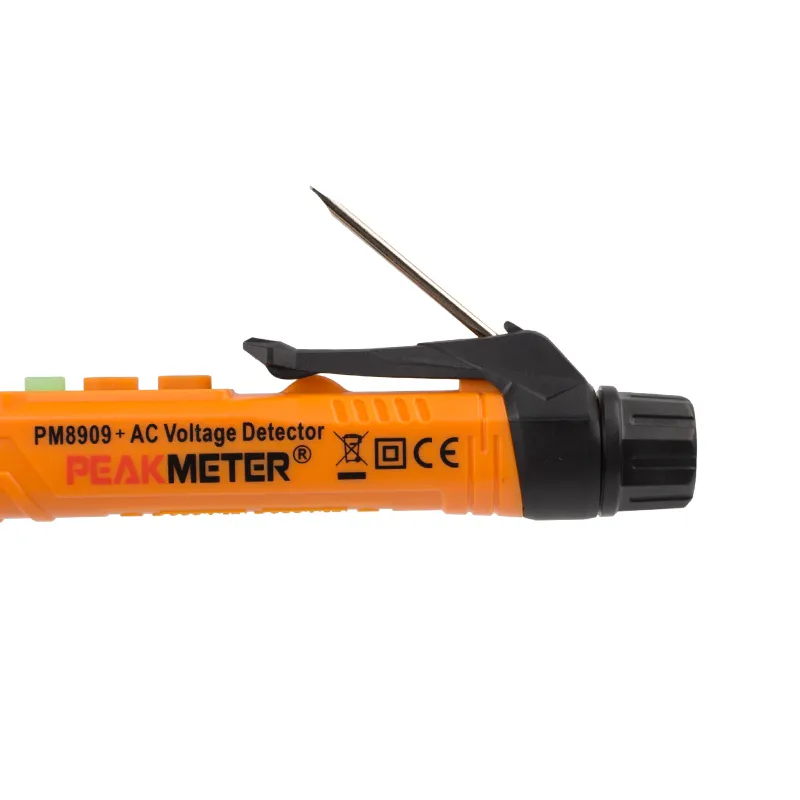

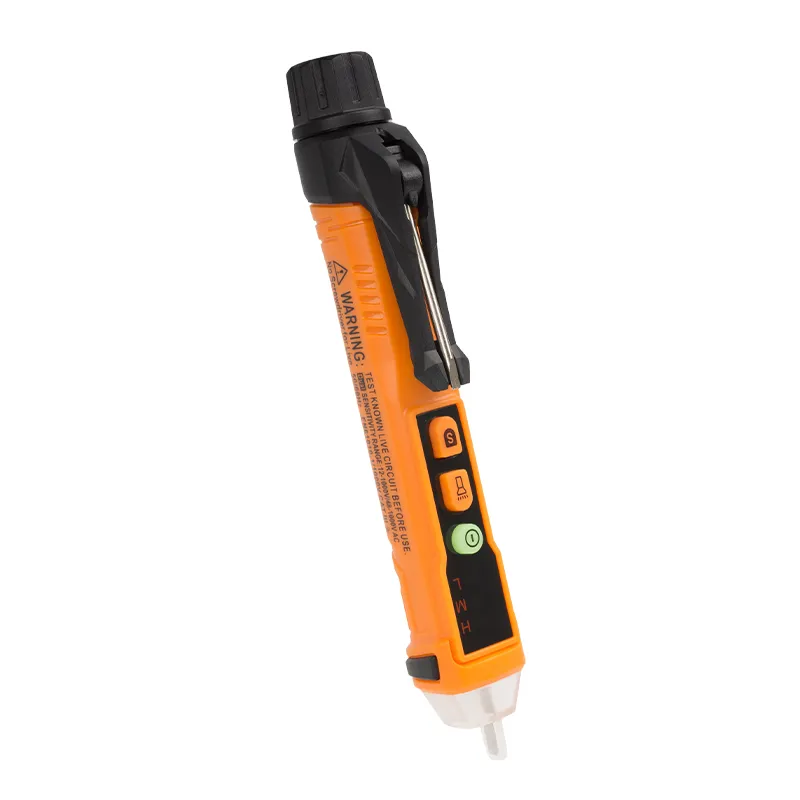

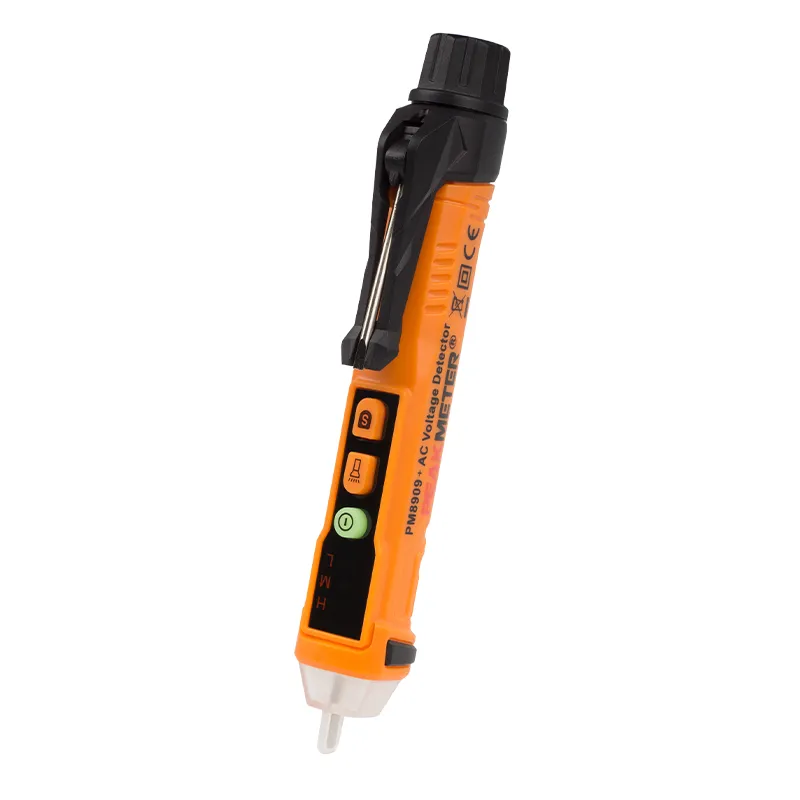

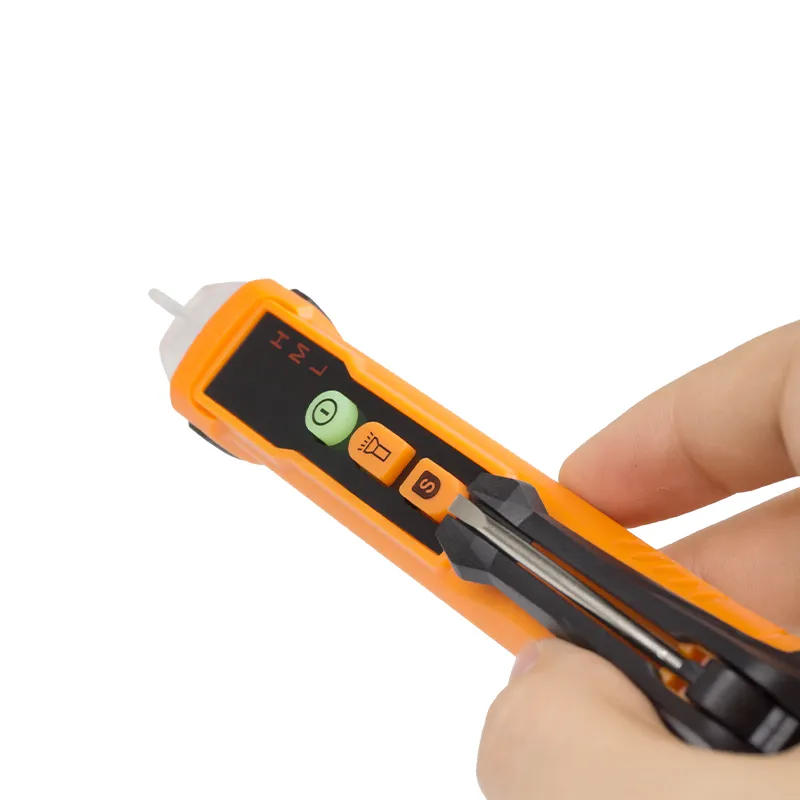

PM8909+ AC Non-contact AC Voltage Detector

PM8909+ 12～1000V/48～1000V AC Non-contact AC Voltage Detector Sensitivity Adjustable

Name: PM8909+ 12～1000V/48～1000V AC Non-contact AC Voltage Detector
Brand: Guilin Huayi Peakmeter Technology Co.,Ltd
Availability: InStock

PM8909+ is a non-contact ac voltage tester with screwdriver. It measures the corresponding signals of different intensities according to the different sensitivities automatically selected, and the strongest signal is the live wire. This tester also has functions such as flashlight, automatic shutdown, battery undervoltage indication, sound and light alarm, etc.

Features

Specification

Documents

Accessories & Options

Features of PM8909+ 12～1000V/48～1000V AC Non-contact AC Voltage Detector

AC Voltage: Approximately 12-1000V/48-1000V
Frequency: 50-60Hz
Torch: White LED Illumination Lamp
Flash Light: White LED
Auto Power Off: Yes
Alarm Mode: Sound and light
Zero/live Wire Judgment: According to the signal strength, strong signal is live wire
NCV Intensity: Selecting 3 Types of Sensitivity Automatically (Low, Mid, High)
NCV Intensity Indication Mode: The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low, moderate or high sensitivity
Operating Temperature: 0~40℃
Storage Temperature: -10~50℃
Altitude: ＜2000m

Specification of PM8909+ 12～1000V/48～1000V AC Non-contact AC Voltage Detector

SPECIFICATION
AC voltage detection range	About12～1000V/48～1000V
Frenquency	50Hz/60Hz
Alarm Mode	Sound and Light
Flash Light	White LED Liiumination Lamp
Auto Power Off	√

Low-Battery Indication	√
Zero/Live Wire Judgment	Accoding to the signal strenth,strong signal is live wire
NCV Sensitive	Selecting 3 types of sensitivity automatically(low,mid ,high)
NCV Sensitive Indication	The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low ,moderate or high sensitivity
Service Temperature	0~40℃
Storage Temperature	-10~50℃
Altitude	＜2000m
GENERAL
Power Supply	2×1.5V AAA batteries
Net weight	Approx.45g(batteries are not included）
Gross weight	66g
Product Size	156mm×20mm×20mm
Safety Rating	EN61010-1,EN61557-3,EN61326-1 CAT.III 1000V/CAT.IV 600V
Package（PCS/carton）	120 pcs
Color Box Size	Outer battery：163mm×37mm×28mm Internal battery：163mm×32mm×28mm
Carton Size	Outer battery ：393mm×345mm×210mm Internal battery：393mm×320mm×210mm
G.W	9.0kg

PM8909+ User Manual Chiness & English

Title Download

PM8909+ User Manual Chiness&English

1 file(s)

Download

Accessories & Options of PM8909+ 12～1000V/48～1000V AC Non-contact AC Voltage Detector

Users Manual

2*1.5V AAA batteries
