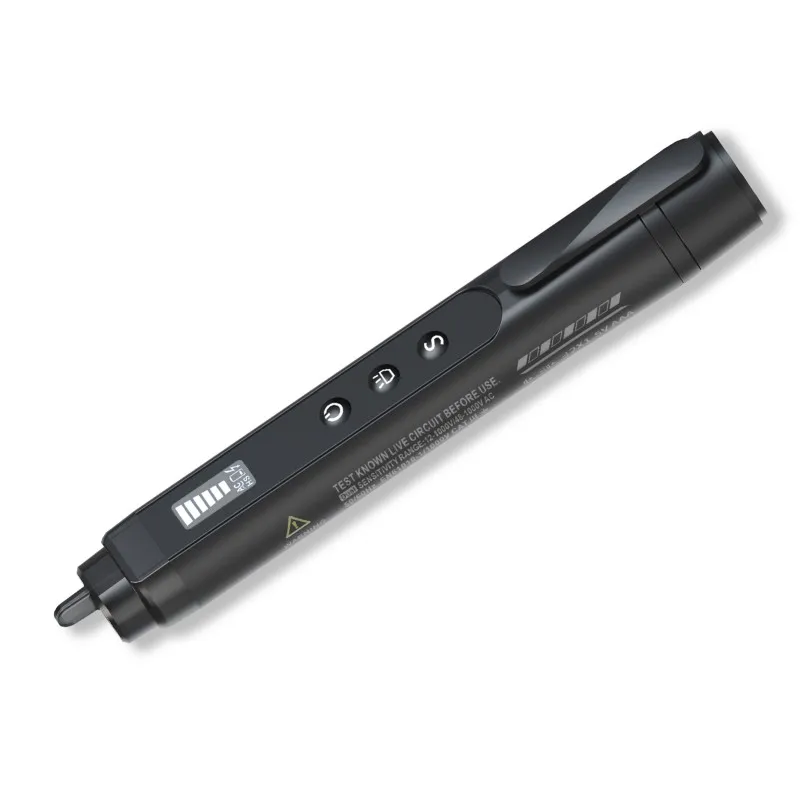

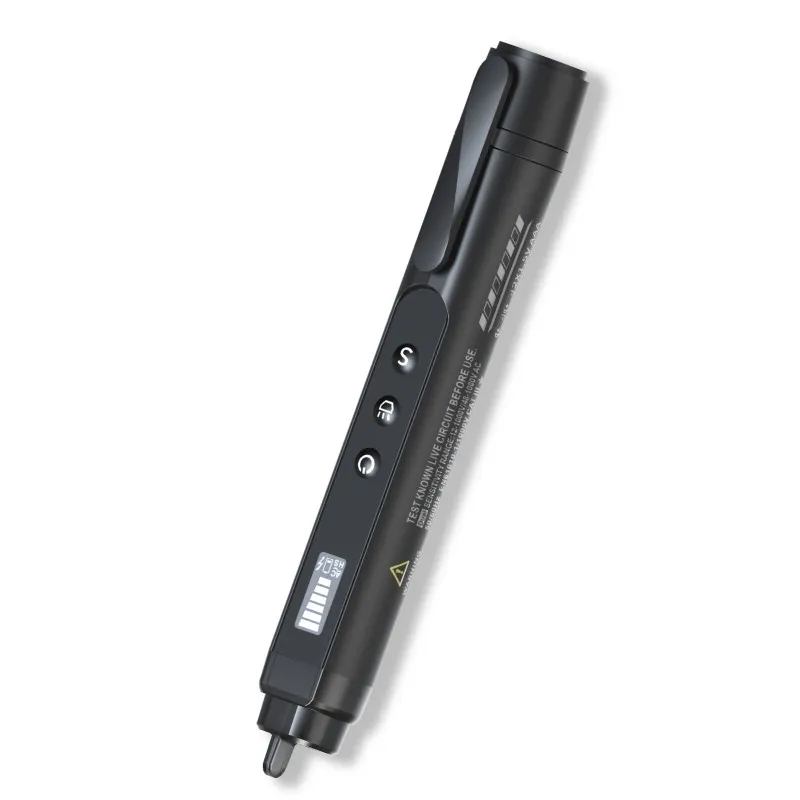

PM8910 is an intelligent AC voltage detection pen. It has IP67 grade waterproof and dustproof, and is not afraid of harsh environments. The detection range of this instrument is 12V~1000V, and the frequency is 50Hz/60Hz. It has a high-definition display screen that can display the detection voltage level and low voltage indication. It is non-contact detection voltage, safe and convenient, and can also determine the zero/live wire. The design of the lighting is convenient for users to use in dark environments. This non-contact voltage detection pen has a simple and elegant design, making it easy to carry and ideal choice for families, schools, factories, and more.
Automatic Shutdown
AC Voltage: Approximately 12-1000V/48-1000V (Sensitivity Adjustable)
Frequency: 50Hz/60Hz
Flashlight: White LED
Under Voltage Indication
Operating Temperature: 0~40℃
Storage Temperature: -10~50℃
Zero Fire Line Judgment: Judging by the strength of the induction signal, the signal with a strong signal is the live wire
NCV Induction Strength: 3 Induction Intensities (High, Medium, and Low)
NCV Sensitivity Indication Method: The instrument displays different (high, medium, and low) sensitivities through different alarm sounds and LED lights of different colors
Alarm Method: Audible and Visual Alarm/LCD Prompt
IP Degree: IP67
Altitude: ＜2000m
Drop Resistance Test: 2m
| SPECIFICATION | ||
| AC voltage detection range | About12～1000V/48-1000V | |
| Frenquency | 50Hz/60Hz | |
| Alarm Mode | Sound and light alerts | |
| Flash Light | White LED Liiumination Lamp | |
| Auto Power Off | √ | |
| Low-Battery Indication | √ | |
| Zero/Live Wire Judgment | Accoding to the signal strenth,strong signal is live wire | |
| NCV Sensitive | Selecting 3 types of sensitivity automatically(low,mid ,high) | |
| NCV Sensitive Indication | The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low ,moderate or high sensitivity | |
| Service Temperature | 0~40℃ | |
| Storage Temperature | –10~50℃ | |
| Altitude | ＜2000m | |
| IP rating | IP67 | |
| Drop test | 2 meters | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.45g(batteries are not included） | |
| Gross weight | 82.7g | |
| Product Size | 168mm×29mm×25mm | |
| Safety Rating | IEC 61010-1,IEC 60529-2013,CAT.Ⅱ1000v | |
| Package（PCS/carton） | 120pcs | |
| Color Box Size | 170mm×37mm×28mm | |
| Carton Size | 393mm×355mm×210mm | |
| G.W | 11kg | |
| Users Manual | 2*1.5V AAA batteries |
