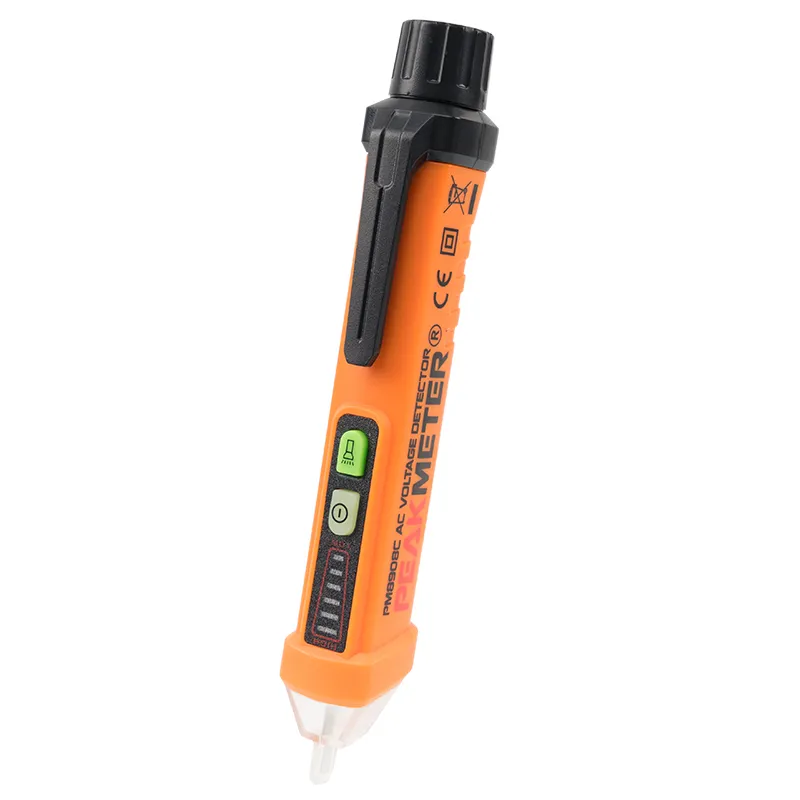

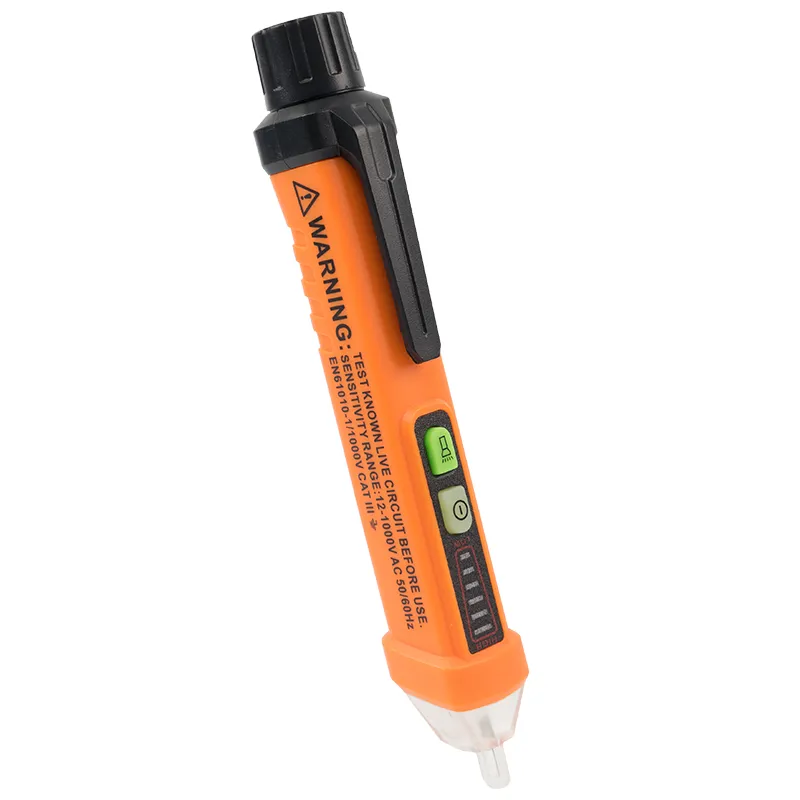

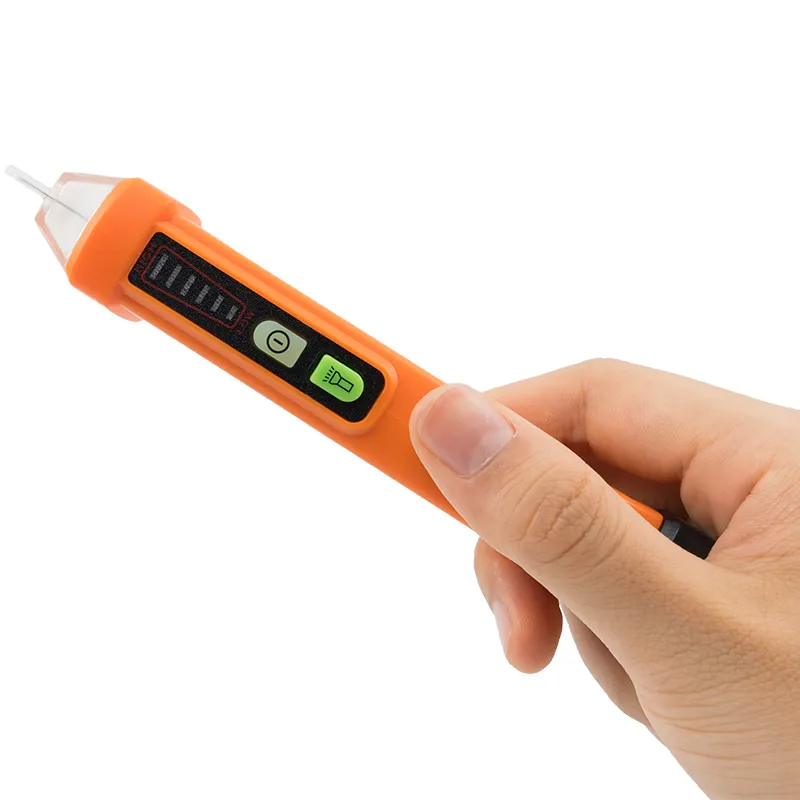

PM8908C is smart and compact pen type meter with mini size for easy carrying. This tester can alarm with sound and light, measure AC voltage, and select sensitivity test intelligently. PM8908C is convenient to carry and easy to operate. This type is very good sale in many countries and regions. It is designed according to EN61010-1-2-030, EN61010-2-033, CAT.III1000V Concerning Safety -Requirements.
AC Voltage: Approximately 12-1000V
Frequency: 50Hz/60Hz
Alarm Mode: Sound and light
Flash Light: White
Auto Power Off
Probe Shape: Prolate
Low Battery Indication
Live or Neutral: Sound and LED Alarmed
NCV Sensitivity: Automatic Selection of 3 Kinds of Sensitivity (High, Medium and Low)
NCV Sensitivity Indication: 3 Kinds of Frequency Sound and Led Alarmed
| SPECIFICATION | ||
| AC voltage detection range | About12～1000V | |
| Frenquency | 50Hz/60Hz | |
| Alarm Mode | Sound and Light | |
| Flash Light | White LED Liiumination Lamp | |
| Auto Power Off | √ | |
| Probe Shape | Prolate | |
| Low-Battery Indication | √ | |
| Zero/Live Wire Judgment | Sound and LED Alarmed | |
| NCV Sensitive | Automatic selection of 3 kinds of sensitivity(high,medium and Low) | |
| NCV Sensitive Indication | 3 kinds of Frequency sound and LED Alarmed. | |
| Service Temperature | 0~40℃ | |
| Storage Temperature | -10~50℃ | |
| Altitude | ＜2000m | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.45g(batteries are not included） | |
| Gross weight | 60g | |
| Product Size | 156mm×20mm×20mm | |
| Safety Rating | EN61010-1,EN61557-3,EN61326-1 CAT.III 1000V/CAT.IV 600V | |
| Package（PCS/carton） | 120 pcs | |
| Color Box Size | Outer battery：163mm×37mm×28mm Internal battery：163mm×32mm×28mm | |
| Carton Size | Outer battery ：393mm×345mm×210mm Internal battery：393mm×320mm×210mm | |
| G.W | 8.5kg | |
| Users Manual | 2*1.5V AAA batteries |
