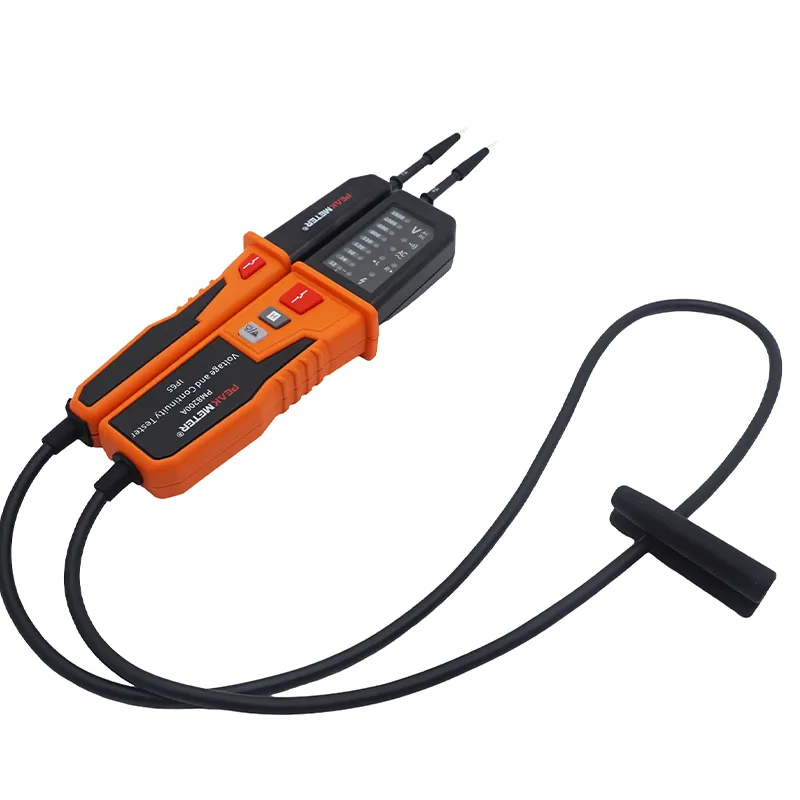

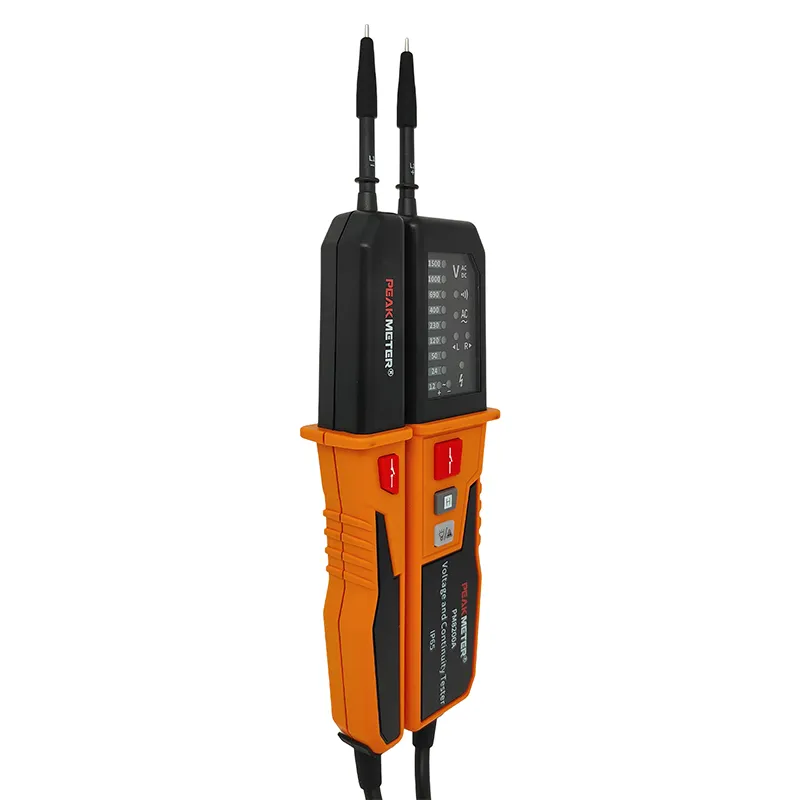

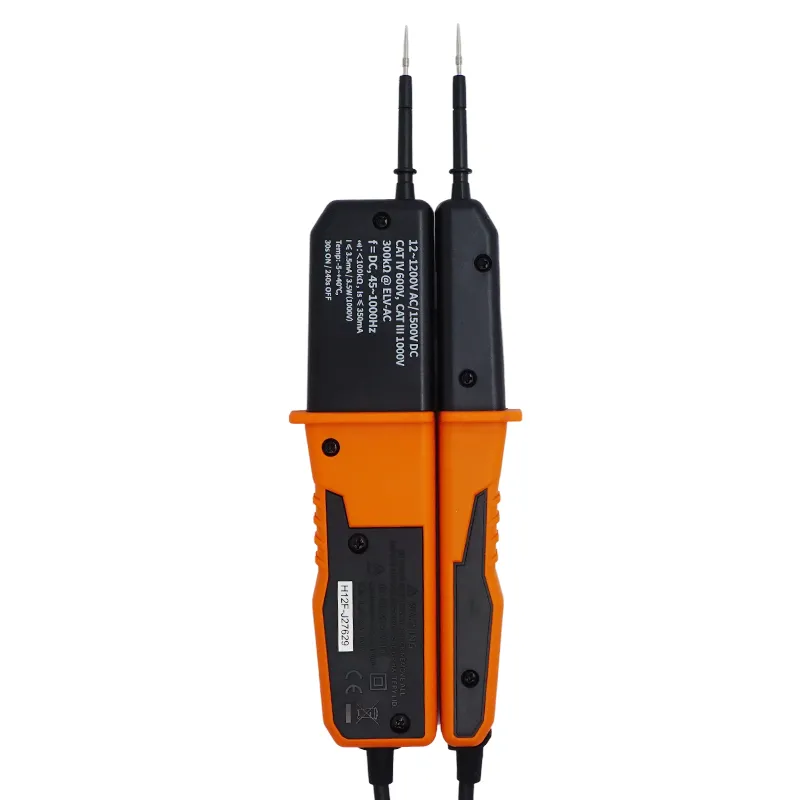

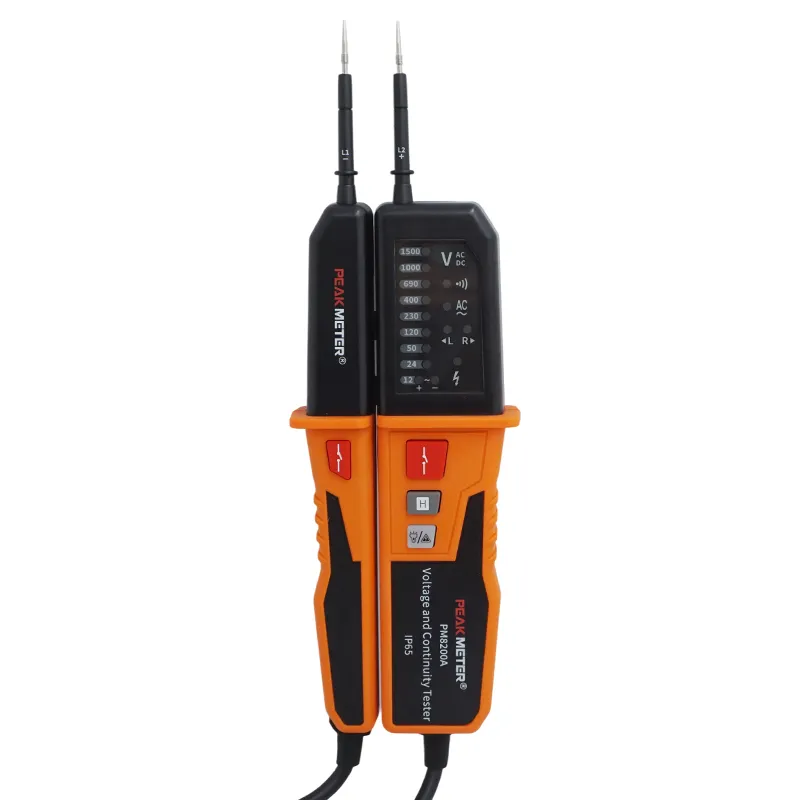

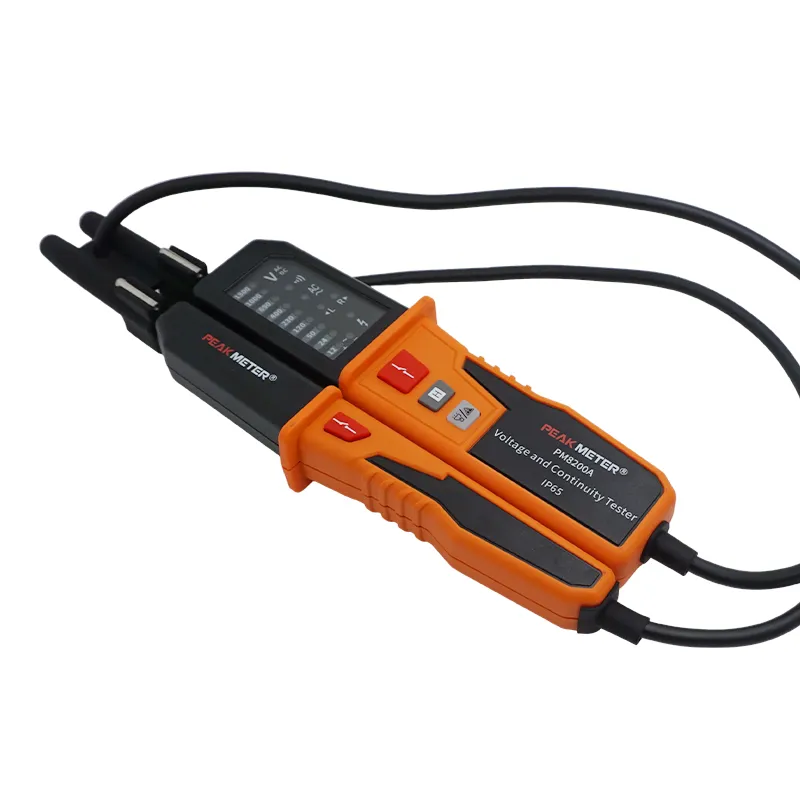

Experience unmatched accuracy with the PM8200A, designed for professional-grade voltage measurements and robust performance in demanding environments. With an IP65 rating, the PM8200A ensures reliable operation in wet and dusty conditions, making it perfect for outdoor and industrial use. Built to last, the PM8200A combines a tough exterior with precise voltage measurement and essential features like auto power off and a built-in flashlight.
AUTO
IP Degree: IP65
Phase Sequence Test: Three-Phase AC Voltage Range: 150V~400V, Frequency 50Hz~60Hz
Floodlight
Automatic Shutdown
Continuity
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage AC Voltage 40HZ ～2kHZ | 12V | ±1V |
| 24V | ±2V | |
| 50V | ±4V | |
| 120V | ±8V | |
| 230V | ±12V | |
| 400V | ±14V | |
| 690V | ±18V | |
| 1000V | ±24V | |
| DC Voltage | 1500v | ±30V |
| On-off | ＜100kΩ Buzzing LED Indication | |
| FEATURES | ||
| AUTO | √ | |
| IP Degree | IP65 | |
| Phase Sequence Test | Three-phase AC voltage rang:150V～400V | |
| Floodlight | √ | |
| Automatic Shutdown | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA Batteries | |
| Net weight | Approx.305g(batteries are not included） | |
| Gross weight | ||
| Product Size | 290mm×80mm×34mm | |
| Safety Rating | EN61326,EN60529,CAT.IV 600V,CAT.Ⅲ 1000V | |
| Package（PCS/carton） | ||
| Color Box Size | ||
| Carton Size | ||
| G.W | ||
| Users Manual | 2*1.5V AA batteries |
