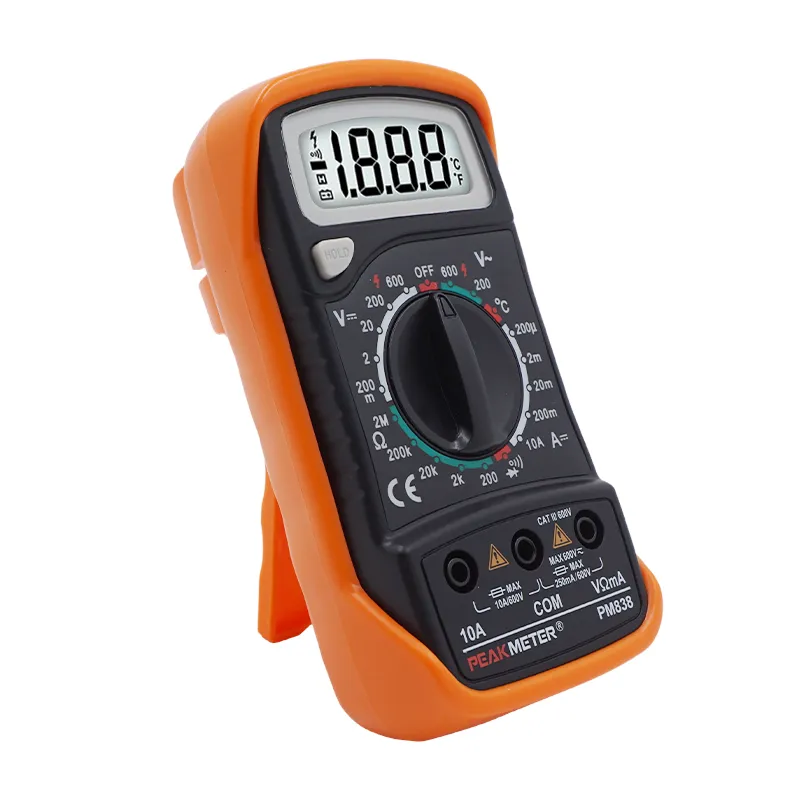

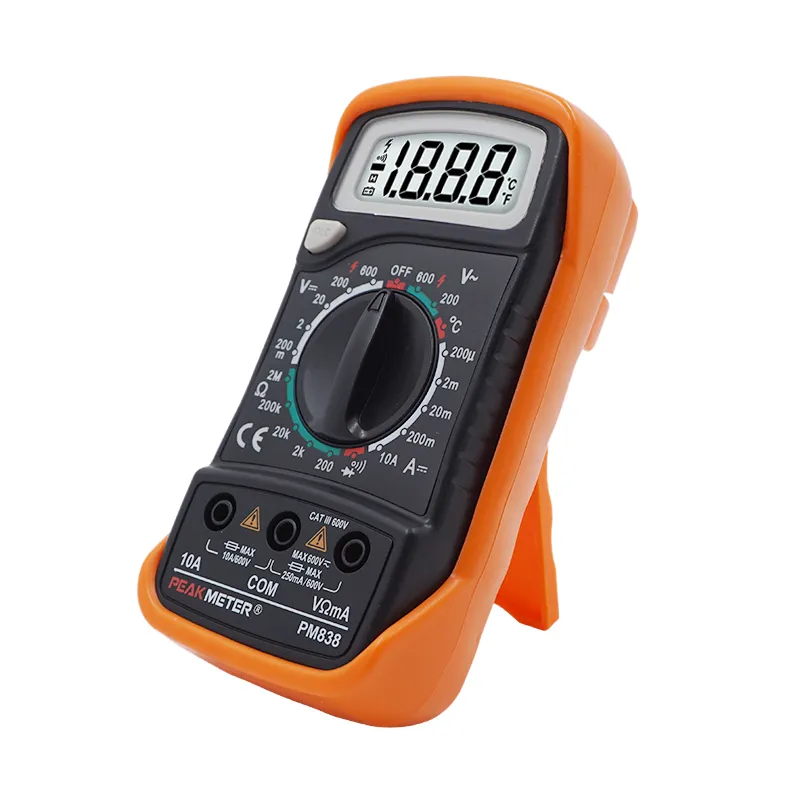

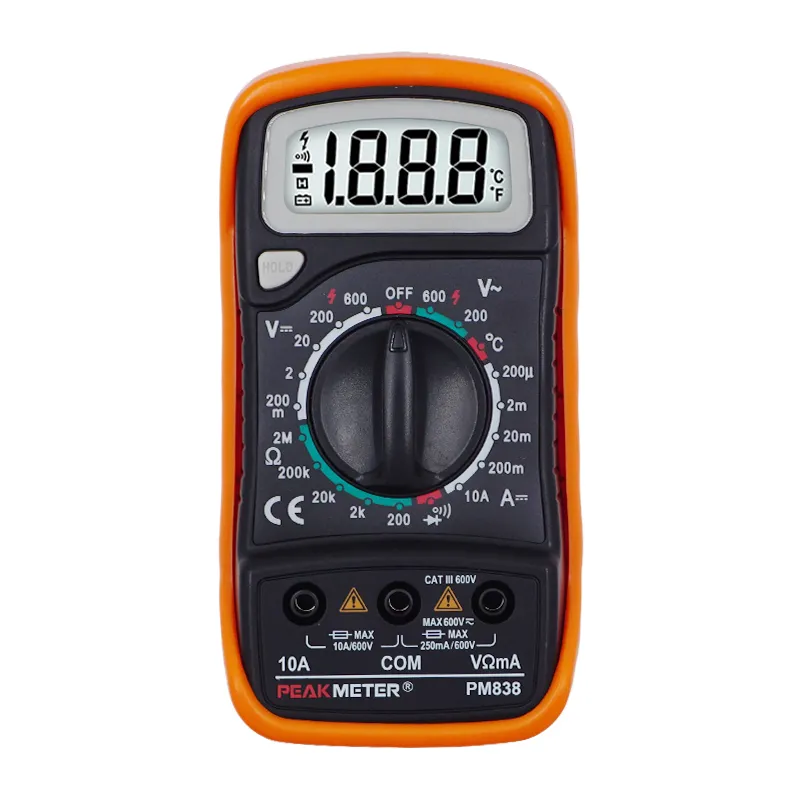

PM838 is a 2000-count handheld digital multimeter with extra temperature measurement function. It tests up to 600V AC/DC voltage, 10A DC current and resistance, equipped with backlight, data hold, diode and continuity buzzer. CAT III 600V safety certified, lightweight and durable. Perfect for home appliance repair, electronic lab practice, HVAC maintenance and daily electrical fault troubleshooting.
Display: 2000 Counts
Data Hold
Diode Test
Continuity Test
Temperature
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+3） |
| 600V | ±（0.8%+3) | |
| AC Voltage | 200V/600V | ±（1.2%+10） |
| DC Current | 200μA/2mA | ±（1.0%+3） |
| 20mA | ±（1.0%+5） | |
| 200mA | ±（1.5%+5） | |
| 10A | ±（3.0%+10） | |
| Resistance | 200Ω | ±（0.8%+5） |
| 2kΩ/20kΩ/200kΩ | ±（0.8%+2） | |
| 2MΩ | ±（1.0%+5） | |
| Temperature | -20℃～0℃ | ±（10.0%+2） |
| 0℃～400℃ | ±（1.0%+3） | |
| 400℃～1000℃ | ±2.0% | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Diode Test | √ | |
| Temperature | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | DC9V 6F22 battery | |
| Net weight | Approx.170g(batteries are not included） | |
| Gross weight | 330g | |
| Product Size | 138mm×69mm×31mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 155mm×111mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 14.2kg | |

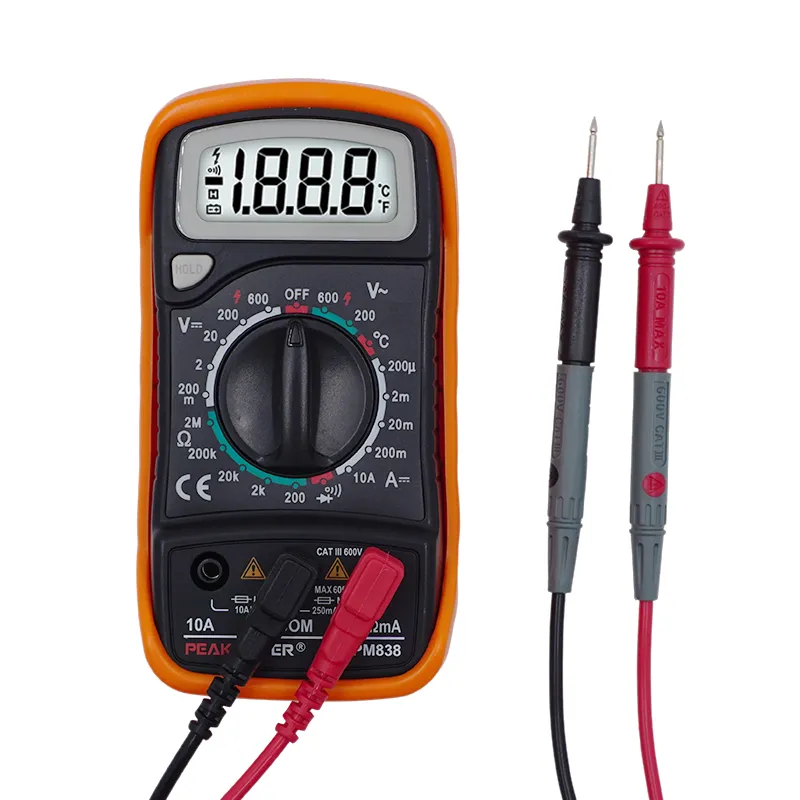

| K Type Thermocouple | Test Leads | Users Manual | DC 9V 6F22 Battery |
