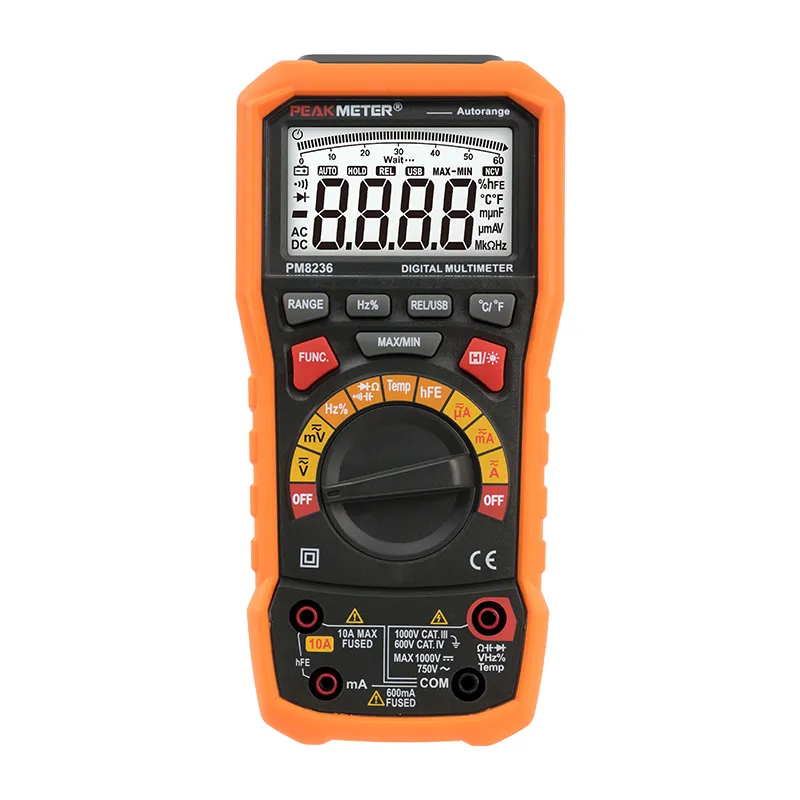

This instrument is a hand-held intelligent multifunctional measurement instrument,any data will display on its large LCD digital Screen (these sets of data display) and backlight which make it easy for user to read. What is more, the meter has the function of overload protection and battery under-voltage indication whichgreatly protected the security of users. Whether for professional, factories, schools, amateurs or family, it’s an ideal multi-functional instrument.
Display: 6000 Counts
Auto/Manual Range
Bargraph Display
Relative Measurement
True RMS
MAX/MIN

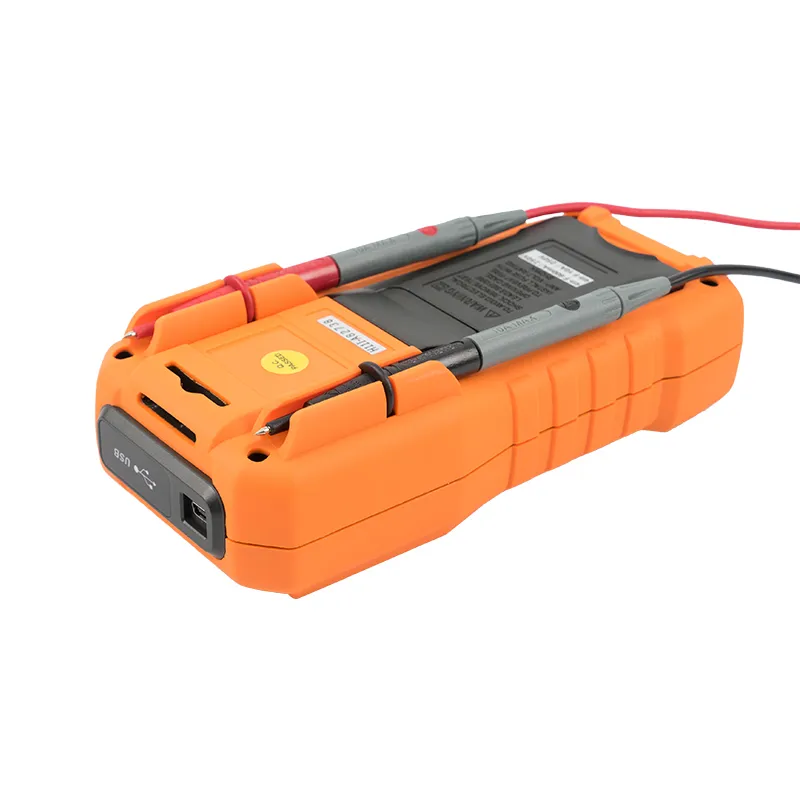

Interface: USB interface
Data Hold
Diode Test
Transistor
Continuity
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 60mV/600mV/6V/60V/600V/1000V | ±（0.7%+2） |
| AC Voltage | 60mV/600mV/6V/60V/600V | ±（0.8%+3） |
| 750V | ±（1.0%+3） | |
| DC Current | 600μA/6000μA/60mA/600mA | ±（1.2%+3） |
| 6A/10A | ±（2.0%+10） | |
| AC Current | 600μA/6000μA/60mA/600mA | ±（1.5%+3） |
| 6A/10A | ±（3.0%+10） | |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ | ±（1.2%+5） |
| 60MΩ | ±（2.0%+5） | |
| Capacitance | 10nF/100nF/1000nF/10μF/100μF/1000μF/10mF | ±（3.0%+3） |
| Frequency | 10HZ/100HZ/1KHZ/10KHZ/100KHZ/10MHZ | ±（1.0%+5） |
| Duty | 1%～99% | ± 3.0% |
| Temperature | ﹣20℃～0℃（﹣4℉～32℉） | ±5.0%reading or ±3℃/±6℉ |
| 0℃～400℃（32℉～752℉） | ±1.0%reading or±2℃/±4℉ | |
| 400℃～1000℃（752℉～1832℉） | ±2.0%reading | |
| FEATURES | ||
| Display | 6000 Counts | |
| Auto and Manual Range | √ | |
| Bargraph Display | √ | |
| Relative Measurement | √ | |
| True RMS | √ | |
| MAX/MIN | √ | |
| USB interface | PM8236 | |
| Bluetooth | PM8236B | |
| Data Hold | √ | |
| Diode Test | √ | |
| Transistor | √ | |
| Continuity | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 4×1.5VAA batteries | |
| Net weight | Approx.359.5g(batteries are not included） | |
| Gross weight | 830g | |
| Product Size | 195mm×93mm×54mm | |
| Safety Rating | N61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V | |
| Package（PCS/carton） | 20pcs | |
| Color Box Size | 230mm×150mm×70mm | |
| Carton Size | 480mm×370mm×320mm | |
| G.W | 17.6kg | |
K Type Thermocouple | Test Leads | Users Manual | 3*1.5V AAA batteries |
