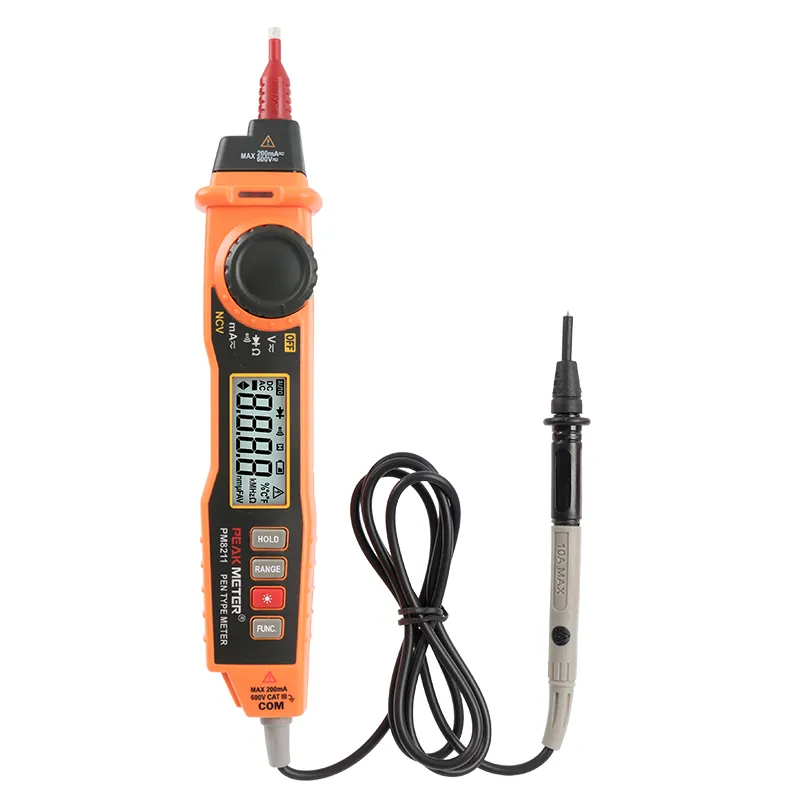

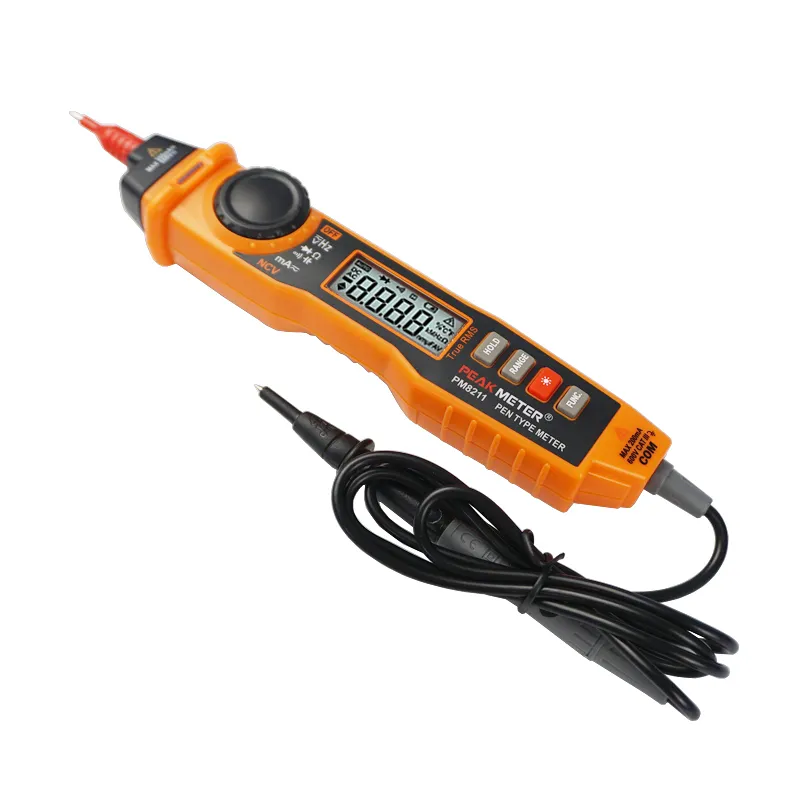

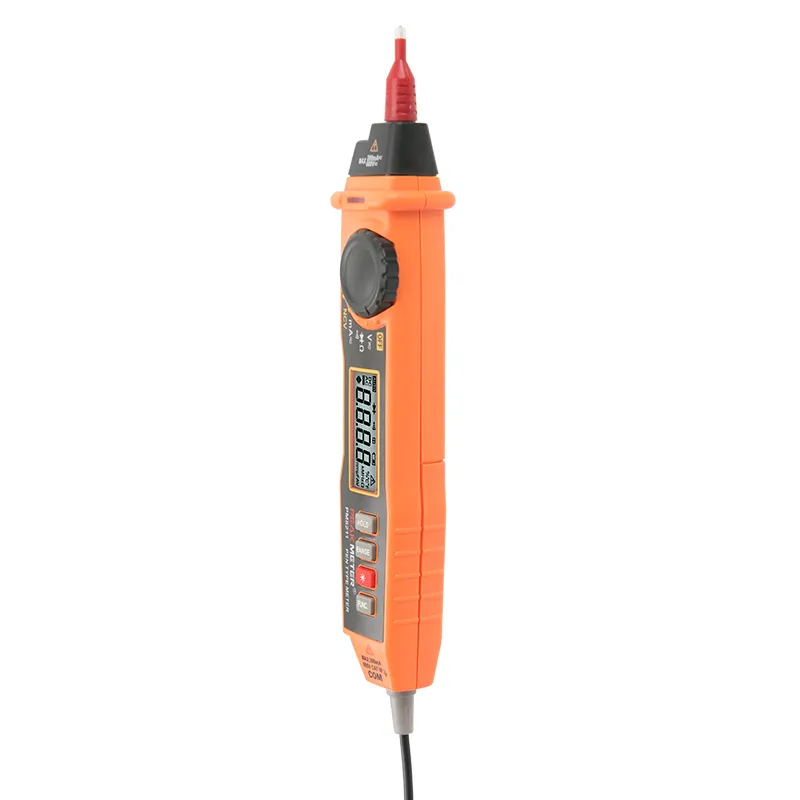

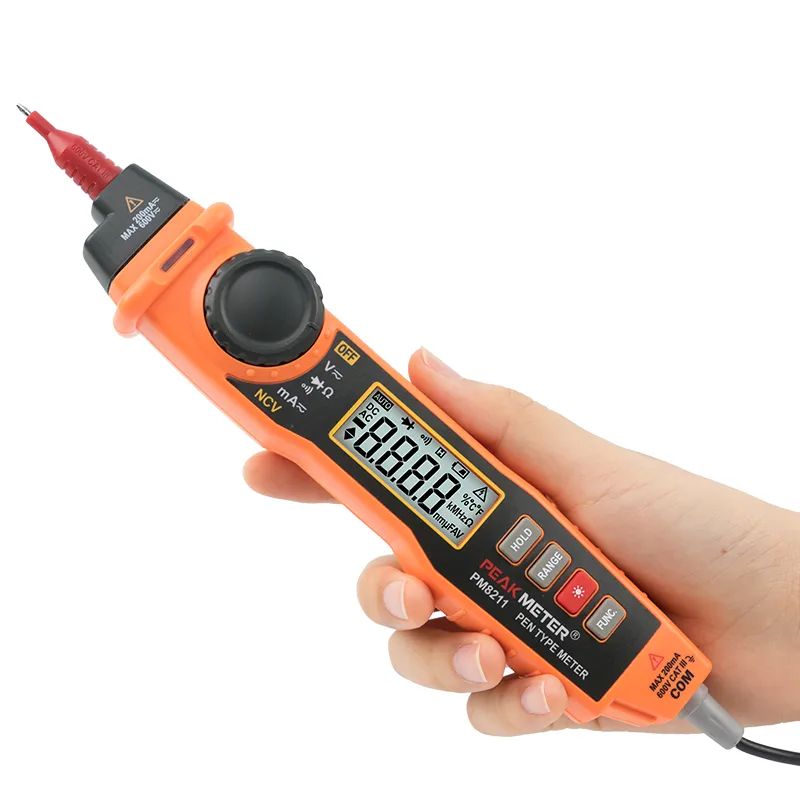

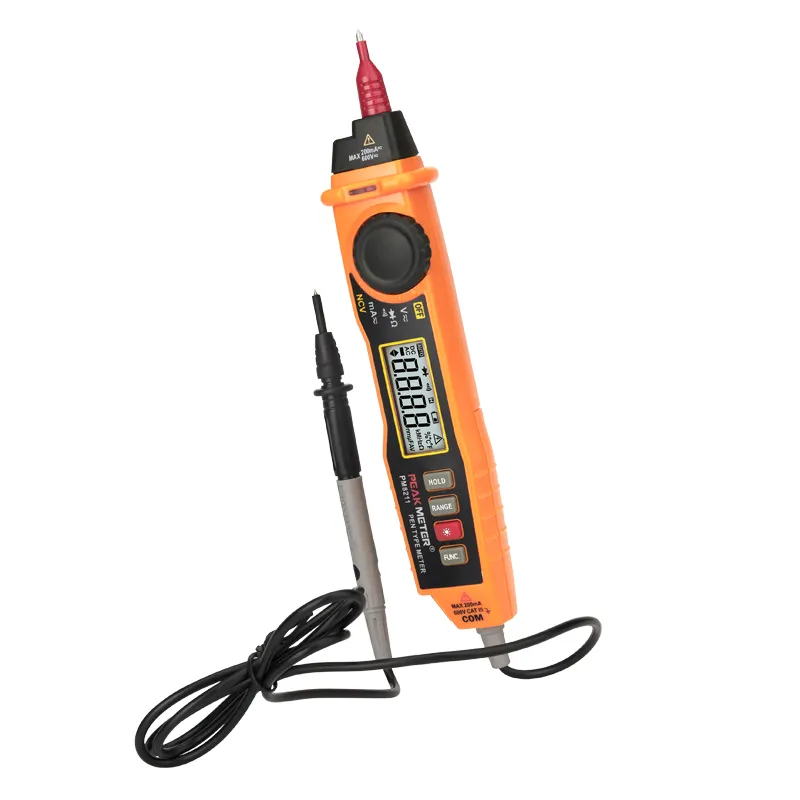

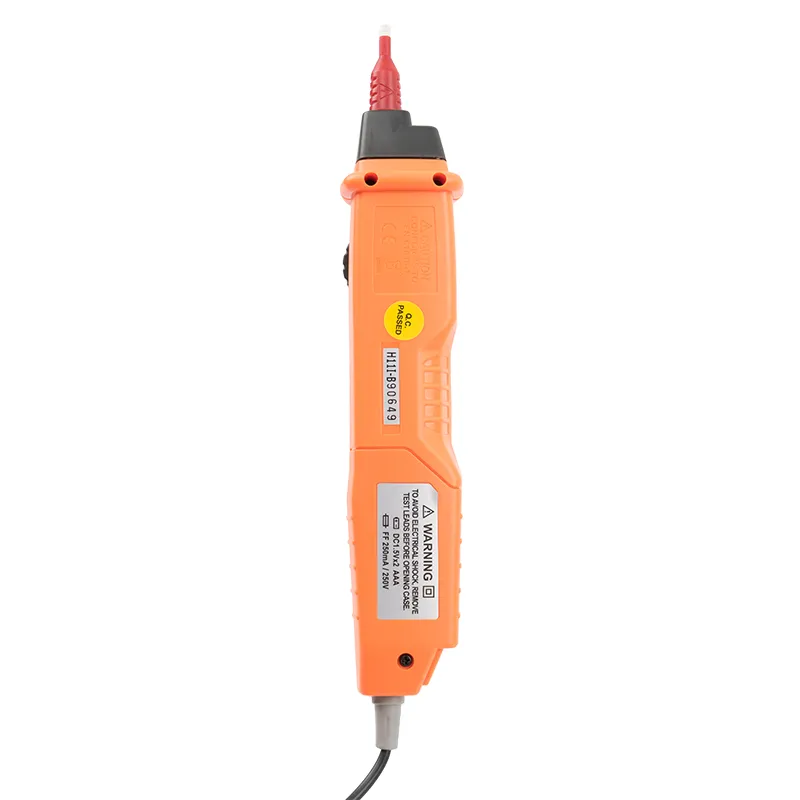

The instrument is a pen type digital multimeter. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it is an ideal measurement instrument for the majority of users. The instrument is designed and manufactured strictly in accordance with the safety standards of IEC61010, and complies with safety standards of double insulation, over-voltage standard 600V CAT III and pollution level 2. The instrument is equipped with manual and automatic range. In automatic range mode, the instrument will select the best range for the input signal detected, so it is convenient that the user does not need to re-select range when changing the measuring signal.
Display: 2000 Counts
Data Hold
Triode
Continuity
Non-Contact Voltage Detection
Flashlight
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+3） |
| 600V | ±（0.8%+5） | |
| AC Voltage | 2V/20V/200V | ±（0.8%+3） |
| 600V | ±（1.0%+5） | |
| DC Current | 20mA/200mA | ±（1.8%+5） |
| AC Current | 20mA/200mA | ±（2.0%+5） |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±（1.0%+3） |
| 20MΩ | ±（1.2%+15） | |
| Capacitance | 20nF/200nF/2μF/20μF/200μF | ±（4.0%+3） |
| 2mF/20mF | ±（5.0%+3） | |
| Frequency | 200HZ/1kHZ | ±（0.5%+2） |
| FEATURES | ||
| Display | 2000 Counts | |
| Diode Test | √ | |
| Data Hold | √ | |
| Continuity | √ | |
| NCV | √ | |
| Work Light | √ | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.134g(batteries are not included） | |
| Gross weight | 269g | |
| Product Size | 225mm×38mm×26mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 252mm×88mm×55mm | |
| Carton Size | 525mm×295mm×370mm | |
| G.W | 12kg | |
| Users Manual | 2*1.5V AAA batteries |
