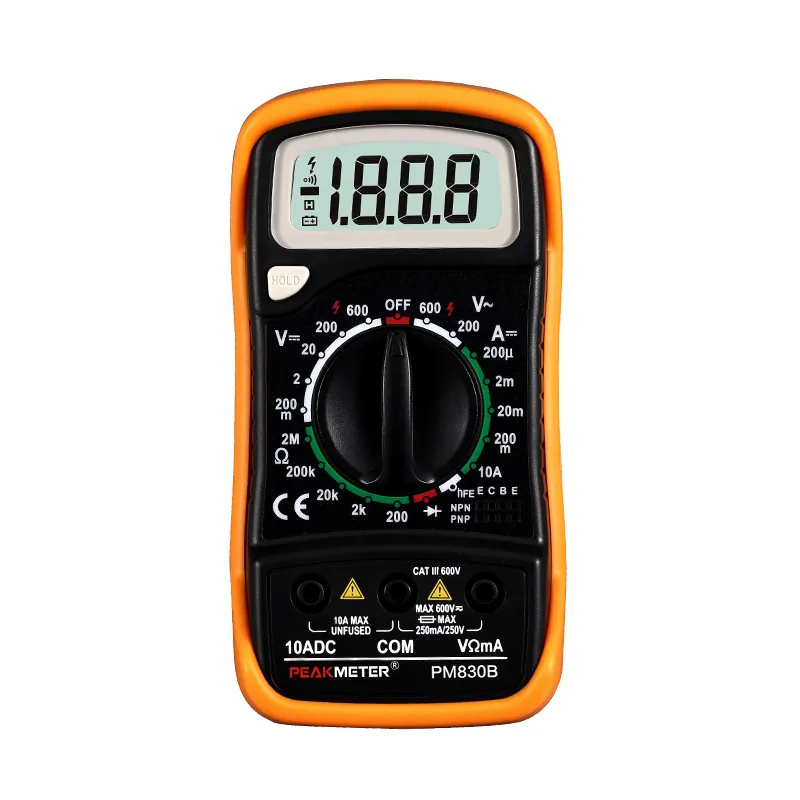

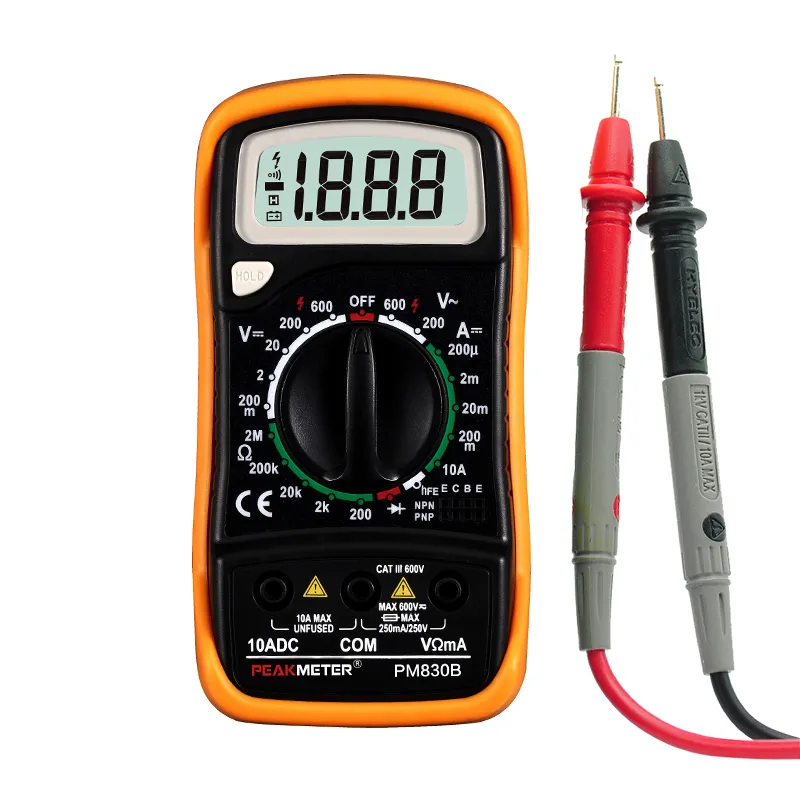

PM830B shares the same full functions and physical dimensions as PM830 digital multimeter, with minor optimized testing accuracy on AC voltage gear. Featuring 2000-count LCD display, data lock function, diode and continuity buzzer. Powered by a 9V battery and complying with CAT III 600V safety standard, it is a reliable entry-level tester for beginner electricians and small appliance repair work.
Display: 2000 Counts
Data Hold
Diode Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+3） |
| 600V | ±（0.8%+3） | |
| AC Voltage | 200V/600V | ±（1.2%+10） |
| DC Current | 20μA/200μA/2mA | ±（1.0%+3） |
| 20mA | ±（1.0%+5） | |
| 200mA | ±（1.5%+5） | |
| 10A | ±（3.0%+10） | |
| Resistance | 200Ω | ±（0.8%+5） |
| 2kΩ/20kΩ/200kΩ | ±（0.8%+2） | |
| 2MΩ | ±（1.0%+5） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Diode Test | √ | |
| GENERAL | ||
| Power Supply | DC9V 6F22 battery | |
| Net weight | Approx.170g(batteries are not included） | |
| Gross weight | 332g | |
| Product Size | 138mm×69mm×31mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 155mm×111mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 14.2kg | |
| Test Leads | Users Manual | DC 9V 6F22 Battery |
