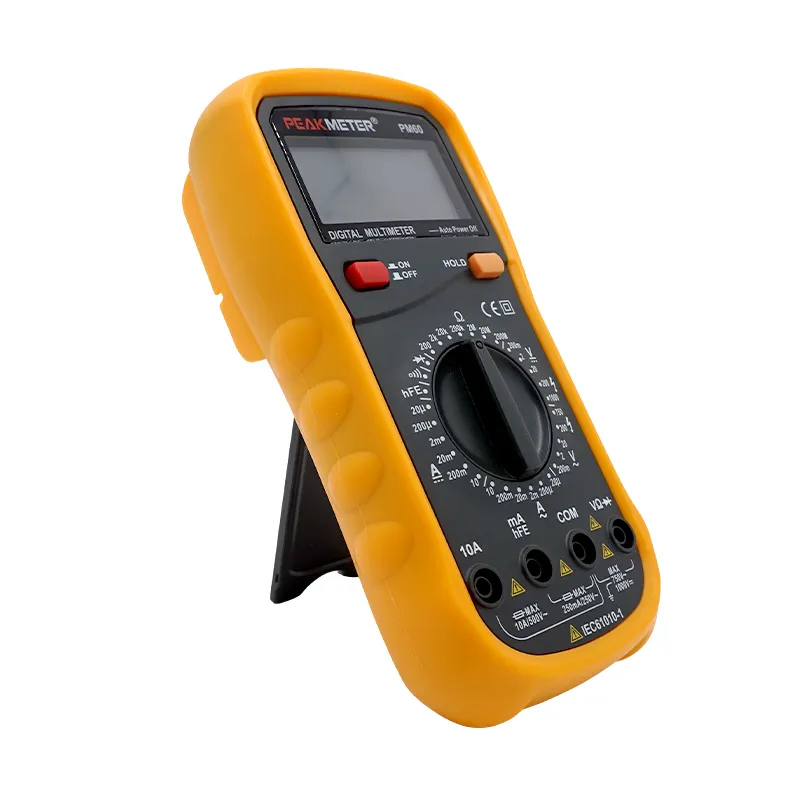

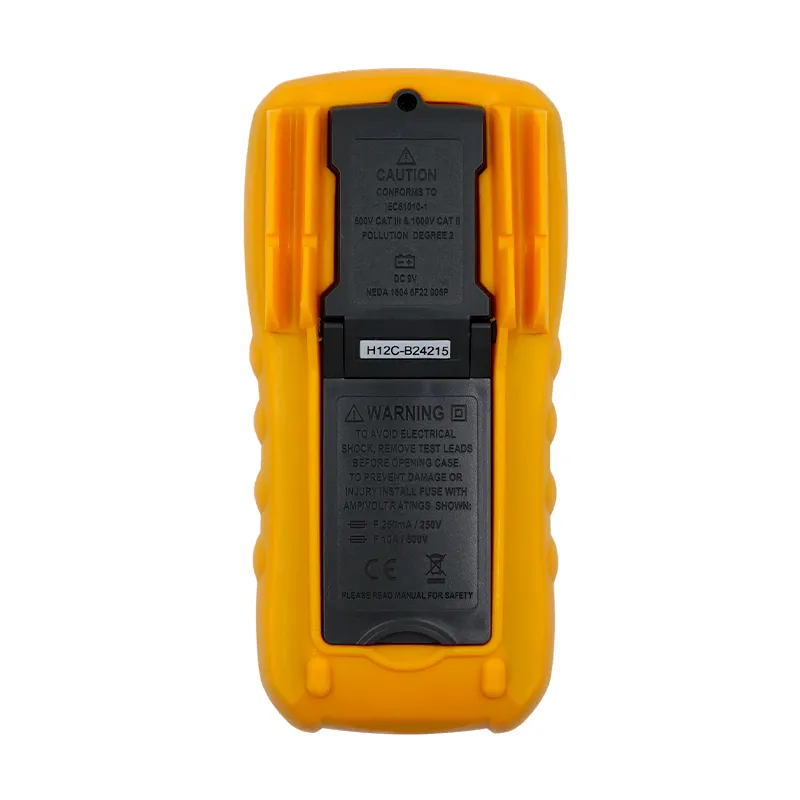

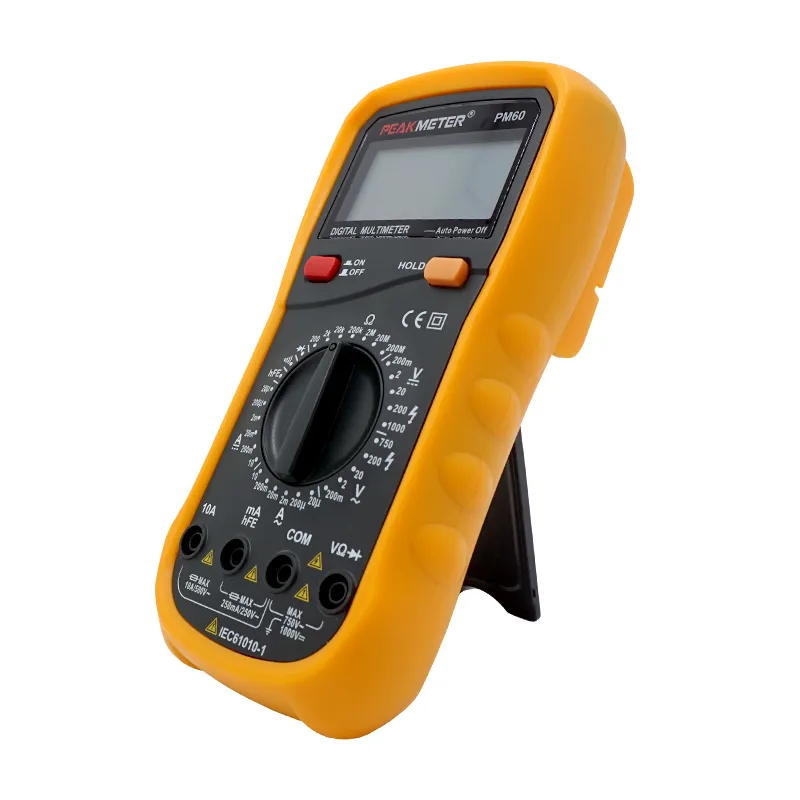

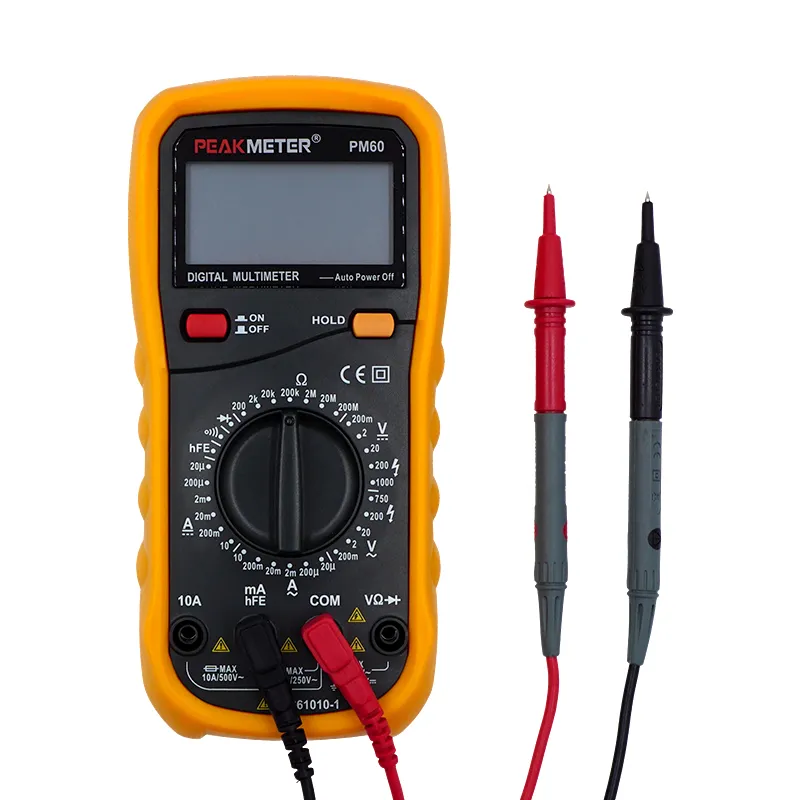

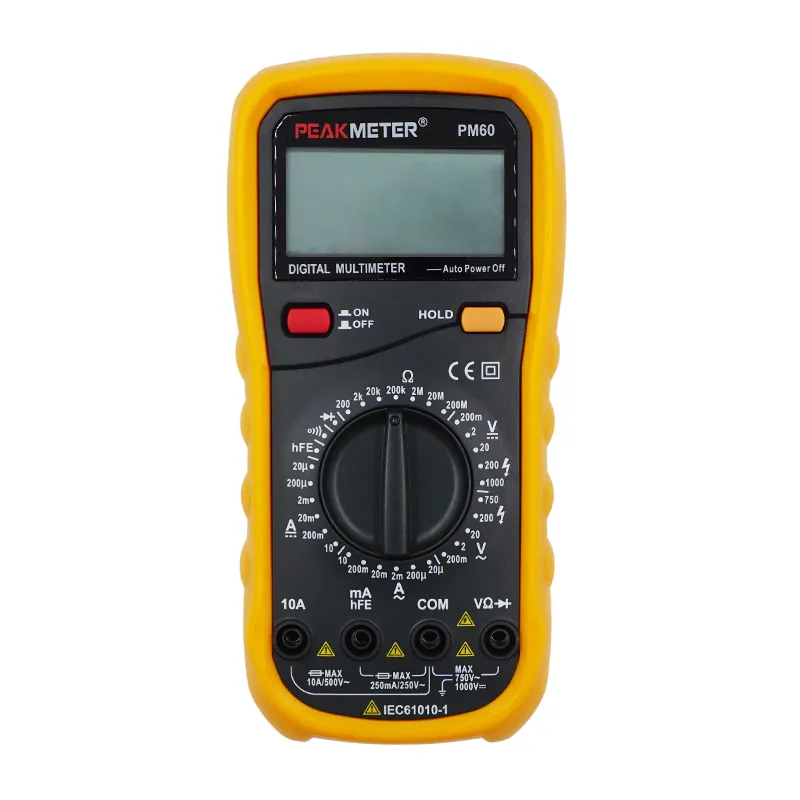

PM60 is a 2000-count compact digital multimeter with full basic test functions. It measures up to 1000V DC, 750V AC voltage, 20A AC/DC current and resistance, plus diode, transistor and continuity tests. Equipped with data hold and auto power off, it meets CAT III 1000V safety standard. Perfect for beginner electricians, hobbyists, household appliance repair and basic electronic circuit troubleshooting.
Display: 2000 Counts
Data Hold
Auto Power Off
Diode Test
Transistor Test
Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 1000V | ±（0.8%+2） | |
| AC Voltage | 200mV | ±（1.2%+3） |
| 2V/20V/200V | ±（0.8%+3） | |
| 750V | ±（1.2%+3） | |
| DC Current | 20μA | ±（2.0%+5） |
| 200μA/2mA/20mA | ±（0.8%+1） | |
| 200mA/2A | ±（1.5%+1） | |
| 20A | ±（2.0%+5） | |
| AC Current | 20μA | ±（2.0%+5） |
| 200μA /2mA/20mA | ±（1.0%+5） | |
| 200mA/2A | ±（1.8%+5） | |
| 20A | ±（3.0%+7） | |
| Resistance | 200Ω | ±（0.8%+3） |
| 2kΩ/20kΩ/200kΩ/2MΩ | ±（0.8%+2） | |
| 20MΩ | ±（1.0%+2） | |
| 200MΩ | ±（6.0%+10） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Diode Test | √ | |
| Transistor Test | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | 1×9V6F22 battery | |
| Net weight | Approx.341g(batteries are not included） | |
| Gross weight | 540g | |
| Product Size | 193mm×94mm×50mm | |
| Safety Rating | N61010-1,EN61010-2-033,EN61326,CAT.Ⅱ1000V,CAT.Ⅲ600V | |
| Package（PCS/carton） | 30pcs | |
| Color Box Size | 230mm×150mm×70mm | |
| Carton Size | 450mm×420mm×340mm | |
| G.W | 17.2kg | |
| Test Leads | Users Manual | 1×9V 6F22 Battery |
