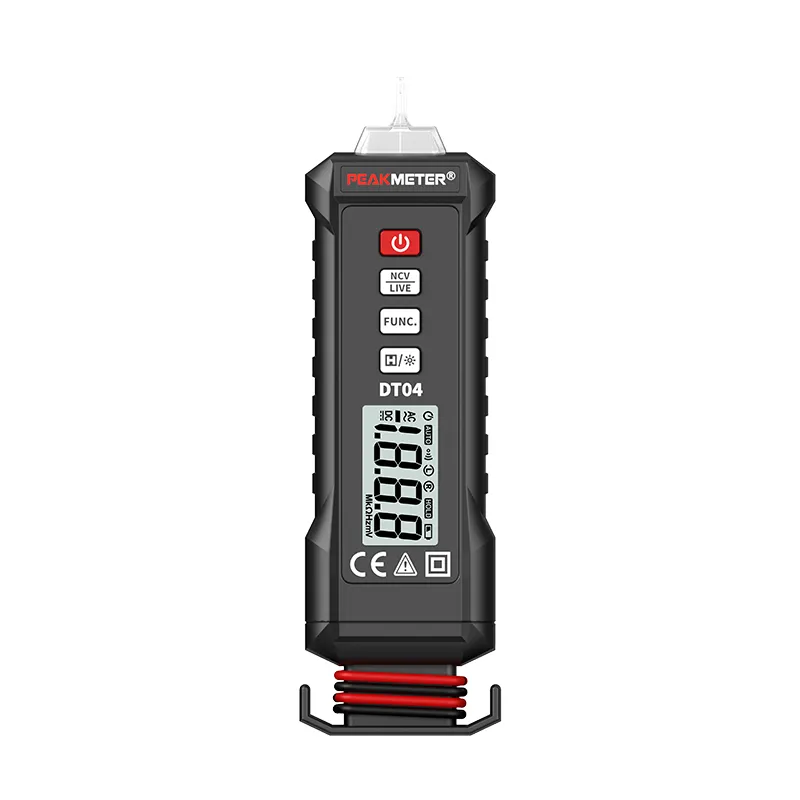

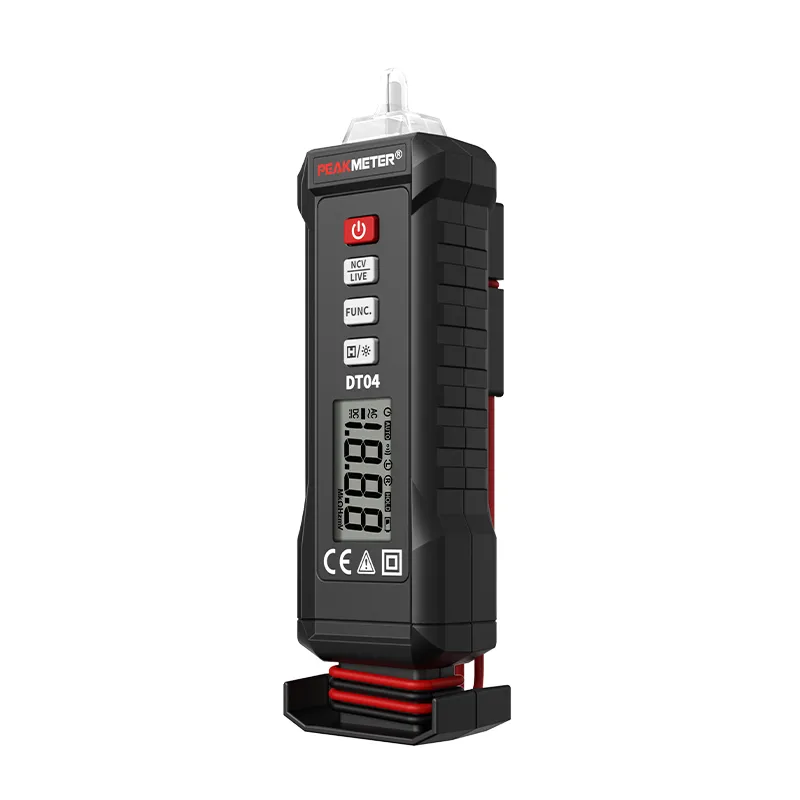

DT04 is an integrated stick-shaped automatic digital multimeter with pen-style compact body. It tests AC/DC voltage, frequency and 20MΩ resistance, featuring NCV non-contact voltage induction and live wire judgment with sound-light alarm. Equipped with data hold, backlight and 10min auto shut-off, CAT III 600V safety certified. Ideal for electricians’ live wire checking, household circuit inspection and portable on-site electrical troubleshooting.
Non-Contact Voltage Detection Range: AC voltage 36-1000 V, 50 Hz or 60Hz
Live Line Detection Range: AC Voltage 36-1000 V, 50 Hz or 60Hz
Alarm Mode: Sound, Light and Display Screen Indication
Voltage Measurement: Automatic Judge AC and DC Voltage
Service Temperature: 0~40°
Storage Temperature: -10~50°
Altitude: ＜2000m
Automatic Power Off: About 10 minutes
Data Hold
Low Battery Indication
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 1V~600V | ±(1.0%+5) |
| AC Voltage | 1V~600V | ±(1.5%+5) |
| Frequency | 45Hz~1kHz | ±(1.5%+5) |
| Resistance | 0~20MΩ | ±(2.0%+5) |
| FEATURES | ||
| Non contact voltage detection range | AC voltage 36~1000V,50Hz or 60Hz | |
| Live line detection range | AC voltage 36~600V, 50Hz or 60Hz | |
| Alarm Mode | Sound,lightand display screen indication | |
| Voltage measurement | Automatic judge AC and DC voltage | |
| Service Temperature | 0~40°C | |
| Storage Temperature | -10~50°C | |
| Altitude | <2000m | |
| Auto Power Off | About 10 minutes | |
| Low-Battery Indication | √ | |
| Data Hold | √ | |
| Backlight | √ | |
| GENERAL | ||
| Power Supply | CR2450×1 3Vbutton cell | |
| Weight | Approx.92g(included batteries） | |
| Size | 130mm×42mm×33mm | |
| Safety Standard/Rating | IEC61010-1 CAT III 600V | |
| Users Manual | 1x CR2450 Button cell |
