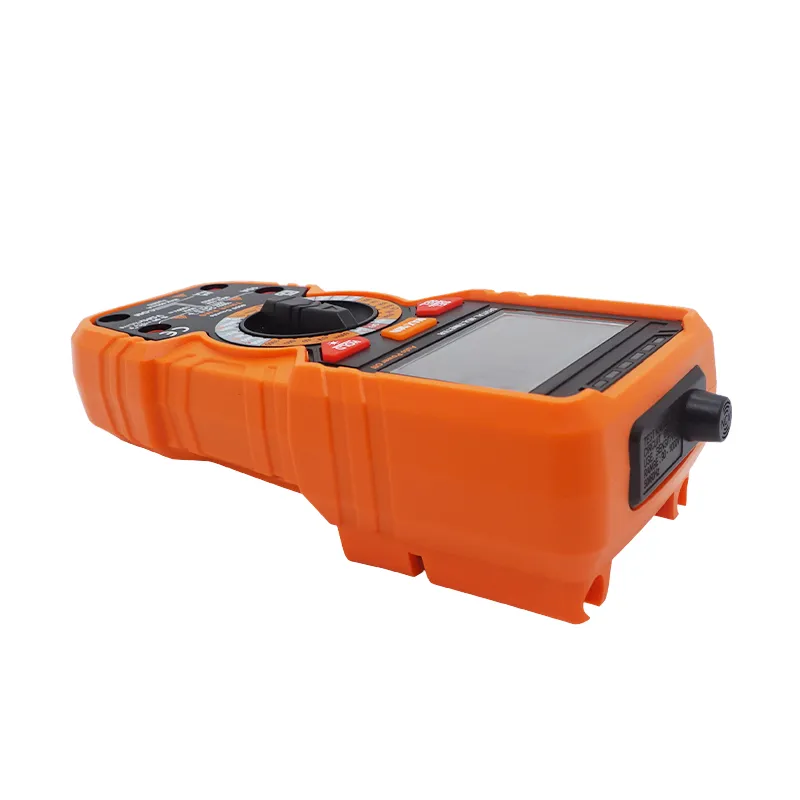

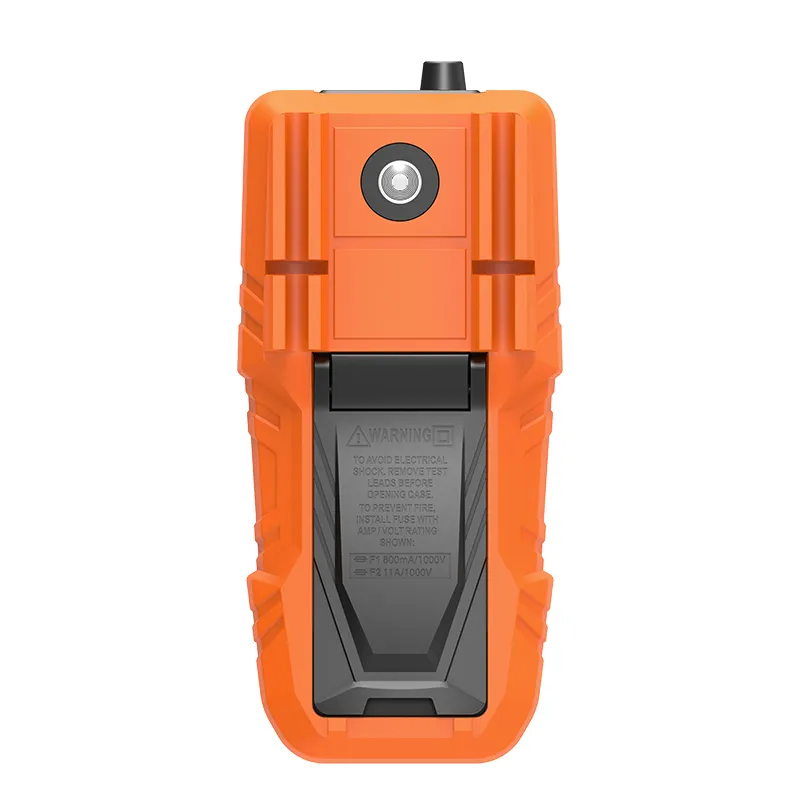

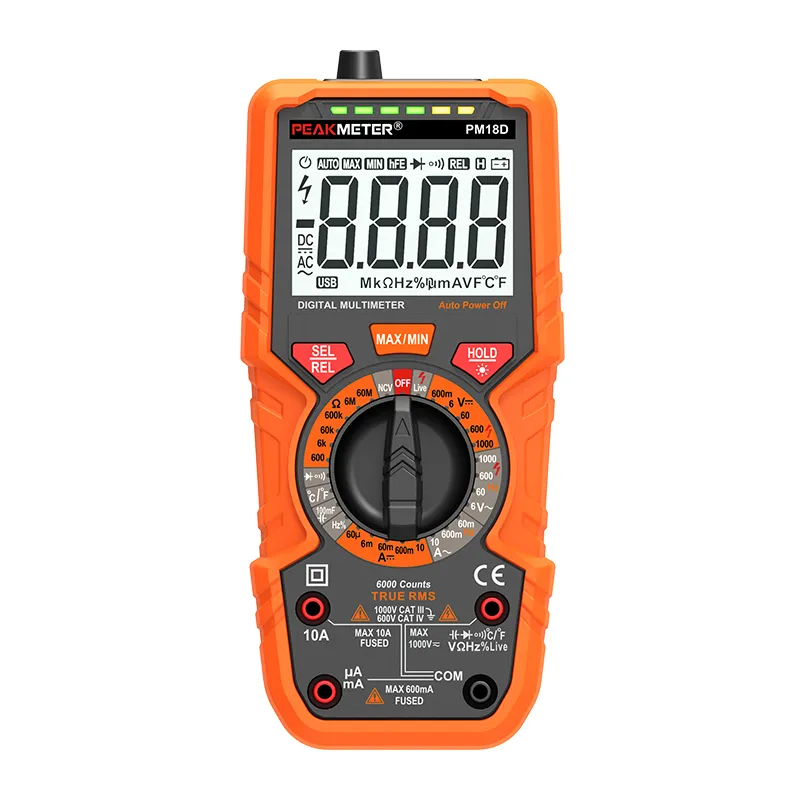

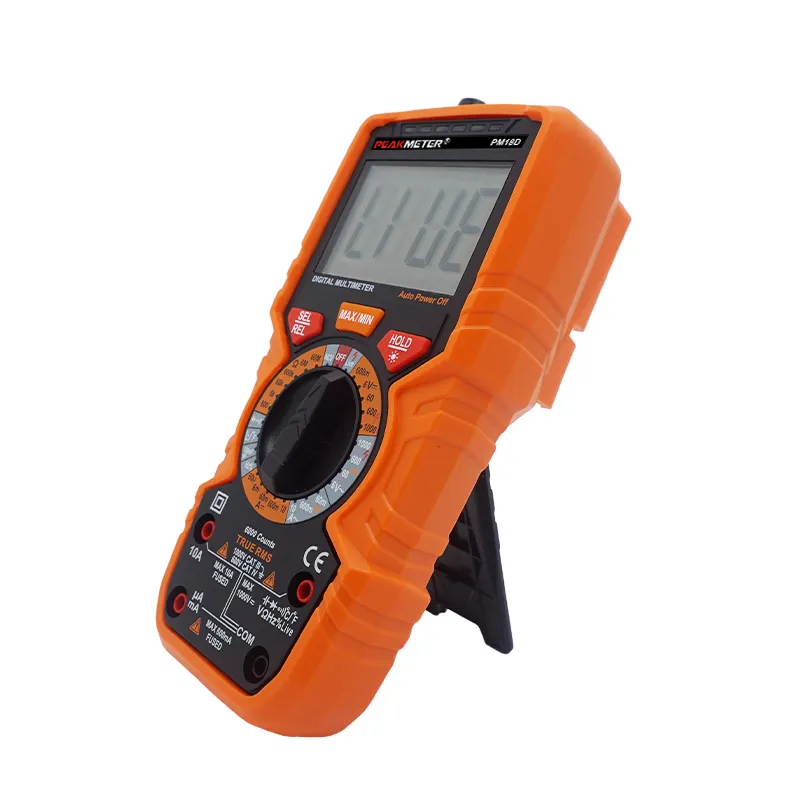

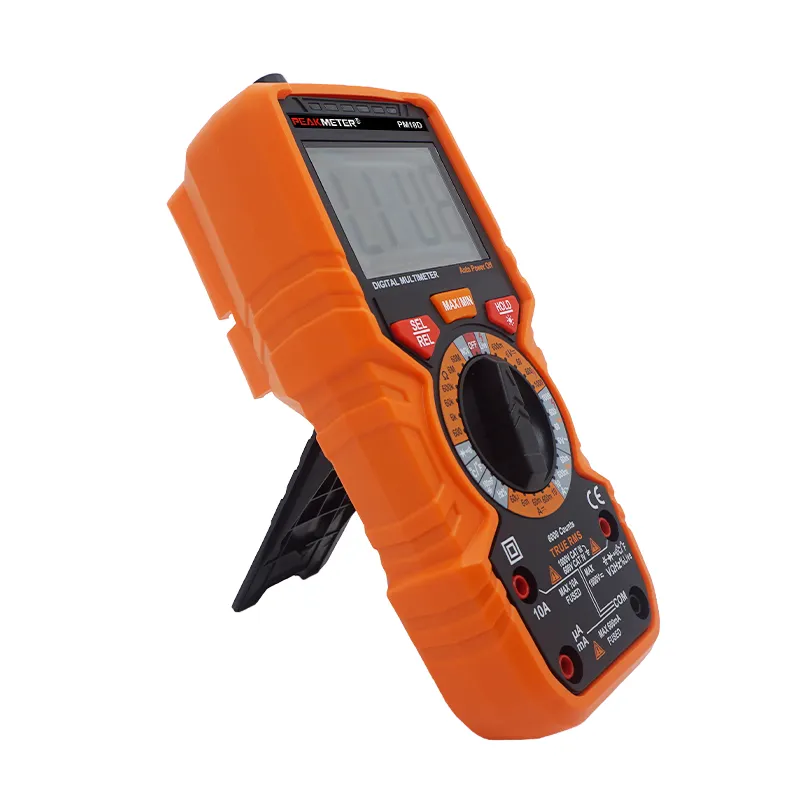

PM18D 6000 Counts Digital Multimeter with T-RMS

Name: PM18D 6000 Counts Digital Multimeter with T-RMS
Brand: Guilin Huayi Peakmeter Technology Co.,Ltd
Availability: InStock

This 6000-count True RMS digital multimeter accurately tests up to 1000V AC/DC voltage and 10A current. It covers 100mF capacitance, 10MHz frequency, duty cycle and -20℃~1000℃ temperature measurement, with NCV detection and live wire alert. Rated CAT III 1000V / CAT IV 600V, it runs on 3×AAA batteries and is ideal for industrial and residential electrical troubleshooting.

Features

Specification

Documents

Accessories & Options

Features of PM18D 6000 Counts Digital Multimeter with T-RMS

Display: 6000 Counts
ACV/ACA TRMS
ACV (Bandwidth): 1kHz
Temperature
Frequency: 10MHz
Duty: 1%~99%
Resistance: 60MΩ
Capacitance: 100mF
Continuity (Sound and LED Aarm)
Dlode Test
MAX/MIN
Live Line Test (High, MediumAnd Low) Sound And LED Alarm
Low Battery Indication
NCV (High, MediumAnd Low) Sound And LED Alarm
Auto Power Off

Specification of PM18D 6000 Counts Digital Multimeter with T-RMS

SPECIFICATION	RANGE	ACCURACY
PM18D
DC Voltage	600mV/6V/60V/600V/1000V	±（0.5%+3）
AC Voltage	6V/60V	±（0.8%+3）
AC Voltage	600V/1000V	±（1%+10）
DC Current	60μA/60mA/600mA	±（0.8%+3）
DC Current	10A	±（1.2%+3）
AC Current	60mA/600mA	±（1.0%+3）
AC Current	10A	±（1.5%+3）
Resistance	600Ω /6kΩ /60k/600kΩ /6MΩ	±（0.8%+3）
Resistance	60MΩ	±（1.2%+30）
Capacitance	6nF	±（4.0%+30）
	60nF/600nF/6μF/60μF/ 600μF/6mF	±（4.0%+5）
	100mF	±（5.0%+3）
Frequency	9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ	±（1.0%+3）
Duty	1%～99%	±（3.0%+5）
Temperature	-20℃～1000℃（-4℉～1832℉）	±（1.0%+3）(℃/℉)

	PM18D
Display
ACV/ACA TRMS	√
ACV(bandwidth)	1KHZ
Temperature	√
Frequency	10MHZ
Duty
Resistance
Capacitance
Continuity（Sound and LED ALarm）	√
Diode Test	√
MAX/MIN	√
Live Line Test (high,mediumand low)Sound And LED Alarm Work Light	√
Low Battery Indication	√
NCV(high,mediumand low)Sound And LED Alarm	√
Auto Power Off	√
GENERAL
Power Supply	3x1.5V AAA batteries
Weight	Approx.380g(included batteries)
Size	194mmx90mmx56mm
Safety Rating	EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V

PM18D User Manual English

Title Download

PM18D User Manual English

1 file(s)

Download

Accessories & Options of PM18D 6000 Counts Digital Multimeter with T-RMS

K Type Thermocouple

Test Leads

Users Manual

3*1.5V AAA batteries
