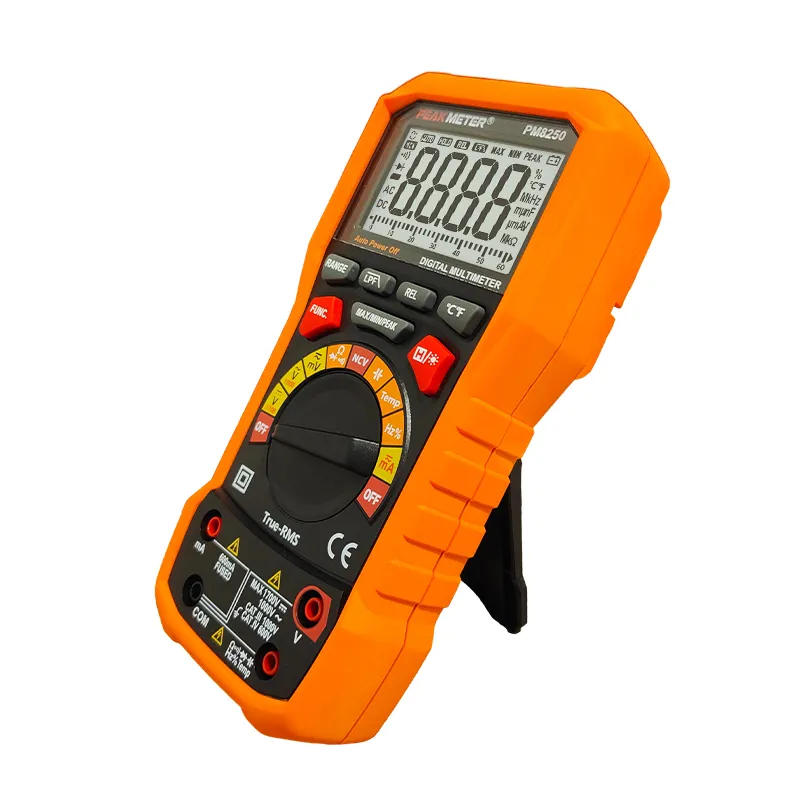

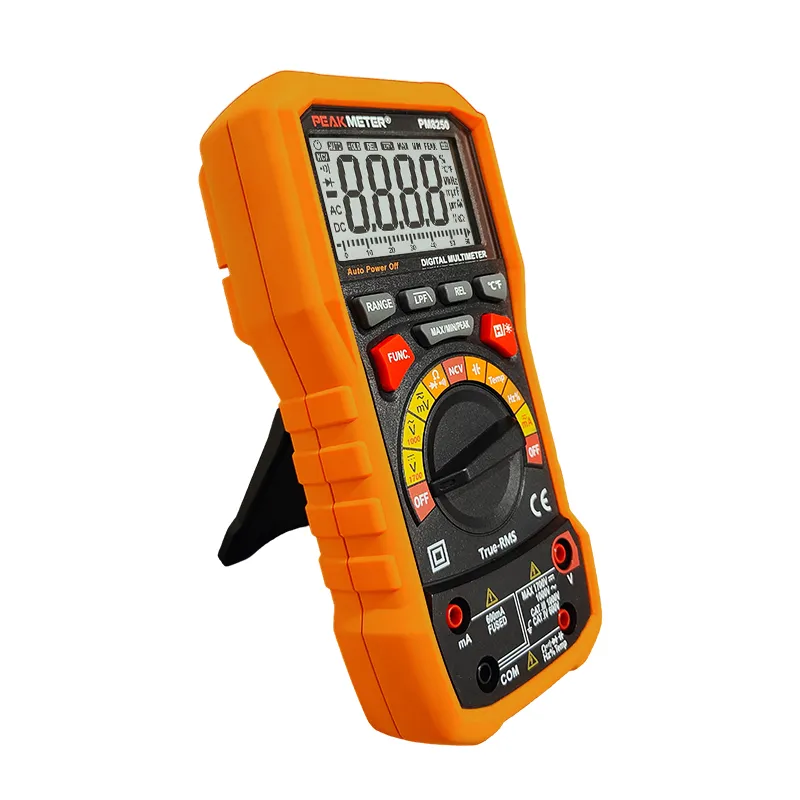

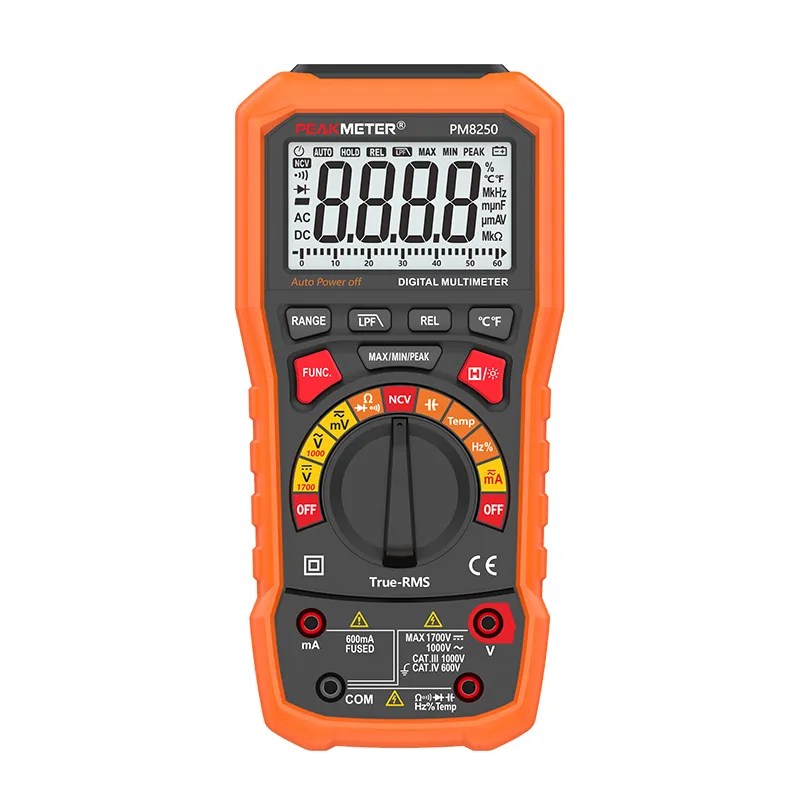

PM8250 is a handheld photovoltaic multimeter, it can be used to measure the voltage of photovoltaic panels, with a maximum DC voltage of 1700V. This is a high-precision multimeter analog and digital dual displays, with a high-definition display screen and backlight function to help users read clearly. In addition to basic measurements of AC/DC voltage, AC/DC current, resistance, and frequency. It also can measure temperature, capacitance, maximum, minimum, and peak values, and measure AC voltage using low-pass filtering function. It has overload protection and low voltage indication, and is a functional multimeter with automatic and manual ranges.
Display: 6000 Counts
DC Voltage up: 1700V
Data Hold
LPF Filtering
Relative Measurement
MAX/MIN and AC Peak Measurements
Diode Test
Continuity
NCV Non-Contact Voltage
K-Type Thermocouple Temperature Measurement
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1700V | ±(0.8% +3) |
| DC Current | 60mA/600mA | ±(1.2% +3) |
| AC Current | 60mA/600mA | ±(1.5% +3) |
| AC Voltage | 600mV/6V/60V/600V/1000V | ±(1.0% +3) |
| AC +DC mV | 60mV | ±(0.8% +3) |
| 600mV | ±(0.5% +3) | |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ | ±(1.2%+5) |
| 60MΩ | ±(2.0%+5) | |
| Capacitance | 10nF/100nF/1μF/10μF/100μF | ±(3.0%+5) |
| 1mF/10mF | ±(4.0%+5) | |
| 100mF | ±(5.0%+5) | |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+5) |
| Temp | —20~1000℃ —4~1832℉ | ±(2.0%+2) |
| Duty | 5%~95% | ±(3.0%+5) |
| FEATURE | ||
| Display | 6000 Counts | |
| Diode | √ | |
| NCV | √ | |
| Continuity | √ | |
| Auto Power Off | √ | |
| Data Hold | √ | |
| Back Light | √ | |
| Low Battery Indication | √ | |
| True RMS | √ | |
| Relative Measurement | √ | |
| LPF Filtering | √ | |
| MAX/MIN/AC Peak Measurenents | √ | |
| K-Type Thermocouple Temperature Measurement | √ | |
| GENERAL | ||
| Power Supply | 4 x 1.5V AA Batteries | |
| Product Size | 204(L)x94(W)x57(H) mm | |
| Net weight | 410g (include batteries） | |
| Gross weight | 878.3g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V//CAT.Ⅳ600V | |
| Package（PCS/carton） | 20pcs | |
| Color Box Size | 230 mm x150mm x 70mm | |
| Carton Size | 480 mm x 370mm x 320mm | |
| G.W | 18.6Kg | |
K Type Thermocouple | Test Leads | Users Manual | 4*1.5V AAA batteries |
