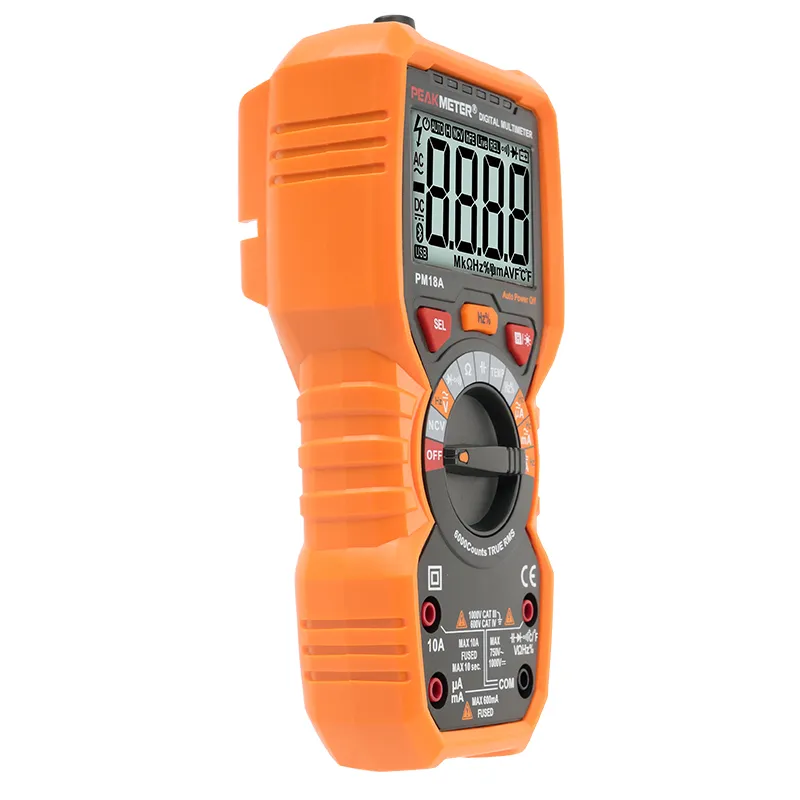

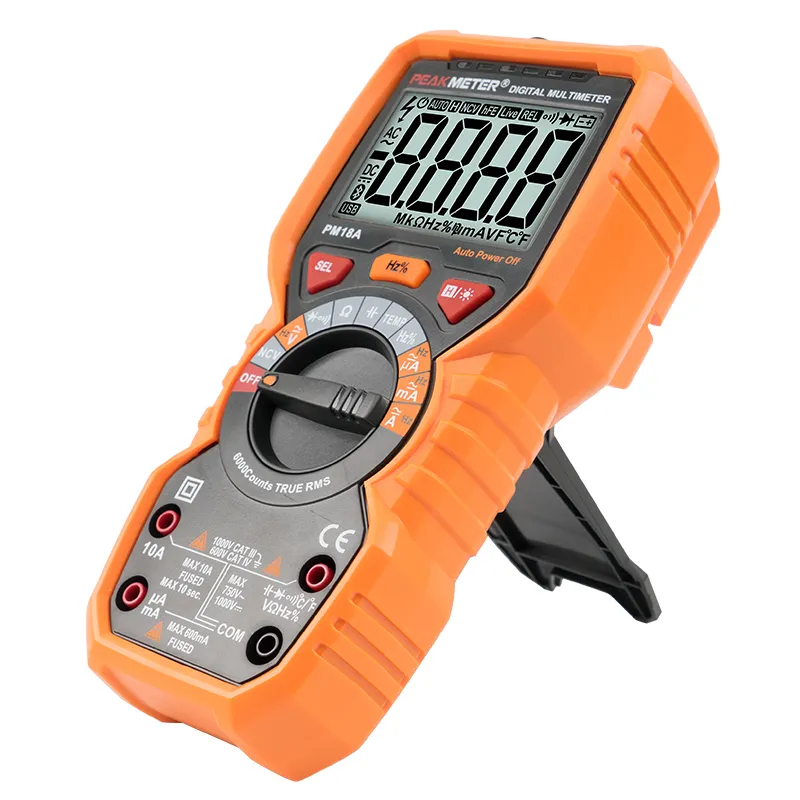

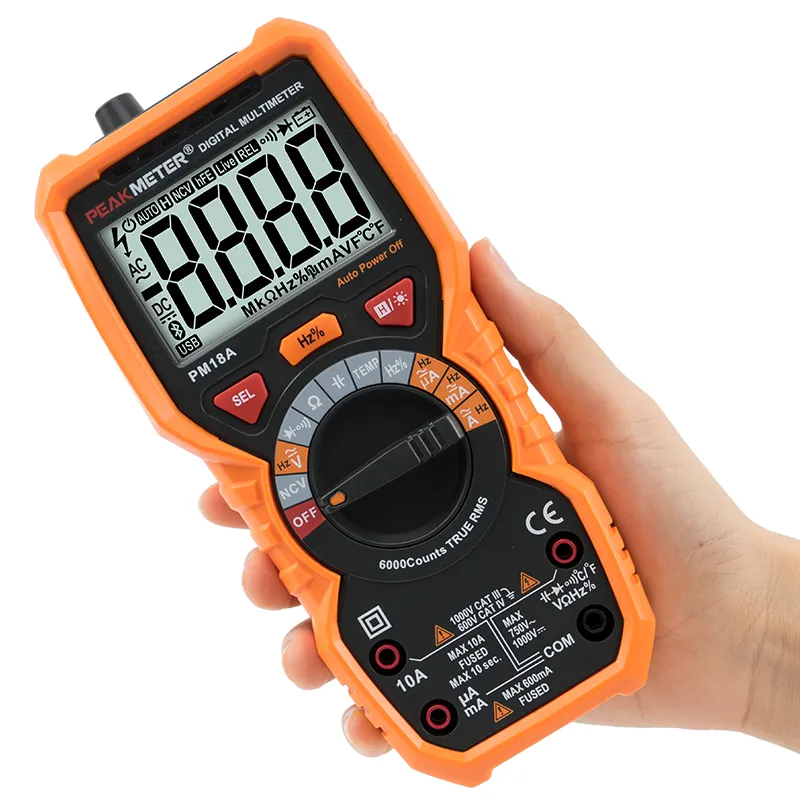

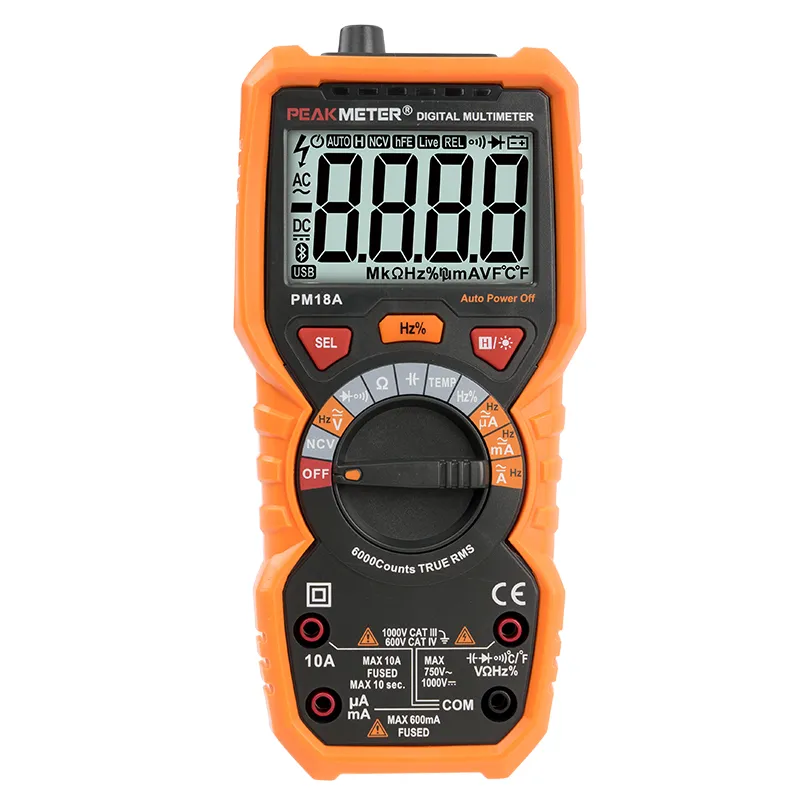

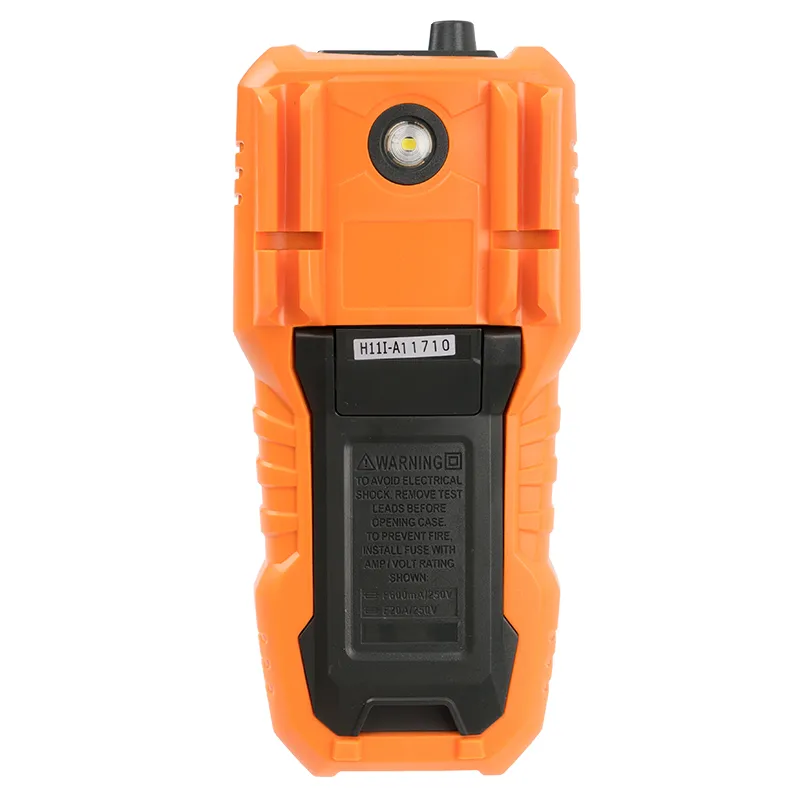

This 6000-count True RMS digital multimeter delivers precise readings up to 1000V DC / 750V AC voltage and 10A current. It covers 100mF capacitance, 10MHz frequency, duty cycle and -20℃~1000℃ temperature measurement, with NCV detection and built-in work light. Certified CAT III 1000V safety standard, it is a reliable handheld tool for professional electrical maintenance.
Counts: 6000 Counts
ACV/ACATRMS
ACV (Bandwidth): 1kHz
Temperature
Frequency
Duty: 5%-95%
Resistance: 60MΩ
Capacitance: 100mF
Continuity: (Sound and LED Alarm)
Diode Test
Low Battery Indication
Work Light: (High,Medium And Low) Sound And LED Alarm
NCV
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 6V/60V | ±（0.8%+3） |
| 600V/750V | ±（1%+10） | |
| DC Current | 60μA/600μA/6mA/60mA/600mA | ±（0.8%+3） |
| 10A | ±（1.2%+3） | |
| AC Current | 60μA/600μA/6mA/60mA/600mA | ±（1.0%+3） |
| 10A | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（0.8%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 6nF | ±（4.0%+30） |
| 60nF/600nF/6μF/60μF/ 600μF/6mF | ±（4.0%+3） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ/9.999MHZ | ±（1.0%+3） |
| Duty | 5%～95% | ±（2.0%+3） |
| Temperature(℃/℉) | -20℃～1000℃（-4℉～1832℉） | ±（1.0%+3） |
| FEATURES | ||
| Display | 6000 Counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Temperature(℃/℉) | √ | |
| Frequency | 10MHZ | |
| Duty | 5%～95% | |
| Resistance | 60MΩ | |
| Capacitance | 100mF | |
| Continuity（Sound and LED ALarm） | √ | |
| Diode Test | √ | |
| Work Light | √ | |
| Low Battery Indication | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4x1.5V AA batteries | |
| Net weight | Approx.380g(included batteries) | |
| Gross weight | 578g | |
| Product Size | 190mmx89mmx50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 208mmx128mmx59mm | |
| Carton Size | 440mmx310mmx410mm | |
| G.W | 18.3kg | |
K Type Thermocouple | Test Leads | Users Manual | 4*1.5V AAA batteries |
