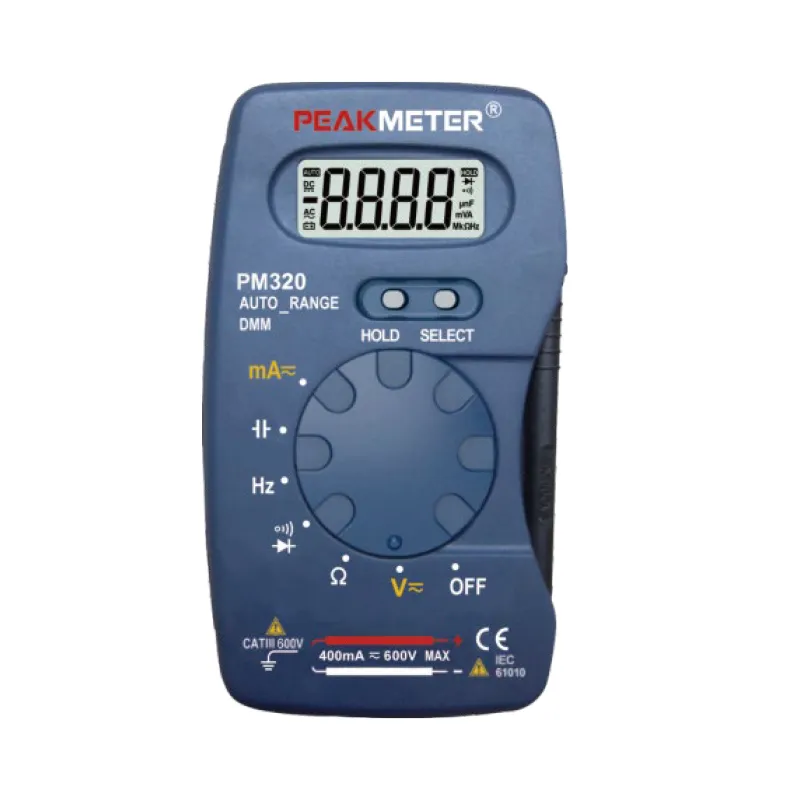

PM320 upgraded pocket multimeter features 4000 higher resolution counts and practical data hold function. It supports full measurements including voltage, current, resistance, 100kHz frequency and 100μF capacitance. Ultra-thin lightweight body meets CAT III 600V safety standard. Ideal for electronic component testing, DIY circuit projects, laboratory teaching and professional portable field maintenance work.
Display: 4000 Counts
Data Hold
Diode Test
Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 400mV/4V/40V/400V/600V | ±（0.8%+3） |
| AC Voltage | 4V/40V/400V | ±（0.8%+4） |
| 600V | ±（1.2%+4） | |
| DC Current | 40mA/400mA | ±（2.0%+3） |
| AC Current | 40mA/400mA | ±（3.0%+4） |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | ±（1.0%+3） |
| 40MΩ | ±（2.0%+3） | |
| Capacitance | 4nF | ±（5.0%+10） |
| 40nF | ±（4.0%+5） | |
| 400nF/4μF/40μF/100μF | ±（3.0%+3） | |
| Frequency | 10Hz/100Hz/1KHz/10KHz/100KHz | ±（0.5%+3） |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | Sr44 or LR44×2 batteries | |
| Net weight | Approx.110g(included batteries) | |
| Gross weight | 137g | |
| Product Size | 120mm×70mm×18mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 90 pcs | |
| Color Box Size | 128mm×80mm×28mm | |
| Carton Size | 445mm×370mm×290mm | |
| G.W | 12.5kg | |
| Users Manual | Sr44 or LR44x2 Battery |
