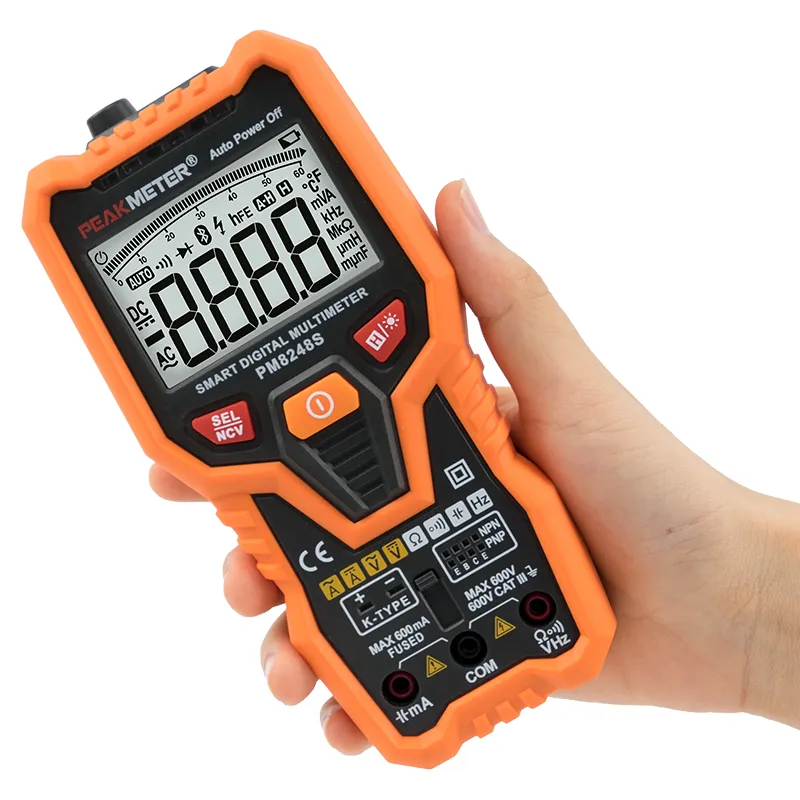

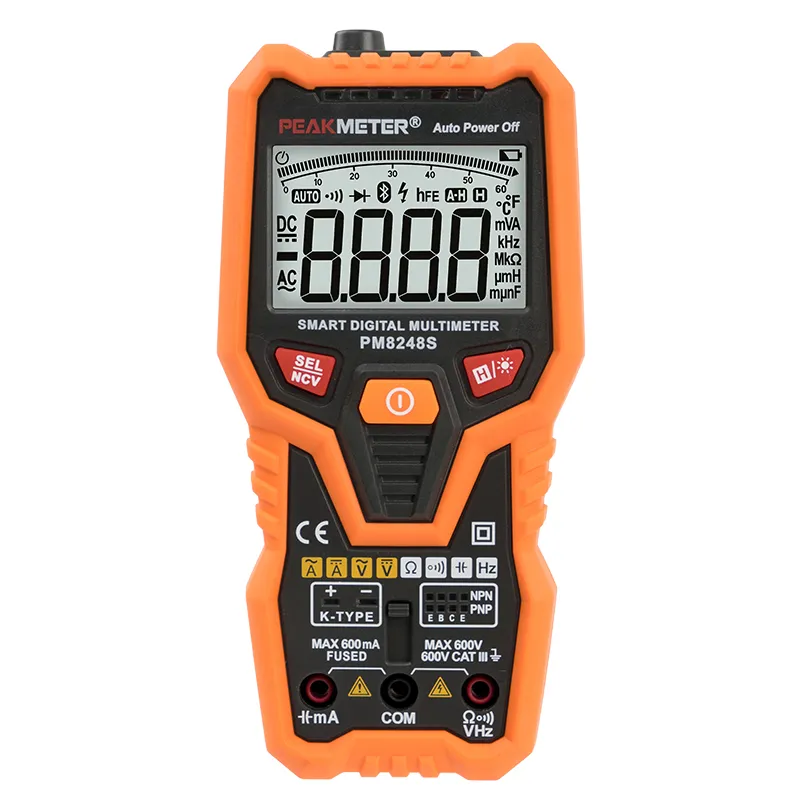

PM8248S is a smart digital multimeter with analog bar, it can measure AC&DC current, resistance, capacitance, frequency, temperature, etc. This meter has 6000 counts LCD display, a combination of digital and analog bars, backlight function and flashlight to provide enough light for the user. It can also perform transistor measurement, continuity test, NCV, live wire detection. This instrument has many measurement functions, which can meet the different needs of users. But it’s simple in appearance, with a handful of buttons, a neat and succinct jack. This meter can not only perform NCV detection, but also detect whether it is a live wire. When the AC voltage is detected to be greater than 50V, the indicator light will light up and the buzzer will sound.
Display: 6000 Counts
Auto Range
Bargraph Display
Transistor
Continuity
NCV
HFE
Live Test
Data Hold
Work Light
Back Light
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V | ±（0.8%+3） |
| AC Voltage | 6V/60V/600V | ±（1.2%+3） |
| DC Current | 600mA | ±（1.0%+3） |
| AC Current | 600mA | ±（1.5%+3） |
| Resistance | 6KΩ/60KΩ/600KΩ | ±（1.0%+3） |
| 6MΩ/10MΩ | ±（1.2%+5） | |
| Capacitance | 60nF/600nF/6μF/60μF/600μF/6mF | ±（4.0%+5） |
| Frequency | 30～1000HZ | ±（0.5%+2） |
| Temperature(℃/℉) | -20℃～1300℃(-4℉～2372℉) | ±（1.0%+3） |
| FEATURES | ||
| Display | 6000 Counts | |
| Auto Range | √ | |
| Bargraph Display | √ | |
| Transistor | √ | |
| Continuity | √ | |
| NCV | √ | |
| Live Test | √ | |
| Data Hold | √ | |
| Work Light | √ | |
| BackLight | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 3x1.5V AAA batteries | |
| Net weight | 247g(batteries are not included） | |
| Gross weight | 507g | |
| Product Size | 169mmx83mmx53mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.IV600V | |
| Package（PCS/carton） | 30 PCS | |
| Color Box Size | 206mmx123mmx60mm | |
| Carton Size | 428mmx320mmx410mm | |
| G.W | 16.2kg | |
K Type Thermocouple | Test Leads | Users Manual | 3*1.5V AAA batteries |
