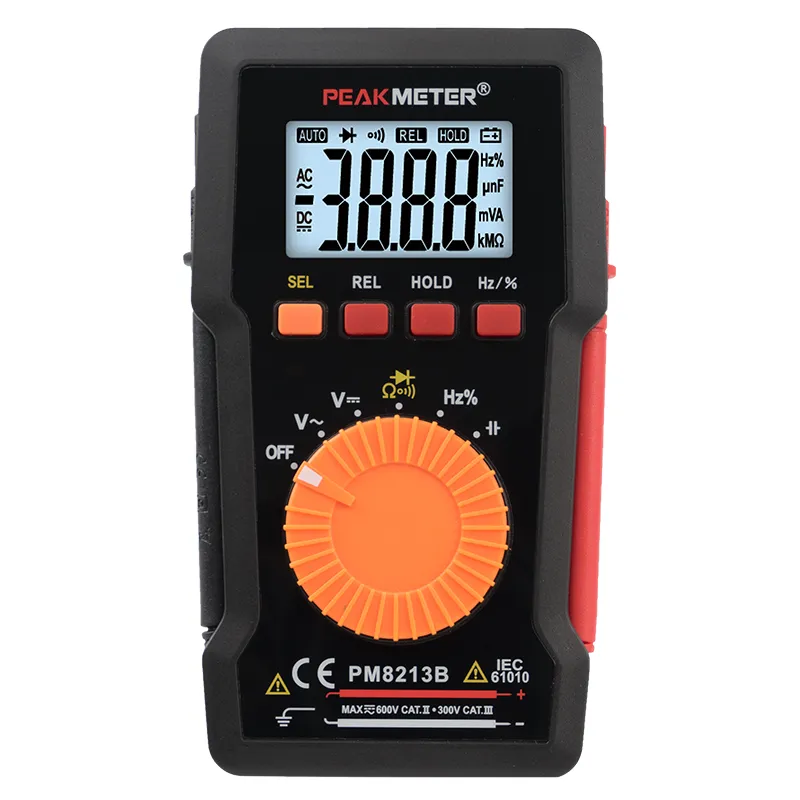

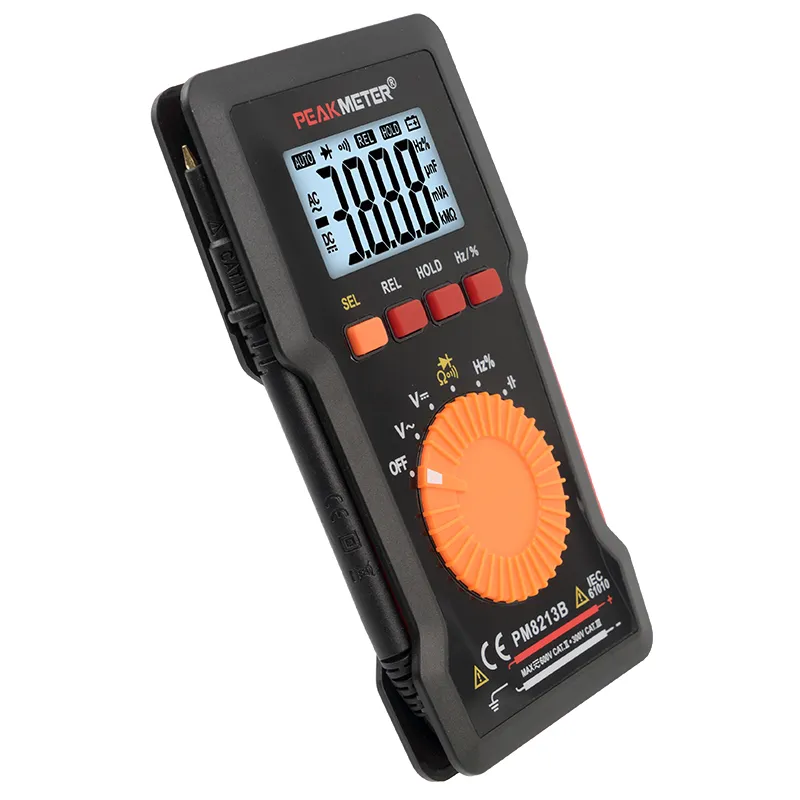

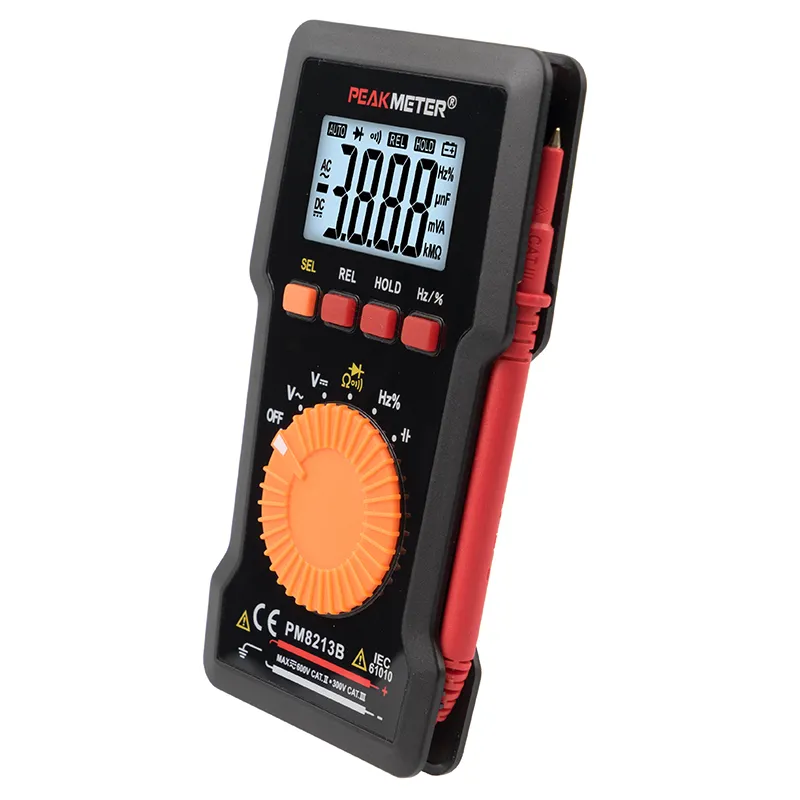

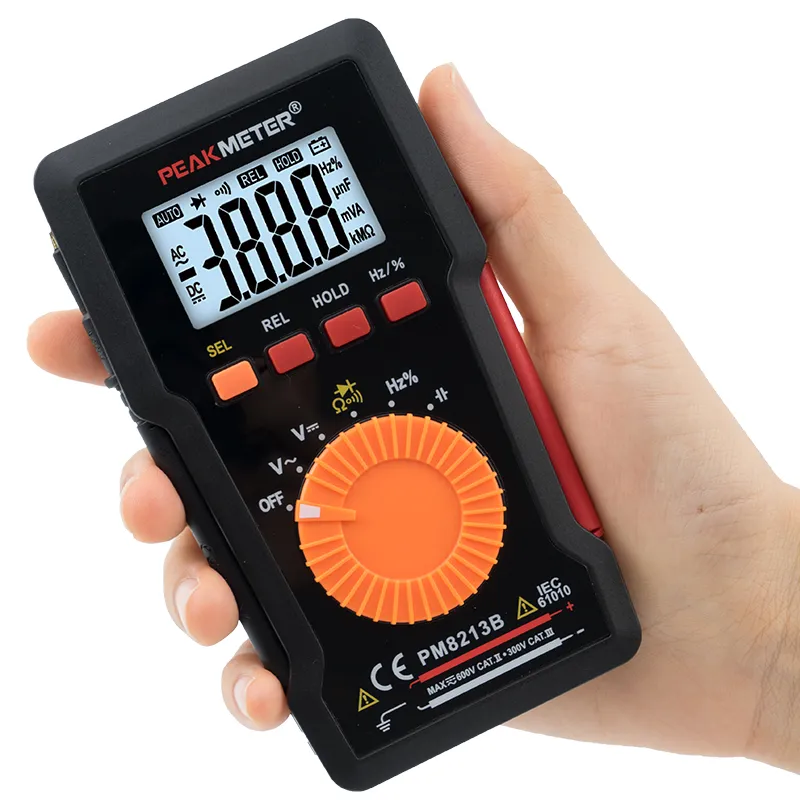

PM8213B upgrades to 4000 high-resolution counts, expanding resistance up to 40MΩ and adding 10kHz frequency & 100μF capacitance measurement. It retains all basic functions including diode test, continuity alarm and automatic shutdown. Ultra-portable slim design with stable accuracy, ideal for electronic component testing, DIY circuit projects and entry-level hobbyist measurement work.
Display: 4000 Counts
Frequency: 100kHz
Resistance: 40MΩ
Capacitance: 100μF
Continuity
Diode Test
Under Voltage Indication
Automatic Shutdown
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 4V/40V/400V/600V | ±（1.0%+3） |
| AC Voltage | 4V/40V/400V/600V | ±（2.0%+5） |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ /40MΩ | ±（2.0%+5） |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz | ±（2.0%+5） |
| Capacitance | 50nF/500nF/5uF/50uF/100uF | ±（5.0%+5） |
| Duty ratio | 0.1-99.9% | ±（3.0%+5） |
| FEATURES | ||
| Display | 4000 counts | |
| Frequency | 100kHz | |
| Resistance | 2000kΩ | |
| Capacitance | 100uF | |
| Continuity | √ | |
| Diode Test | √ | |
| Low Battery Indication | √ | |
| Auto Power Off | √ | |
| GENERAL | ||

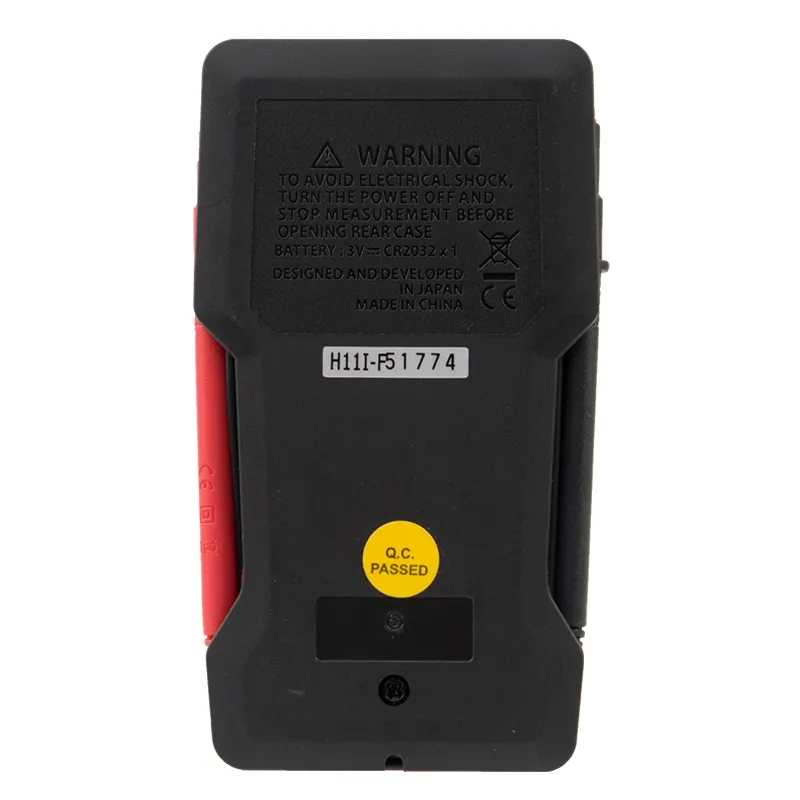

| Power Supply | 1×3.0V CR2032 Button Battery | |
| Net weight | Approx.100g(batteries are not included） | |
| Gross weight | 143g | |
| Product Size | 127mm×70mm×12.5mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ300v,CAT.Ⅱ600v | |
| Package（PCS/carton） | 60 pcs | |
| Color Box Size | 152mm×88mm×40mm | |
| Carton Size | 315mm×235mm×313mm | |
| G.W | 9.6kg | |
| 1* 3.0V CR2032 Battery | Users Manual |
