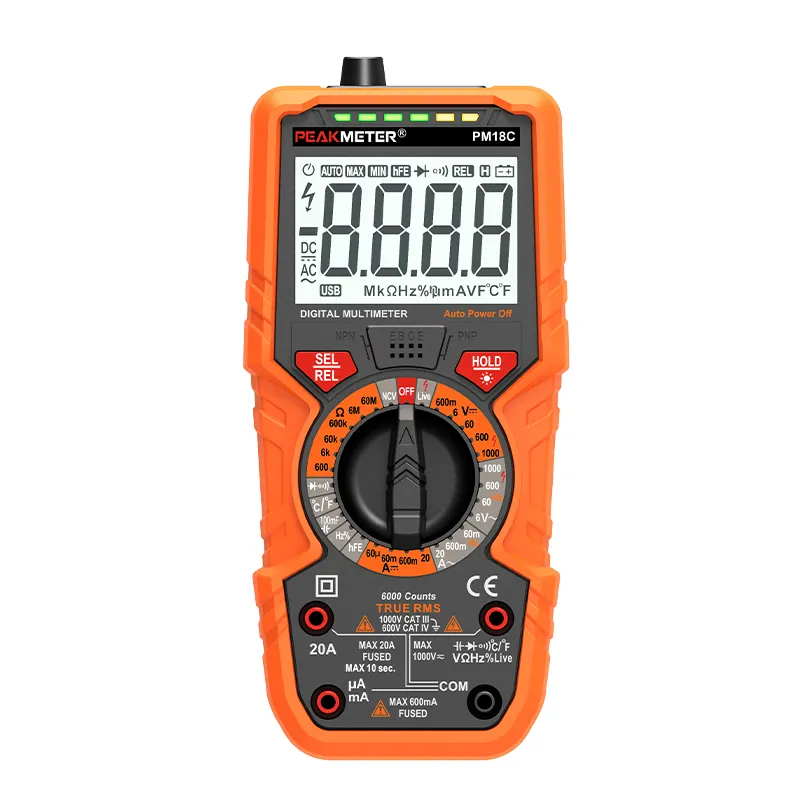

This 6000-count True RMS digital multimeter delivers precise readings up to 1000V voltage and 20A large current. It supports capacitance, 10MHz frequency, duty cycle and -20℃~1000℃ temperature measurement, equipped with NCV detection, live wire alert, work light and auto power off. Rated CAT III 1000V / CAT IV 600V safety standard, it is a reliable handheld tester for electrician maintenance and electronic repair.
Display: 6000 Counts
ACV/ACA TRMS
ACV (Bandwidth):1kHz
Temperature
Frequency: 10MHz
Duty: 1%~99%
Resistance: 60MΩ
Capacitance: 100mF
Continulty (Sound and LED Alarm)
Diode Test
HFE
Live Line Test (High, MediumAnd Low) Sound And LED Alarm
Work Light
Low Battery Indication
NCV (High, Medium And Low) Sound And LED Alarm
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 6V/60V | ±（0.8%+3） |
| 600V/750V | ±（1%+10） | |
| DC Current | 60μA/60mA/600mA | ±（0.8%+3） |
| 20A | ±（1.2%+3） | |
| AC Current | 60mA/600mA | ±（1.0%+3） |
| 20A | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（0.8%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 6nF | ±（4.0%+30） |
| 60nF/600nF/6μF/60μF/ 600μF/6mF/ | ±（4.0%+3） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ | ±（1.0%+3） |
| Duty | 5%～95% | ±（2.0%+3） |
| Temperature | -20℃～1000℃（-4℉～1832℉） | ±（1.0%+3）(℃/℉) |
| FEATURES | ||
| Display | 6000 Counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Frequency | 10MHZ | |
| Temperature | √ | |
| Continuity（Sound and LED ALarm） | √ | |
| Diode Test | √ | |
| hFE | √ | |
| Live Line Test | (high,mediumand low)Sound And LED Alarm Work Light | |
| Work Light | √ | |
| Low Battery Indication | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4x1.5V AA batteries | |
| Net weight | Approx.380g(included batteries) | |
| Gross weight | 584g | |
| Product Size | 190mmx89mmx50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V | |
| Package（PCS/carton） | 30pcs | |
| Color Box Size | 208mmx128mmx59mm | |
| Carton Size | 440mmx310mmx410mm | |
| G.W | 18.5kg | |
K Type Thermocouple | Test Leads | Users Manual | 3*1.5V AAA batteries |
