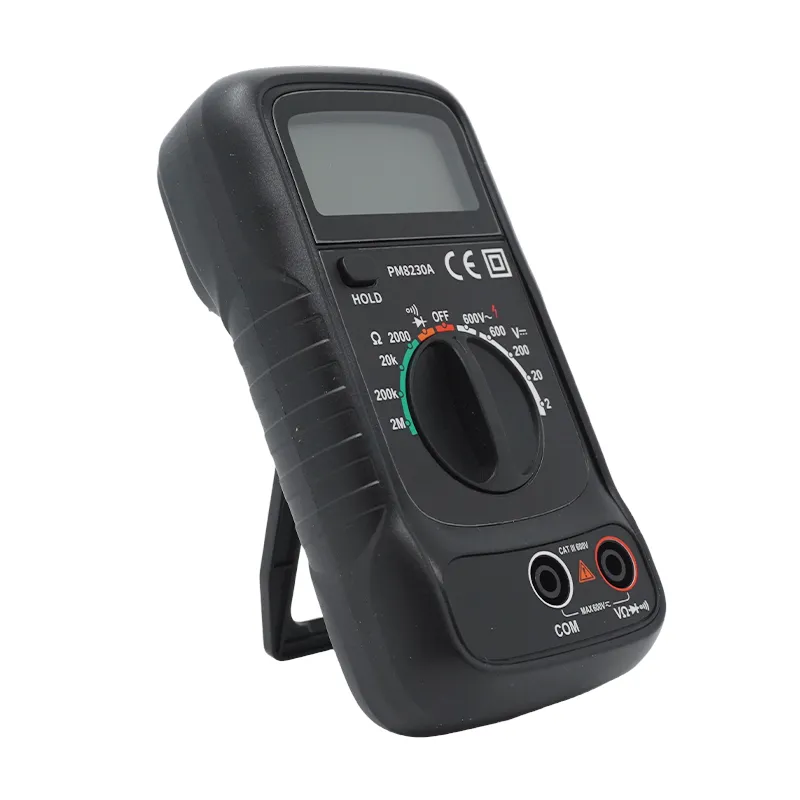

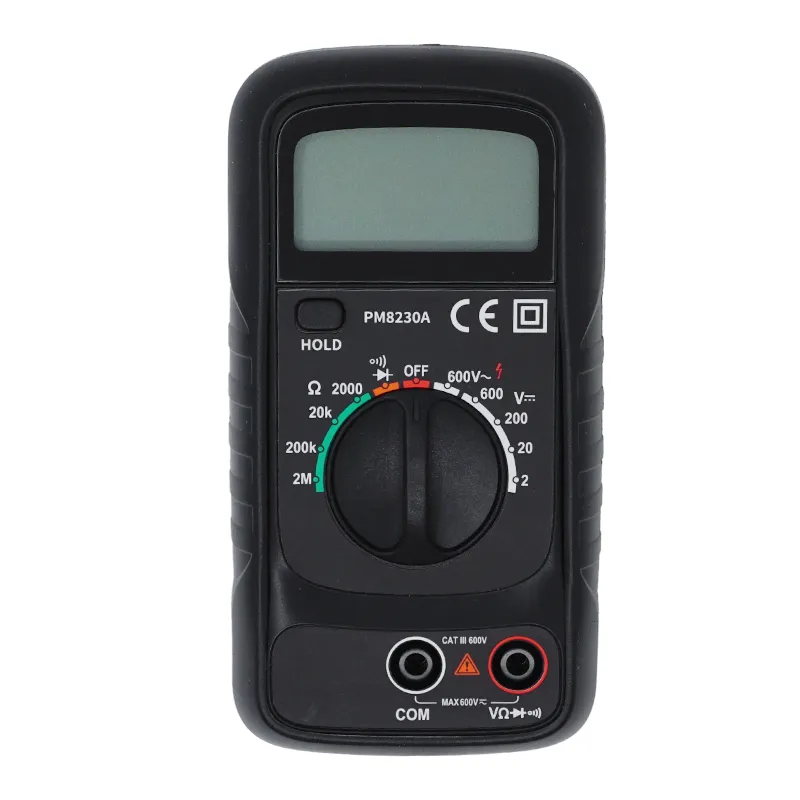

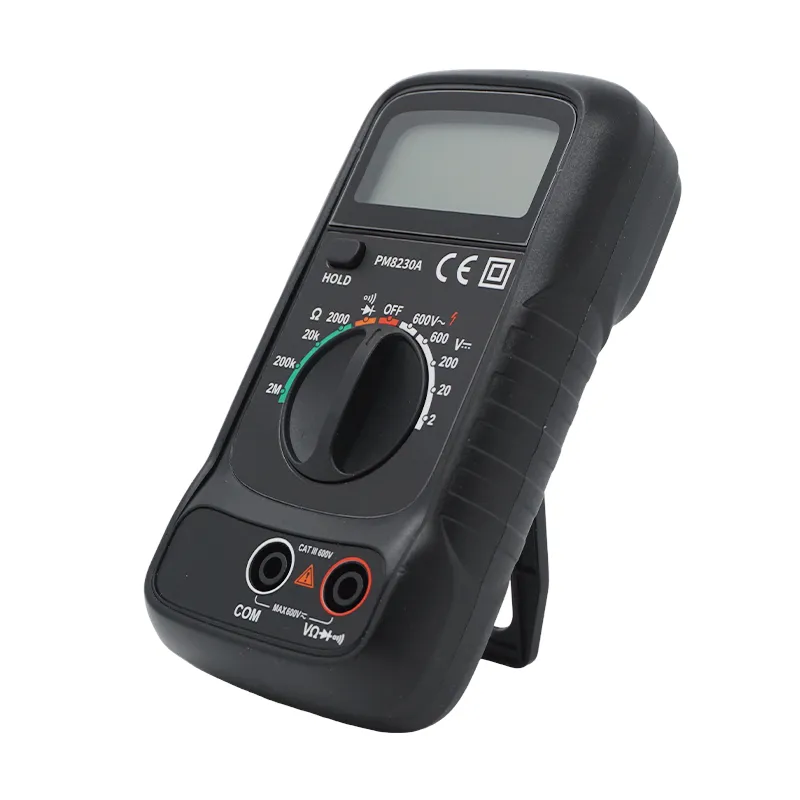

PM8230A is a lightweight entry-level manual ranging digital multimeter with 2000-count LCD screen. It measures up to 600V AC/DC voltage and 2MΩ resistance, equipped with data hold, diode test, continuity buzzer and low battery reminder. Compact 120g mini body complies with CAT II 600V safety standard. Perfect for electronic beginners, student laboratory teaching, DIY hobby projects and simple household electrical fault detection.
Display: 2000 Counts
Manual Range
Diode Test
Continuity Test
Low Battery Indication
Data Hold
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 2V/20V/200V | ±（1.5%+5） |
| 600V | ±（2.0%+5) | |
| AC Voltage | 600V | ±（2.2%+8） |
| Resistance | 2kΩ/20kΩ/200kΩ | ±（1.2%+5） |
| 2MΩ | ±（1.2%+5） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Manual Range | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| GENERAL | ||
| Power Supply | DC9V 6F22 battery | |
| Weight | about 107g (no leather case and batteryincluded) | |
| Product Size | 129x66x33mm (no leather case included | |
| Safety Rating | EN61010-1,EN61010-2-032,CAT.Ⅲ600v | |
| Package（PCS/carton） | ||
| Color Box Size | ||
| Carton Size | ||
| G.W | ||

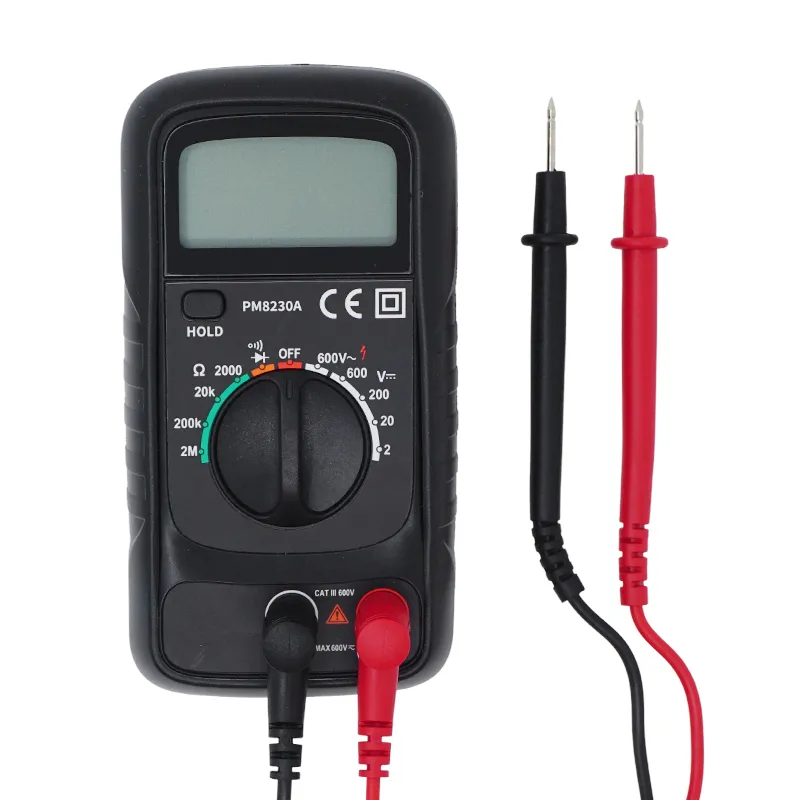

| Test Leads | Users Manual | DC 9V 6F22 Battery |
