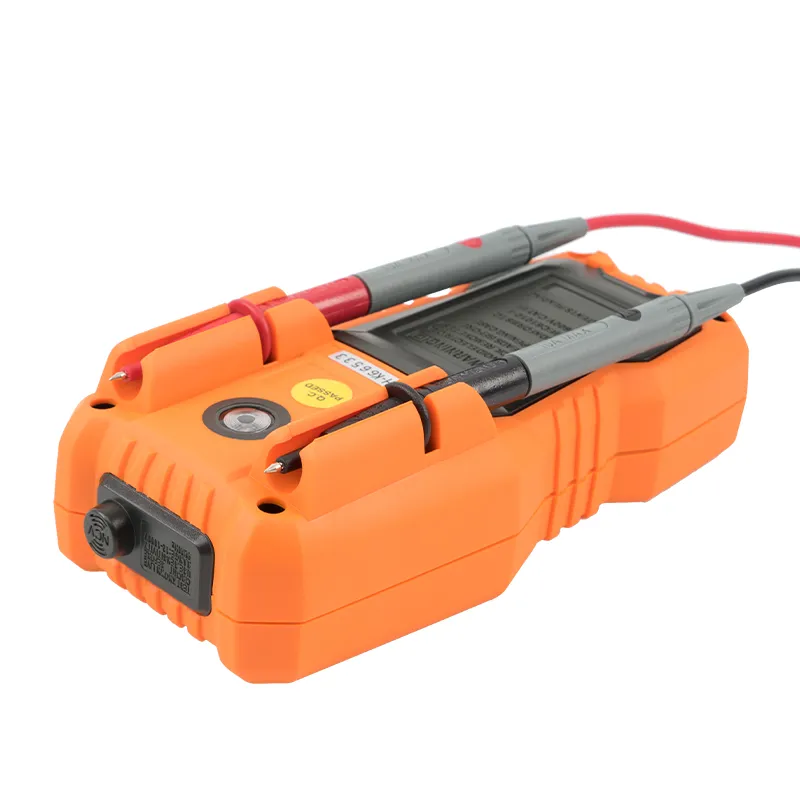

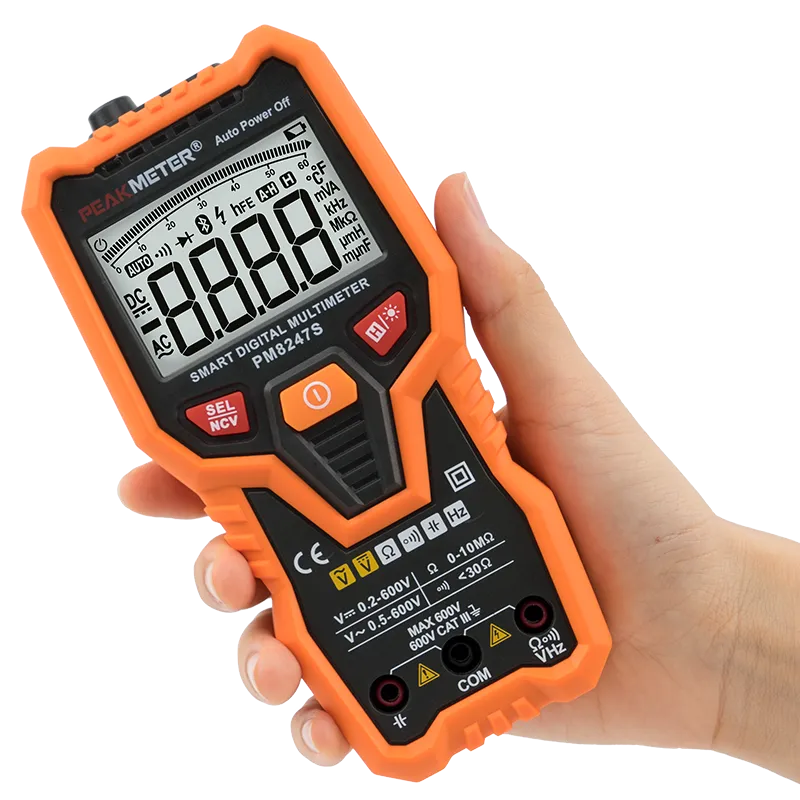

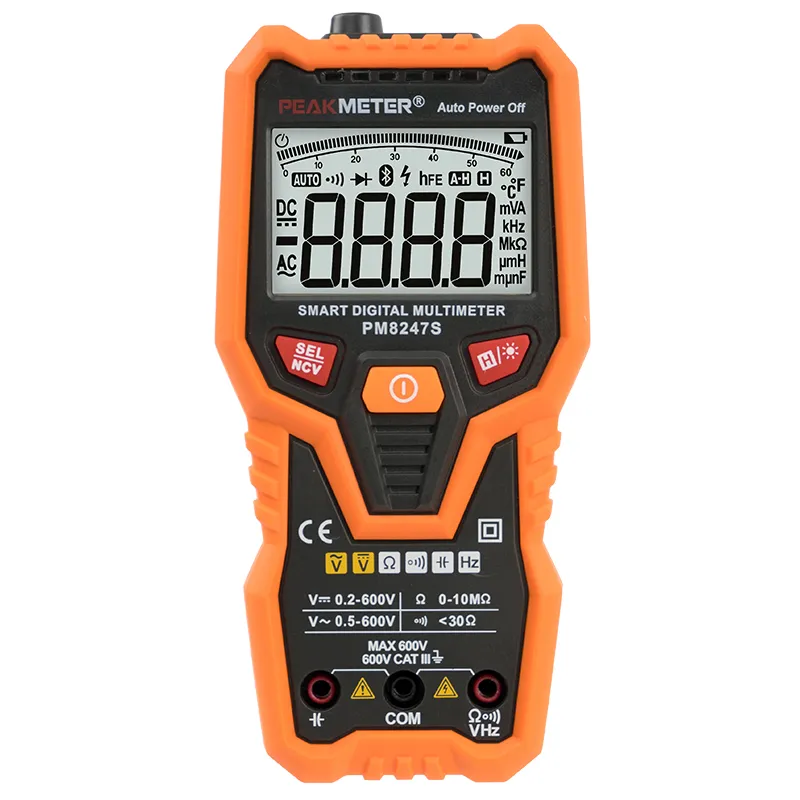

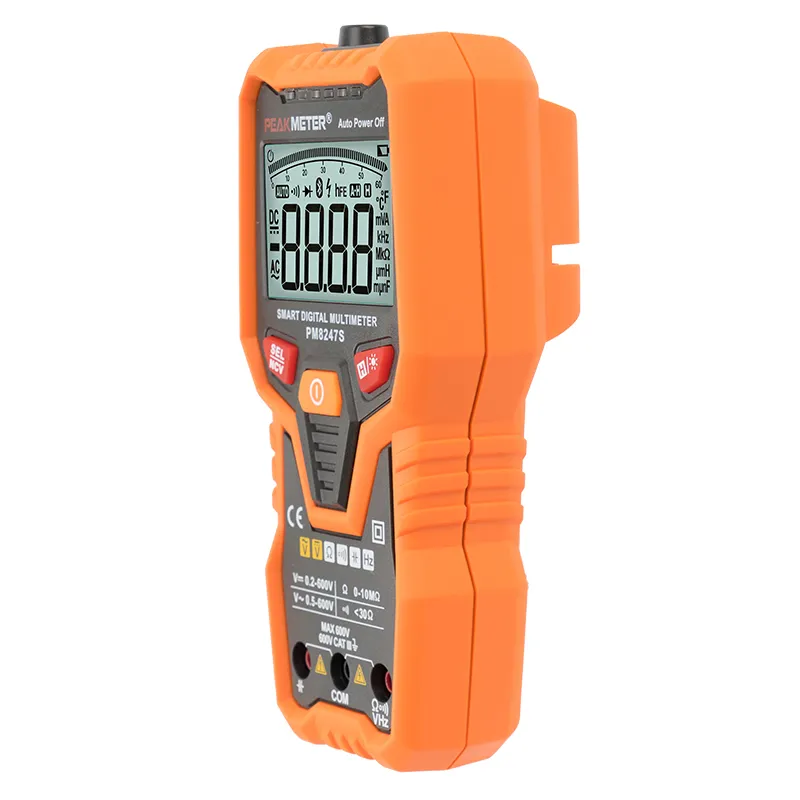

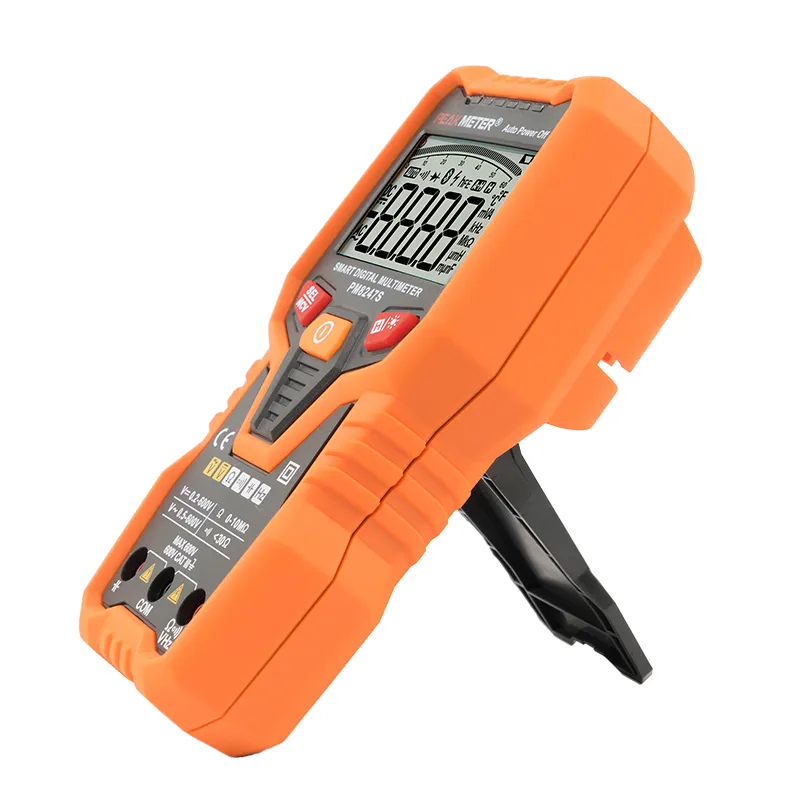

PM8247S is a kind of intelligent digital multi-meter with simulation bar. It could measure DC voltage, DC voltage, DC current, AC current, frequency, resistance, capacitor and continuity test, and could recognize measured signals automatically, without needing to select measurement functions. This instrument is a kind of intelligent digital multi-meter, so the operation is very simple, and it is not required to carry out function selection during measurement
Display: 6000 Counts
Auto Range
Bargraph Display
Continuity
NCV
Live Test
Data Hold
Work Light
Back Light
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V | ±(0.8%+3) |
| AC Voltage | 6V/60V/600V | ±(1.2%+3) |
| Resistance | 6KΩ/60KΩ/600KΩ | ±(1.0%+3) |
| 6MΩ/10MΩ | ±(1.2%+5) | |
| Capacitance | 60nF/600nF/6μF/60μF/600μF/6mF | ±(4.0%+5) |
| Frequency | 30～1000HZ | ±(0.5%+2) |
| FEATURES | ||
| Display | 6000 Counts | |
| Auto Range | √ | |
| Bargraph Display | √ | |
| Continuity | √ | |
| NCV | √ | |
| Live Test | √ | |
| Data Hold | √ | |
| Flash Light | √ | |
| BackLigh | √ | |
| Auto Power Off | √ | |
| GENERAL | ||

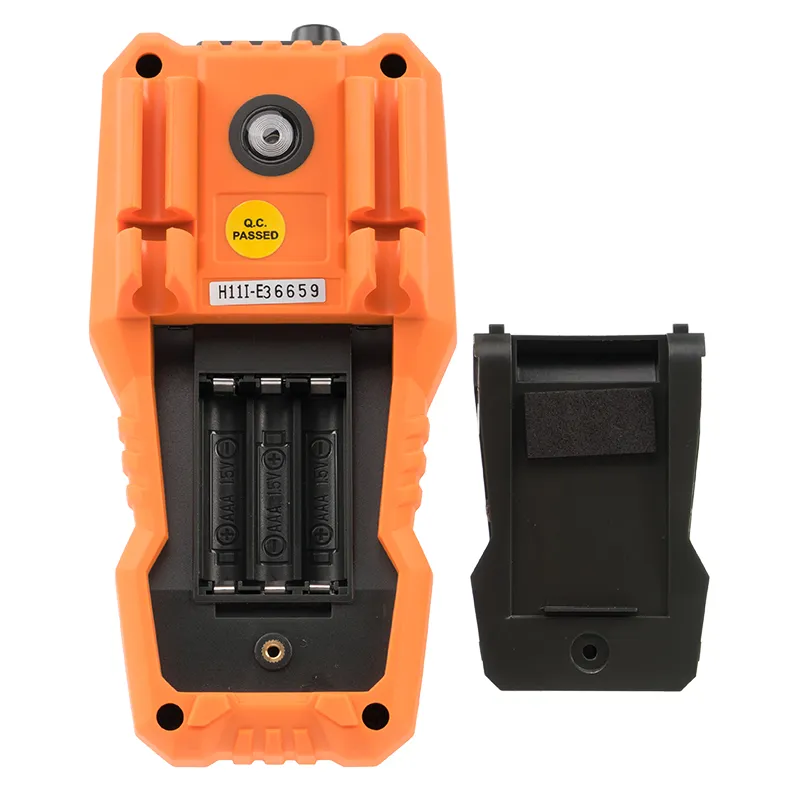

| Power Supply | 3x1.5V AAA batteries | |
| Net weight | 245g(batteries are not included） | |
| Gross weight | 479g | |
| Product Size | 169mmx83mmx53mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.IV600V | |
| Package（PCS/carton） | 30 PCS | |
| Color Box Size | 206mmx123mmx60mm | |
| Carton Size | 428mmx320mmx410mm | |
| G.W | 15.4kg | |
| Test Leads | 3*1.5V AAA batteries | Users Manual |
