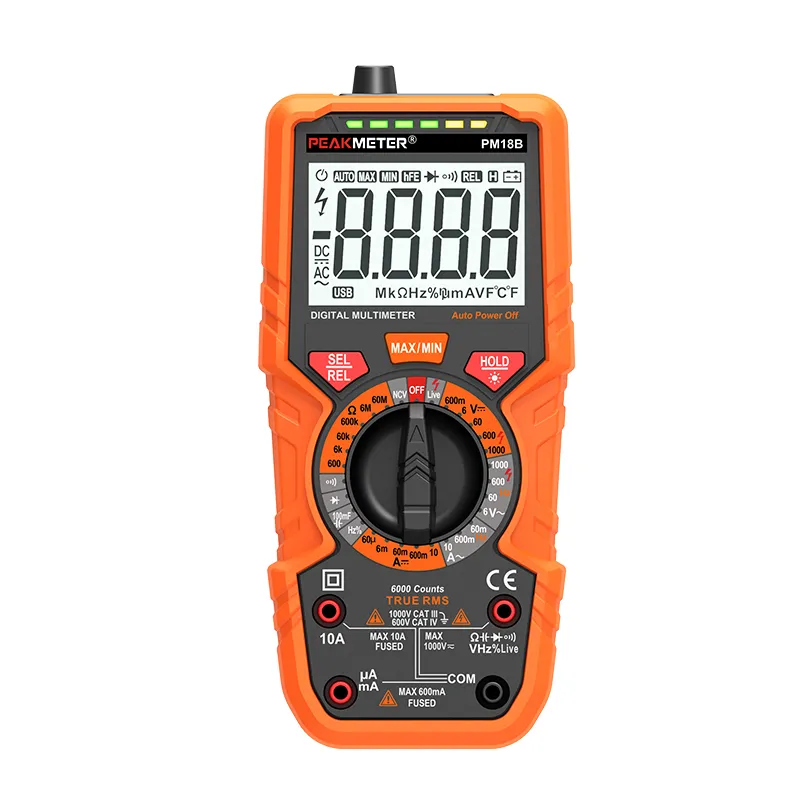

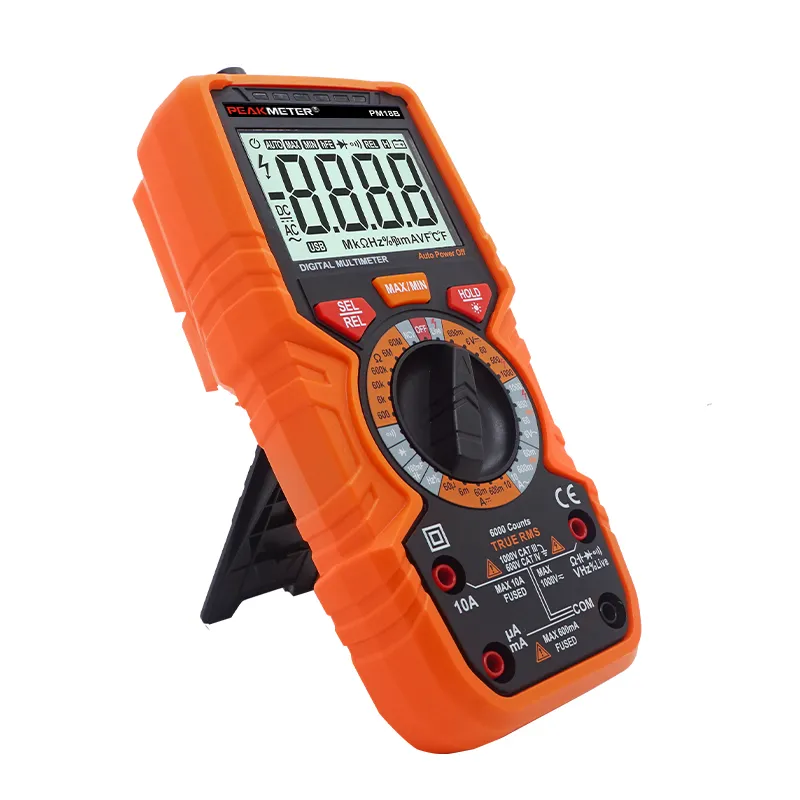

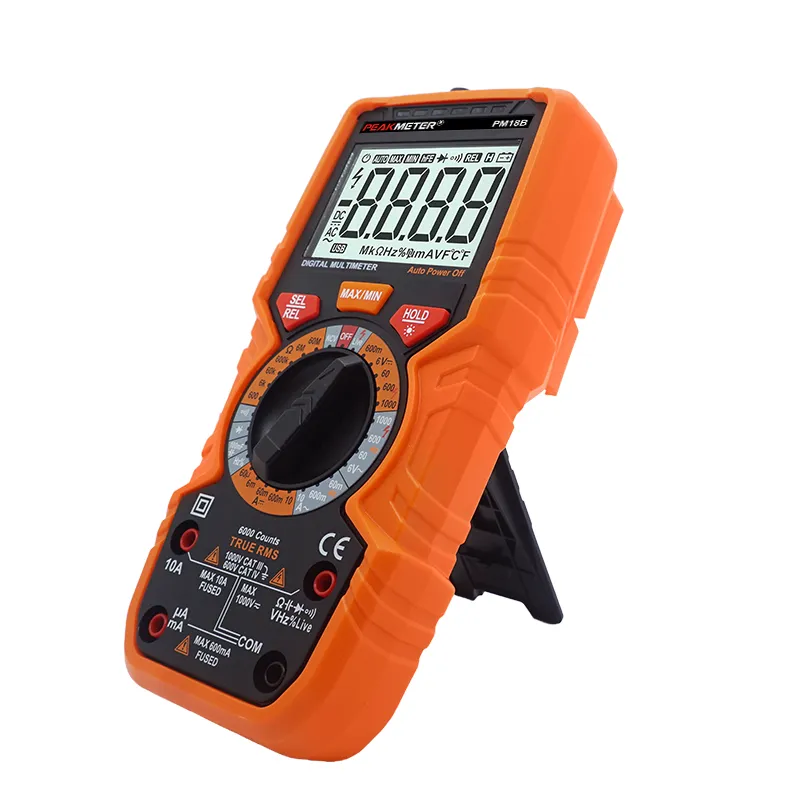

PM18B is a 6000-count True RMS multimeter with 1000V DC / 600V AC voltage and 10A current testing. It features 100mF capacitance, 10MHz frequency, temperature measurement, NCV non-contact detection and live wire alarm. Certified CAT III 1000V / CAT IV 600V safety standard, compact and lightweight for daily electrical repair and maintenance.
Display: 6000 Counts
ACV/ACA TRMS
ACV (bandwidth): 1kHz
Frequency: 10MHz
Duty: 1%~99%
Resistance: 60MΩ
Capacitance: 100mF
Continuity (Sound and LED Aarm)
Dlode Test
MAX/MIN
Live Line Test (High, MediumAnd Low) Sound And LED Alarm
Low Battery Indication
NCV (High, MediumAnd Low) Sound And LED Alarm
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| PM18B | ||
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 6V/60V | ±（0.8%+3） |
| 600V/1000V | ±（1%+10） | |
| DC Current | 60μA/60mA/600mA | ±（0.8%+3） |
| 10A | ±（1.2%+3） | |
| AC Current | 60mA/600mA | ±（1.0%+3） |
| 10A | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（0.8%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 6nF | ±（4.0%+30） |
| 60nF/600nF/6μF/60μF/ 600μF/6mF | ±（4.0%+5） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ | ±（1.0%+3） |
| Duty | 1%～99% | ±（3.0%+5） |
| Temperature | -20℃～1000℃（-4℉～1832℉） | |
| FEATURES | ||
| PM18B | ||
| Display | 6000 Counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Temperature | √ | |
| Frequency | 10MHZ | |
| Duty | 1%~99% | |
| Resistance | 60MΩ | |
| Capacitance | 100mF | |
| Continuity（Sound and LED ALarm） | ||
| Diode Test | √ | |
| MAX/MIN | √ | |
| Live Line Test (high,mediumand low)Sound And LED Alarm Work Light | √ | |
| Low Battery Indication | √ | |
| NCV(high,mediumand low)Sound And LED Alarm | √ | |
| Auto Power Off | √ | |
| GENERAL | ||

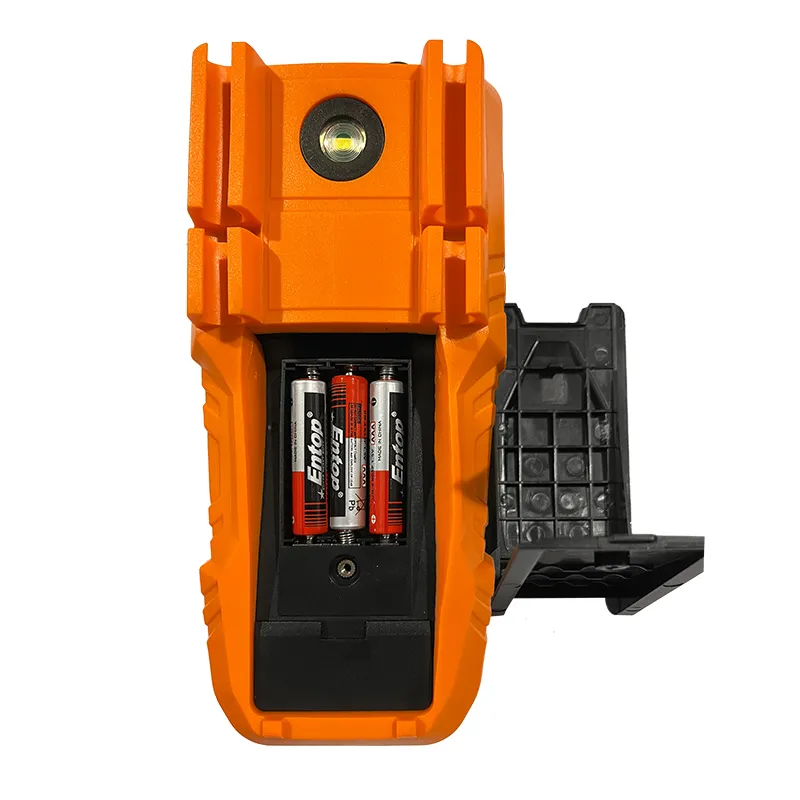

| Power Supply | 3x1.5V AAA batteries | |
| Weight | Approx.380g(included batteries) | |
| Size | 194mmx90mmx56mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V | |
| Test Leads | 3*1.5V AAA Batteries | Users Manual |
