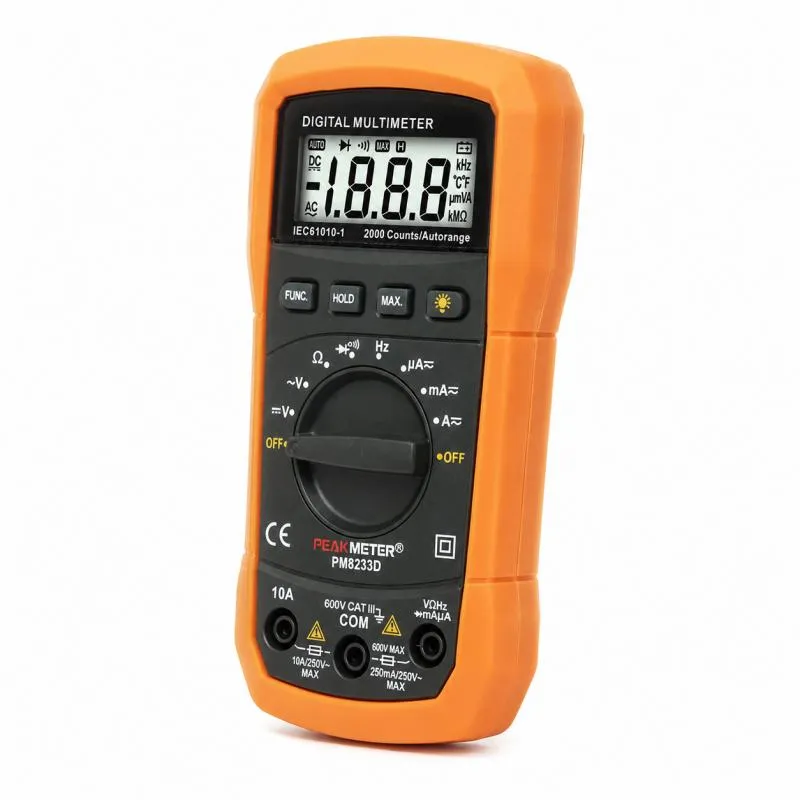

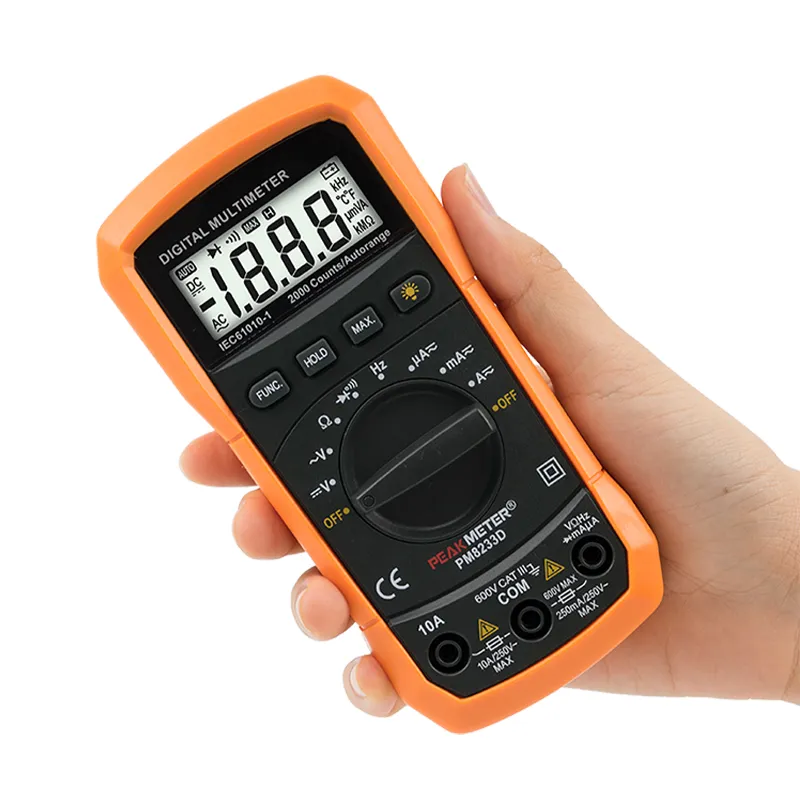

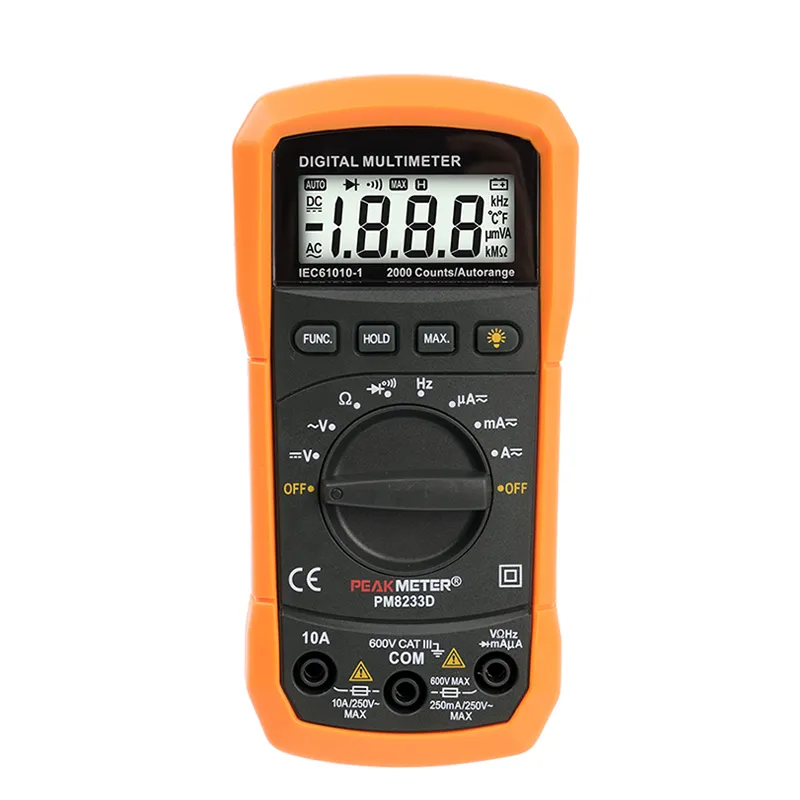

PM8233D is a handheld and battery operated Digital Multimeter with multi-function. This Meter is designed to meet IEC61010-1 & CAT Ⅲ 600V over voltage category and double insulation. It can be used to measure AC & DC voltage, AC & DC current, resistance, frequency and it also has MAX value hold function, data hold function.
Auto Ranging DMM, that full scale is 2000 counts
Max Value Hold Function
Low Battery Indication
Over Load Protection
Data Hold Function
Auto Power Off
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 600V | ±（0.8%+2） | |
| AC Voltage | 2V/20V/200V | ±（0.9%+3） |
| 600V | ±（1.2%+3） | |
| DC Current | 200μA/2000μA/20mA/200mA | ±（1.5%+3） |
| 10A | ±（2.0%+5） | |
| AC Current | 200μA/2000μA/20mA/200mA | ±（1.5%+5） |
| 10A | ±（2.5%+5） | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ | ±（0.8%+2） |
| 2MΩ /20MΩ | ±（1.0%+2） | |
| Frequency | 20kHZ | ±（1.5%+5） |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Diode Test | √ | |
| Back Light | √ | |
| Continuity | √ | |
| Maximum Value Hold | √ | |
| GENERAL | ||
| Power Supply | 1×9V6F22 battery | |
| Net weight | Approx.110g(batteries are not included） | |
| Gross weight | 347g | |
| Product Size | 140mm×67mm×30mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 155mm×111mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 14.9kg | |
| Test Leads | Users Manual | 1×9V 6F22 Battery |
