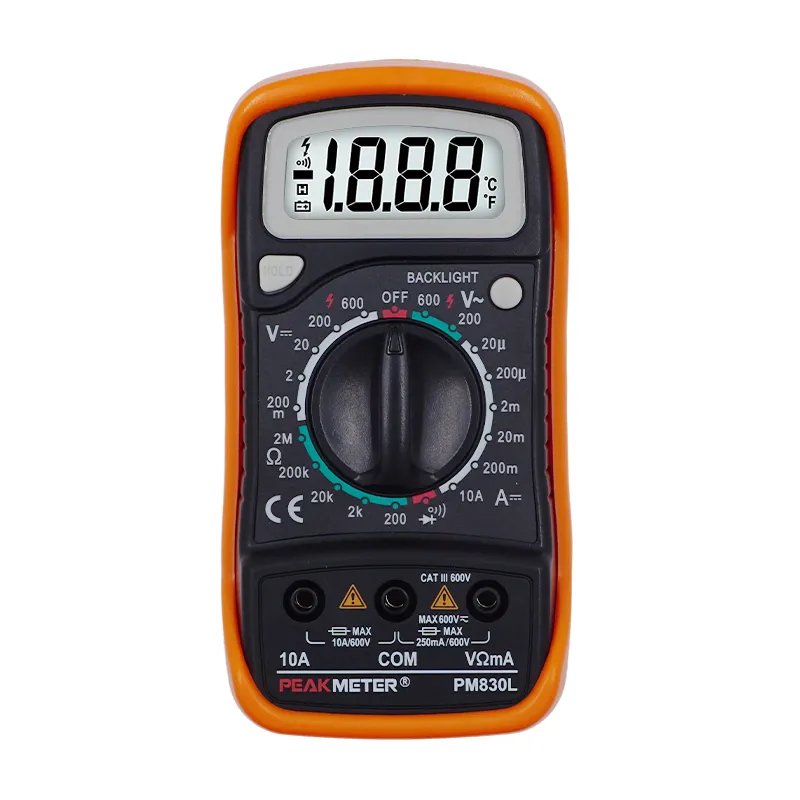

PM830L is a cost-effective basic digital multimeter with 2000-count LCD display. It supports full fundamental measurements including 600V voltage, 10A DC current and resistance, plus backlight, data lock, diode and continuity test. Compact portable design meets CAT III 600V safety standard, ideal for electronics beginners, student experiments and routine household circuit inspection.
Display: 2000 Counts
Data Hold
Back Light
Diode Test
Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 600V | ±（0.8%+2) | |
| AC Voltage | 200V/600V | ±（1.2%+10） |
| DC Current | 200μA/2mA/20mA | ±（1.0%+2） |
| 200mA | ±（1.5%+2） | |
| 10A | ±（3.0%+2） | |
| Resistance | 200Ω | ±（0.8%+3） |
| 2kΩ/20kΩ/200kΩ | ±（0.8%+2） | |
| 2MΩ | ±（1.0%+2） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Diode Test | √ | |
| hEF Test | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | DC9V 6F22 battery | |
| Net weight | Approx.170g(batteries are not included） | |
| Gross weight | 339g | |
| Product Size | 138mm×69mm×31mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 155mm×111mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 14.6kg | |

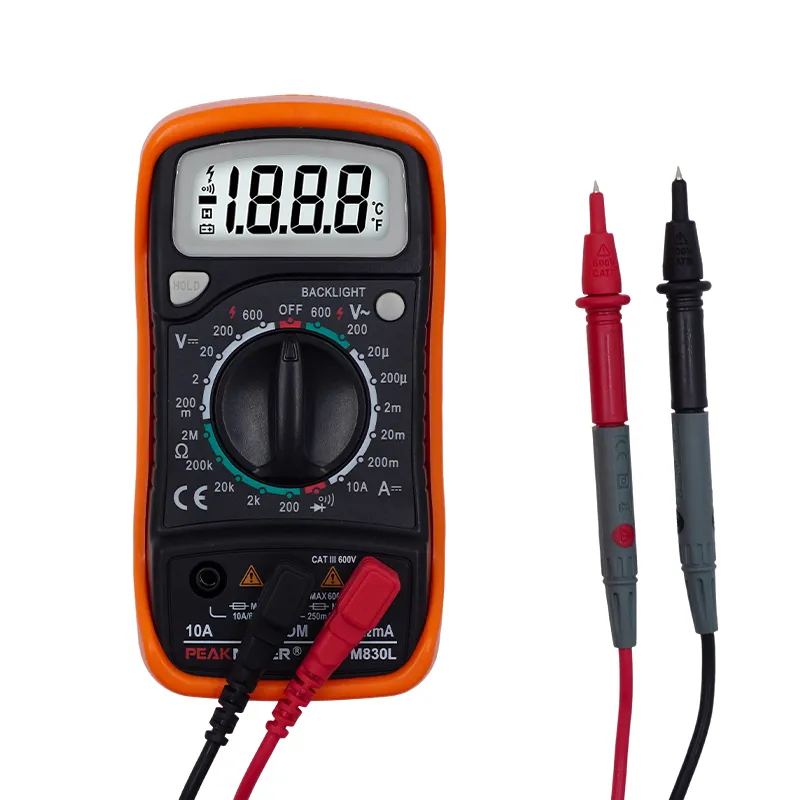

| Test Leads | Users Manual | DC 9V 6F22 Battery |
