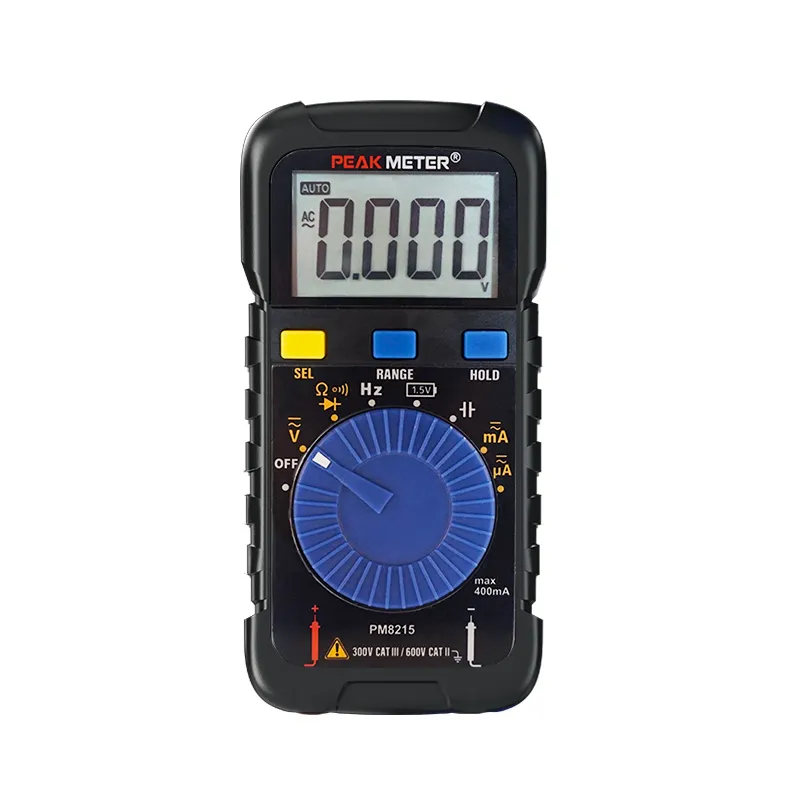

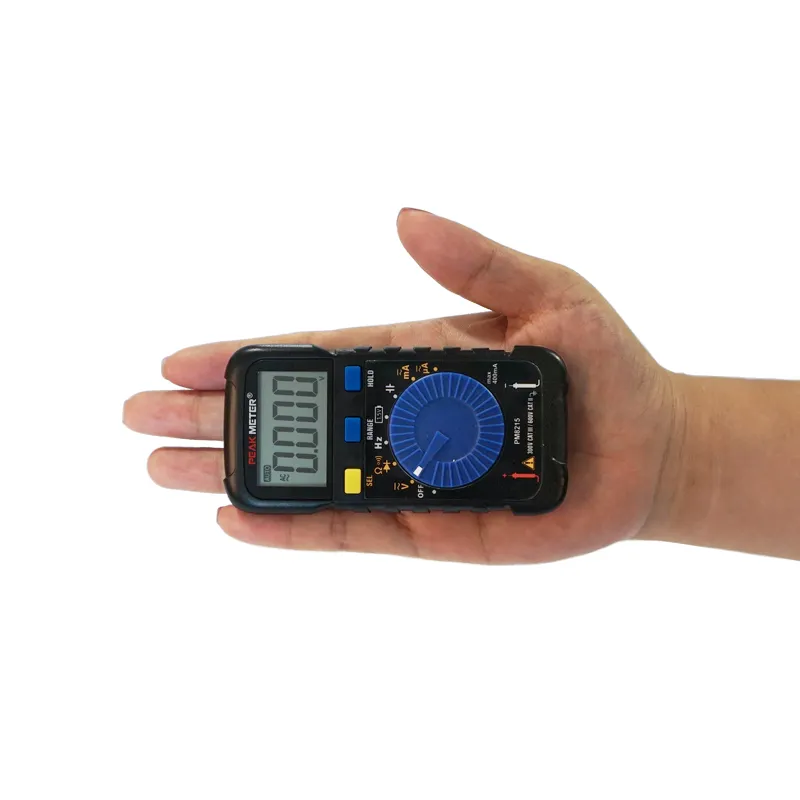

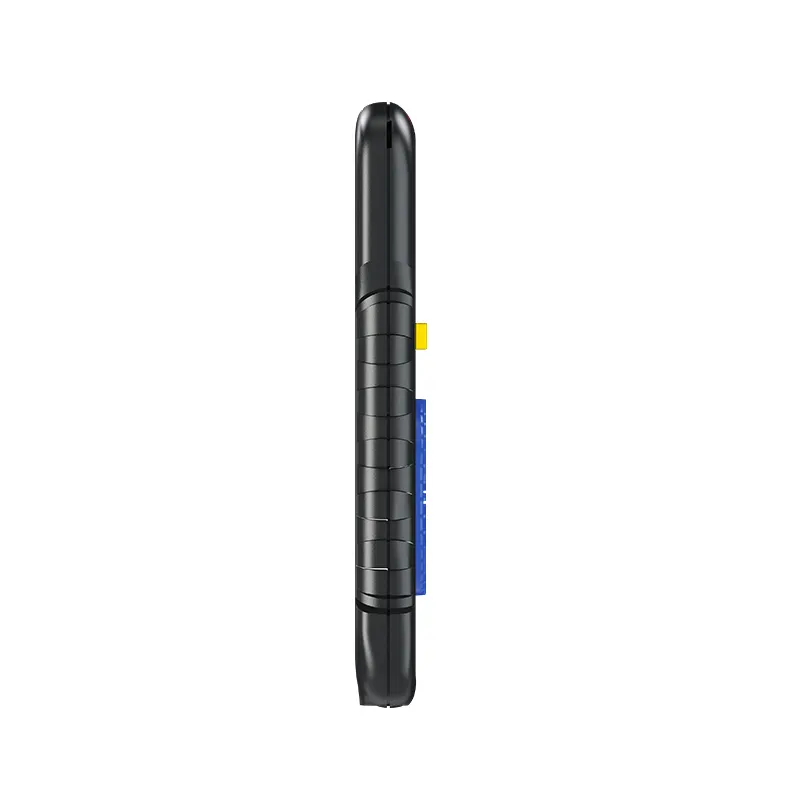

PM8215 is a credit-card sized 4000-count auto-range digital multimeter with ultra-slim 12mm thickness. It measures voltage, AC/DC current, resistance, 100kHz frequency and 100μF capacitance, with diode/continuity buzzer and auto power-off. Powered by CR2032 battery and CAT III 300V certified. Perfect for pocket carry, electronic DIY, laboratory teaching and quick on-site electrical fault detection.
Display: 4000 Counts High Resolution LCD
AUTO
Under Voltage Indication
Buzzer
Continuity
Diode Test
Automatic Shutdown
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 4V/40V/400V/600V | ±（1.0%+3） |
| AC Voltage | 4V/40V/400V/600V | ±（2.0%+5） |
| DC Current | 400μA/40mA/400mA | ±（2.0%+5） |
| AC Current | 400μA/40mA/400mA | ±（2.0%+5） |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ /40MΩ | ±（2.0%+5） |
| Frequency | 5Hz/50Hz/500Hz/5kHz/50kHz/100kHz | ±（0.5%+5） |
| Capacitance | 50nF/500nF/5uF/50uF/100uF | ±（5.0%+5） |
| FEATURES | ||
| Display | 4000 counts | |
| Auto range | √ | |
| Buzzer | √ | |
| Continuity | √ | |
| Diode Test | √ | |
| Low Battery Indication | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||

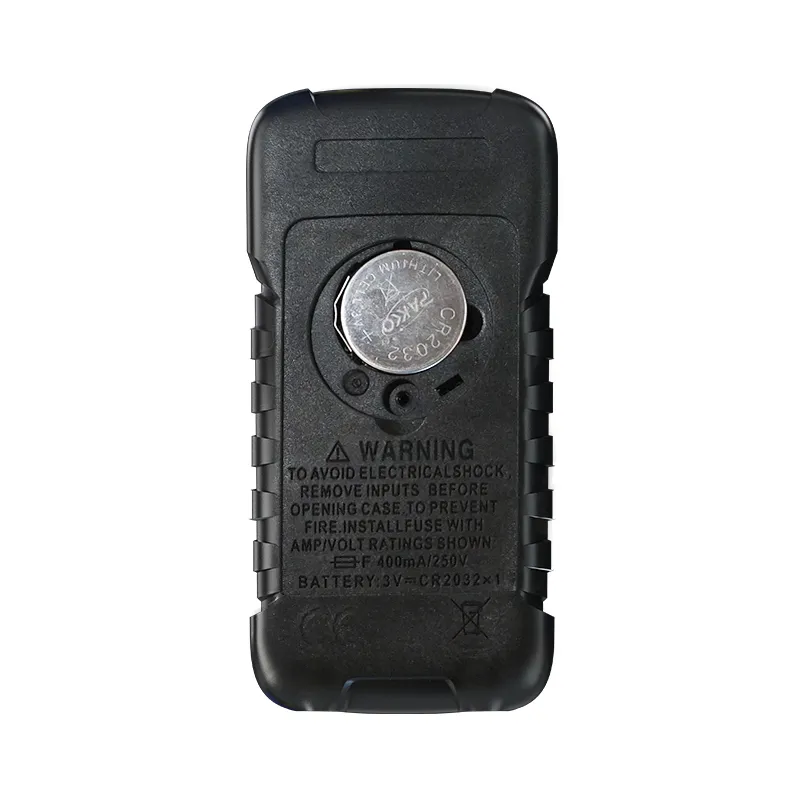

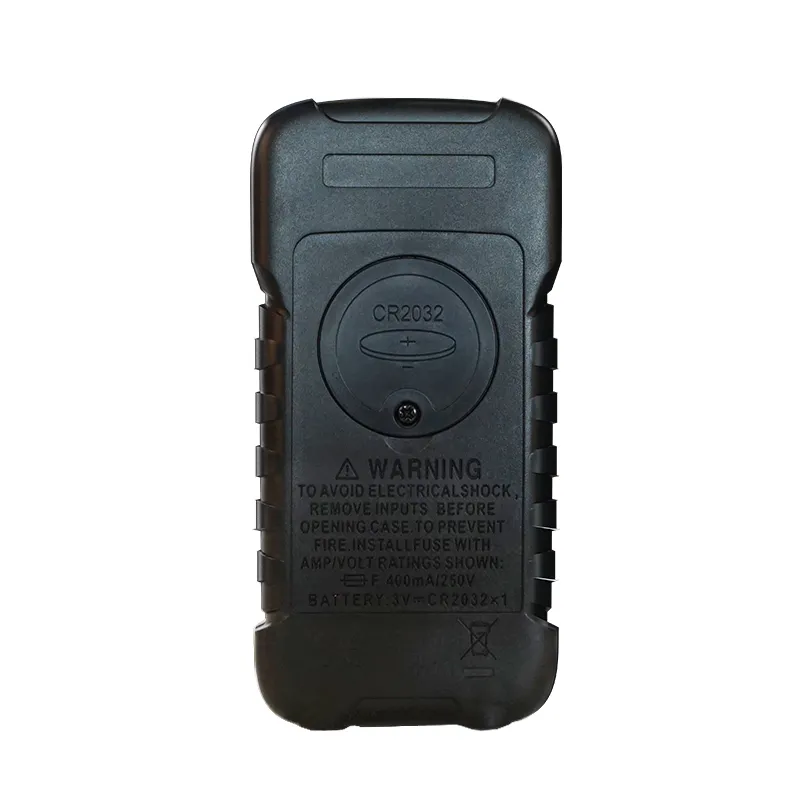

| Power Supply | 1×3.0V CR2032 Button Battery | |
| Net weight | Approx.75g(Storage box not included） | |
| Gross weight | 130g | |
| Product Size | 100mm×50mm×12mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ300v,CAT.Ⅱ600v | |
| Blister Size | 199mm×114mm | |
| Inner box size/Package | 265mm×210mm×125mm | 10pcs |
| Carton Size/Package | 440mm×285mm×275mm | 40pcs |
| G.W | 6.36kg | |
| Test Leads | Users Manual | 1 × 3.0V CR2032 Button Battery |
