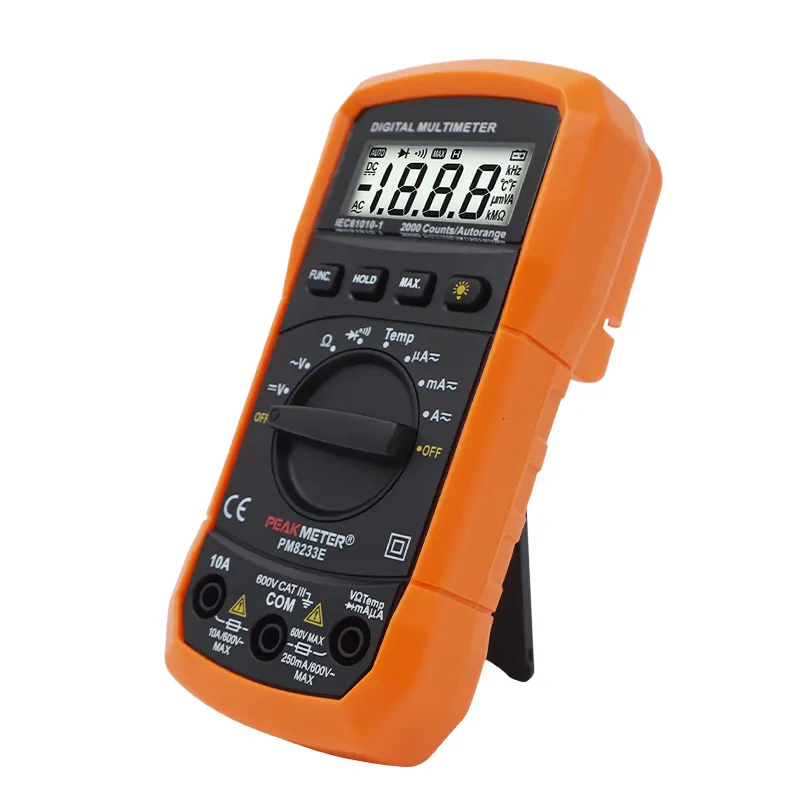

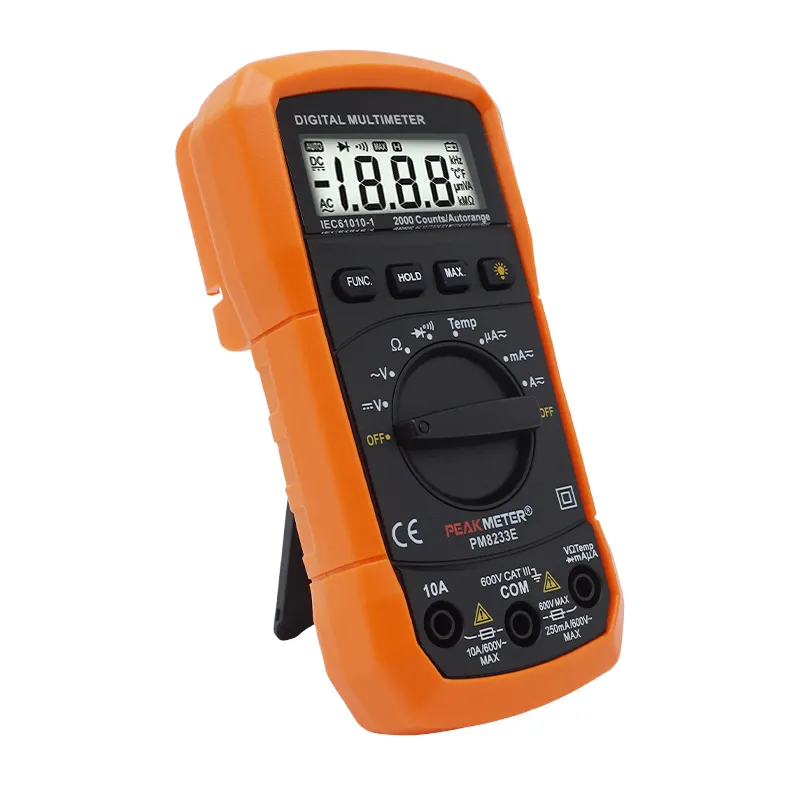

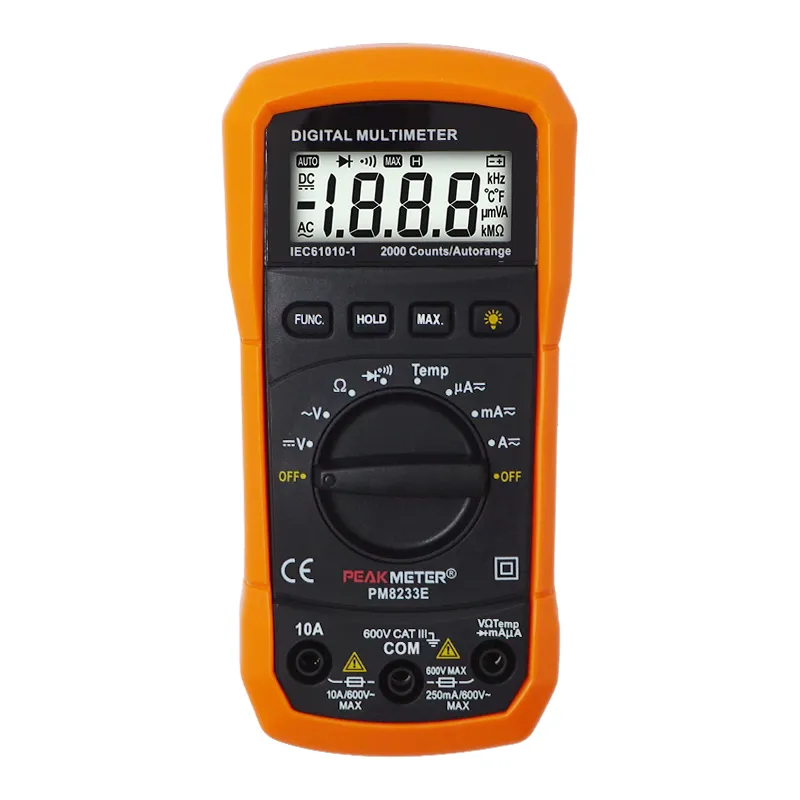

PM8233E is a hand-held and multi-function Digital MultiMeter(DMM) with battery operated. It is designed to meet IEC61010-1 & CAT III 600V over voltage category and double insulation. The main body of the meter has been given the holster, though downsized, it can still high resistance against the shock of a drop. This operating instruction covers information on safety and caution, Please read relevant information carefully and observe all the warnings and note strictly. The DMM has been used as general measurement tool and widely used in the school, laboratory, factory and other social field.
Display: 2000 Counts
Auto Range
Data Hold
Back Light
Diode Test
Continuity Test
Maximum Value Hold
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 600V | ±（0.8%+2） | |
| AC Voltage | 2V/20V/200V | ±（0.9%+3） |
| 600V | ±（1.2%+3） | |
| DC Current | 200μA/2000μA/20mA/200mA | ±（1.5%+3） |
| 10A | ±（2.0%+5） | |
| AC Current | 200μA/2000μA/20mA/200mA | ±（1.5%+4） |
| 10A | ±（2.5%+5） | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ | ±（0.8%+2） |
| 2MΩ /20MΩ | ±（1.0%+2） | |
| Temperature | -20℃～0℃ （－0℉～50℉） | ±（5.0%+4） |
| 0℃～400℃（50℉～750℉） | ±（2.0%+3） | |
| 400℃～1000℃（750℉～1800℉） | ±（3.0%+3） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Back Light | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| Maximum Value Hold | √ | |
| GENERAL | ||
| Power Supply | 1×9V6F22 battery | |
| Net weight | Approx.112g(batteries are not included） | |
| Gross weight | 335g | |
| Product Size | 140mm×67mm×30mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 155mm×111mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 14.5kg | |

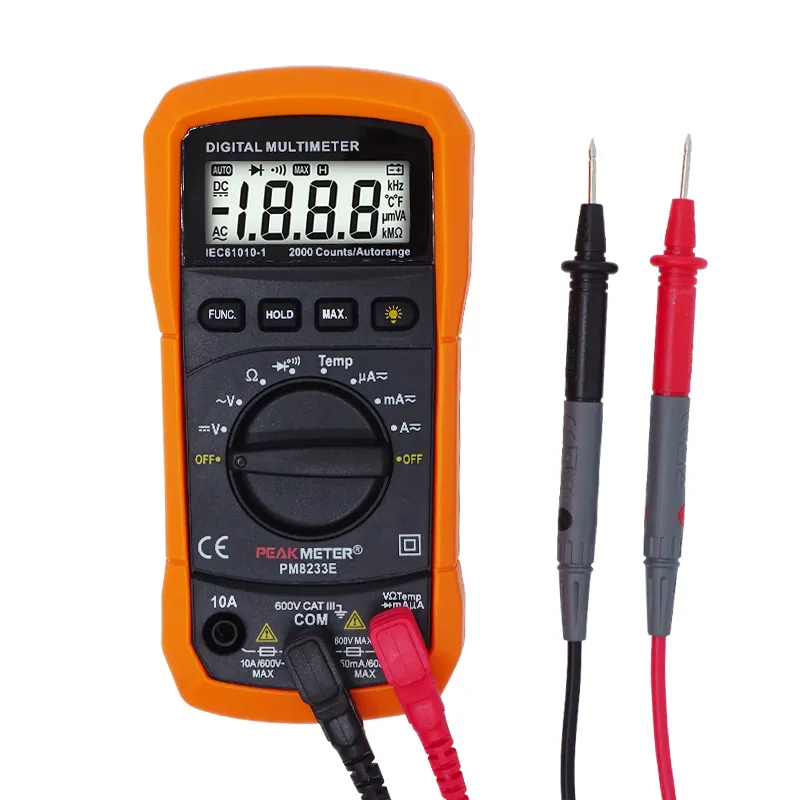

| K Type Thermocouple | Test Leads | Users Manual | 1×9V 6F22 Battery |
