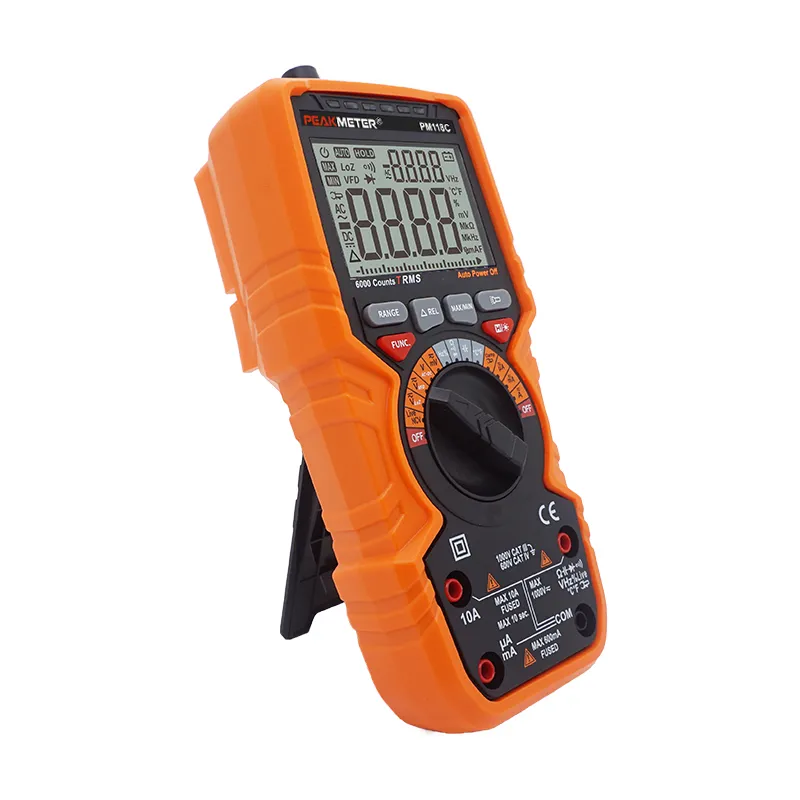

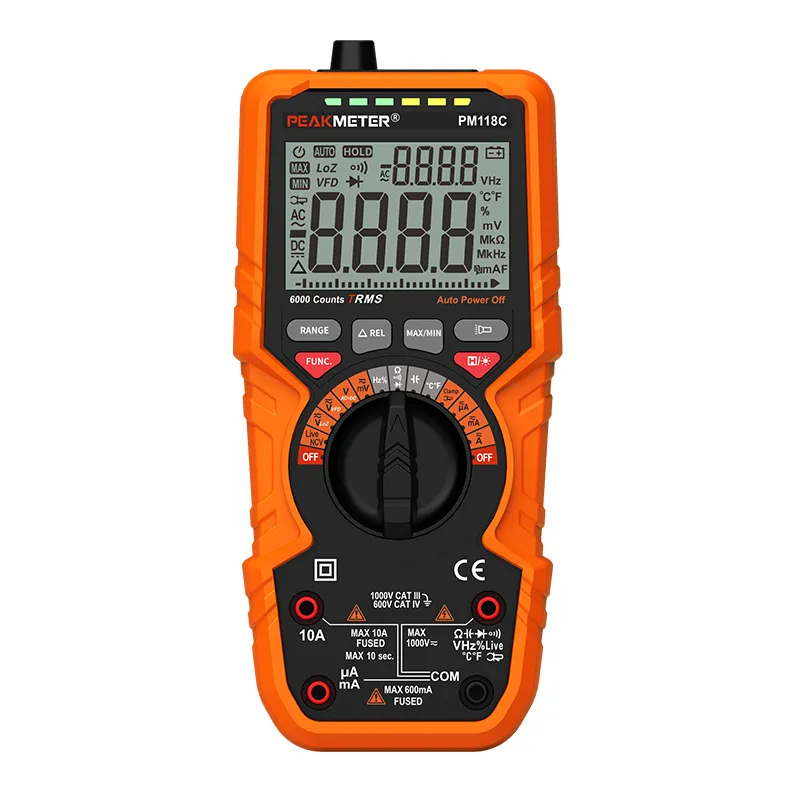

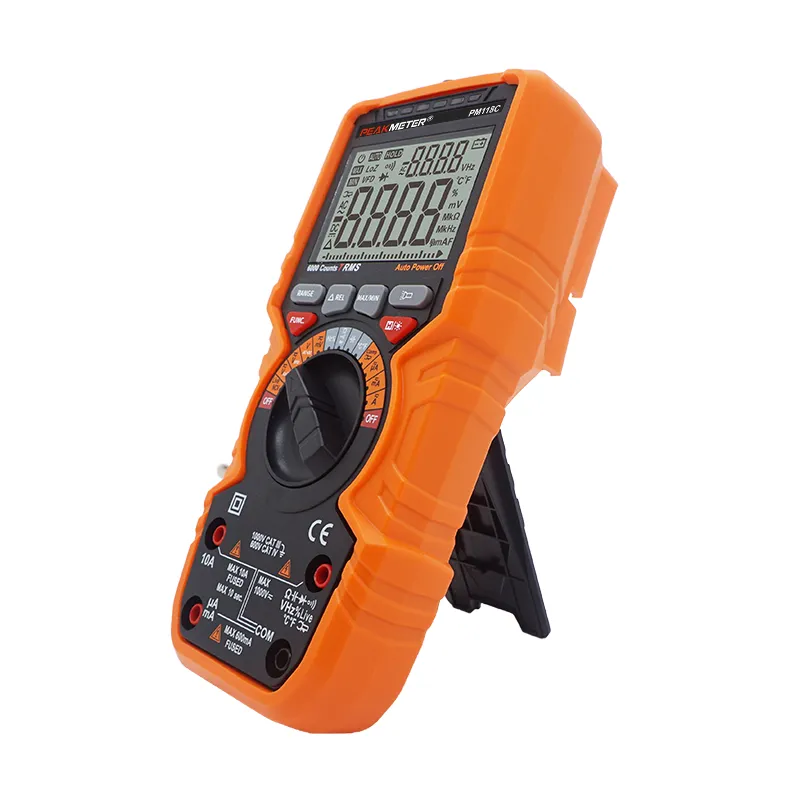

This meter is a hand-held digital multi-meter with the function of displaying True RMS. It is a large-screen LCD unit with backlight and illumination light functions so that the user can easily recognize reading. It is equipped with the function of overload protection and the indicator of battery under voltage. Either for professional, factories, schools, enthusiasts or households, it is an ideal multi-functional meter.The meter can measure ambient temperature and measure temperature with a thermocouple.Integrated protective case to prevent damage to the body when the meter falls accidentally; Convenient Probe slot allows the probe to be carried with the instrument when not in use, making it difficult to lose.
Auto and Manual range, Relative Value Measure, Max/Min Value Measurement
Data Hold, Back Light, Work Light, Auto Power Off, NCV and Live Wire Detection
AC/DC Voltage, AC/DC Current, Resistance, Frequency, Duty Cycle, Diode, Capacitance Measurement
Measuring Temperature
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 600mV/6V/60V/600V | ±（0.8%+5） |
| 1000V | ±（1.0%+5） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（1.0%+3） |
| 60MΩ | ±（2.0%+3） | |
| DC Current | 600μA/6mA/60mA/600mA | ±（0.8%+3） |
| 10A | ± (1.2%+3) | |
| AC Current | 600μA/6mA/60mA/600mA | ±（1.0%+3） |
| 10A | ±（1.5%+3） | |
| Clamp Current | 10mV/A或1mV/A | ±(0.5%+3) |
| Frequency | 10HZ/100HZ/1KHZ/10kHZ/100kHZ/1MHz/10MHz | ±（0.5%+5） |
| Duty | 1%~99% | ±（3.0%+2） |
| K-typeThermocouple Temperature | -40℃～1000℃（-40℉～1832℉） | ±（1.0%+2）(℃/℉) |
| FEATURES | ||
| Display | 6000 Counts | |
| Backlight | √ | |
| Relative Measurement | √ | |
| Flashlight | √ | |
| Max/Min Measurement | √ | |
| Diode Test | √ | |
| Clamp Current Measurement | 60A(10mV/A),600A(1mV/A) | |
| Continuity | √ | |
| NCV | √ | |
| Live Line Test | √ | |
| VFD Measurement | √ | |
| Auto And Manual Range | √ | |
| Data Hold | √ | |

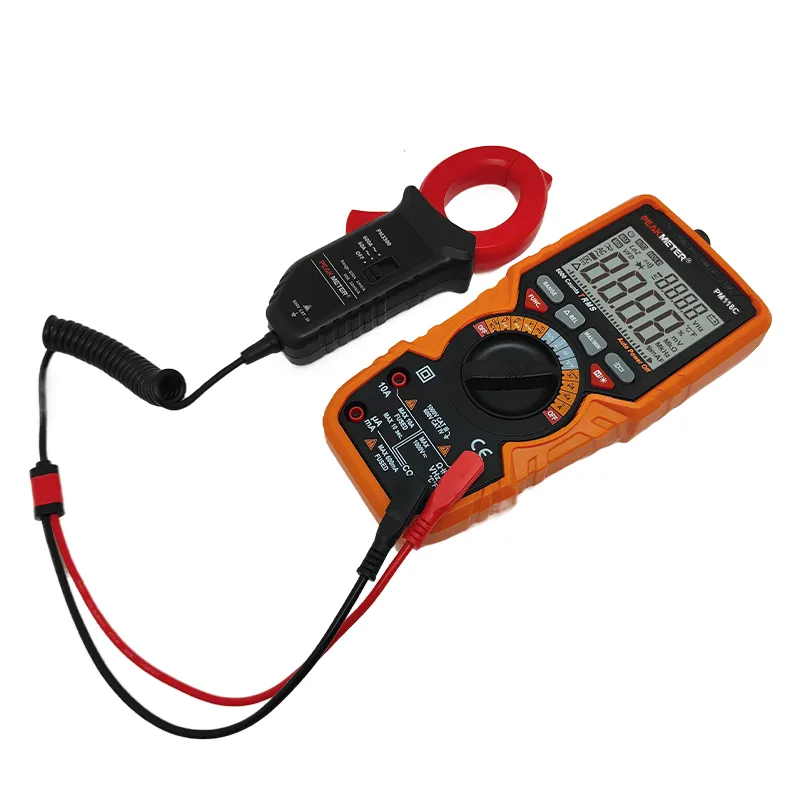

| Function | Can be externally connected with clamp head | |
| GENERAL | ||
| Power Supply | 3x1.5V AAA batteries | |
| Net weight | Approx.380g(included batteries) | |
| Product Size | 194mmx90mmx56mm | |
| Security Level | EN61010-1,CAT Ⅲ1000V ,CAT.Ⅳ600V | |
| K Type Thermocouple | Test Leads | Users Manual | 3*1.5V AAA batteries |
