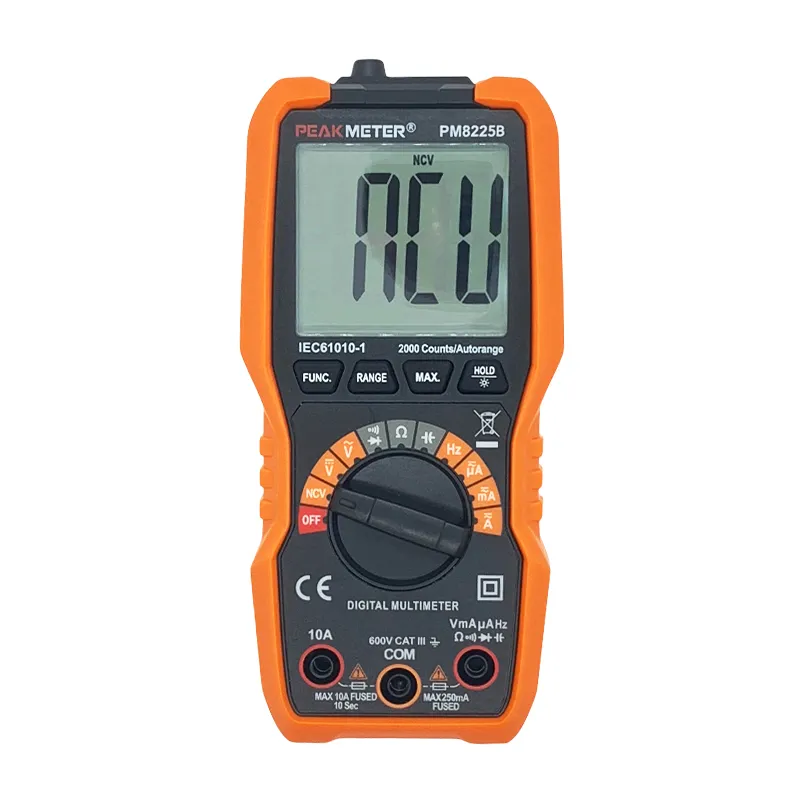

PM8225B is a hand-held digital multimeter with 2000 counts display. It can be used to measure AC DC Voltage, AC DC Current, resistance, capacitance, frequency, temperature, diode, continuity, NCV detection. The meter has MAX function, data hold function, back light function, auto range and manual range function.
Display: 2000 Counts
Manual Range
Auto Range
Bargraph Display
Data Hold
MAX/MIN Measurement
Diode Test
Continuity

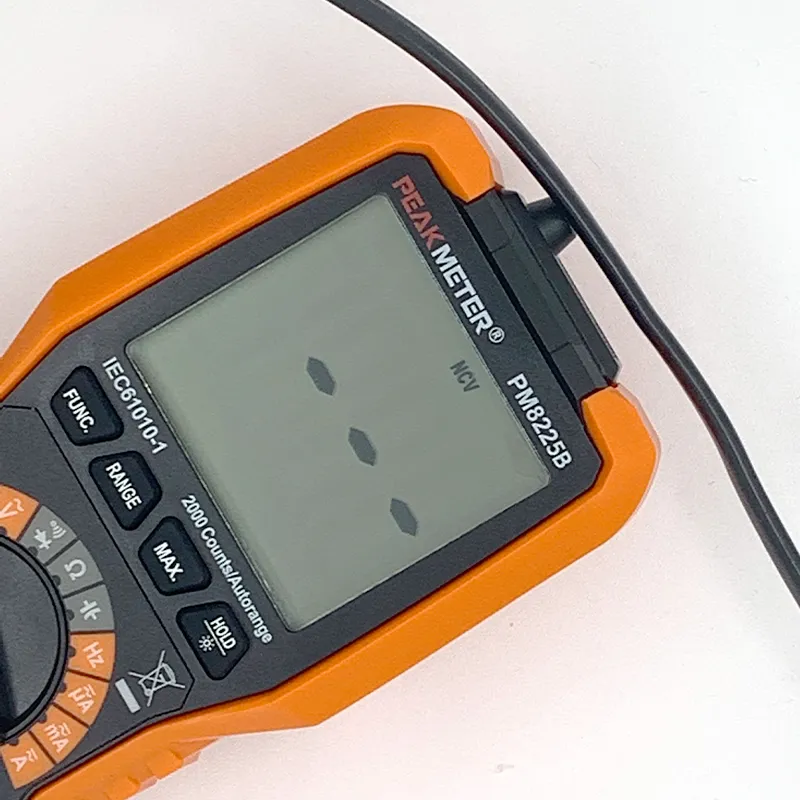

NCV Non-Contact Voltage Detection
Back Light

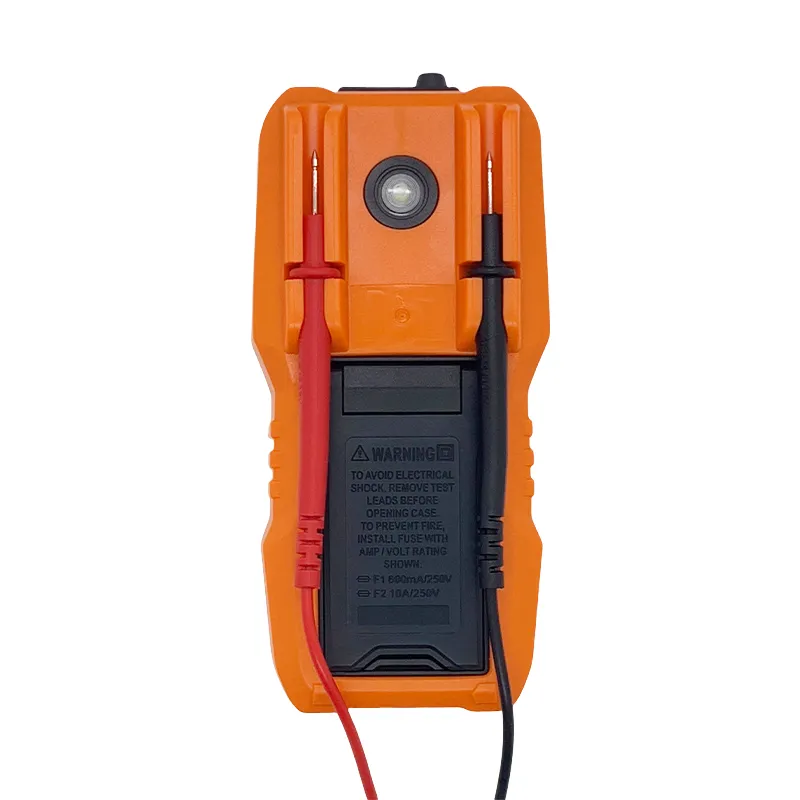

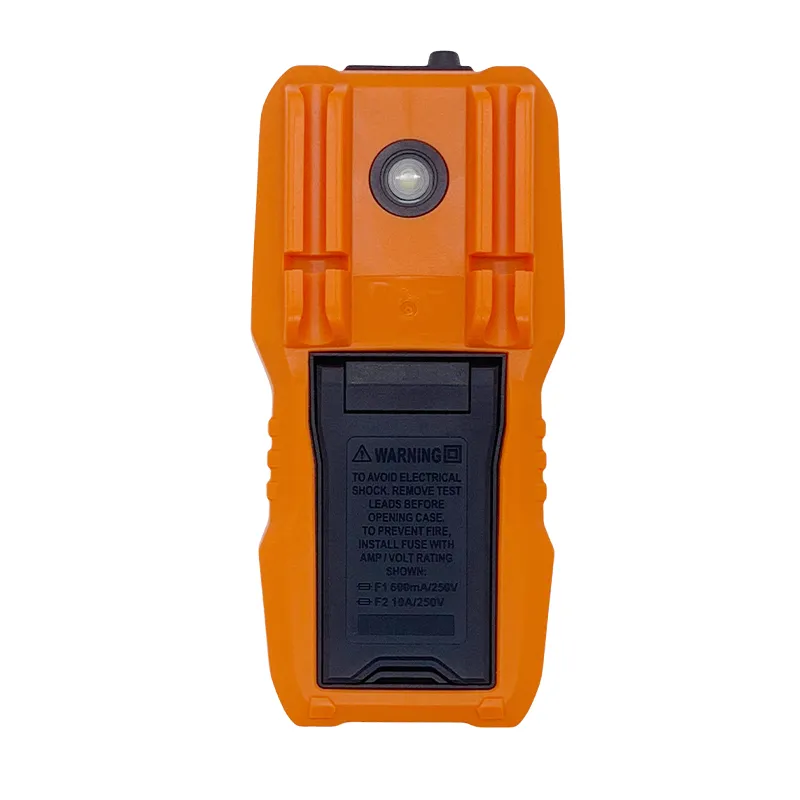

Flashlight
| SPECIFICATION | RANGE | ACCURACY |

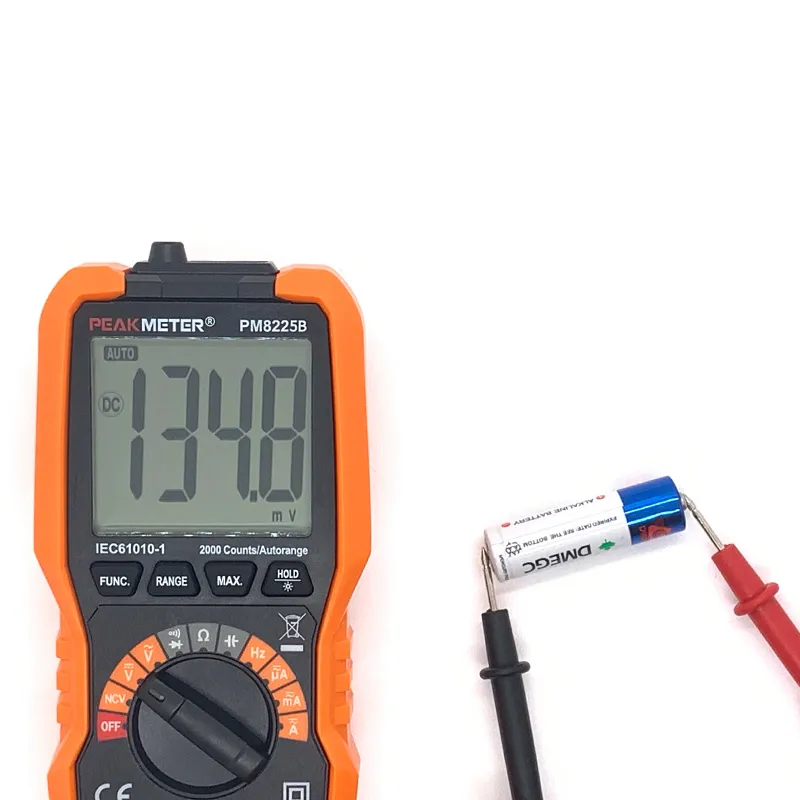

| DC Voltage | 200mV/2V/20V/200V | ±(0.5% +2) |
| 600V | ±(0.8% +2) | |
| DC Current | 200μA/2000μA/20mA/200mA/10A | ±(1.5% +3) |
| AC Voltage | 200mV/2V/20V/200V | ±(1.0% +3) |
| 600V | ±(1.2% +3) | |
| AC Current | 200μA/2000μA/20mA/200mA/10A | ±(1.5% +4) |

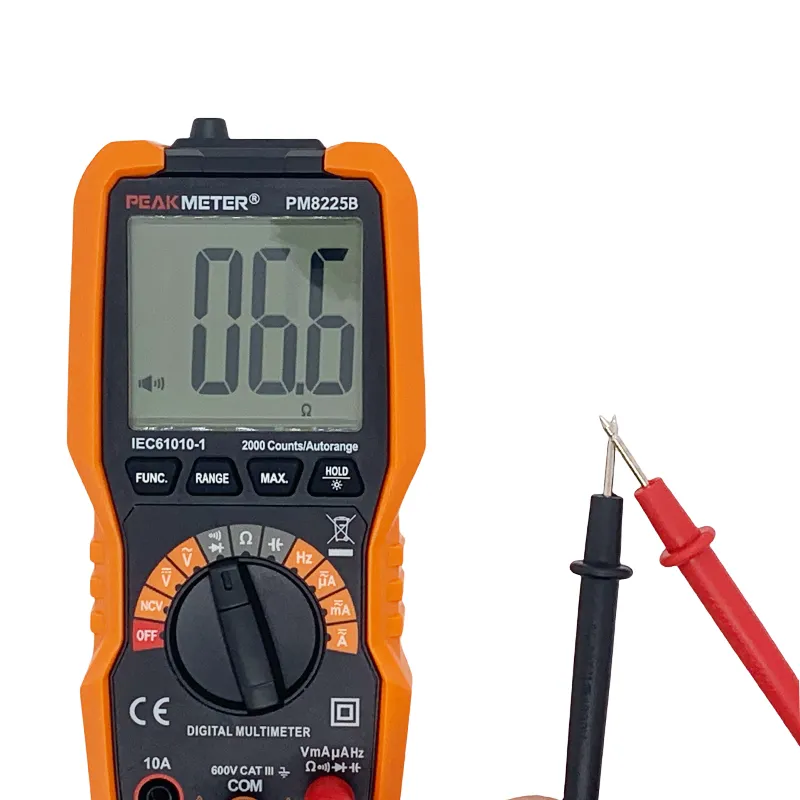

| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ | ±(0.8% +2) |
| 20MΩ | ±(1.0% +2) | |
| Capacitance | 20nF/200nF/2μF/20μF/ 200μF/2mF | ±(4.0% +5) |
| Frequency | 20Hz | ±(1.5% +5) |
| FEATURE | ||
| Display | 2000 counts | |
| Manual Range | √ | |
| Auto Range | √ | |
| Bargraph Display | √ | |
| Data Hold | √ | |
| Relative Measurement | ||
| MAX/MIN Measurement | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| NCV | √ | |
| Black Light | √ | |
| Work Light | √ | |
| GENERAL | ||
| Power Supply | 2x1.5V AAA Batteries | |
| Product Size | 166mm X 78mm X 48mm | |
| Net weight | 268g (not include batteries） | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600V | |
Test Leads | Users Manual | 2*1.5V AAA batteries |
