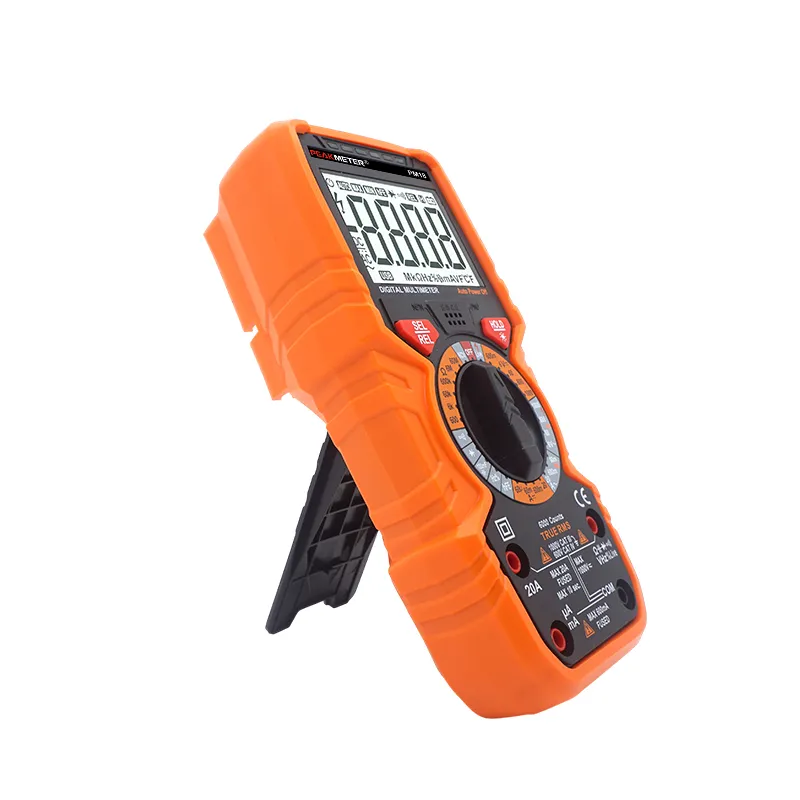

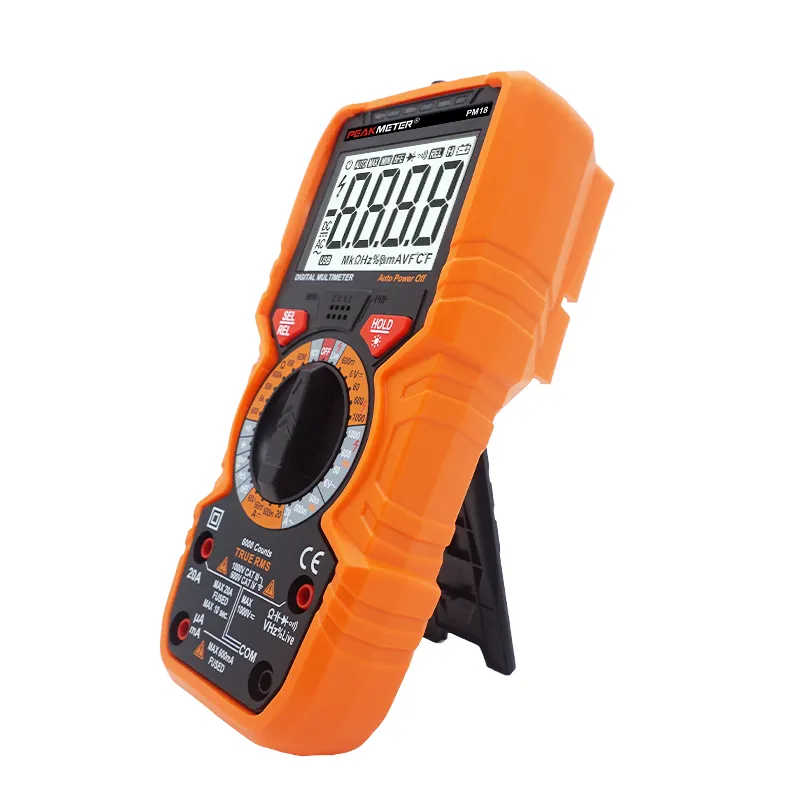

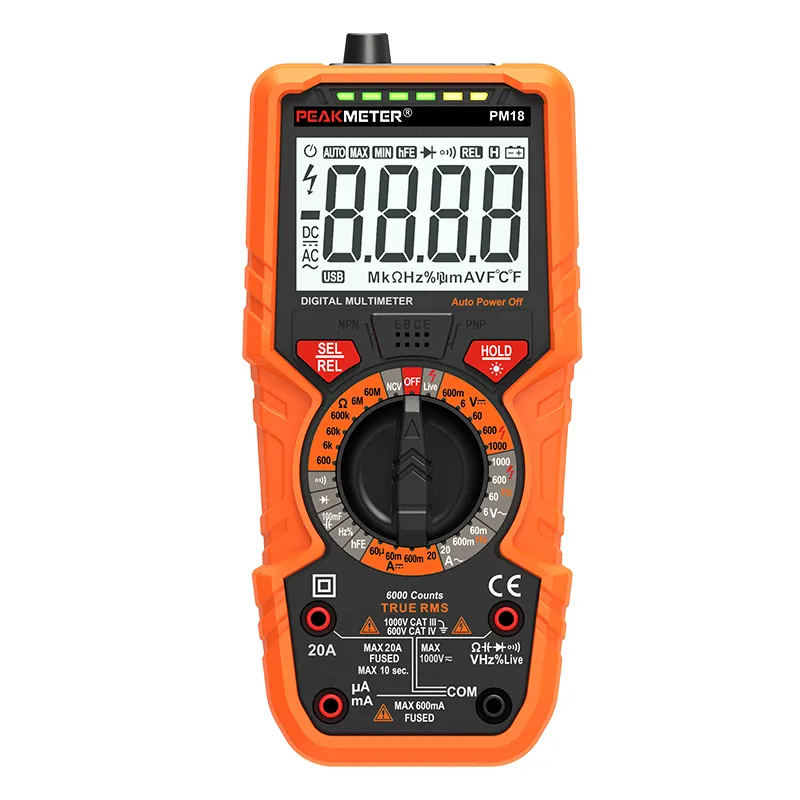

PM18 is a 6000 Counts True RMS multimeter with full basic functions including 20A current, 10MHz frequency and capacitance measurement. Built-in NCV induction live wire alarm, working light and audible continuity beep. Comply with CAT III 1000V & CAT IV 600V safety norms, ideal for professional electrical troubleshooting.
Display: 6000 Counts
ACV/ACA TRMS
ACV (bandwidth): 1kHz
Frequency: 10MHz
Duty: 1%~99%
Resistance: 60MΩ
Capacitance: 100mF
Continulty (Sound and LED Alarm)
Diode Test
HFE
Live Line Test (High, MediumAnd Low) Sound And LED Alarm
Work Light
Low Battery Indication
NCV (High, Medium And Low) Sound And LED Alarm
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 6V/60V | ±（0.8%+3） |
| 600V/750V | ±（1%+10） | |
| DC Current | 60μA/60mA/600mA | ±（0.8%+3） |
| 20A | ±（1.2%+3） | |
| AC Current | 60mA/600mA | ±（1.0%+3） |
| 20A | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（0.8%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 6nF | ±（4.0%+30） |
| 60nF/600nF/6μF/60μF/ 600μF/6mF/ | ±（4.0%+3） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ | ±（1.0%+3） |
| Duty | 5%～95% | ±（2.0%+3） |
| hFE | 0～1000 | ±（1.0%+3） |
| FEATURES | ||
| Display | 6000Counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Frequency | 10MHZ | |
| Duty | 5%～95% | |
| Resistance | 60MΩ | |
| Capacitance | 100mF | |
| Continuity（Sound and LED ALarm） | √ | |
| Diode Test | √ | |
| hFE | √ | |
| Live Line Test | (high,mediumand low)Sound And LED Alarm Work Light | |
| Work Light | √ | |
| Low Battery Indication | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4x1.5V AA batteries | |
| Net weight | Approx.380g(included batteries） | |
| Gross weight | 556g | |
| Product Size | 190mmx89mmx50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 208mmx128mmx59mm | |
| Carton Size | 440mmx310mmx410mm | |
| G.W | 17.7kg | |
Test Leads | Users Manual | 3*1.5V AAA batteries |
