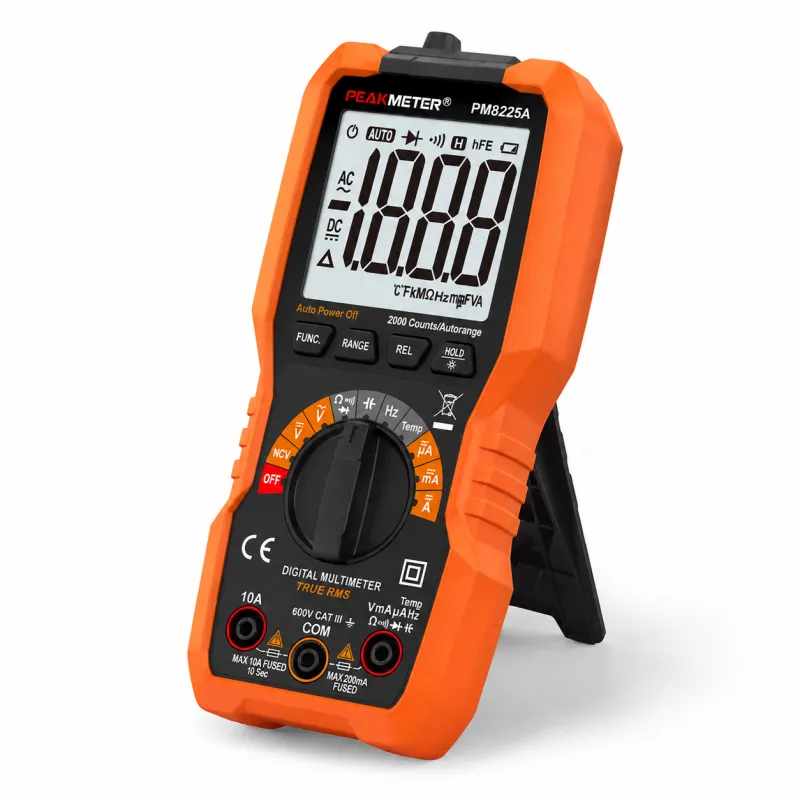

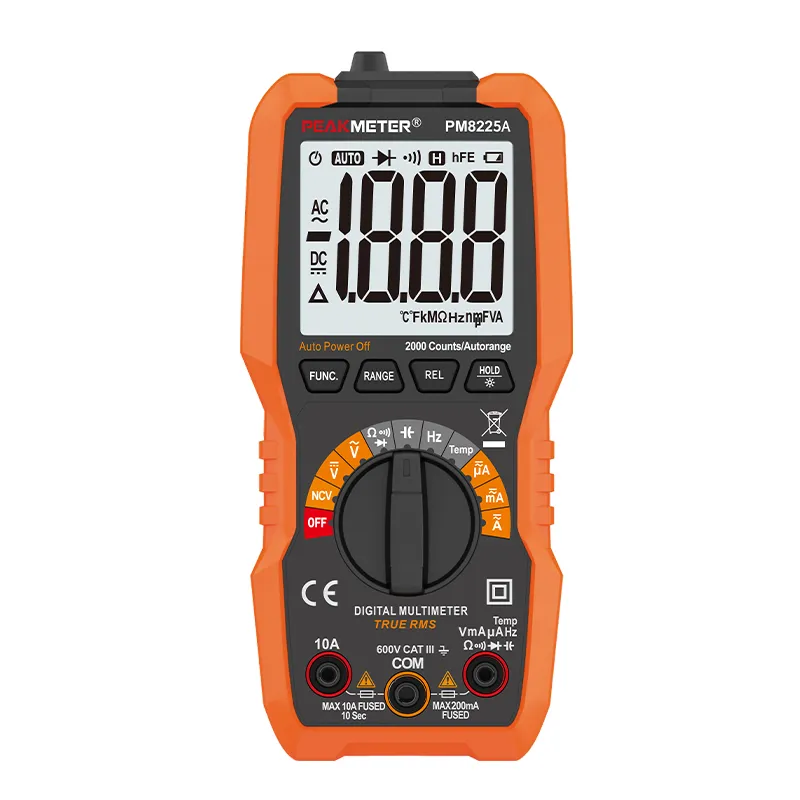

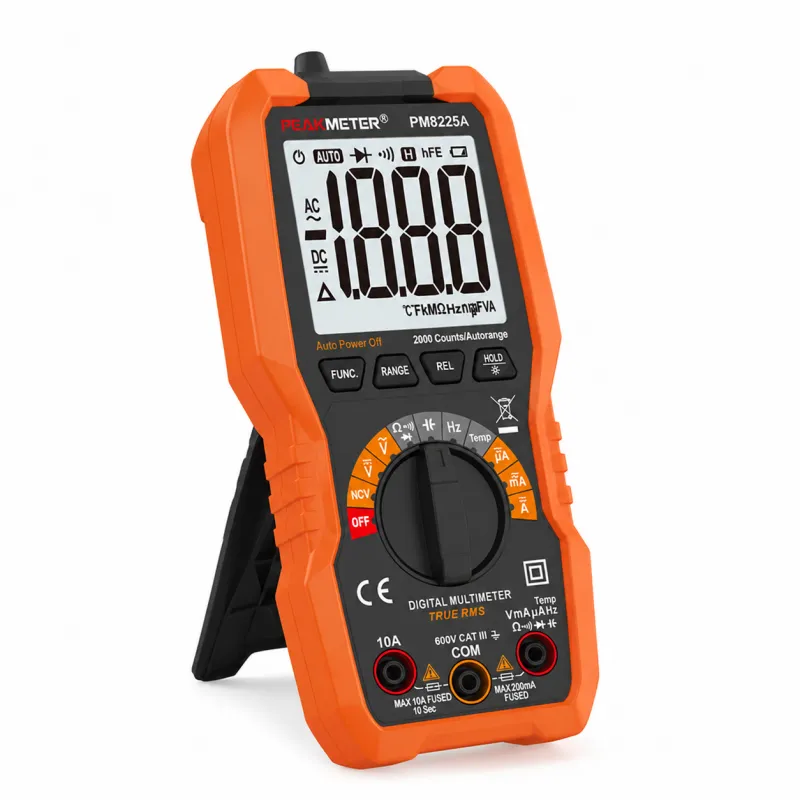

PM8225A is a 2000-count auto-ranging handheld multimeter for entry-level electrical testing. It covers 600V voltage, 10A AC/DC current, resistance and frequency measurement, equipped with data hold, diode test, continuity beep, backlight and built-in flashlight. Comply with CAT III 600V safety standard, lightweight and battery-saving for hobbyists and beginner electricians.
Display: 2000 Counts
Manual Range
Auto Range
Data Hold
Relative Measurement
Diode Test
Continuity
NCV Non-Contact Voltage Detection
Back Light
Flashlight
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±(0.8% +3) |
| 600V | ±(1.0% +5) | |
| DC Current | 200μA/2000μA/20mA/200mA/10A | ±(1.0% +3) |
| AC Voltage | 200mV/2V/20V/200V | ±(1.2% +5) |
| 600V | ±(1.5% +5) | |
| AC Current | 200μA/2000μA/20mA/200mA/10A | ±(1.2% +5) |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ | ±(0.8% +8) |
| 20MΩ | ±(1.0% +8) | |
| Capacitance | 2nF | ±(5.0% +15) |
| 20nF/200nF/2μF/20μF/ 200μF/2mF | ±(4.0% +5) | |
| Frequency | 10Hz～4MHz | ±(1.0% +5) |
| FEATURE | ||
| Display | 2000 Counts | |
| Manual Range | √ | |
| Auto Range | √ | |
| Bargraph Display | ||
| Data Hold | √ | |
| Relative Measurement | √ | |
| MAX/MIN Measurement | ||
| Diode Test | √ | |
| Continuity | √ | |
| NCV | √ | |
| Black Light | √ | |
| Work Light | √ | |
| GENERAL | ||
| Power Supply | 2x1.5V AAA Batteries | |
| Product Size | 166mm X 78mm X 64mm | |
| Net weight | 268g (not include batteries） | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600V | |
Test Leads | Users Manual | 2*1.5V AAA batteries |
