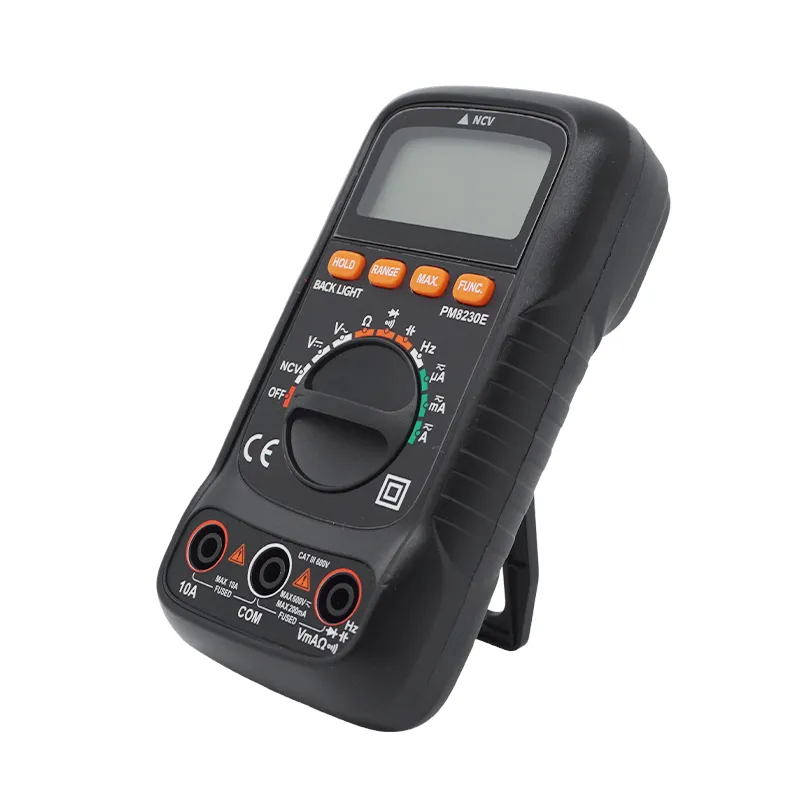

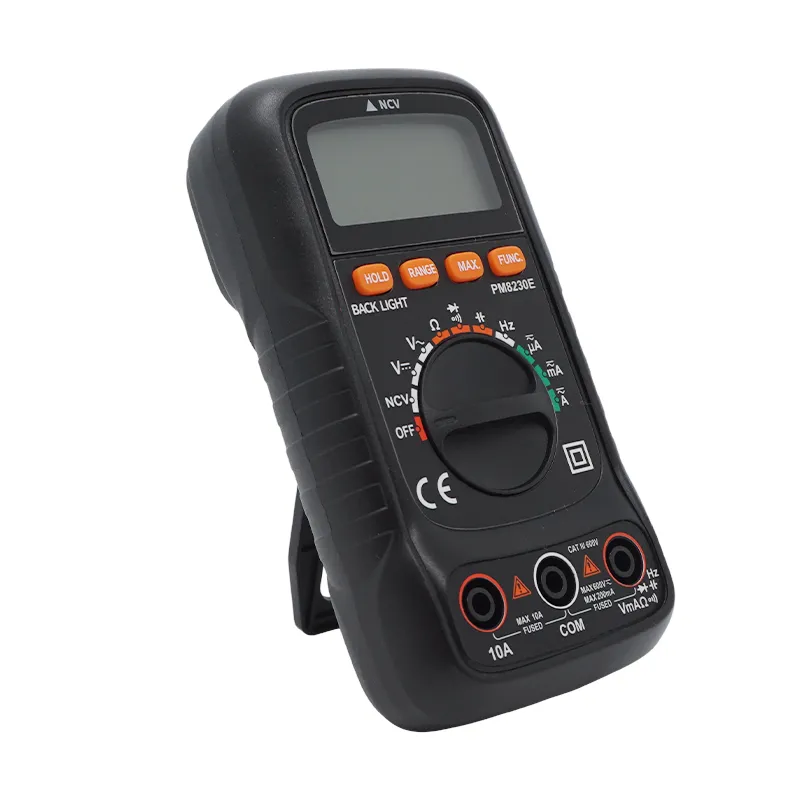

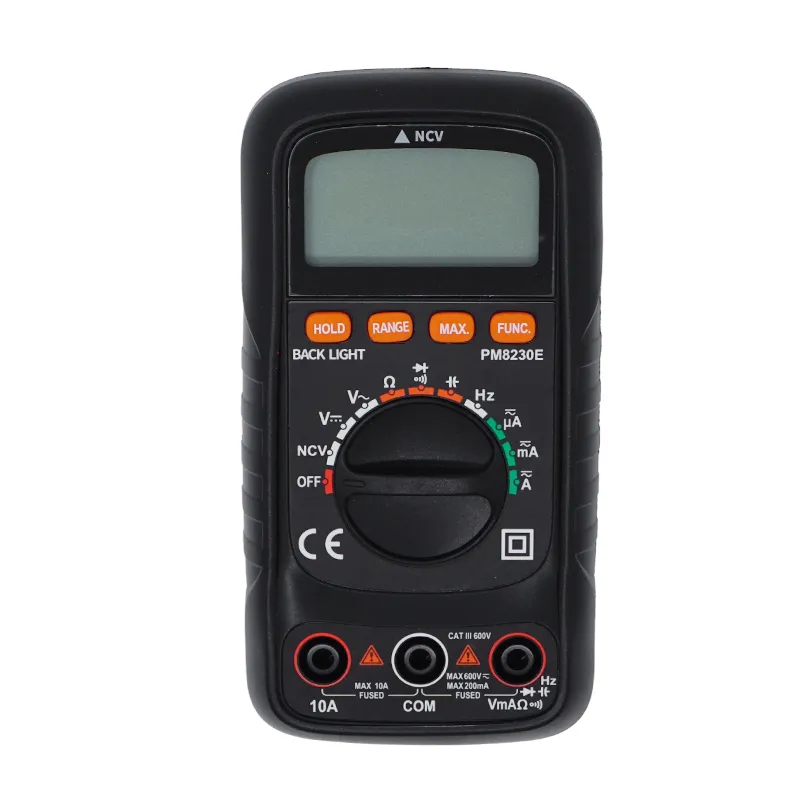

PM8230E is the upgraded full-featured version of PM8230D auto-ranging multimeter. It inherits all measuring functions including frequency, capacitance and NCV detection, additionally supporting AC current measurement and internal fuse overload safety protection. With backlight and data lock, it is a reliable tool for professional electricians, on-site wiring testing and complex electronic component troubleshooting.
Display: 2000 Counts
Manual Range
Auto Range
MAX Measurement
Low Battery Indication
Data Hold
Back Light

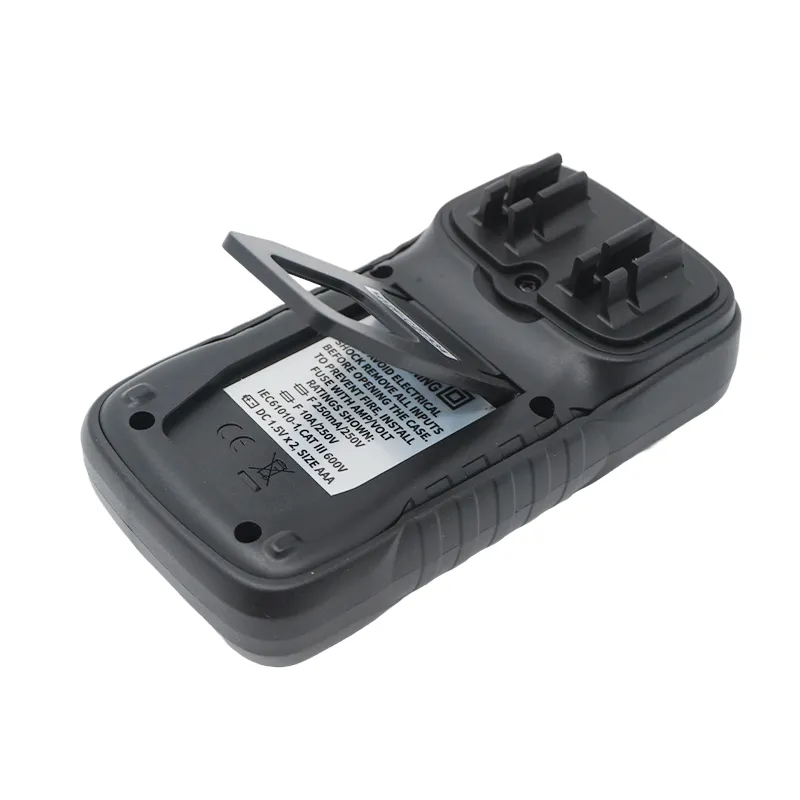

Fuse Protection
| SPECIFICATION | RANGE | ACCURACY | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） | ±（0.5%+2） |
| 600V | ±（0.8%+2) | ±（0.8%+2) | |
| AC Voltage | 200mV/2V/20V/200V | ±（1.0%+3） | ±（1.0%+3） |
| 600V | ±（1.2%+3） | ±（1.2%+3） | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±（0.8%+2） | ±（0.8%+2） |
| 20MΩ | ±（1.0%+2） | ±（1.0%+2） | |
| Capacitance | 20nF/200nF/2uF/20uF/200uF/2mF | ±（4.0%+5） | ±（4.0%+5） |
| DC Current | 2000μA(OnlyPM8230E)/2mA | ±（1.5%+3） | ±（1.5%+3） |
| 20mA/200mA | |||
| 10A | |||
| AC Current | 2000μA(OnlyPM8230E)/2mA | ±（1.5%+4） | ±（1.5%+4） |
| 20mA/200mA | |||
| 10A | |||
| Frequency | 20kHz (OnlyPM8230E) | ±（1.5%+5） | ±（1.2%+5） |
| FEATURES | |||
| PM8233E | |||
| Display | 2000 Counts | ||
| Manual Range | √ | ||
| Auto Range | √ | ||
| MAX Measurement | √ | ||
| Low Battery Indication | √ | ||
| Data Hold | √ | ||
| Backlight | √ | ||
| Battery Measurement Function | |||
| Fuse | √ | ||
| GENERAL | |||
| Power Supply | 2X1.5V AAA batteries | ||
| Weight | Approx. 126g (no leather case and batteryincluded) | ||
| Product Size | 129x66x33mm (no leather case included) | ||
| Safety Rating | IEC61010-1,IEC 61010-2-032 CAT III600V | ||
| Package（PCS/carton） | |||
| Color Box Size | |||
| Carton Size | |||
| G.W | |||

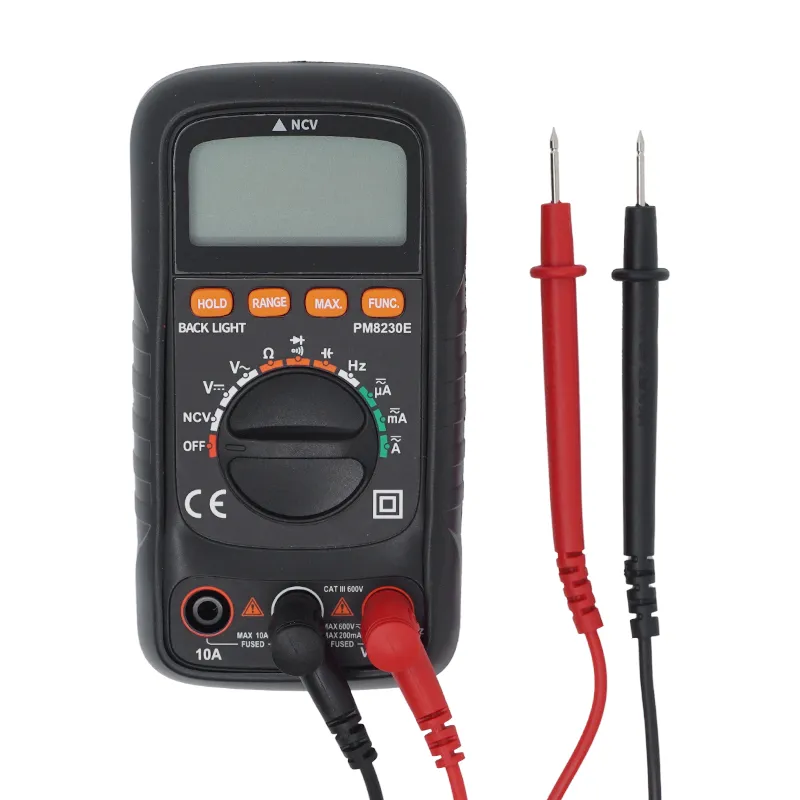

| Test Leads | Users Manual | 2*1.5V AAA batteries |
