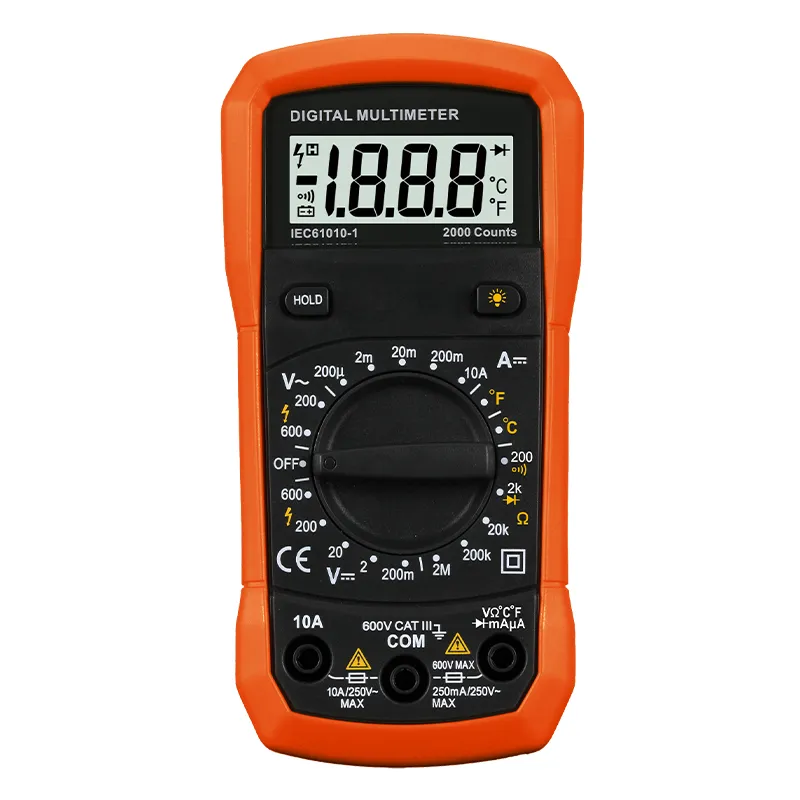

PM8233C is the upgraded model of PM8233 series, adding -20℃ to 1000℃ wide-range temperature test on the basis of full basic electrical measurement. It has backlight, data hold and reliable CAT III 600V safety standard. Perfect for HVAC equipment maintenance, engine temperature detection, home appliance and industrial circuit troubleshooting.
Display: 2000 Counts
Data Hold
Back Light
Diode Test
Continuity Test
Temperature Measurement: (-20℃ ~ 1000℃ Wide Range)
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 600V | ±（0.8%+2） | |
| AC Voltage | 200V/600V | ±（1.2%+10） |
| DC Current | 200μA/2mA/20mA | ±（1.0%+2） |
| 200mA | ±（1.5%+2） | |
| 10A | ±（3.0%+2） | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ | ±（0.8%+2） |
| 2MΩ | ±（1.0%+2） | |
| Temperature | -20℃～0℃ （－4℉～32℉） | ±（10%+2） |
| 0℃～400℃（32℉～752℉） | ±（1.0%+3） | |
| 400℃～1000℃（752℉～1832℉） | ±（2.0%+3） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Diode Test | √ | |
| Back Light | √ | |
| Continuity | √ | |
| Temperature | √ | |
| GENERAL | ||
| Power Supply | 1×9V6F22 battery | |
| Net weight | Approx.110g(batteries are not included） | |
| Gross weight | 334g | |
| Product Size | 140mm×67mm×30mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 155mm×111mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 14.4kg | |
| K Type Thermocouple | Test Leads | Users Manual | 1×9V 6F22 Battery |
