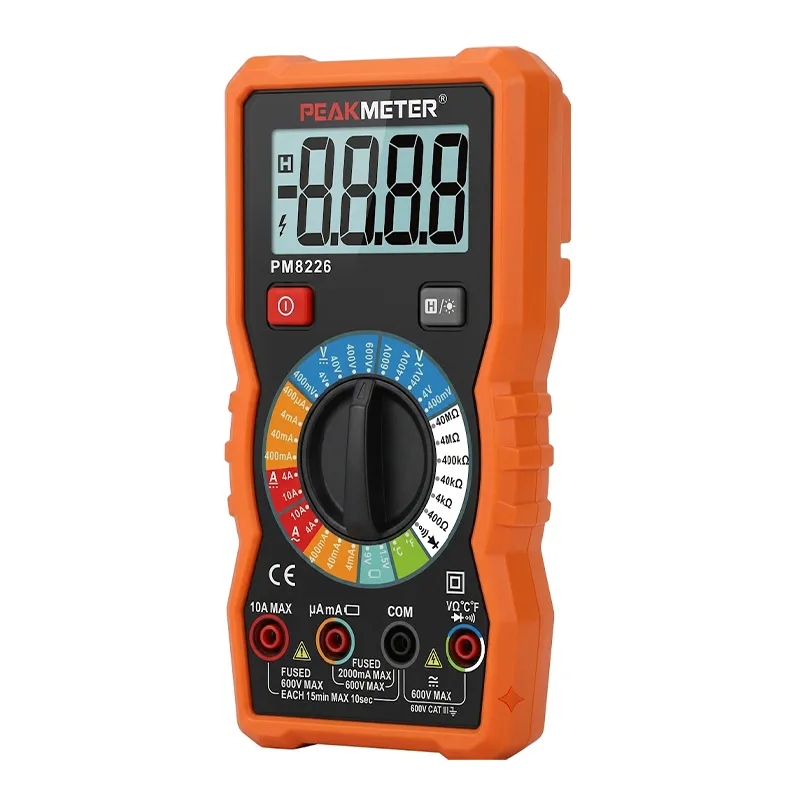

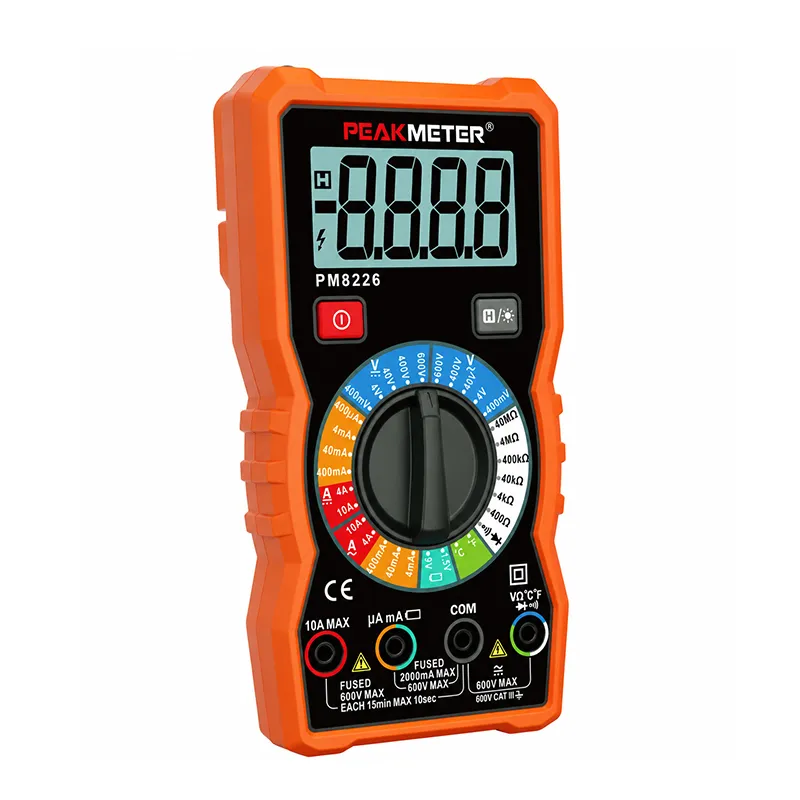

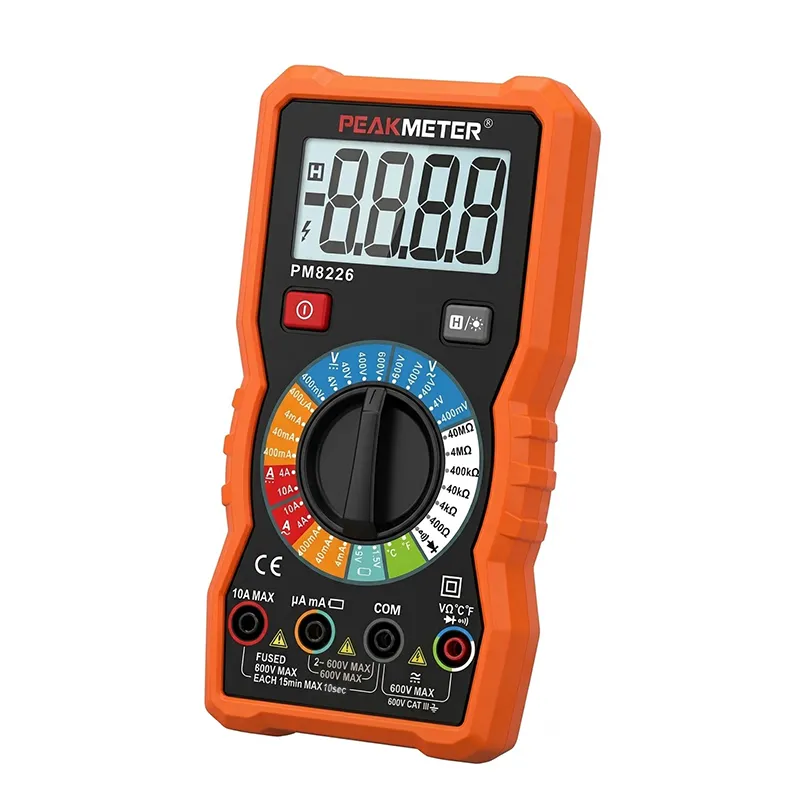

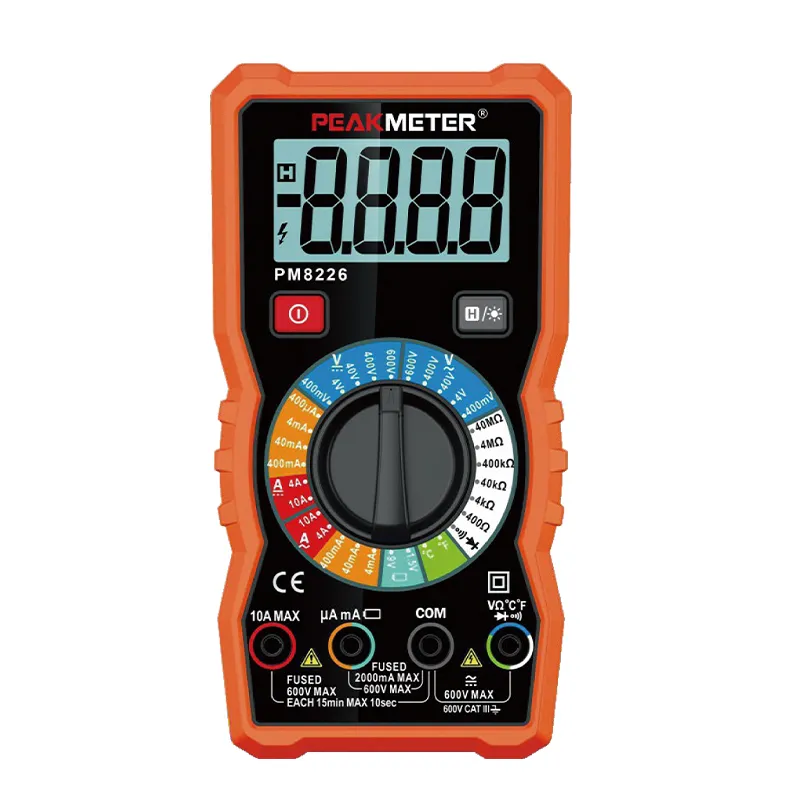

PEAKMETER PM8226 True RMS multimeter features 6000-count high precision, one-key auto range and NCV non-contact voltage test. Built with CAT III 600V safety rating, dual fuse anti-burn design, backlit screen and auto power-off. Rugged ergonomic meter perfect for industrial maintenance and electronic troubleshooting.
Certifications CE, RoHS
Display Count: 4000 Counts
True RMS Measurement
AC/DC Voltage: 600V
AC/DC Current: 10A
Overvoltage Category: CAT III 600V
Countinuity
Diode
Temperature Test
Battery Test
Auto Power Off
Backlight
Low Battery Indication
Date Hold
Low Battery Indication
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 400mV/4V/40V/400V | ±（0.5%+2） |
| 600V | ±（0.8%+2） | |
| AC Voltage | 400mV/4V/40V/400V/600V | ±（1.2%+10） |
| DC Current | 400μA/4mA/40mA | ±（1.0%+2） |
| 400mA | ±（1.5%+2） | |
| 4A/10A | ±（3.0%+2） | |
| AC Current | 4mA/40mA | ±（1.0%+5） |
| 400mA | ±（1.5%+5） | |
| 4A/10A | ±（3.0%+5） | |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ | ±（0.8%+2） |
| 4MΩ | ±（1.0%+2） | |
| 40MΩ | ±（1.0%+5） | |
| Temperature | ﹣20℃~1000℃（﹣4℉~1832℉） | ±（1.0%+3） |
| Battery Measurement | 1.5V | Approximately 43Ω resistance load is connected to the meter |
| 9V | Approximately 620Ω resistance load is connected to the meter | |
| FEATURES | ||
| Display | 4000 Counts | |
| Continuity | √ | |
| Diode Test | √ | |
| Temperature Test | √ | |
| Battery Test | √ | |
| Auto Power Off | √ | |
| Backlight | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| GENERAL | ||
| Power Supply | 2x1.5V AAA batteries | |
| Size | 167.5x87x34 mm | |
| Safety Rating | EN61010-1,EN61010-2-033,CAT IIl 600V | |
| 2x1.5V AAA batteries | Users Maual | Test leads | K Type Thermocouple |
