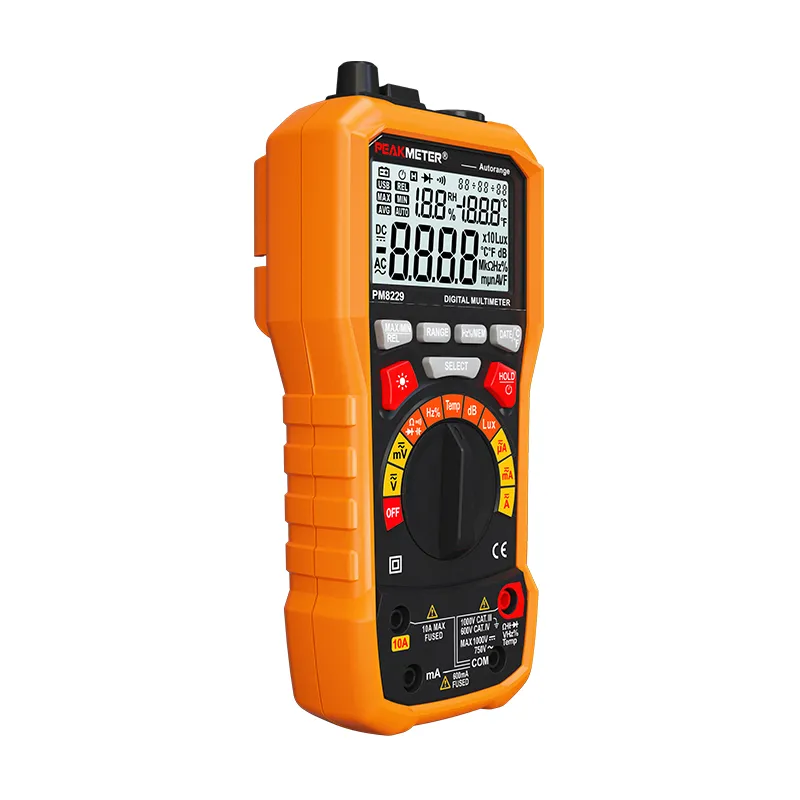

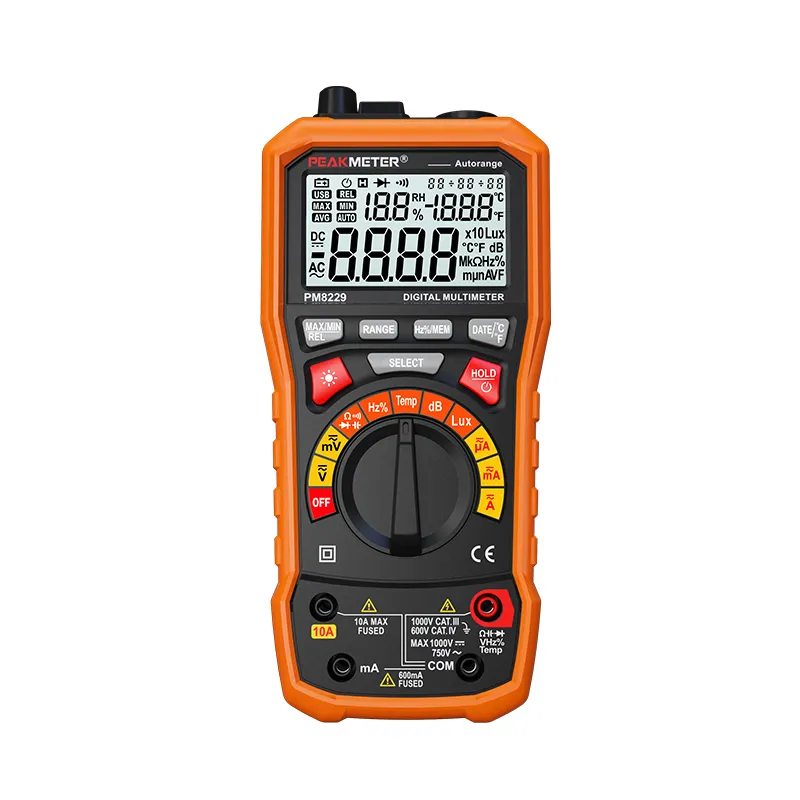

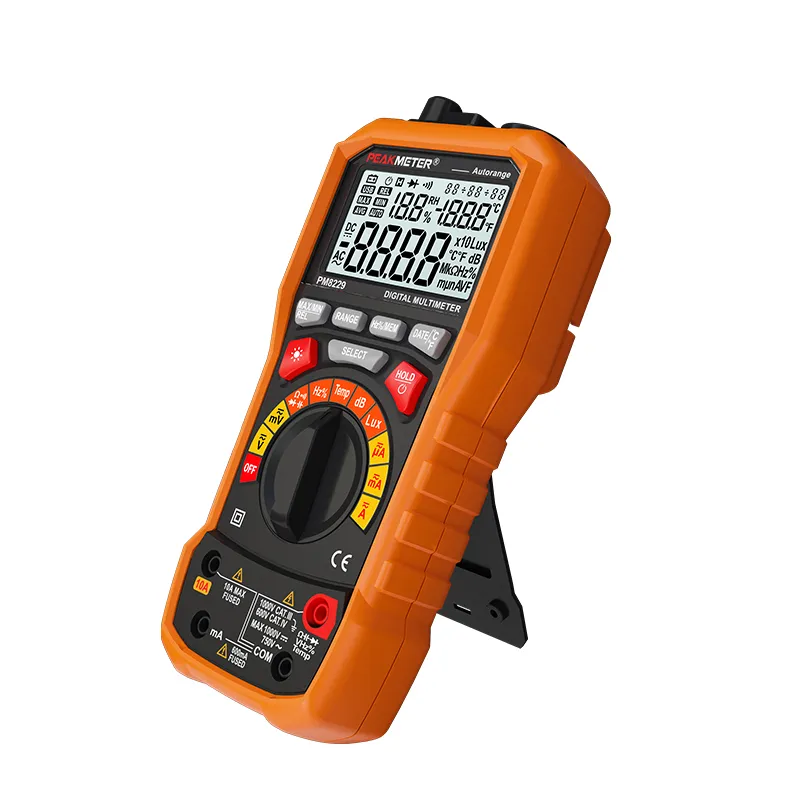

The PM8229 is a hand-held intelligent multifunctional measurement instrument, integrating noise, illuminance, humidity, temperature and digital multimeter into one. With large LCD digital display(three sets of data display) and backlight, it's easy for user to read, with overload protection and battery undervoltage indication. Whether for professionals, factories, schools, amateurs or family, it's an ideal multi-functional instrument.
Display: 6000 Counts
Noise Test
Illumination Test
Temperature
Thermocouple TemperatureMeasurement
Time
Continuity
Back Light
Date Hold
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 400mV/4V/40V/400V/1000V | ±(0.7% +2) |
| DC Current | 400μA/4000μA/40mA/400mA/4A | ±(1.2% +3) |
| 4A/10A | ±(2.0% +10) | |
| AC Voltage | 400mV/4V/40V/400V | ±(0.8%+3) |
| 750V | ±(1.0%+3) | |
| AC Current | 400μA/4000μA/40mA/400mA/4A | ±(1.5%+3) |
| 4A/10A | ±(3.0%+10) | |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ | ±(1.2%+5) |
| 40MΩ | ±(2.0%+5) | |
| Capacitance | 40nF/400nF/4μF/40μF/100μF | ±(3.0%+3) |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999Mhz | ±(1.0%+5) |
| Duty | 0.1%~99.9% | ±3.0% |
| Noise(dB) | 40-100dB | ±3.5% at 94dB,1kHz |
| Lux | 4000/40000 | ±(5.0%+10) |
| RH | 20-95% | ±5.0% |
| Temp | 0-40℃ | ±2℃ |
| 32-104℉ | ±4℉ | |
| Temp with K-probe | —20~0℃ | ±5.0% |
| 0~400℃ | ±1.0% | |
| 400~1000℃ | ±2.0% | |
| —4~32℉ | ±5.0% | |
| 32~752℉ | ±1.0% | |
| 752~1832℉ | ±2.0% | |
| FEATURE | ||
| Display | 6000 Counts | |
| Diode | √ | |
| Clock function | √ | |
| Continuity | √ | |
| Auto Power Off | √ | |
| Data storage | √ | |
| Black Light | √ | |
| Low Battery Indication | √ | |
| MAX/MIN | √ | |
| Relative Measurement | √ | |
| GENERAL | ||

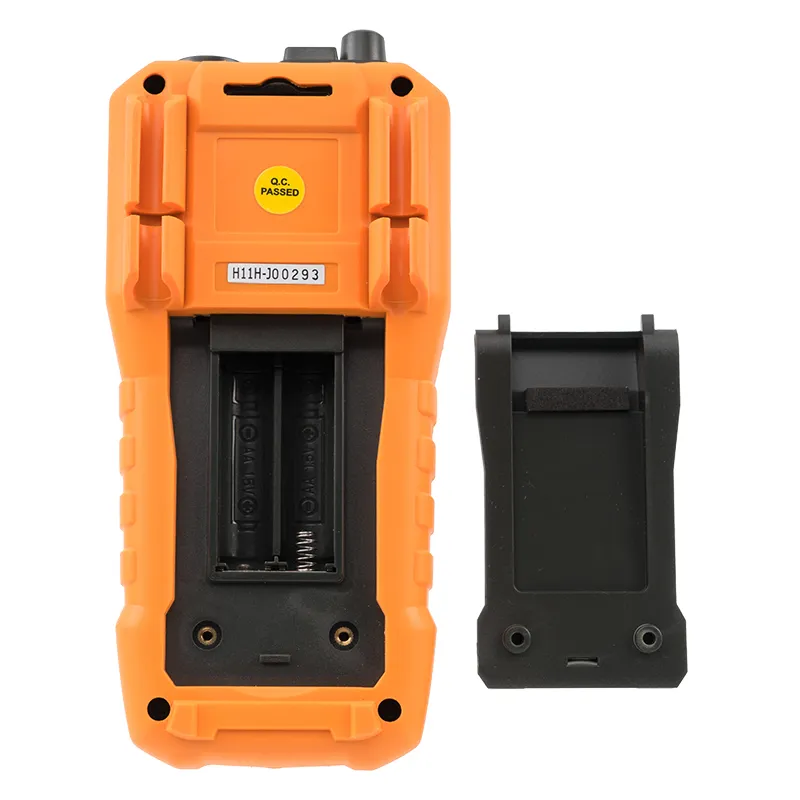

| Power Supply | 4 x 1.5V AA Batteries | |
| Product Size | 204(L)x94(W)x57(H) mm | |
| Net weight | 410g (including batteries） | |
| Gross weight | 878.3g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V//CAT.Ⅳ600V | |
| Package（PCS/carton） | 20pcs | |
| Color Box Size | 230 mm x150mm x 70mm | |
| Carton Size | 480 mm x 370mm x 320mm | |
| G.W | 18.6kg | |
| Test Leads | 4*1.5V AA batteries | Users Manual |
