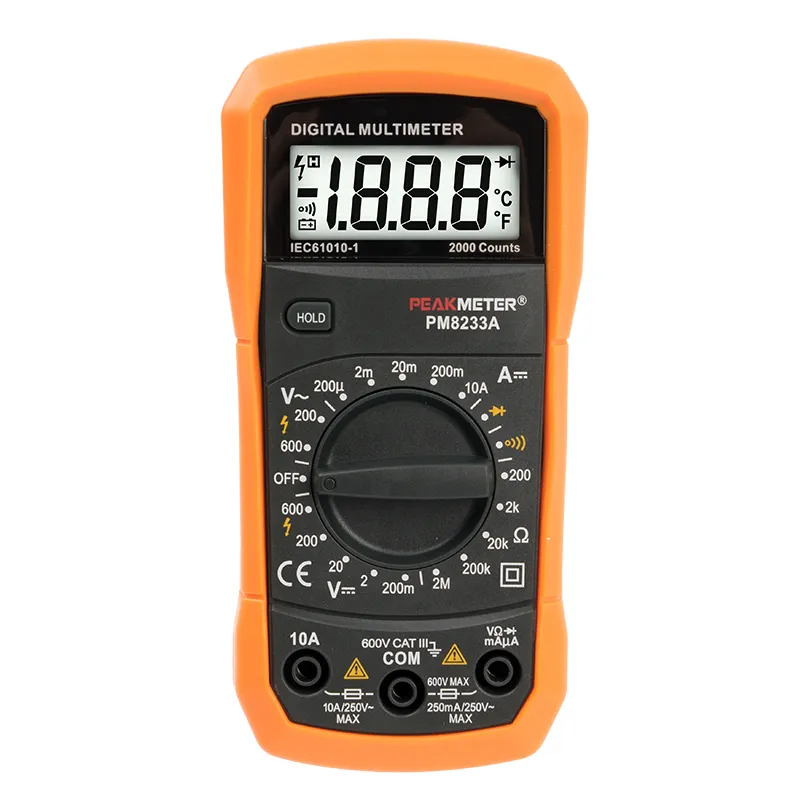

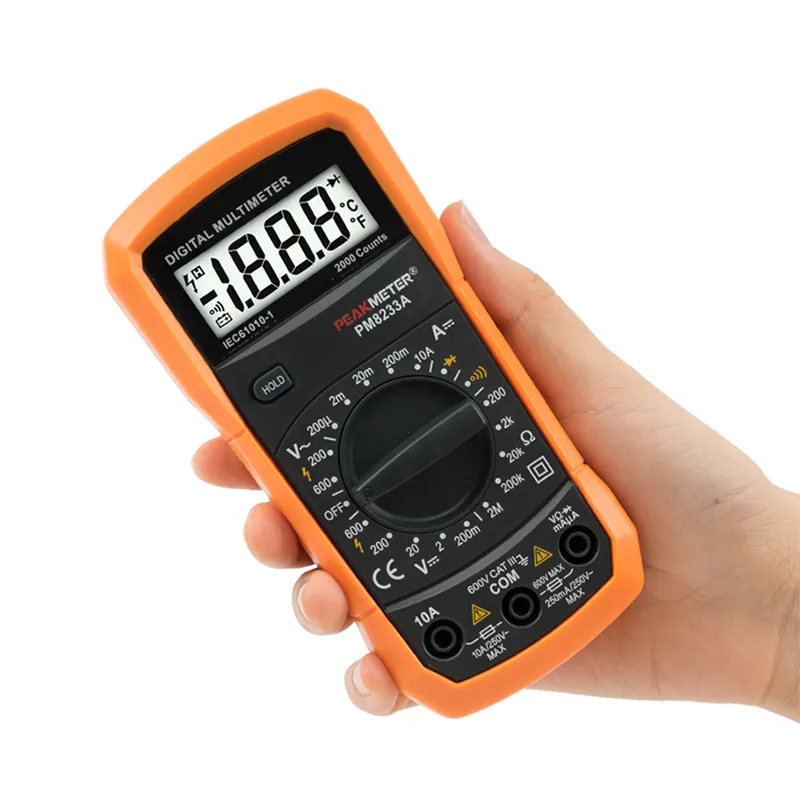

PM8233A is a compact 2000-count digital multimeter with ultra-lightweight body only 171g. It measures DC/AC voltage up to 600V, 10A DC current and resistance, equipped with backlight, data hold, diode and continuity buzzer. Certified CAT III 600V safety rating, pocket-sized for beginner hobbyists, student lab practice and daily household electrical fault checking.
Display: 2000 Counts
Data Hold
Back Light
Diode Test
Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 600V | ±（0.8%+2） | |
| AC Voltage | 200V/600V | ±（1.2%+10） |
| DC Current | 200μA/2mA/20mA | ±（1.0%+2） |
| 200mA | ±（1.5%+2） | |
| 10A | ±（3.0%+2） | |
| Resistance | 200Ω | ±（0.8%+3） |
| 2kΩ/20kΩ/200kΩ | ±（0.8%+2） | |
| 2MΩ | ±（1.0%+2） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | DC9V6F22 battery | |
| Net weight | Approx.112g(batteries are not included） | |
| Gross weight | 340g | |
| Product Size | 140mm×67mm×30mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 155mm×111mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 13.7kg | |
| Test Leads | Users Manual | 1×9V 6F22 Battery |
