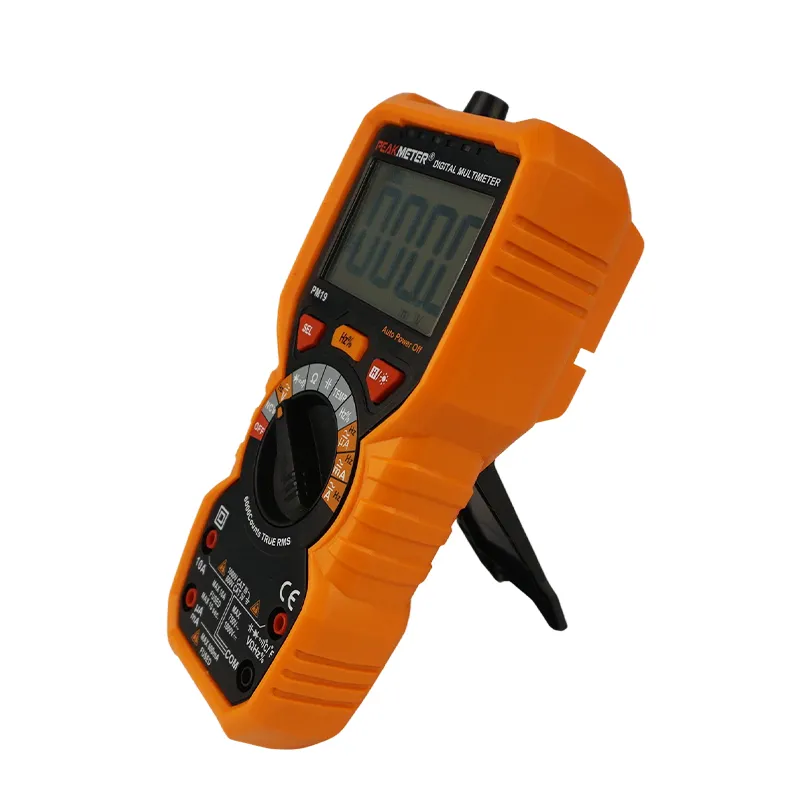

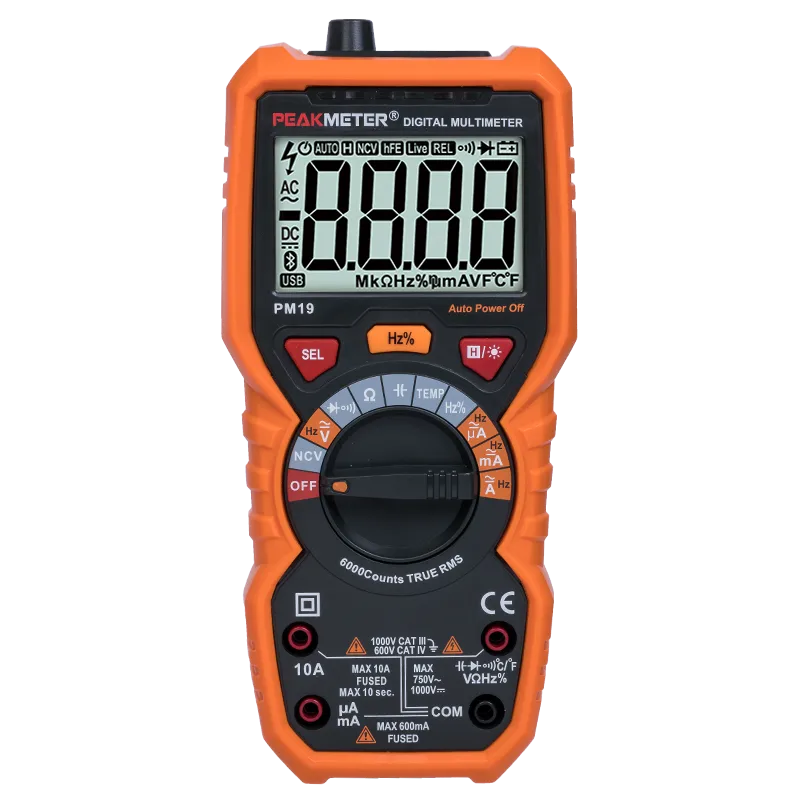

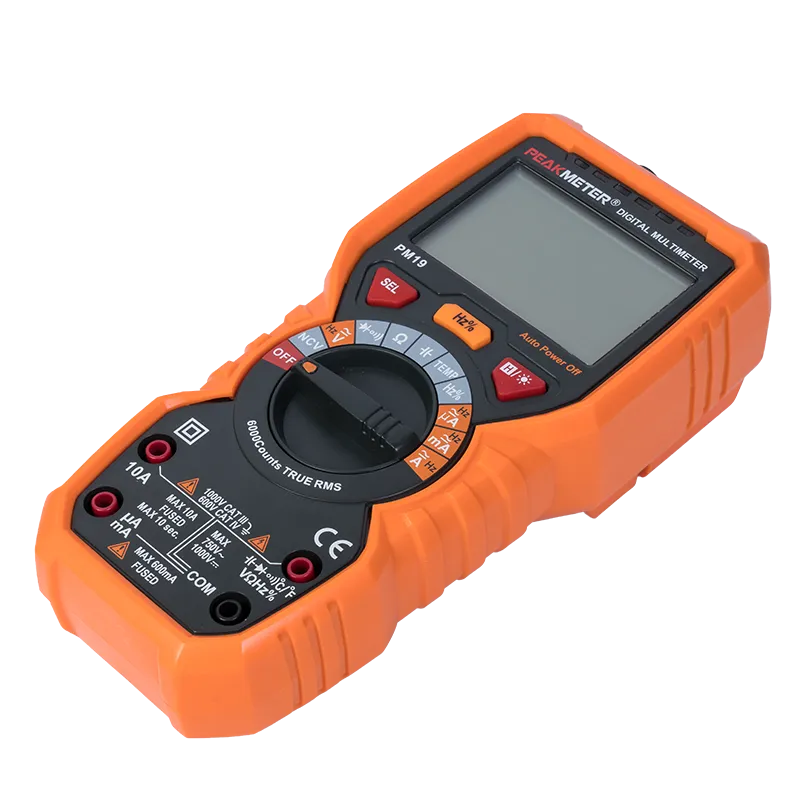

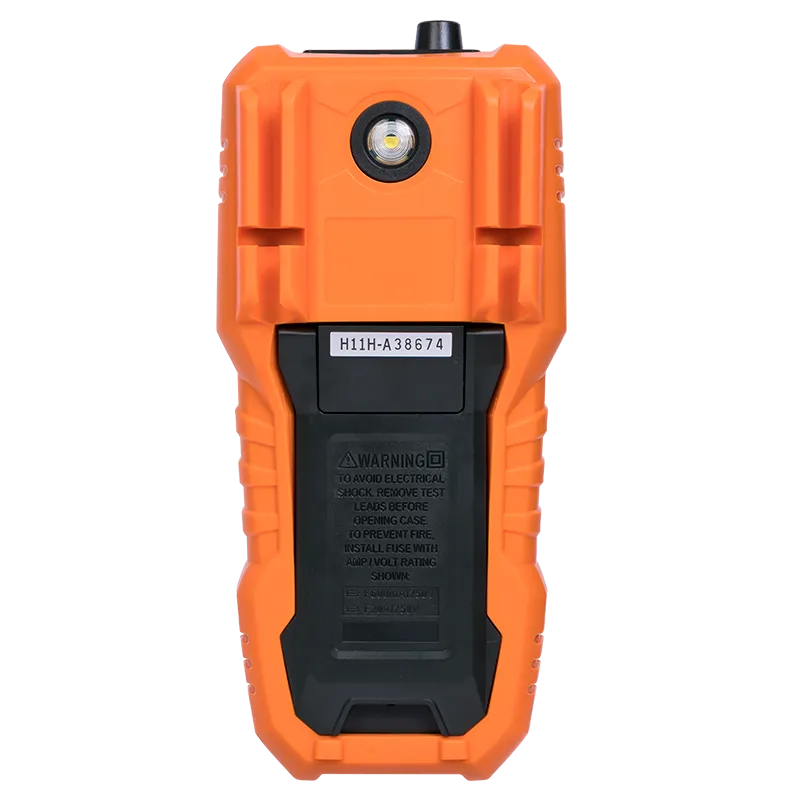

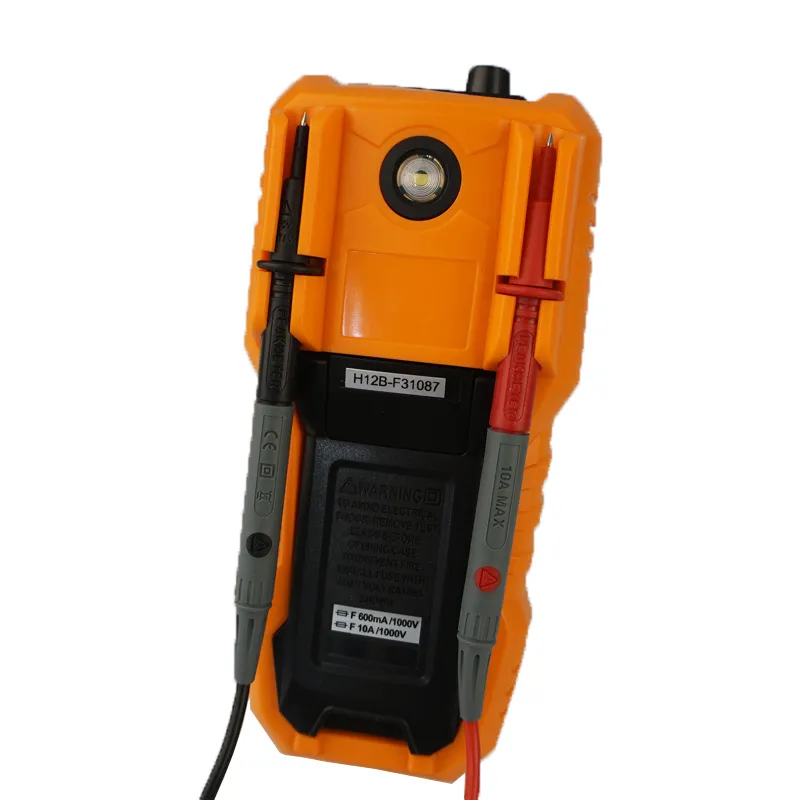

PM19 is a Hand-Held Digital Multi-meter with 6000 counts True RMS. It has large LCD screen with backlight and illumination lighting functions ,so that users can recognize reading easily.It is also equipped with the function of overload protection and the indicator of battery under voltage. This product can be used in factories, schools, researchers and families, it is an ideal multi-function instrument. The meter can sustain the Maximum AC voltage of 600V or equivalent voltage when the tests on frequency, electric resistance, continuity and diode are carried out.
Counts: 6000 Counts
ACV/ACATRMS
ACV (Bandwidth):1kHz
Temperature
Frequency
Duty: 5%-95%
Resistance: 60MΩ
Capacitance: 100mF
Continuity: (Sound and LED Alarm)
Diode Test
Low Battery Indication
Work Light: (High,Medium And Low) Sound And LED Alarm
NCV
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 6V/60V | ±（0.8%+3） |
| 600V/750V | ±（1%+10） | |
| DC Current | 60μA/60mA/600mA | ±（0.8%+3） |
| 10A | ±（1.2%+3） | |
| AC Current | 60mA/600mA | ±（1.0%+3） |
| 10A | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（0.8%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 6nF | ±（4.0%+30） |
| 60nF/600nF/6μF/60μF/ 600μF/6mF/ | ±（4.0%+3） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ/9.999MKHZ | ±（1.0%+3） |
| Duty | 5%～95% | ±（2.0%+3） |
| Temperature(℃/℉) | -20℃～1000℃（-4℉～1832℉） | ±（1.0%+3） |
| FEATURES | ||
| Display | 6000 Counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Temperature(℃/℉) | √ | |
| Frequency | 10MHZ | |
| Duty | 5%～95% | |
| Resistance | 60MΩ | |
| Capacitance | 100mF | |
| Continuity（Sound and LED ALarm） | √ | |
| Diode Test | √ | |
| Work Light | √ | |
| Low Battery Indication | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4x1.5V AA batteries | |
| Net weight | Approx.380g(included batteries) | |
| Gross weight | 588g | |
| Product Size | 190mmx89mmx50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 208mmx128mmx59mm | |
| Carton Size | 440mmx310mmx410mm | |
| G.W | 18.6kg | |
| K Type Thermocouple | Test Leads | Users Manual | 4*1.5V AAA batteries |
