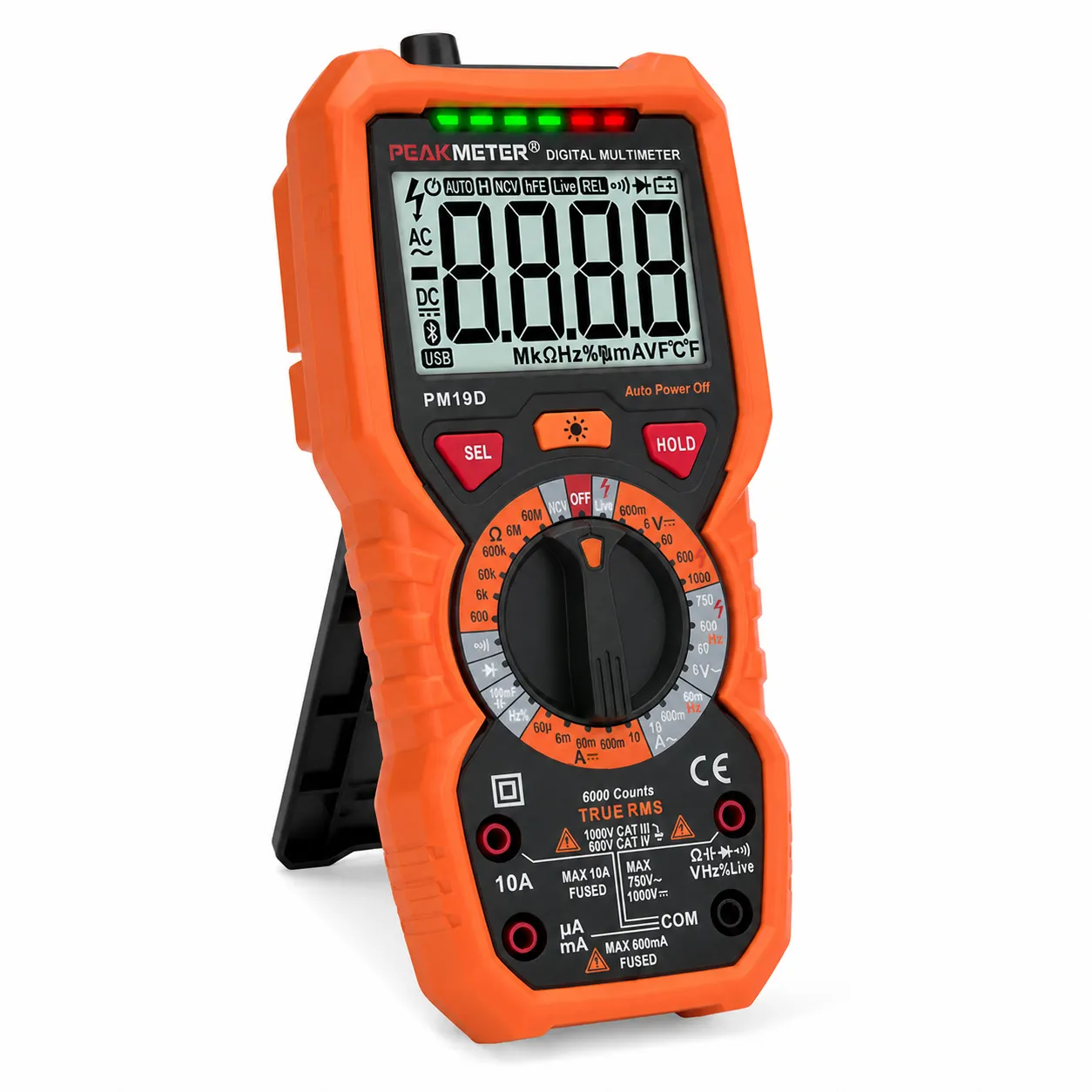

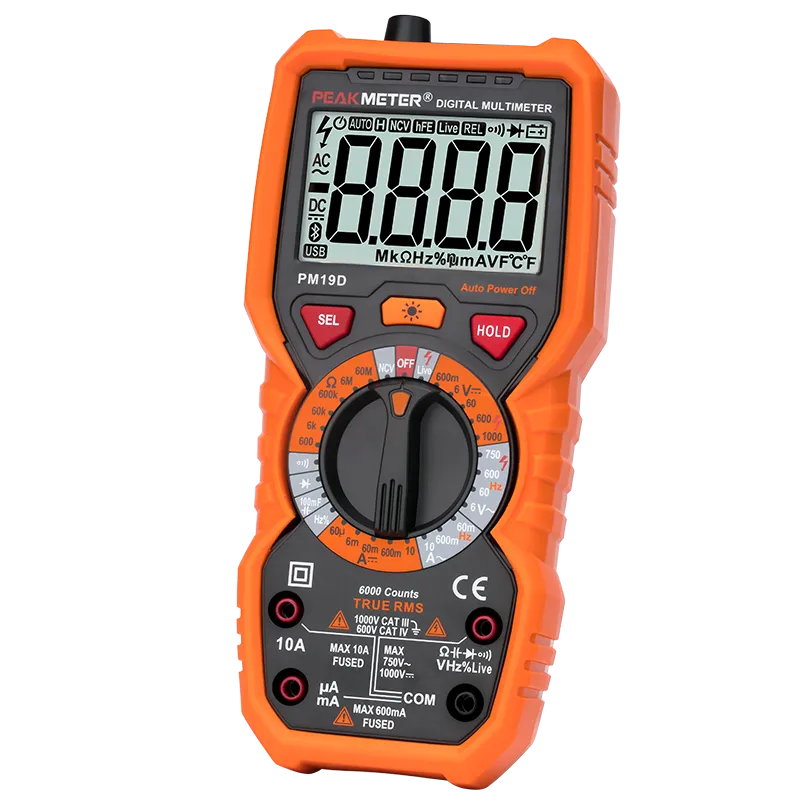

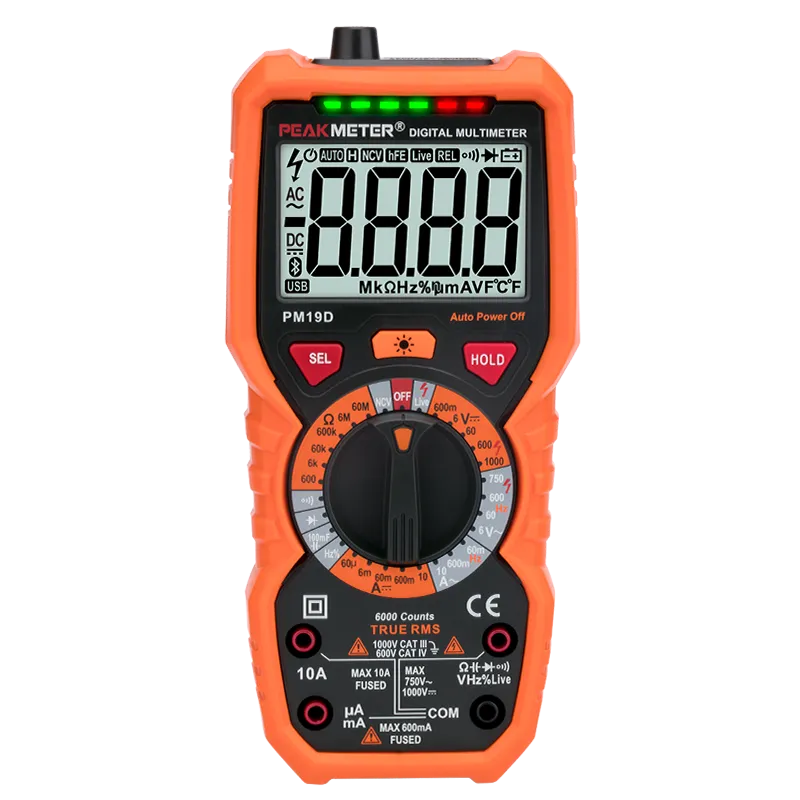

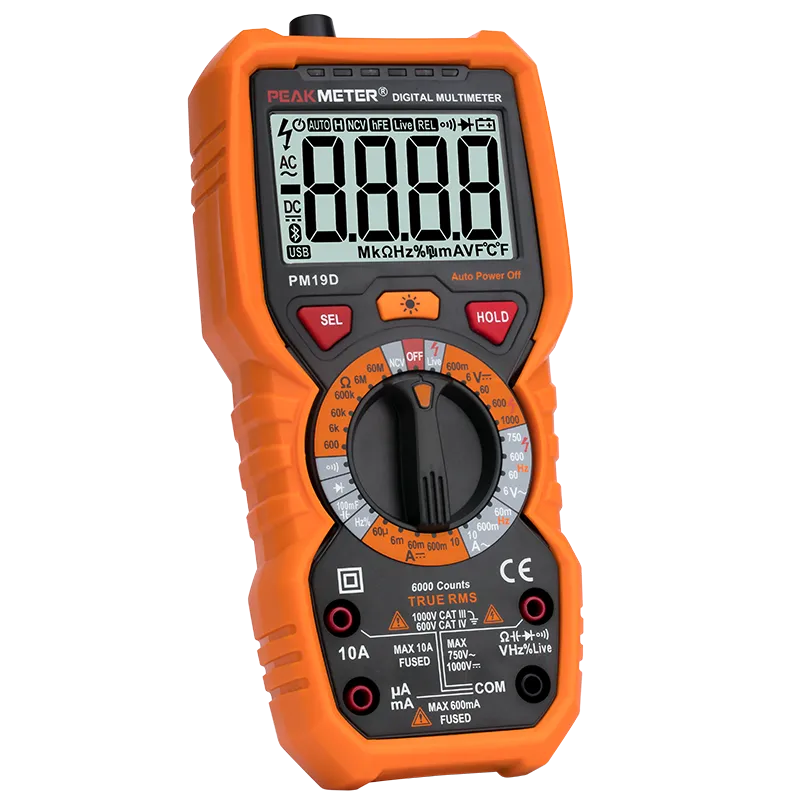

This meter is a hand-held digital multi-meter with the function of displaying True RMS. It is a large-screen LCD unit with backlight and illumination light functions so that users can easily recognize reading. It is equipped with the function of overload protection and the indicator of battery under voltage. The meter provides DC voltage measuring ranges as follow: 600mV, 6V, 60V, 600V and 1000V. and AC voltage measuring ranges: 6V, 60V, 600V and 750V. The measured value of the electric resistance of the circuit differs a bit from the rated value of the electric resistance. The measuring ranges of electric resistance of this meter are 600Ω,6kΩ, 60kΩ, 600kΩ,6MΩ,60MΩ. The meter provide DC AC current measurement, frequency measurement, capacitance measurement, NCV test and live line test.
Display: 6000 Counts
ACV/ACA TRMS
ACV (Bandwidth): 1kHz
Frequency: 10MHz
Duty: 5%~99%
Resistance: 60MΩ
Capacitance: 100mF
Continulty
Diode Test
HFE
Live Line Test (High, MediumAnd Low) Sound And LED Alarm
Work Light
Low Battery Indication
NCV (High, Medium And Low) Sound And LED Alarm
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 6V/60V | ±（0.8%+3） |
| 600V/750V | ±（1%+10） | |
| DC Current | 60μA/60mA/600mA | ±（0.8%+3） |
| 10A | ±（1.2%+3） | |
| AC Current | 60mA/600mA | ±（1.0%+3） |
| 10A | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（0.8%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 6nF | ±（4.0%+30） |
| 60nF/600nF/6μF/60μF/ 600μF/6mF/ | ±（4.0%+3） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ/9.999MHZ | ±（1.0%+3） |
| Duty | 5%～95% | ±（2.0%+3） |
| FEATURES | ||
| Display | 6000Counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Frequency | 10MHZ | |
| Duty | 5%～95% | |
| Resistance | 60MΩ | |
| Capacitance | 100mF | |
| Continuity（Sound and LED ALarm） | √ | |
| Diode Test | √ | |
| hFE | √ | |
| Live Line Test： | (high,mediumand low)Sound And LED Alarm | |
| Work Light | √ | |
| Low Battery Indication | √ | |
| NCV | (high,mediumand low)Sound And LED Alarm | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4x1.5V AA batteries | |
| Net weight | Approx.380g(included batteries) | |
| Gross weight | 588g | |
| Product Size | 190mmx89mmx50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 208mmx128mmx59mm | |
| Carton Size | 440mmx310mmx410mm | |
| G.W | 18.6kg | |
Test Leads | Users Manual | 4*1.5V AAA batteries |
