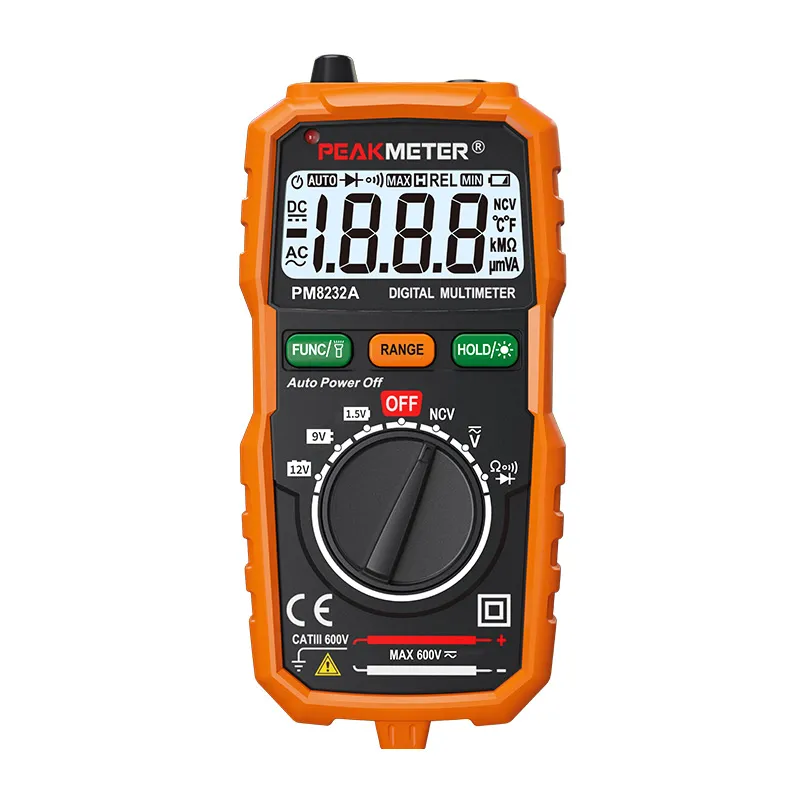

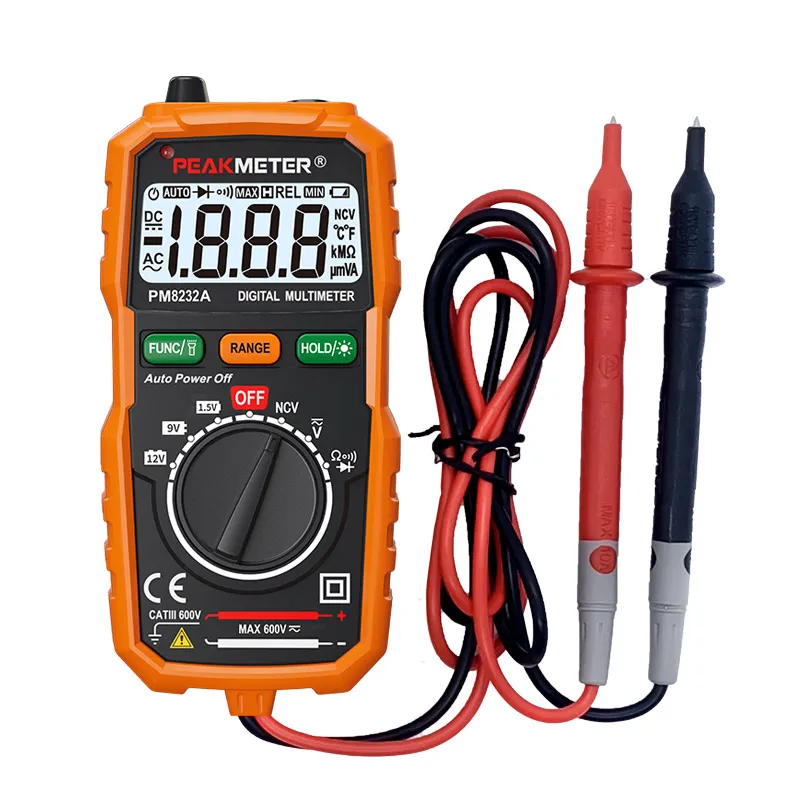

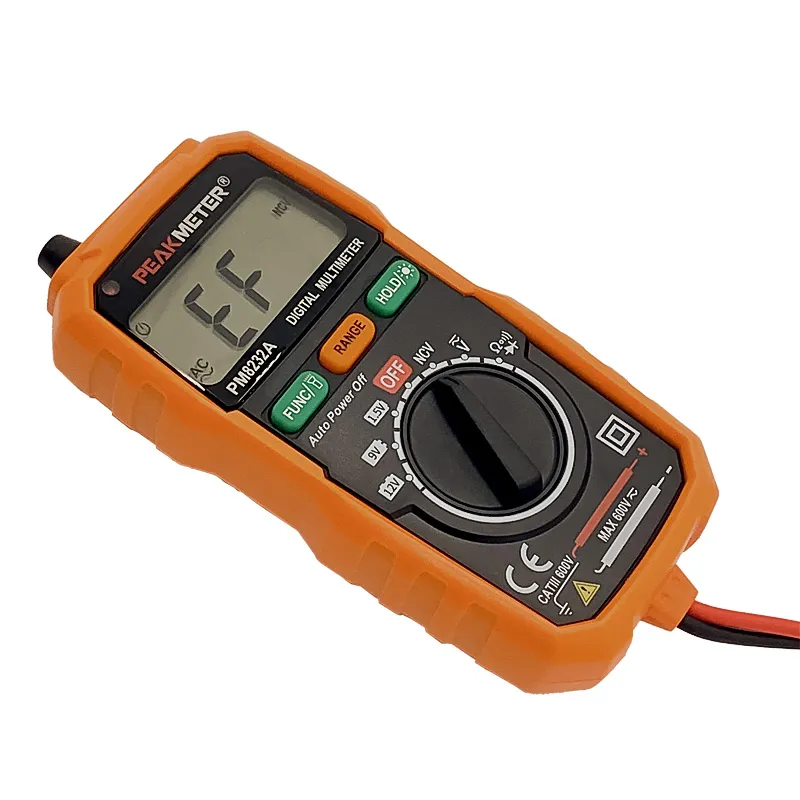

PM8232A is a portable digital multimeter. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it’s an ideal measuring instrument for the majority of users. The instrument can measure DC Voltage, AC Voltage, Resistance, 1.5V/9V/12V Battery, diode and continuity, with NCV voltage detection.
600V AC/DC Voltage Measurement

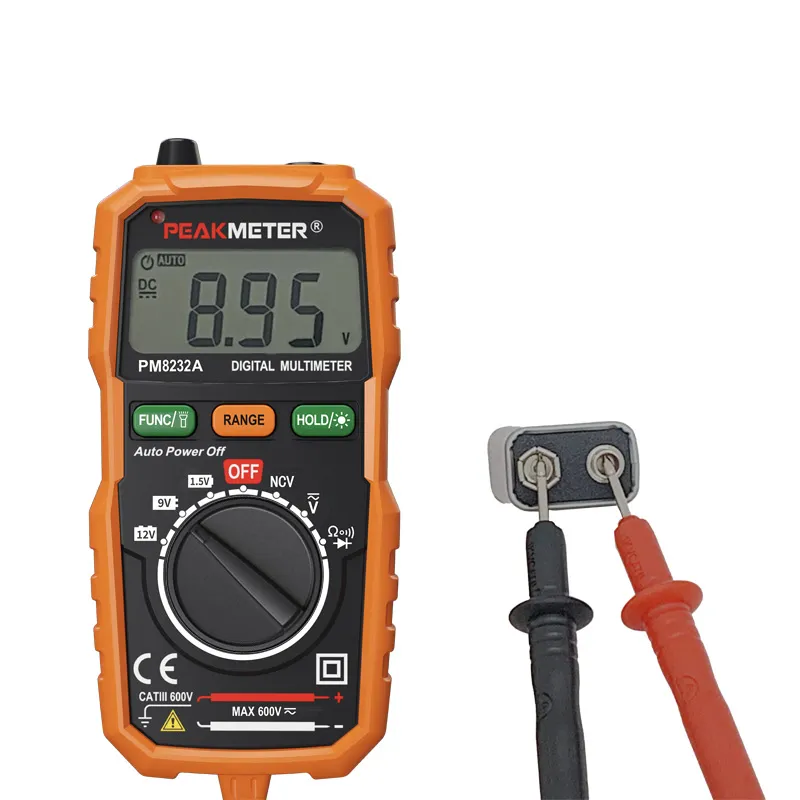

1.5V/9V/12V Battery Measurement
Resistance Measurement and NCV Detection
Data Hold
Back Light

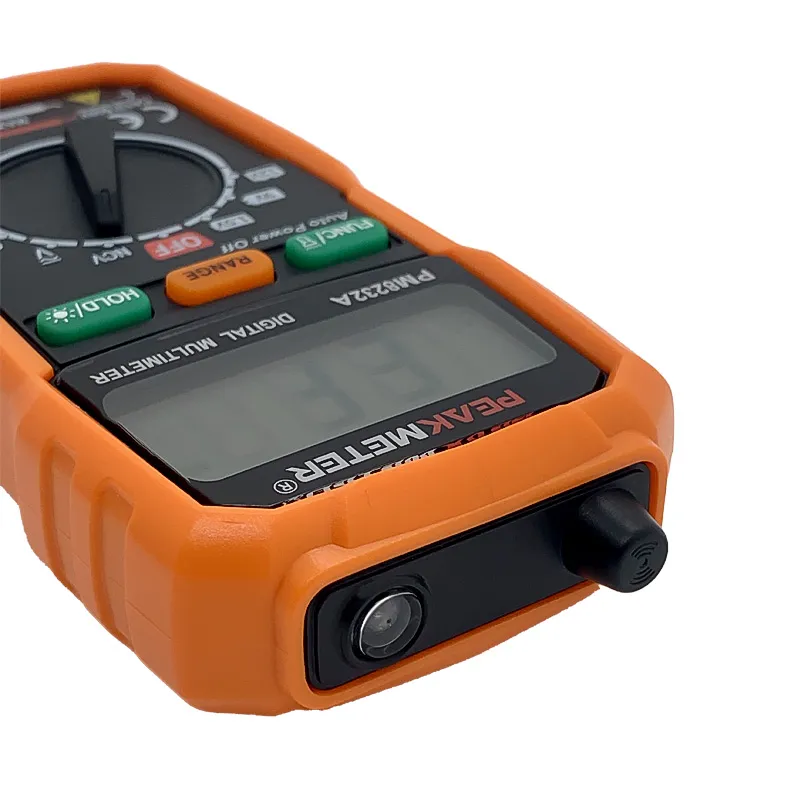

Work Light Functions

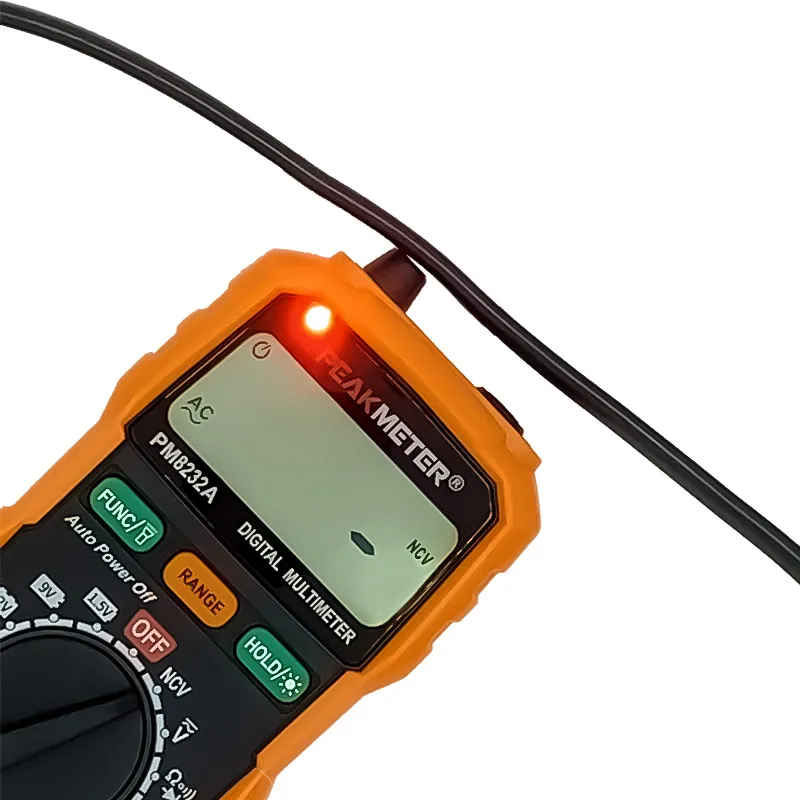

NCV Detection
Auto Power Off
Diode Test

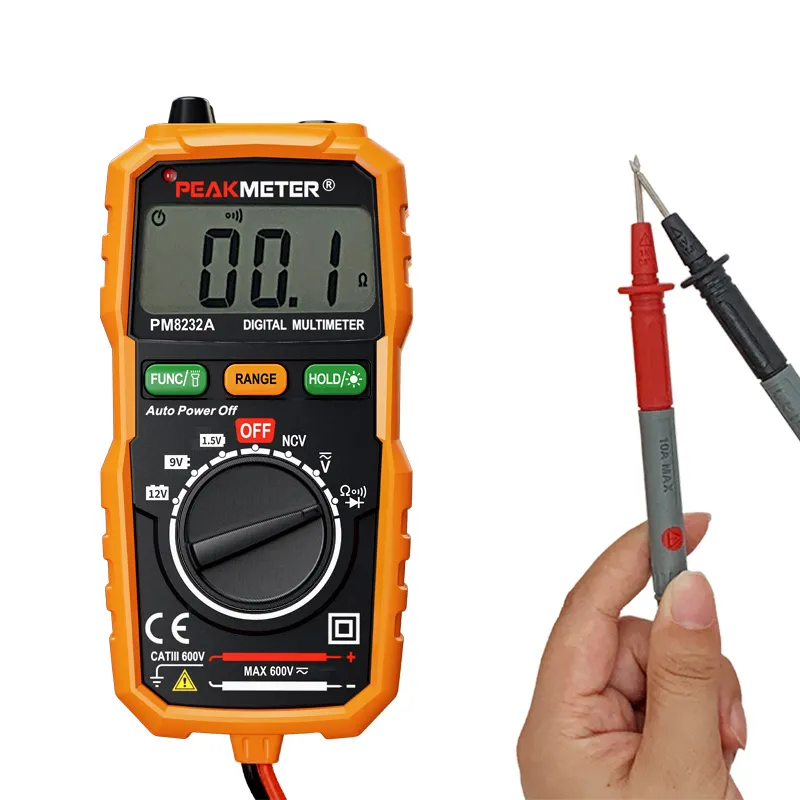

Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V | ±（0.8%+5） |
| 200V/600V | ±（1.0%+5） | |
| AC Voltage | 2V/20V/200V/600V | ±（1.2%+5） |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±（0.8%+3） |
| Battery Test | 1.5V Load 75Ω | ±（0.8%+5） |
| 9.0V Load 510Ω | ||
| 12.0V Load 680Ω | ||
| Operating temperature and humidity | 0~40℃ (<80% RH, not considered when <10℃) | |
| Storage temperature and humidity | –10~60℃ (<70% RH without battery) | |
| Altitude | < 2000 m | |
| FEATURES | ||
| Range Switching | Manual Switching/Automatic Switching | |
| Diode Test | √ | |
| Data Hold | √ | |
| Continuity | √ | |
| NCV | √ | |
| Work Light | √ | |
| Back Light | √ | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.150g | |
| Gross weight | 186g | |
| Product Size | 128mm×61mm×25mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 90 pcs | |
| Color Box Size | 142mm×90mm×35mm | |
| Carton Size | 445mm×370mm×290mm | |
| G.W | 17.5kg | |

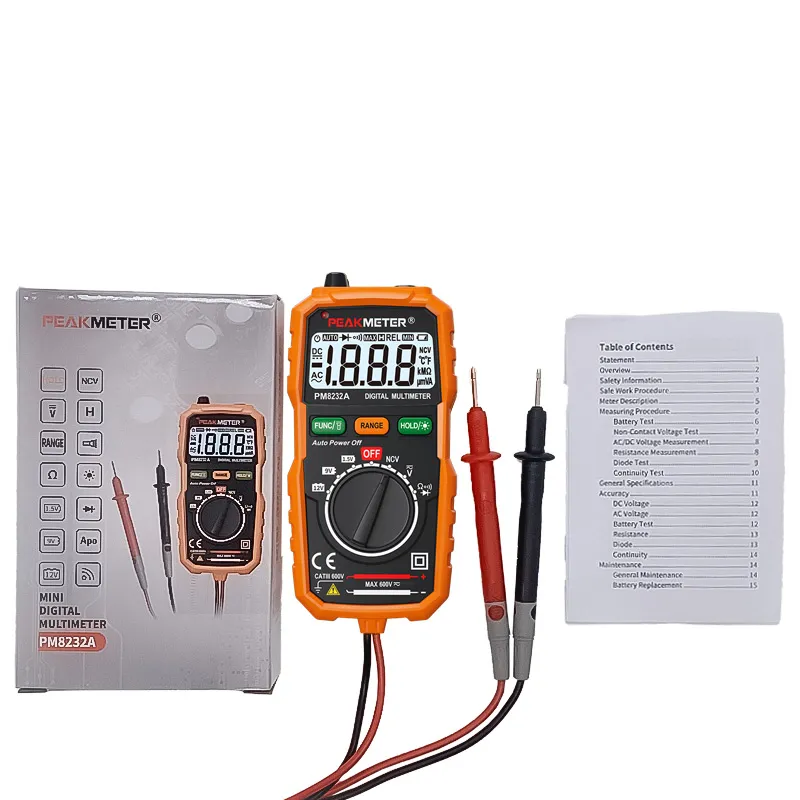

| 2*1.5V AAA Batteries | Users Manual |
