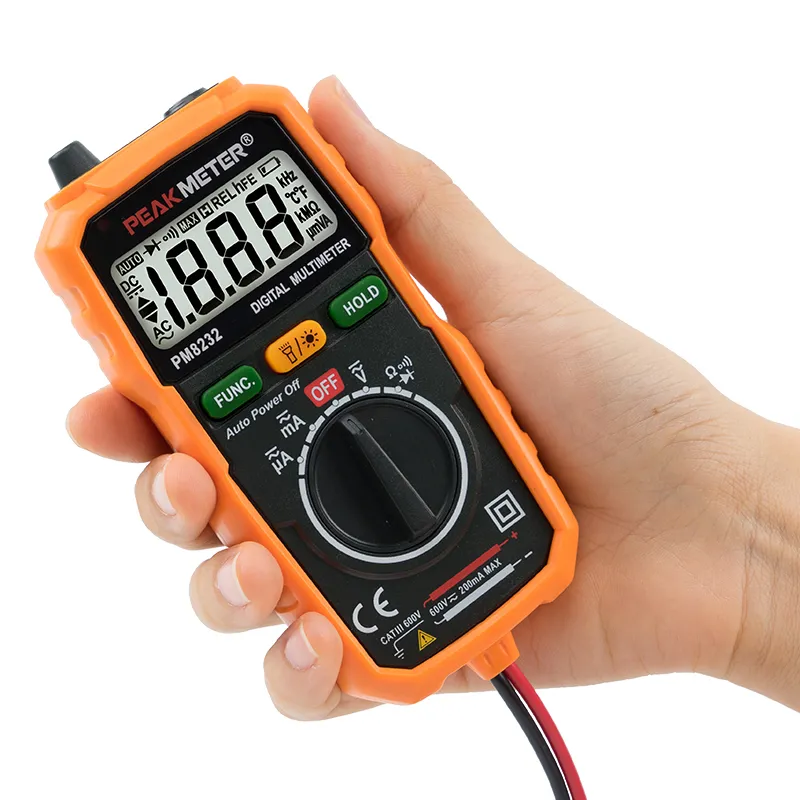

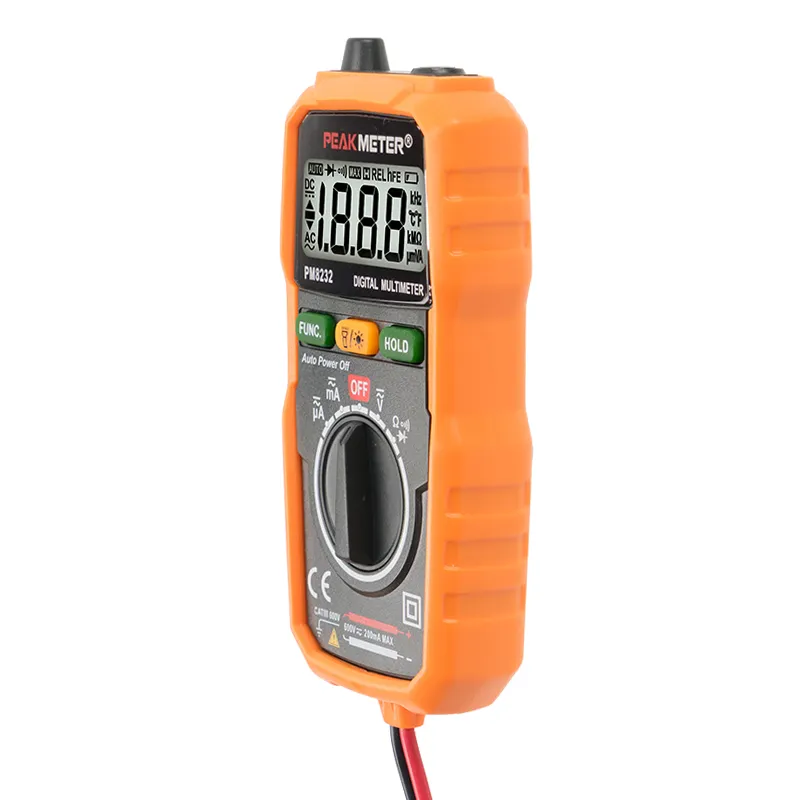

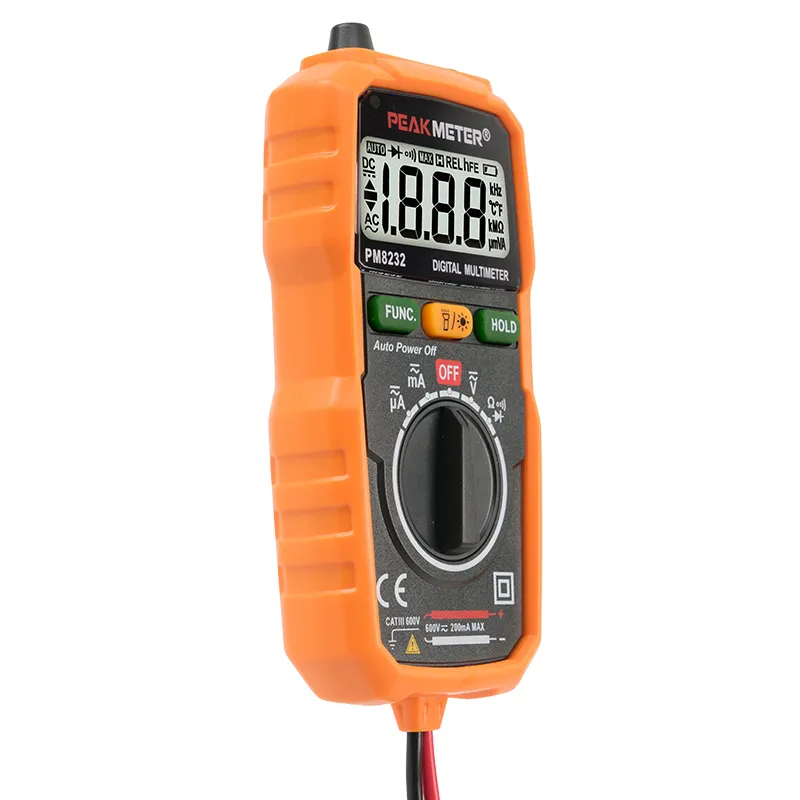

This instrument is a portable digital multimeter, It has stable performance, high precision, low power consumption, novel structure. Safe and relaible, It is an ideal measuring instrument for the majority of the users. The instrument can measure DCvoltage, AC voltage, DC current, AC current, resistance. diode and connectivity; with non-contact voltage detection function, timely remind the users to pay attention to the operation safety. So it is more safe and rest assured for users to use. PM8232 is designed and manufactured strictly in accordance with the safety standard IEC61010 and in conformity with double insulation, over-voltage standard 600V CAT Ⅲ and pollution level 2 safety standards.It can measure AC & DC Voltage, AC & DC Current, resistance and connectivity test, NCV detection.
Display: 2000 Counts
Data Hold
Data Hold
Continuity
NCV
Work Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+3） |
| 600V | ±（0.8%+5） | |
| AC Voltage | 2V/20V/200V | ±（0.8%+3） |
| 600V | ±（1.0%+5） | |
| DC Current | 200uA/2000uA/20mA/200mA | ±（1.8%+5） |
| AC Current | 200uA/2000uA/20mA/200mA | ±（2.0%+5） |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±（1.0%+3） |
| 20MΩ | ±（1.2%+15） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Diode Test | √ | |
| Data Hold | √ | |
| Continuity | √ | |
| NCV | √ | |
| Work Light | √ | |
| BackLight | √ | |
| GENERAL | ||

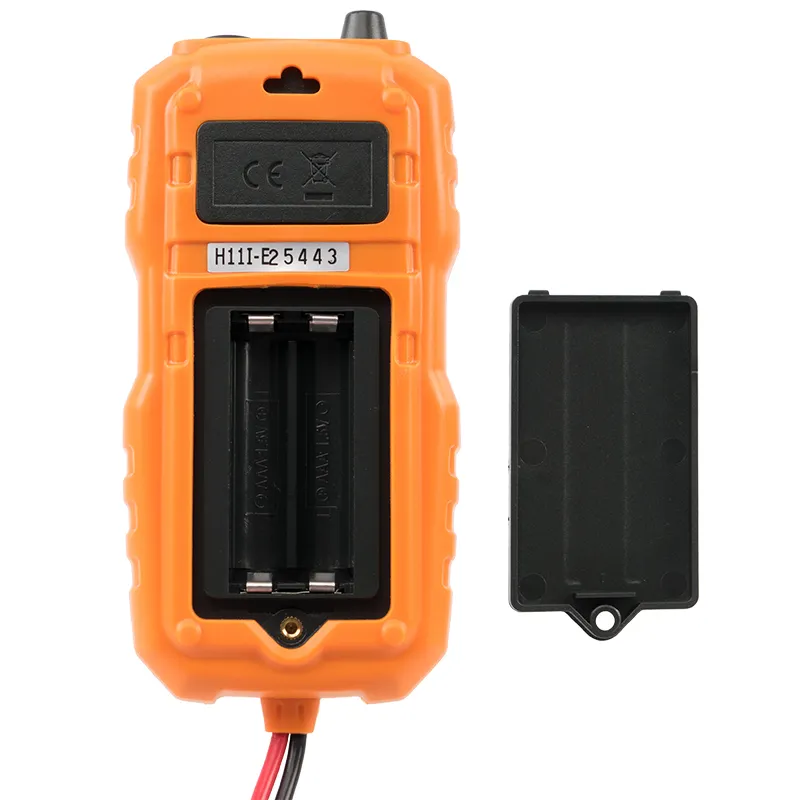

| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.150g(batteries are not included） | |
| Gross weight | 216g | |
| Product Size | 128mm×61mm×25mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 90 pcs | |
| Color Box Size | 142mm×88mm×35mm | |
| Carton Size | 445mm×370mm×290mm | |
| G.W | 20.5kg | |

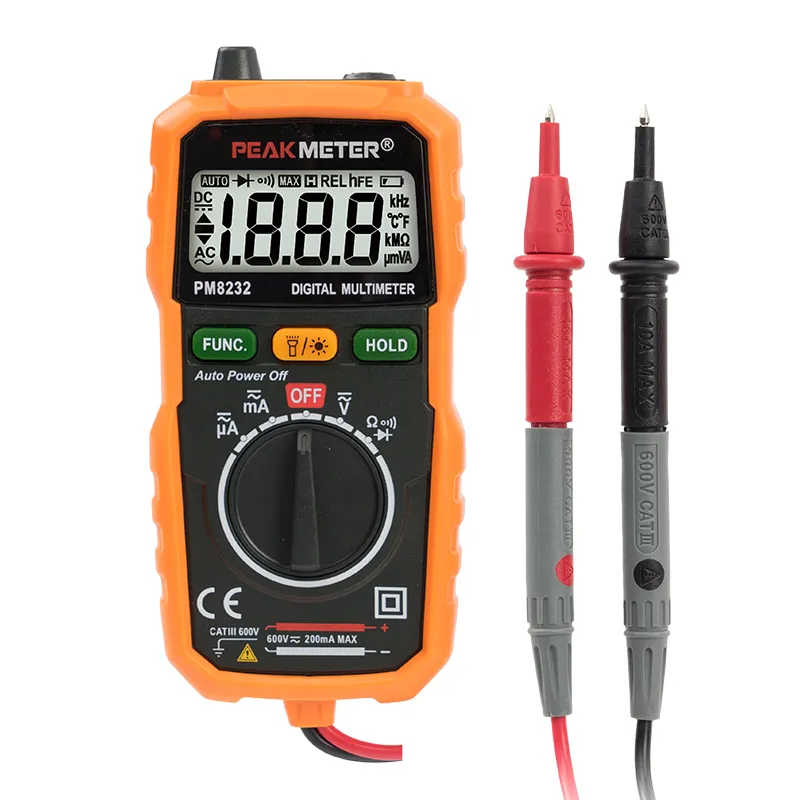

| Test Leads | Users Manual | 2*1.5V AAA batteries |
