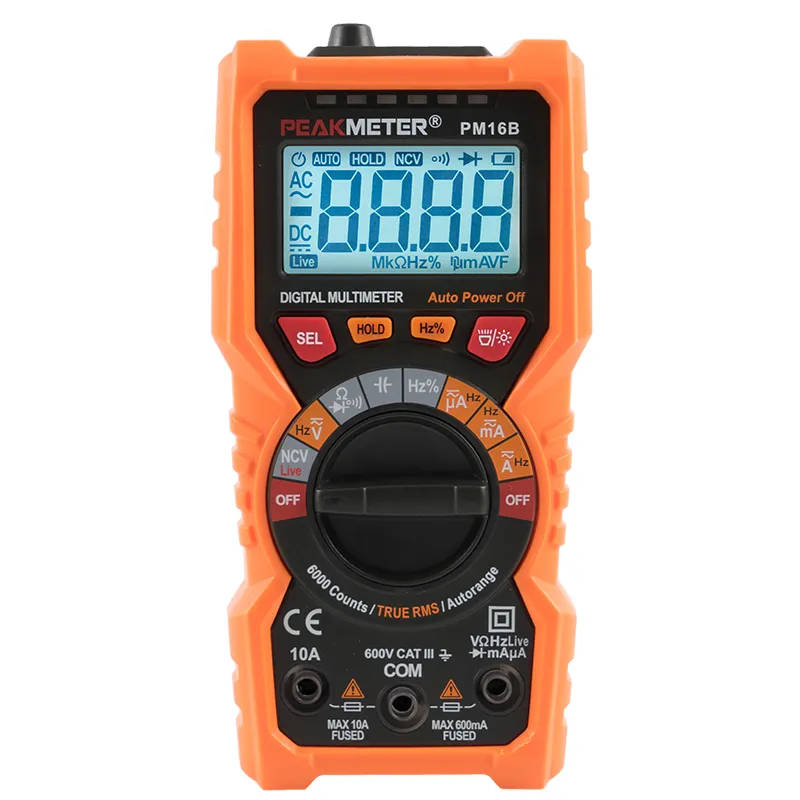

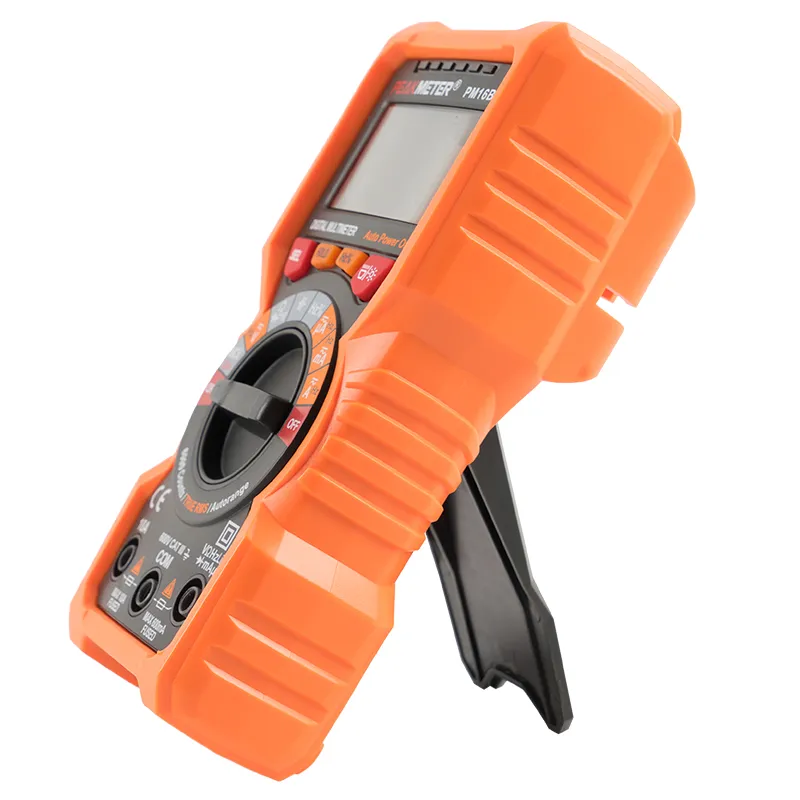

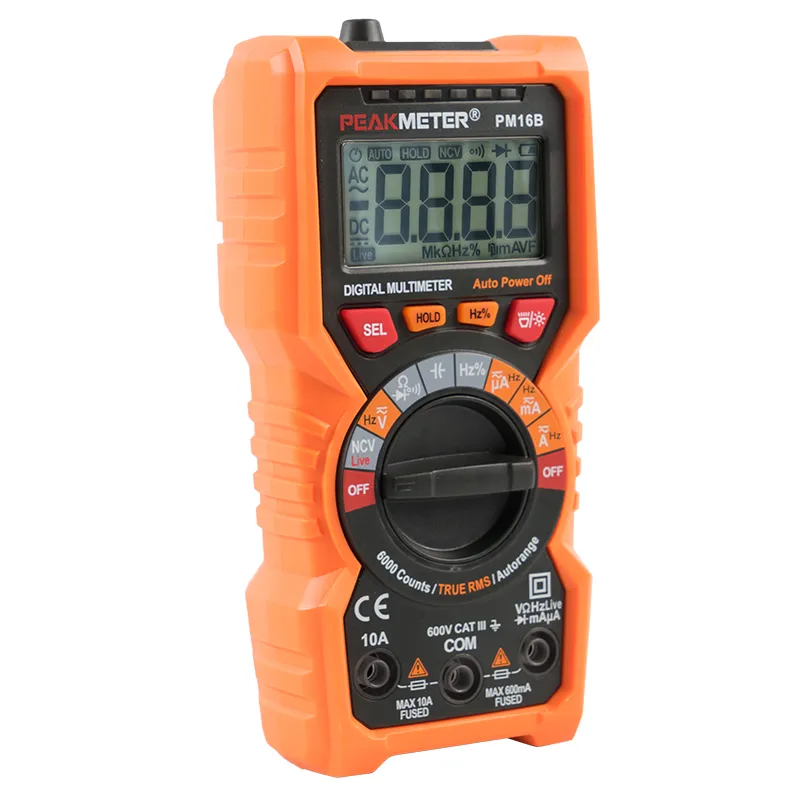

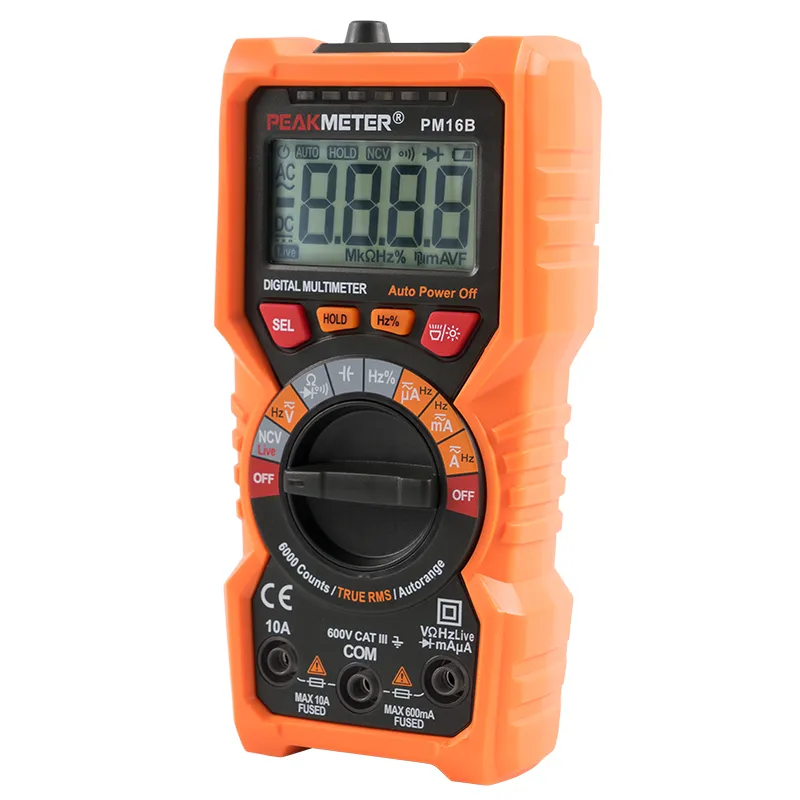

PM16B is a handheld digital multimeter with 6000 count true RMS display and backlight function. It can measure AC&DC voltage and current, resistance, capacitance, frequency, and also detect live wires, diodes. This instrument is an ideal choice for students, factories or laboratories.
The instrument is configured with backlight and lighting function, so that users could read measurement results accurately even under unsound lighting conditions.
Non-Contact AC Voltage Detection in 3 Levels
Live Wire Detection with Single Test Lead
Audible Continuity Test in 3 Levels

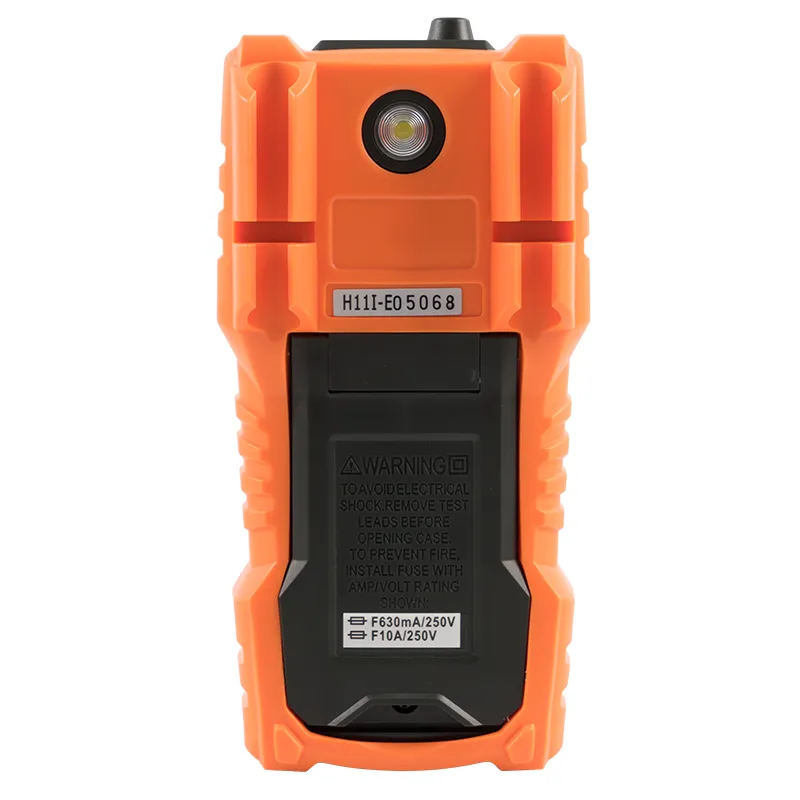

Extra Bright Torch Lamp Built on Back
Input Socket Light Indication
True RMS AC Measurement (40HZ~1KHZ)
Display Frequency at ACV/ACA Measurement
Data Hold, Auto Ranging, Auto Power-off
10A/600V Fused , Full Ranges Protection
Safety as Per IEC 1010-1 Cat.III 600V
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V | ±（0.5%+3） |
| AC Voltage | 6V/60V/600V | ±（0.8%+3）(＜500HZ) |
| ±（1.5%+10）(＝500HZ) | ||
| DC Current | 600uA/6000uA/60mA/600mA | ±（0.8%+3） |
| 6A/10A | ±（1.2%+3） | |
| AC Current | 600uA/6000uA/60mA/600mA | ±（1.0%+3） |
| 6A/10A | ±（1.5%+3） | |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±（0.8%+3） |
| Capacitance | 10nF | ±（4.0%+10） |
| 100nF/1000nF/10uF/100μF/1000μF/10mF | ±（4.0%+3） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ/ 9.999MHZ | ±（0.5%+3） |
| Duty | 1%～99% | ±（2.0%+2） |
| FEATURES | ||
| Display | 6000 counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Frequency | √ | |
| Duty | √ | |
| Live | √ | |
| Capacitance | √ | |
| Continuity | √ | |
| Diode Test | √ | |
| Low Battery Indication | √ | |
| BackLight | √ | |
| Work Light | √ | |
| Flash Light | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4x1.5AAA batteries | |
| Net weight | 226g(batteries are not included） | |
| Gross weight | 341g | |
| Product Size | 150mmx74mmx48mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.IIl 1000V CAT.IV 600V | |
| Package（PCS/carton） | 40 PCS | |
| Color Box Size | 155mmx111mmx55mm | |
| Carton Size | 580mmx330mmx246mm | |
| G.W | 14.7kg | |
| Test Leads | Users Manual | 4x1.5V AAA batteries |
