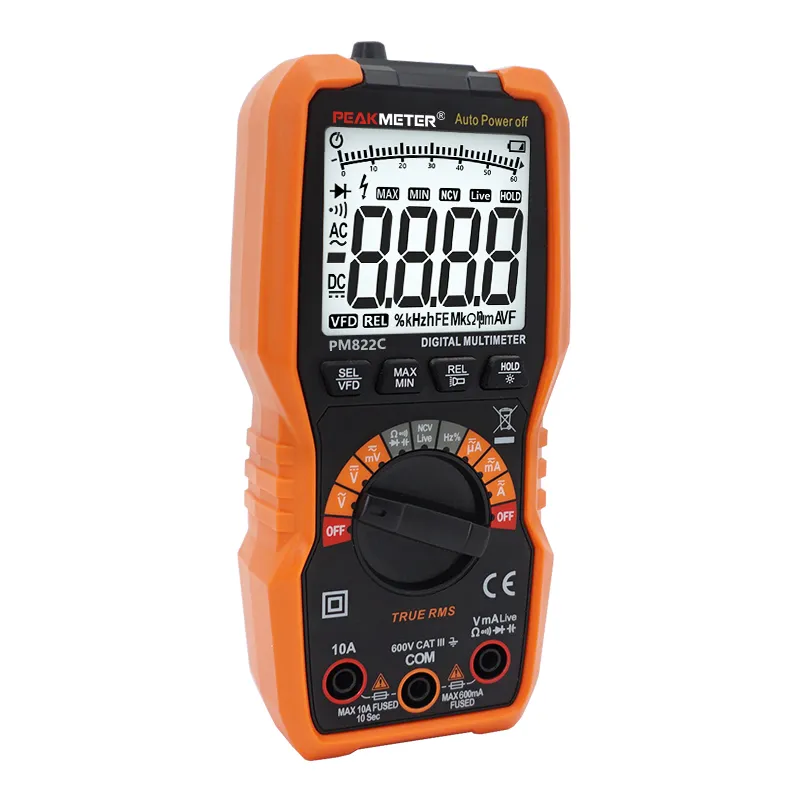

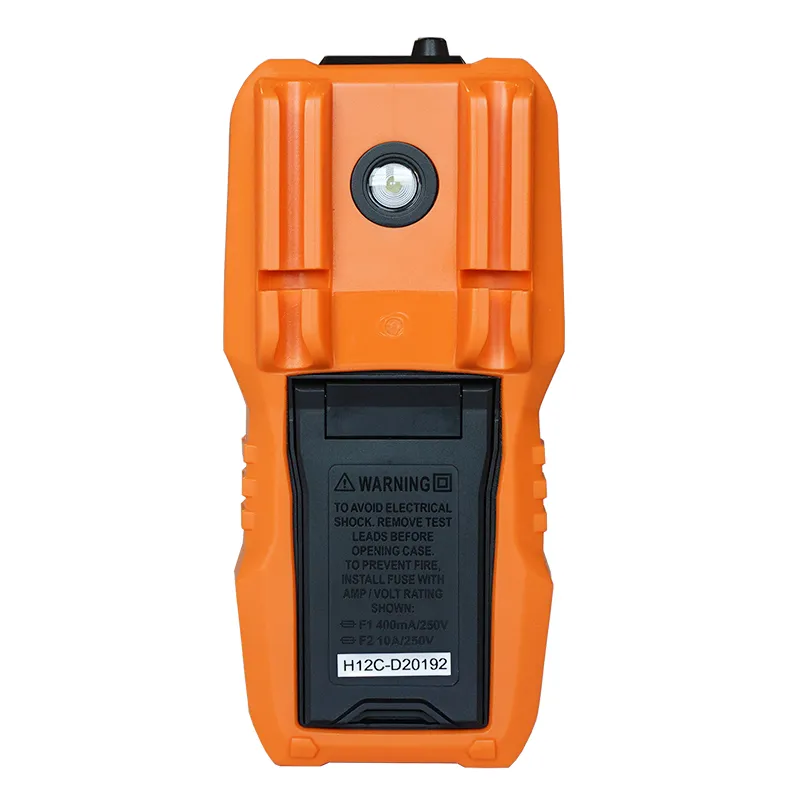

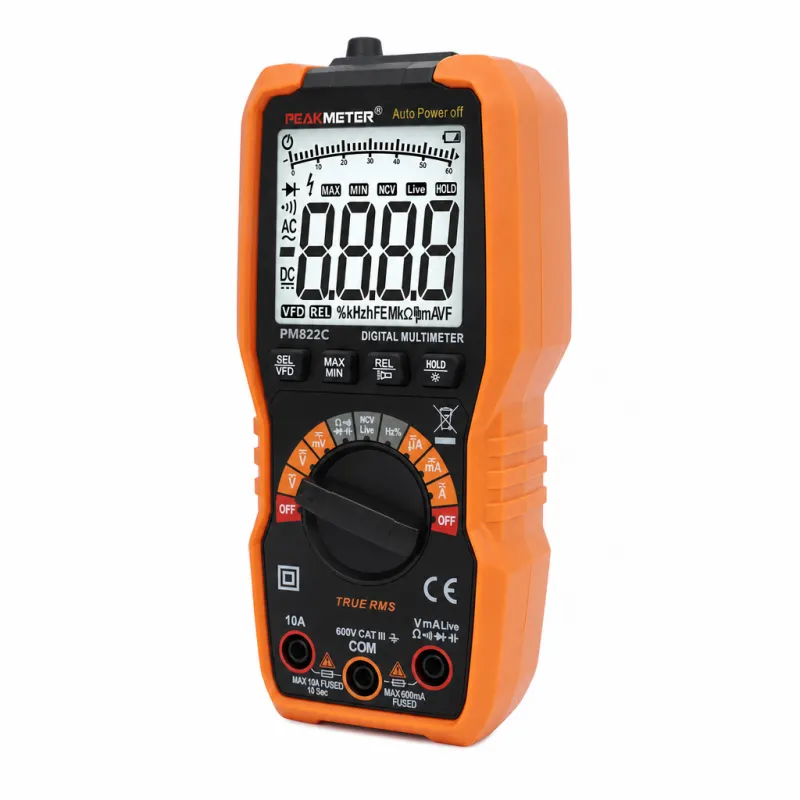

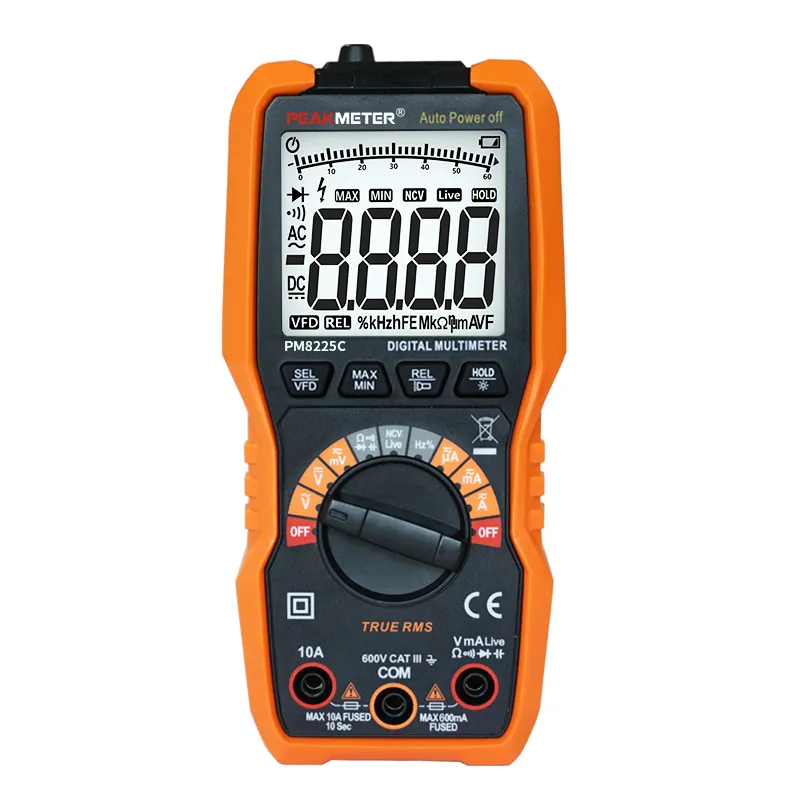

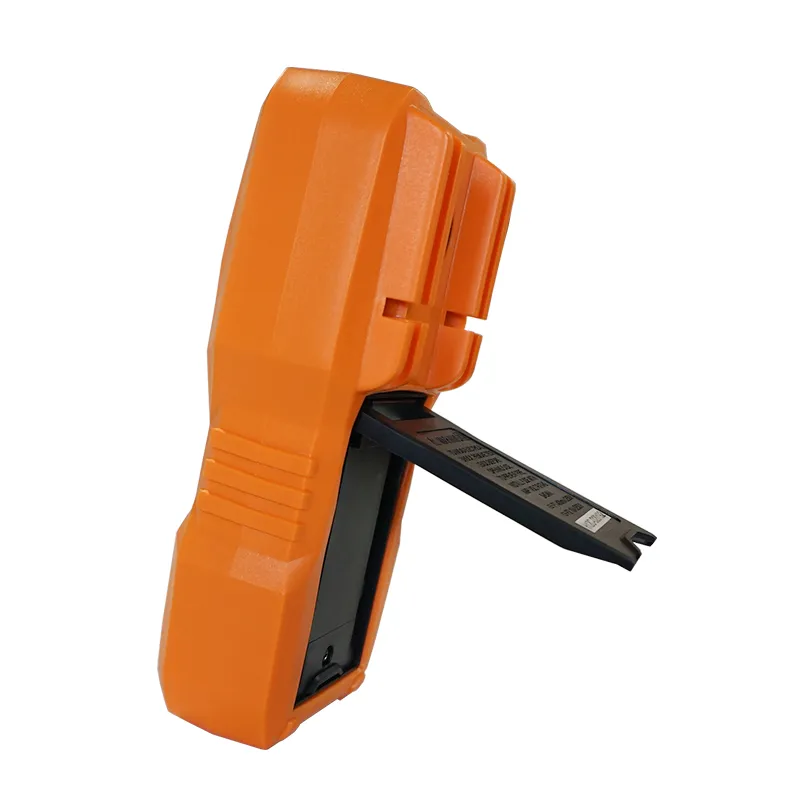

PM8225C is a handheld digital multimeter. This instrument retains the features of PM8225’s large LCD screen, dust-proof dial, and soft rubber protective shell, and has been further upgraded in functions, buttons, dials, etc. 6000 counts display, high precision measurement. In addition to AC and DC voltage, DC current, resistance measurement and NCV, continuity detection, the function adds AC current, capacitance, frequency measurement and live wire detection. The function keys are clear and easy to operate, and the range is automatically selected to reduce the user’s operation. The meter is designed with an anti-burning circuit, with two fuses of 600mA/600V and 10A/600V to protect the meter circuit. The meter is portable and suitable for many different occasions.
Display: 6000 Counts
Manual Range
Auto Range
Bargraph Display
Data Hold
VFD Measurement
Relative Measurement
MAX/MIN Measurement
Diode Test
Continuity
NCV Non-Contact Voltage Detection
Live Line Voltage Detection
Back Light
Flashlight
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 60mV/600mV/6V/60V/600V | ±(0.5% +3) |
| DC Current | 600μA/6mA/60mA | ±(0.8% +3) |
| 600mA | ±(1.0% +3) | |
| 6A/10A | ±(1.2% +3) | |
| AC Voltage | 60mV/600mV/6V/60V/600V | ±(0.8% +3) |
| AC Current | 600μA | ±(1.0% +5) |
| 6mA/60mA | ±(1.0% +3) | |
| 600mA | ±(1.2% +3) | |
| 6A/10A | ±(1.5% +3) | |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6mΩ | ±(1.2% +5) |
| 60mΩ | ±(2.0% +5) | |
| Capacitance | 10nF/100nF/1μF/10μF/ 100μF | ±(3.0% +5) |
| 1mF/10mF | ±(4.0% +5) | |
| 100mF | ±(5.0% +5) | |
| Temperature | ||
| Frequency | 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz | ±(1.0% +5) |
| Duty | 1%~99% | ±(3.0% +5) |
| FEATURE | ||
| Display | 6000 counts | |
| Manual Range | √ | |
| Auto Range | √ | |
| Bargraph Display | √ | |
| Data Hold | √ | |
| VFD Measurement | √ | |
| Relative Measurement | √ | |
| MAX/MIN Measurement | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| NCV | √ | |
| Live Line Voltage Detection | √ | |
| Black Light | √ | |
| Work Light | √ | |
| K-type Thermocouple Temperature | ||
| GENERAL | ||
| Power Supply | 2x1.5V AAA Batteries | |
| Product Size | 166mm X 78mm X 48mm | |
| Net weight | 252.2g (not include batteries） | |
| Gross weight | 354.4g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600V | |
| Package（PCS/carton） | 30pcs | |
| Color Box Size | 180mm X 88mm X 55mm | |
| Carton Size | 400mm X 320mm X 380mm | |
| G.W | 11.7kg | |
K Type Thermocouple | Test Leads | Users Manual | 2*1.5V AAA batteries |
