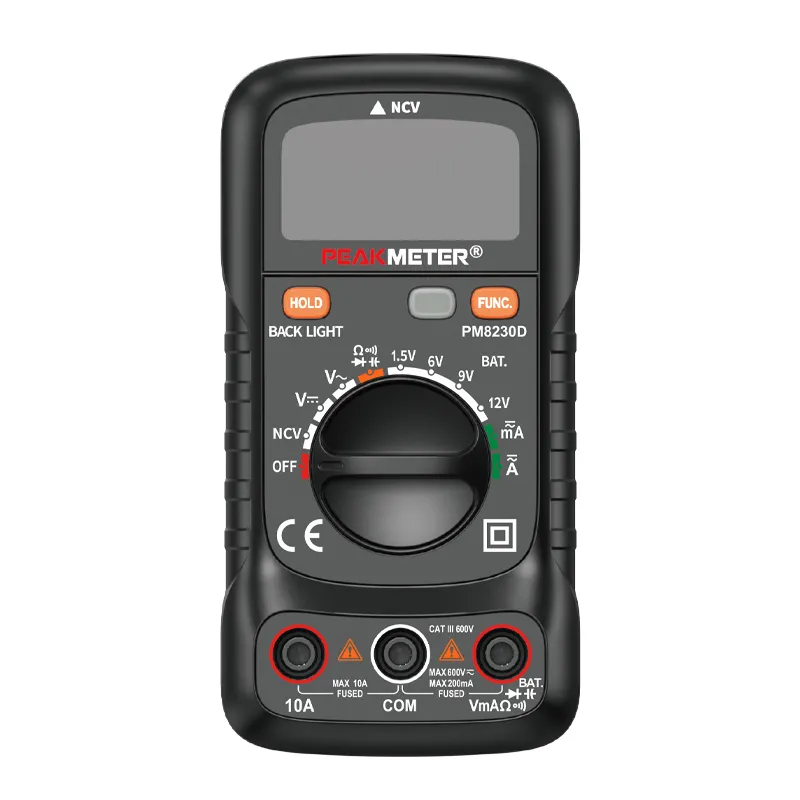

PM8230D is an auto/manual ranging digital multimeter with 2000-count high-resolution display. It tests voltage, resistance, capacitance, 20kHz frequency and DC current, equipped with backlight, data hold, MAX value capture and battery voltage check. Compact lightweight body meets CAT II 600V safety standard. Ideal for electronic DIY, laboratory teaching, home appliance maintenance and daily circuit fault inspection.
Display: 2000 Counts
Auto Range
MAX Measurement
Low Battery Indication
Data Hold
Back Light
Battery Measurement Function (1.5V/6V/9V)
Fuse
| SPECIFICATION | RANGE | ACCURACY | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） | ±（0.5%+2） |
| 600V | ±（0.8%+2) | ±（0.8%+2) | |
| AC Voltage | 200mV/2V/20V/200V | ±（1.0%+3） | ±（1.0%+3） |
| 600V | ±（1.2%+3） | ±（1.2%+3） | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±（0.8%+2） | ±（0.8%+2） |
| 20MΩ | ±（1.0%+2） | ±（1.0%+2） | |
| Capacitance | 20nF/200nF/2uF/20uF/200uF/2mF | ±（4.0%+5） | ±（4.0%+5） |
| DC Current | 2000μA(OnlyPM8230E)/2mA | ±（1.5%+3） | ±（1.5%+3） |
| 20mA/200mA | |||
| 10A | |||
| AC Current | 2000μA(OnlyPM8230E)/2mA | ±（1.5%+4） | ±（1.5%+4） |
| 20mA/200mA | |||
| 10A | |||
| Frequency | 20kHz (OnlyPM8230E) | ±（1.5%+5） | ±（1.2%+5） |
| FEATURES | |||
| PM8233D | |||
| Display | 2000 Counts | ||
| Manual Range | |||
| Auto Range | √ | ||
| MAX Measurement | √ | ||
| Low Battery Indication | √ | ||
| Data Hold | √ | ||
| Backlight | √ | ||
| Battery Measurement Function | 1.5V/6V/9V | ||
| Fuse | √ | ||
| GENERAL | |||
| Power Supply | 2X1.5V AAA batteries | ||
| Weight | Approx. 126g (no leather case and batteryincluded) | ||
| Product Size | 129x66x33mm (no leather case included) | ||
| Safety Rating | IEC61010-1,IEC 61010-2-032 CAT III600V | ||
| Package（PCS/carton） | |||
| Color Box Size | |||
| Carton Size | |||
| G.W | |||
| Test Leads | Users Manual | DC 9V 6F22 Battery |
